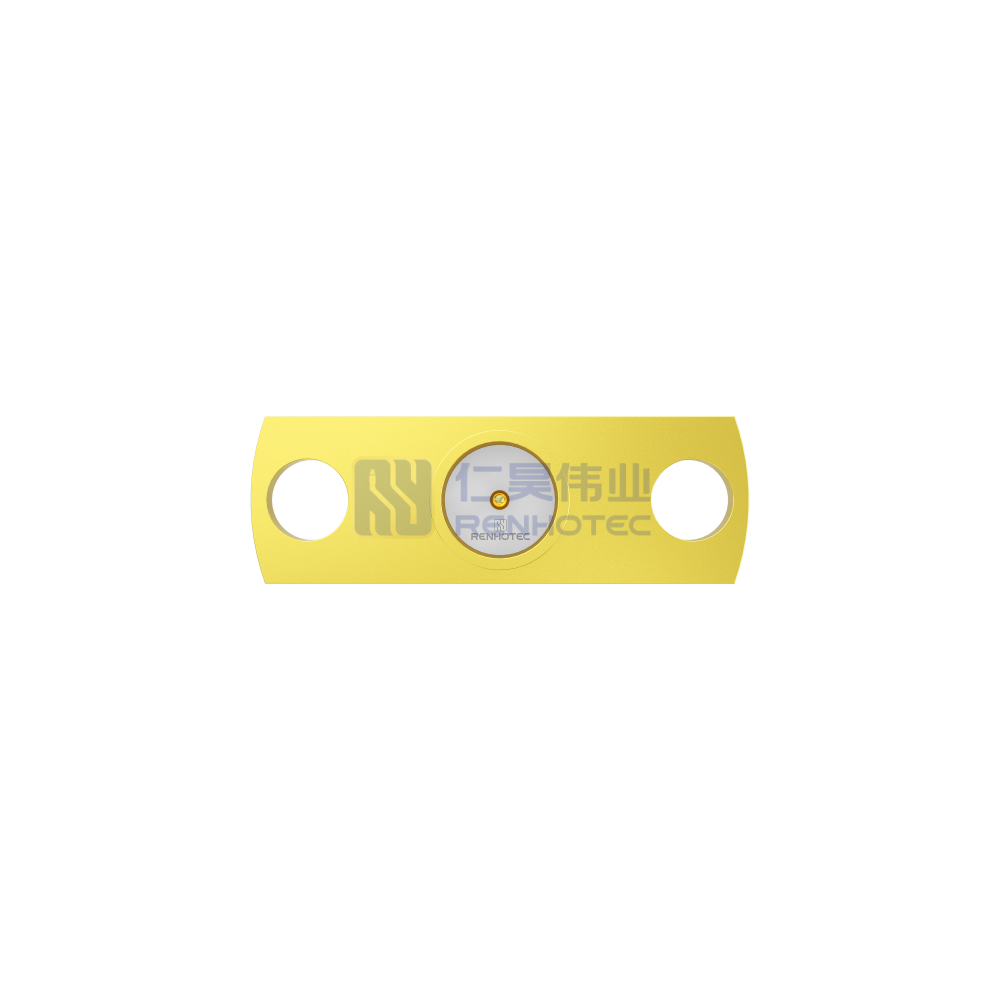

SMP Male (Full Detent) 2-Hole Flange Connector - RHT-628-2043

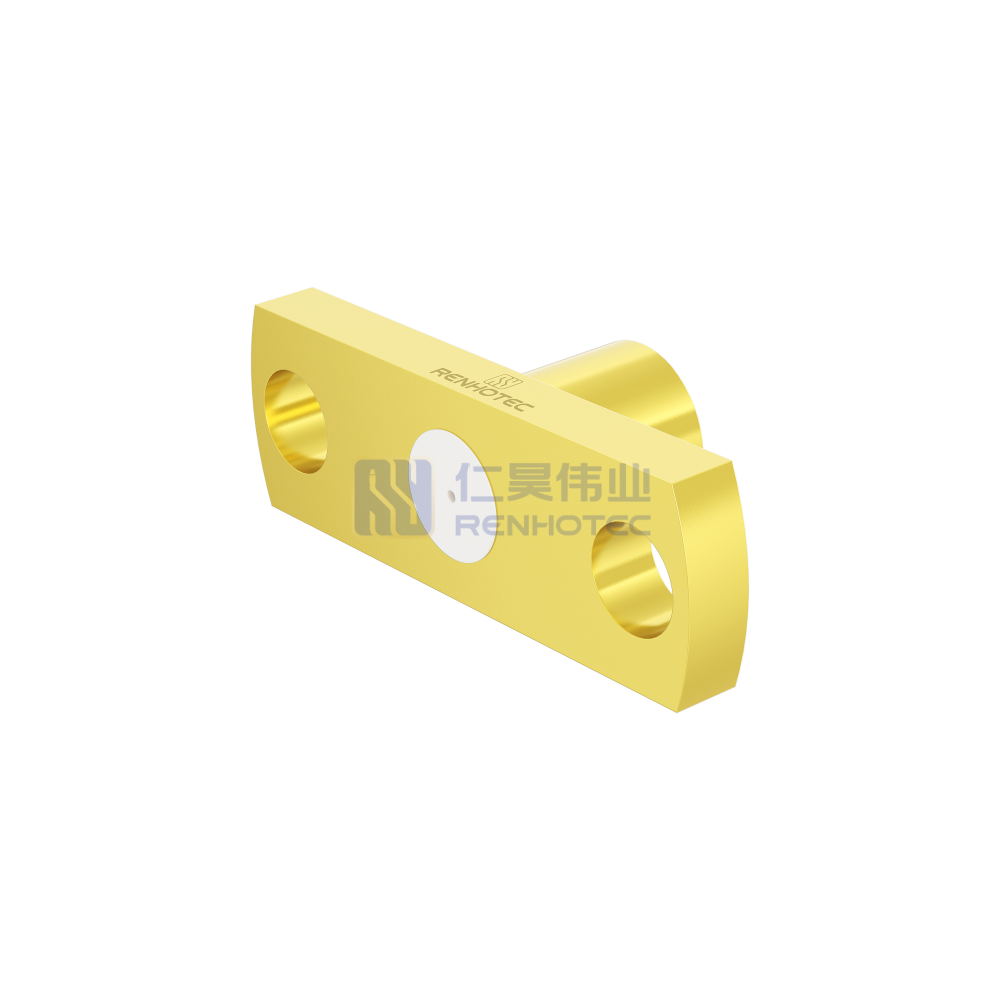

SMP Male (Full Detent) 2-Hole Flange Connector - RHT-628-2043 - Image 2

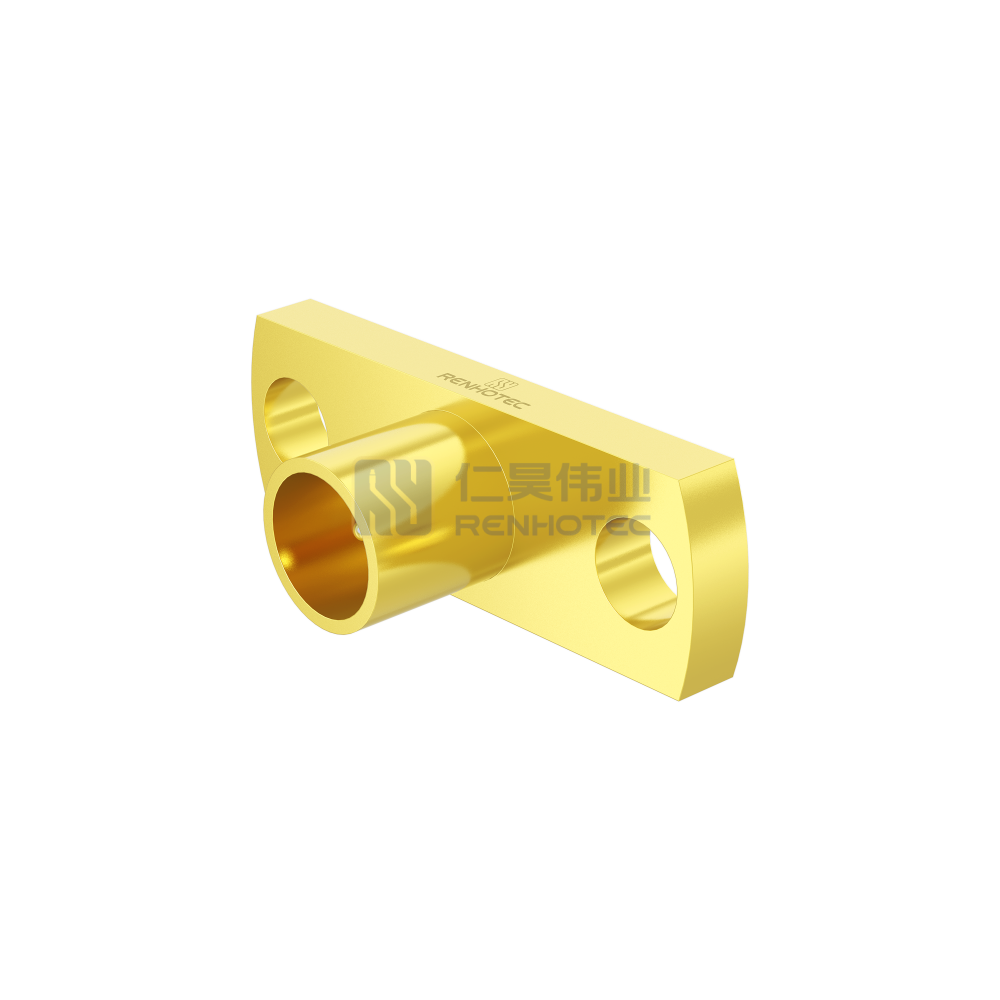

SMP Male (Full Detent) 2-Hole Flange Connector - RHT-628-2043 - Image 3

SMP Male (Full Detent) 2-Hole Flange Connector – RHT-628-2043

SKU RHT-628-2043 Category SMP Connector

Product Files

Open drawing and specification files.

Drawing PDF Catalog PDF RHT-628-2043 SMP Connectors Specs & Datasheet PDF

SMP male connector with full detent and 2-hole flange mounting, 50Ω, positive locking mechanism ensures secure mating, supports 40 GHz operation, widely used in vibration-prone environments such as aerospace and military ground systems.

Product Specification

RF Series

SMP Type
Orientation

Straight
Connector Type

Plug
Mounting Feature

Flange
Contact Type

Male Pin
Contact Material

Beryllium Bronze
Contact Finish

Gold Plated
Insulator Material

PEI
Impedance

50 ohm
Frequency Range

DC-40GHz
VSWR

1.25 MAX
Dielectric Withstanding Voltage

500 V
Insulation Resistance

5000MΩ Min
Temperature Range

-55°C to +165°C
RF Series

SMP Type

 Orientation

Straight
Connector Type

Plug

 Mounting Feature

Flange
Contact Type

Male Pin

 Contact Material

Beryllium Bronze
Contact Finish

Gold Plated

 Insulator Material

PEI
Impedance

50 ohm

 Frequency Range

DC-40GHz
VSWR

1.25 MAX

 Dielectric Withstanding Voltage

500 V
Insulation Resistance

5000MΩ Min

 Temperature Range

-55°C to +165°C

Outer Conductor Material

Stainless Steel
Outer Contact Plating

Passivation Plating
Insertion Loss

≤0.05*√F (GHz) dB
Mating Cycles

500 Cycles mini
Outer Conductor Material

Stainless Steel

 Outer Contact Plating

Passivation Plating
Insertion Loss

≤0.05*√F (GHz) dB

 Mating Cycles

500 Cycles mini
RF Series

SMP Type
Orientation

Straight
Connector Type

Plug
Mounting Feature

Flange
Contact Type

Male Pin
Contact Material

Beryllium Bronze
Contact Finish

Gold Plated
Outer Conductor Material

Stainless Steel
Outer Contact Plating

Passivation Plating
Insulator Material

PEI
Impedance

50 ohm
Frequency Range

DC-40GHz
VSWR

1.25 MAX
Insertion Loss

≤0.05*√F (GHz) dB
Dielectric Withstanding Voltage

500 V
Insulation Resistance

5000MΩ Min
Mating Cycles

500 Cycles mini
Temperature Range

-55°C to +165°C

Renhotec Advantages

In-House Manufacturing

Support flexible manufacturing and order coordination.

Quality Control

Quality checks at key production stages help maintain product consistency and reliability.

Custom Engineering

OEM/ODM services, custom connector configurations, and prototype development.

Technical Support

Responsive assistance with product selection, configuration, and after-sales inquiries.

SMP connector VSWR Test report

VSWR Test Report – SMP Connector Straight Plug

SMP RF Connectors for Compact, High-Frequency Applications

SMP connectors (GPO) are compact RF coaxial connectors designed for high-frequency signal transmission in applications where space efficiency and reliable electrical connections are important. Featuring a push-on coupling interface, SMP connectors support quick mating and compact interconnections in RF modules, microwave assemblies, and electronic equipment.

A collection of various gold-plated SMP coaxial connectors and components displayed on a white background, including straight, right-angle, surface-mount, and through-hole types.

SMP Connector Types

Selecting the appropriate connector depends on the mating interface, mounting method, available space, and electrical design of the application.

Cable Mount

A close-up of a gold-plated SMP coaxial connector designed for PCB mounting, featuring four grounding legs and a central contact pin.

PCB Mount

Panel Mount

SMP Adapter

Technical cross-sectional diagrams of four SMP coaxial connector types: SMP Female, SMP Male (Full Detent), SMP Male (Limited Detent), and SMP Male (Smooth Bore).

Features of SMP Connectors

  • Interface Retention Styles
    Full detent, limited detent, smooth bore and catcher’s mitt.
  • 50 Ohm Impedance
    For 50-ohm RF and microwave systems.
  • Flexible Interconnections
    Cable-to-board and board-to-board applications.
  • Surface Mount Design
    Standard surface mount and swept-contact configurations.
  • Push-On & Blind Mate
    Quick mating and blind-mate installation.
  • Up to 40 GHz
    Subject to connector configuration and specifications.

Applications

Close-up of a gold-plated SMP coaxial connector soldered onto a green PCB, directly connected to a gold RF trace, illustrating its surface-mount application in RF and microwave modules.

RF & Microwave Modules

SMP connectors are used to connect RF modules, amplifiers, filters, and PCB-mounted microwave circuits.

A white wireless router with a yellow Ethernet cable in the foreground, and a blurred person using a smartphone in the background, illustrating wireless networking and telecommunications applications where SMP connectors are used.

Antenna & Radar Systems

SMP provide compact coaxial connections between antenna elements, RF front-end modules, and circuit boards.

Test & Measurement Equipment

In RF test fixtures, microwave measurement modules, and compact test assemblies, SMP push-on mating interface allows convenient connection and disconnection during testing and equipment setup.

Aerospace & Satellite Electronics

SMP can be integrated into compact avionics, satellite communication, and RF subsystem assemblies where space-efficient interconnections are required. Blind-mate configurations can support connections between aligned electronic modules.
