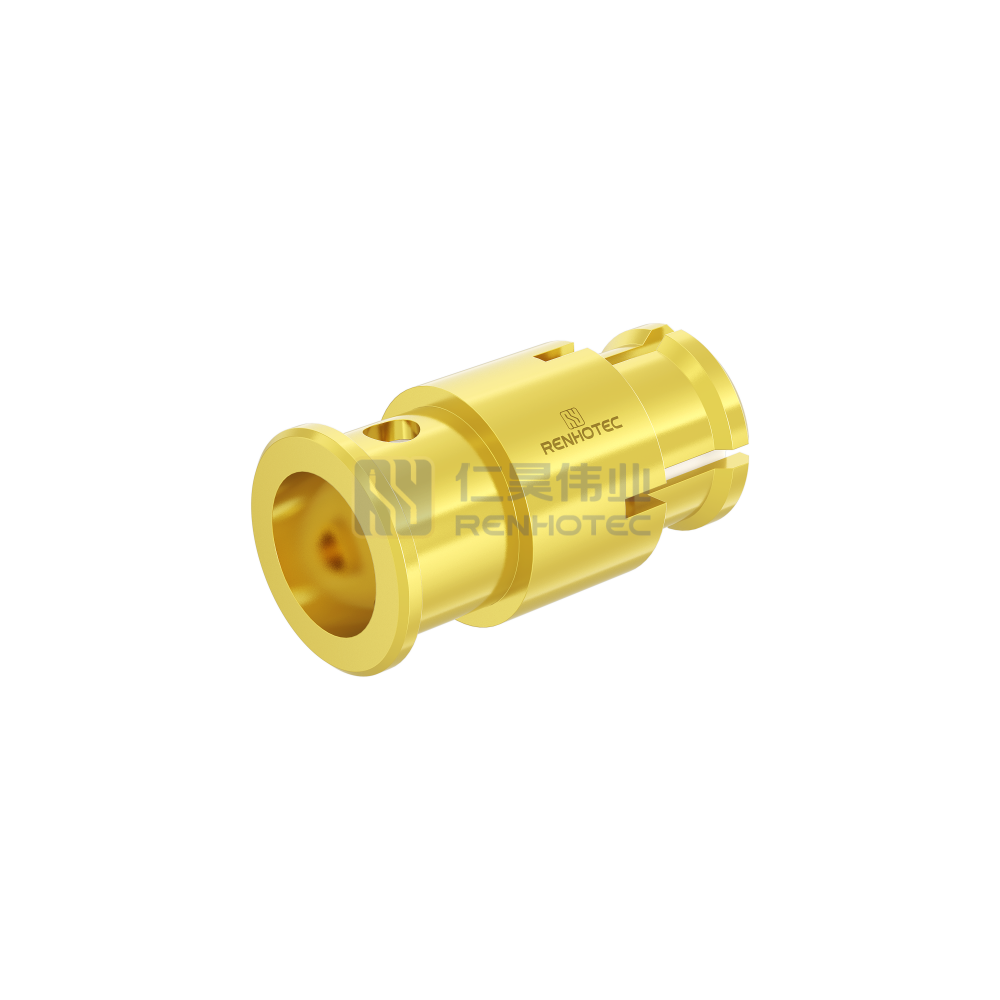

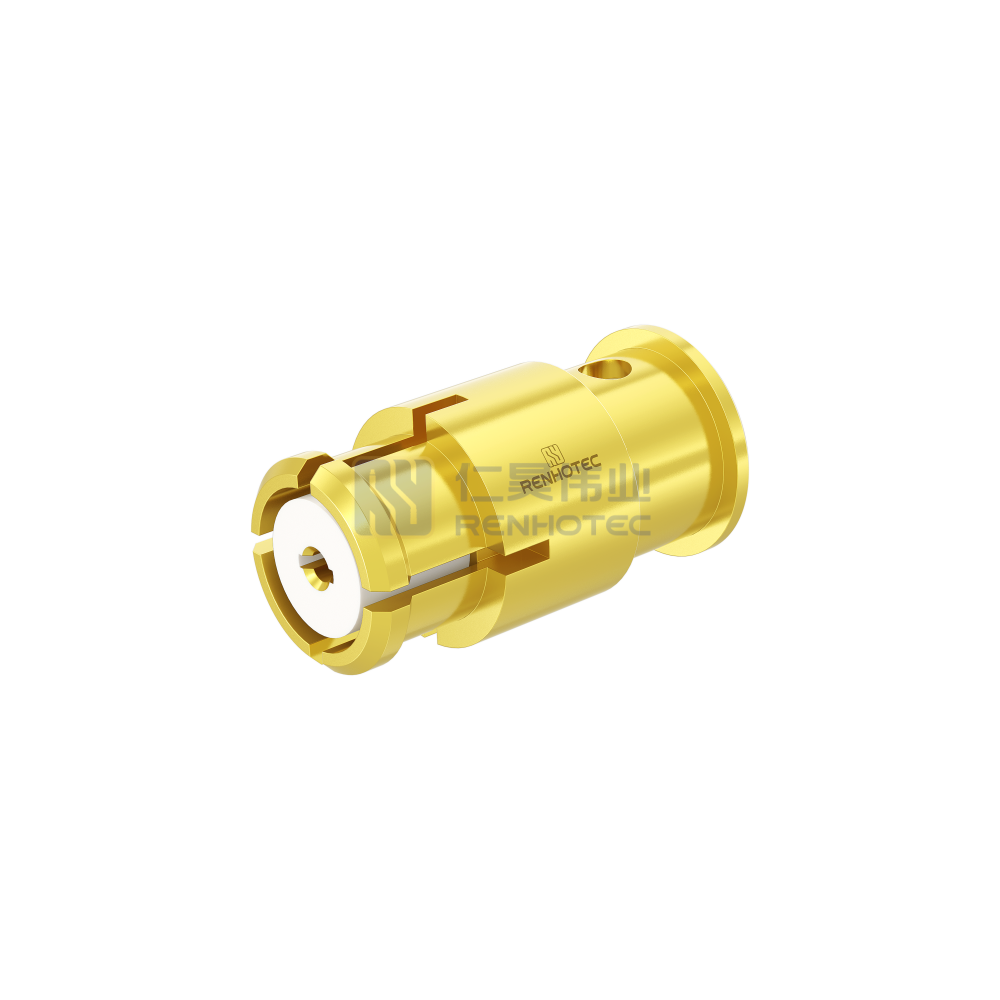

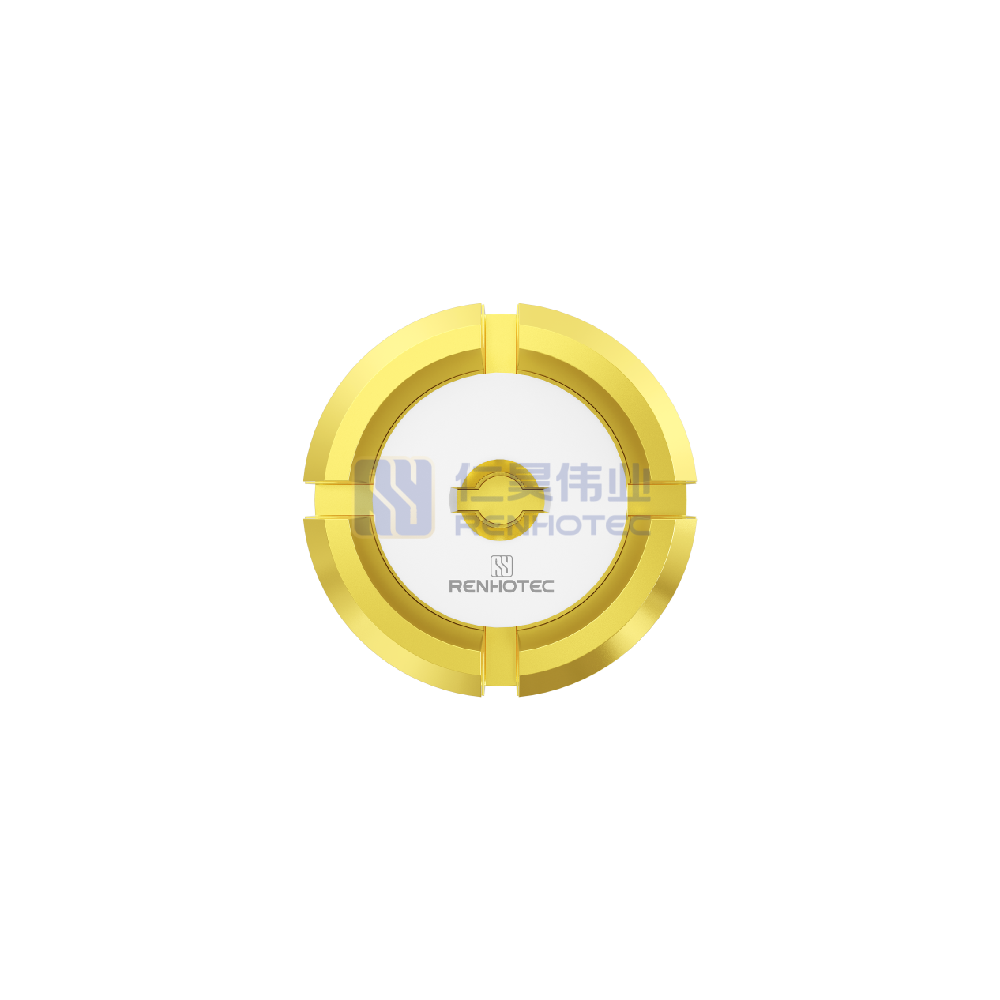

SMP Female for .086/RG405 Cable – RHT-628-2044
SMP female jack, 50Ω, designed for 0.086″ and RG405 cables with crimp or solder termination, female interface accepts standard SMP plugs, operates up to 40 GHz with consistent impedance, ideal for microwave backplanes and cable harness assemblies.
Product Specification
| RF Series | SMP Type |
||
|---|---|---|---|
| Orientation | Straight |
||
| Connector Type | Jack |
||
| Suitable Cable | 086/RG405 |
||
| Contact Type | Female Pin |
||
| Contact Material | Beryllium Bronze |
||
| Contact Finish | Gold Plated |
||
| Insulator Material | PTFE |
||
| Impedance | 50 ohm |
||
| Frequency Range | DC-40GHz |
||
| Dielectric Withstanding Voltage | 500 V |
||
| Insulation Resistance | 3000MΩ |
||
| Temperature Range | -40°C to +125°C |
||
| RF Series | SMP Type |
Orientation | Straight |
| Connector Type | Jack |
Suitable Cable | 086/RG405 |
| Contact Type | Female Pin |
Contact Material | Beryllium Bronze |
| Contact Finish | Gold Plated |
Insulator Material | PTFE |
| Impedance | 50 ohm |
Frequency Range | DC-40GHz |
| Dielectric Withstanding Voltage | 500 V |
Insulation Resistance | 3000MΩ |
| Temperature Range | -40°C to +125°C |
| Outer Conductor Material | Beryllium Bronze |
||
|---|---|---|---|
| Outer Contact Plating | Gold Plated |
||
| Insertion Loss | ≤0.05*√F (GHz) dB |
||
| Mating Cycles | 500 Cycles mini |
||
| Outer Conductor Material | Beryllium Bronze |
Outer Contact Plating | Gold Plated |
| Insertion Loss | ≤0.05*√F (GHz) dB |
Mating Cycles | 500 Cycles mini |
| RF Series | SMP Type |
|---|---|
| Orientation | Straight |
| Connector Type | Jack |
| Suitable Cable | 086/RG405 |
| Contact Type | Female Pin |
| Contact Material | Beryllium Bronze |
| Contact Finish | Gold Plated |
| Outer Conductor Material | Beryllium Bronze |
| Outer Contact Plating | Gold Plated |
| Insulator Material | PTFE |
| Impedance | 50 ohm |
| Frequency Range | DC-40GHz |
| Insertion Loss | ≤0.05*√F (GHz) dB |
| Dielectric Withstanding Voltage | 500 V |
| Insulation Resistance | 3000MΩ |
| Mating Cycles | 500 Cycles mini |
| Temperature Range | -40°C to +125°C |
The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.
Features
- Full detent, limited detent, smooth bore or catcher’s mitt
- Standard surface mount (versus swept contact) for best performance
- 50 ohm impedance
- Performance to 40 GHz
- Cable-to-board or board-to-board applications
- Push-on interface for quick installation, or blind mate
SMP Connector Types
Cable Mount
Panel Mount
SMP Adaptor
Applications
- Antennas
- Broadband
- Instrumentation
- Medical
- Quantum Computing
