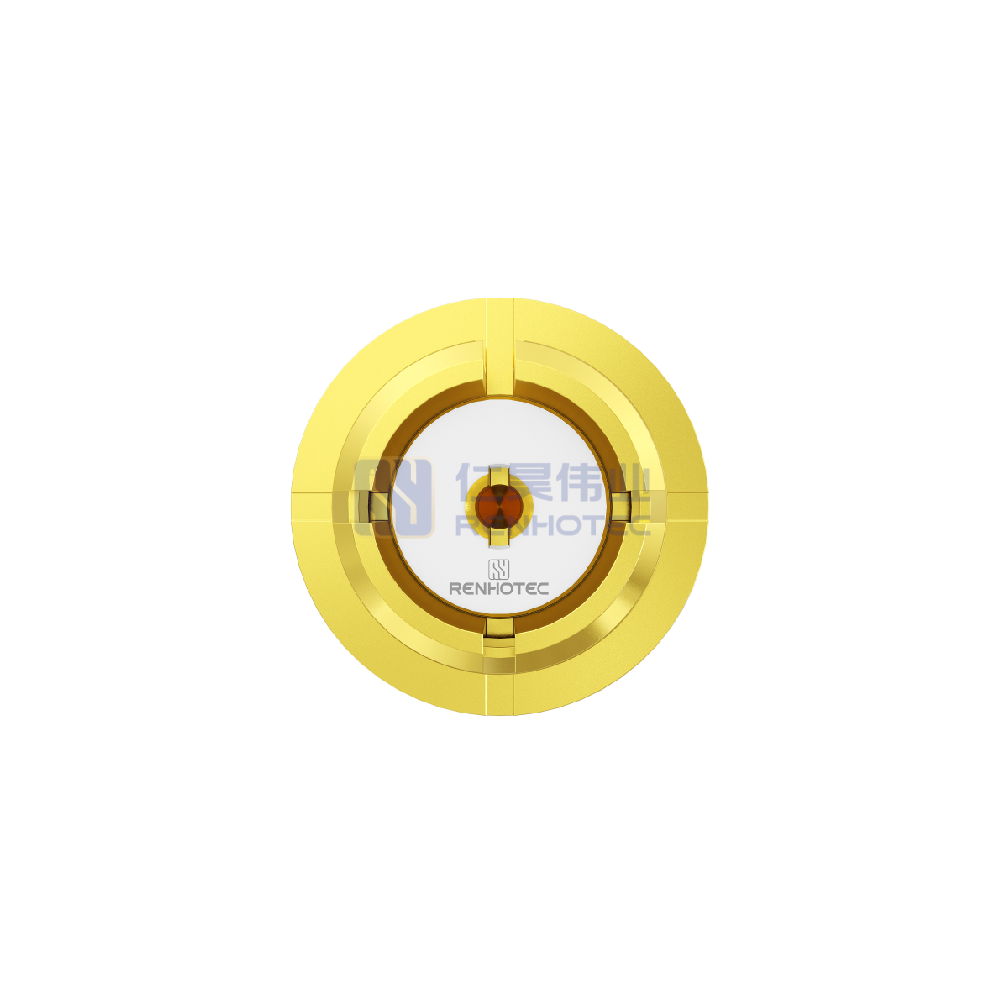

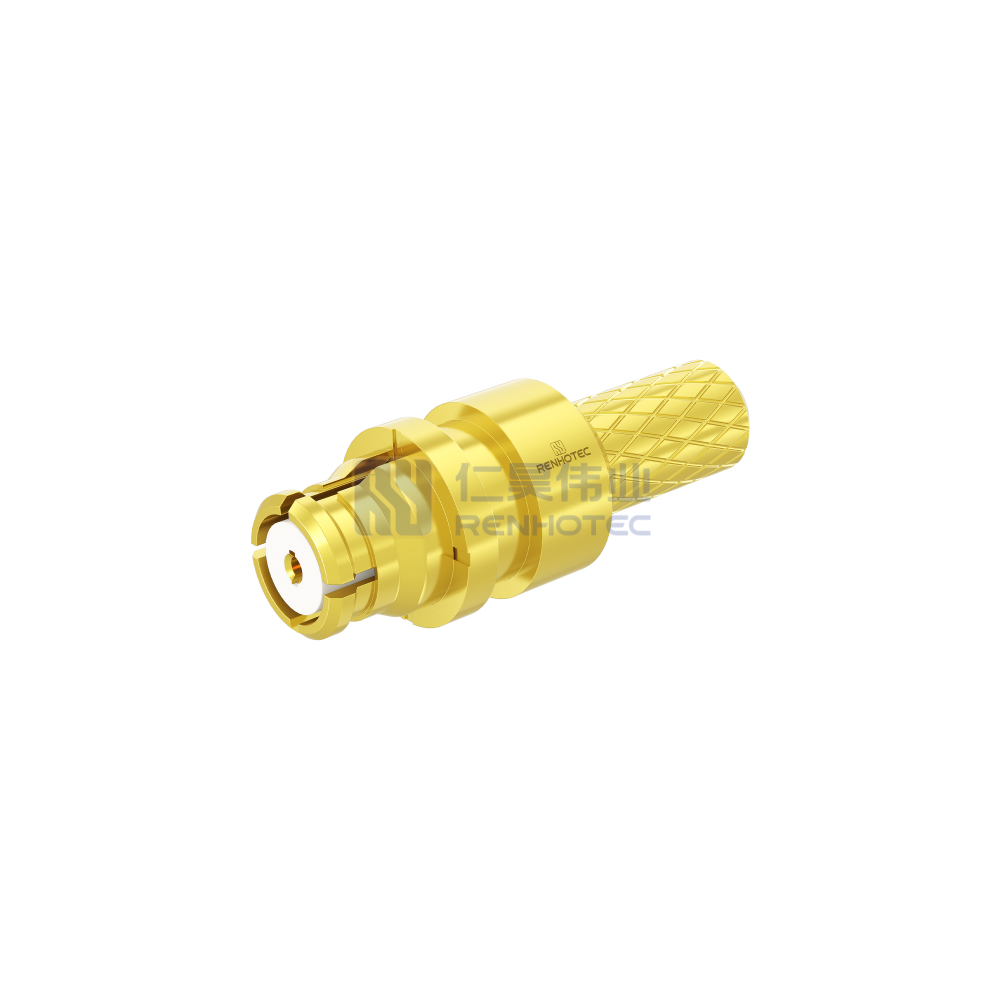

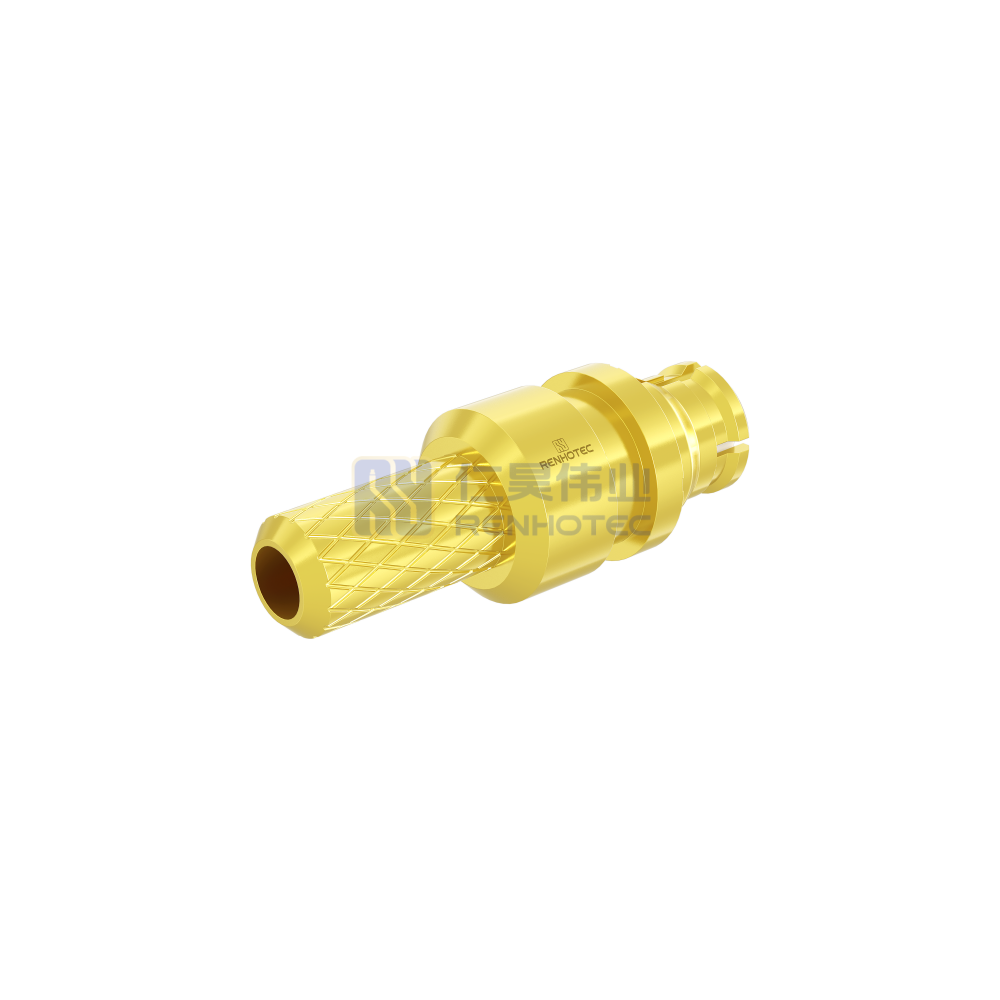

SMP Jack for RG316 Cable – RHT-628-2007
Product Specification
| RF Series | SMP Type |
||
|---|---|---|---|
| Orientation | Straight |
||
| Connector Type | Jack |
||
| Suitable Cable | RG316 |
||
| Contact Type | Female Pin |
||
| Contact Material | Brass |
||
| Contact Finish | Gold Plated |
||
| Shell Material | Brass |
||
| Shell Finish | Gold Plated |
||
| Insulator Material | PTFE |
||
| Impedance | 50 ohm |
||
| Frequency Range | DC-6GHz |
||
| VSWR | 1.5 MAX |
||
| Dielectric Withstanding Voltage | 750 V |
||
| Insulation Resistance | 1000MΩ Min |
||
| Temperature Range | -40°C to +125°C |
||
| Center Contact Resistance | 5mΩ |
||
| Outer Contact Resistance | 2.5mΩ |
||
| RF Series | SMP Type |
Orientation | Straight |
| Connector Type | Jack |
Suitable Cable | RG316 |
| Contact Type | Female Pin |
Contact Material | Brass |
| Contact Finish | Gold Plated |
Shell Material | Brass |
| Shell Finish | Gold Plated |
Insulator Material | PTFE |
| Impedance | 50 ohm |
Frequency Range | DC-6GHz |
| VSWR | 1.5 MAX |
Dielectric Withstanding Voltage | 750 V |
| Insulation Resistance | 1000MΩ Min |
Temperature Range | -40°C to +125°C |
| Center Contact Resistance | 5mΩ |
Outer Contact Resistance | 2.5mΩ |
| Copper Pipe Material | Brass |
||
|---|---|---|---|
| Copper Pipe Finish | Nickel Plated |
||
| Copper Pipe Material | Brass |
Copper Pipe Finish | Nickel Plated |
| RF Series | SMP Type |
|---|---|
| Orientation | Straight |
| Connector Type | Jack |
| Suitable Cable | RG316 |
| Contact Type | Female Pin |
| Contact Material | Brass |
| Contact Finish | Gold Plated |
| Shell Material | Brass |
| Shell Finish | Gold Plated |
| Insulator Material | PTFE |
| Copper Pipe Material | Brass |
| Copper Pipe Finish | Nickel Plated |
| Impedance | 50 ohm |
| Frequency Range | DC-6GHz |
| VSWR | 1.5 MAX |
| Dielectric Withstanding Voltage | 750 V |
| Insulation Resistance | 1000MΩ Min |
| Temperature Range | -40°C to +125°C |
| Center Contact Resistance | 5mΩ |
| Outer Contact Resistance | 2.5mΩ |
Drawing for SMP Jack for RG316 CableDownload
