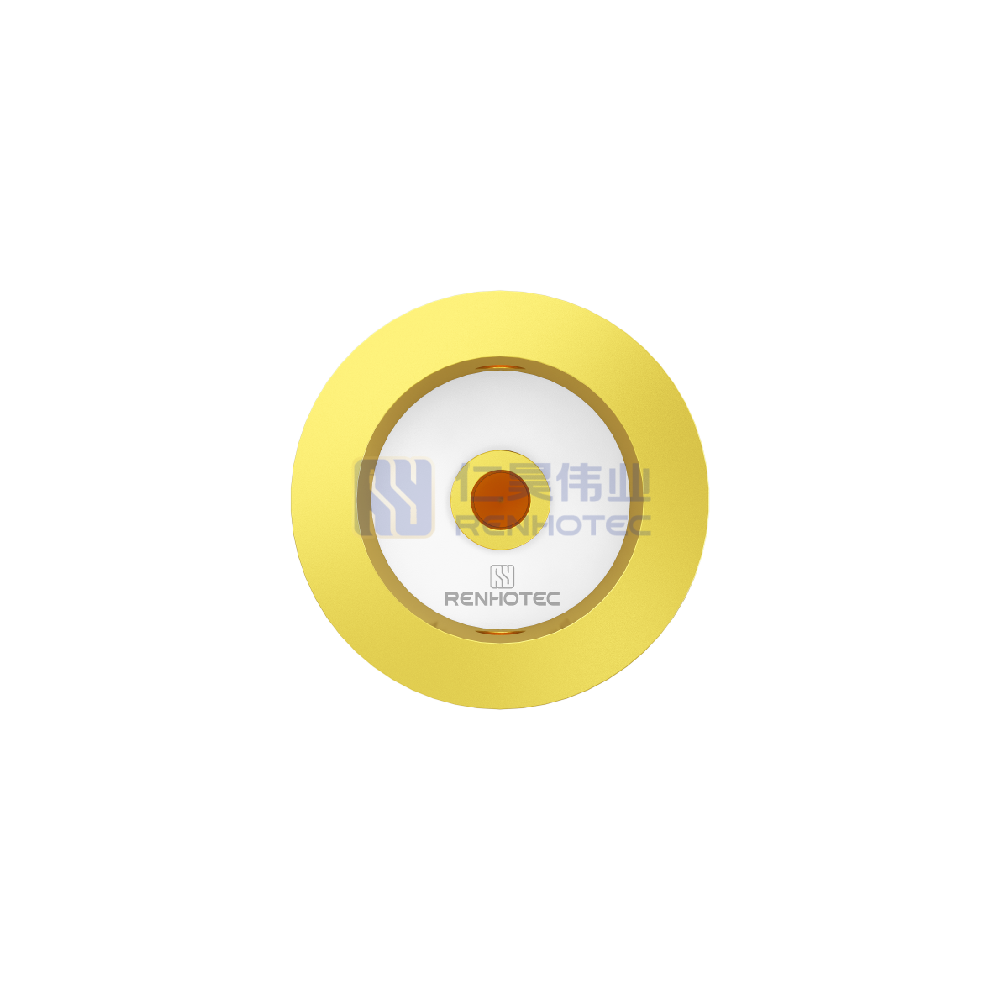

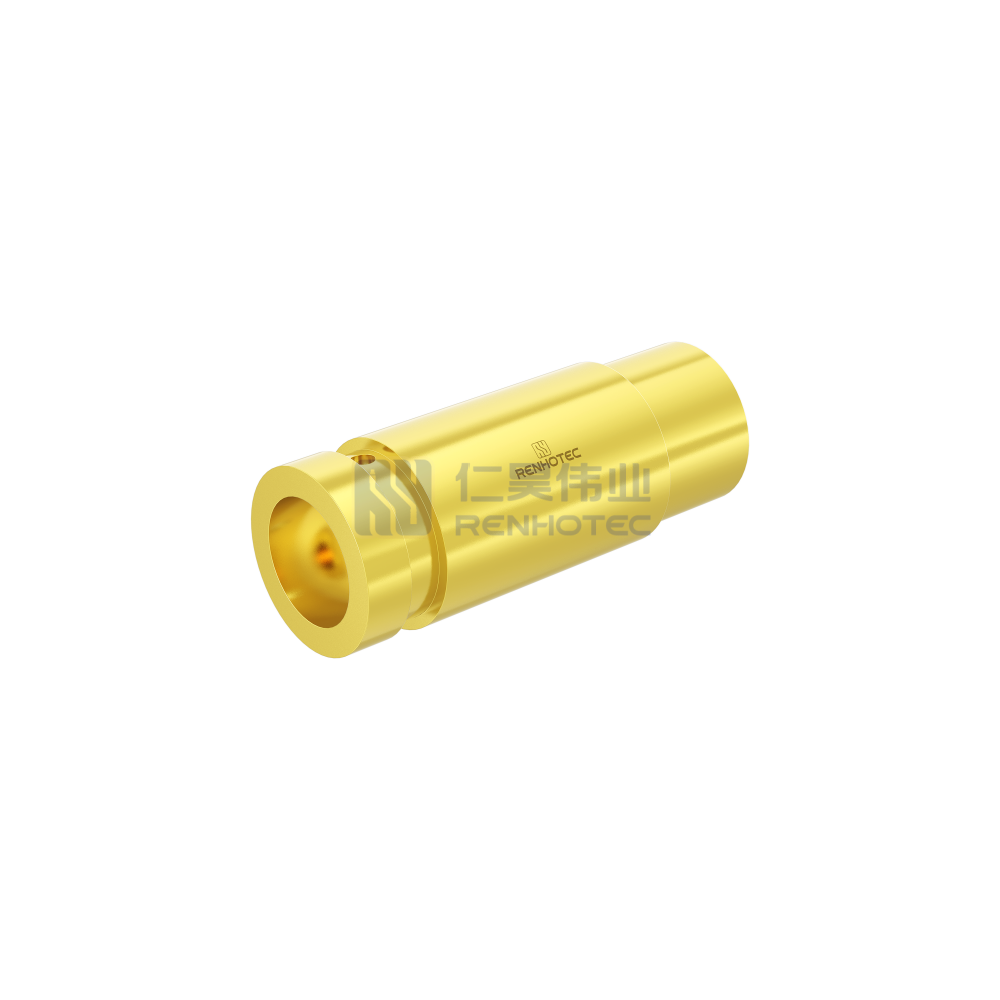

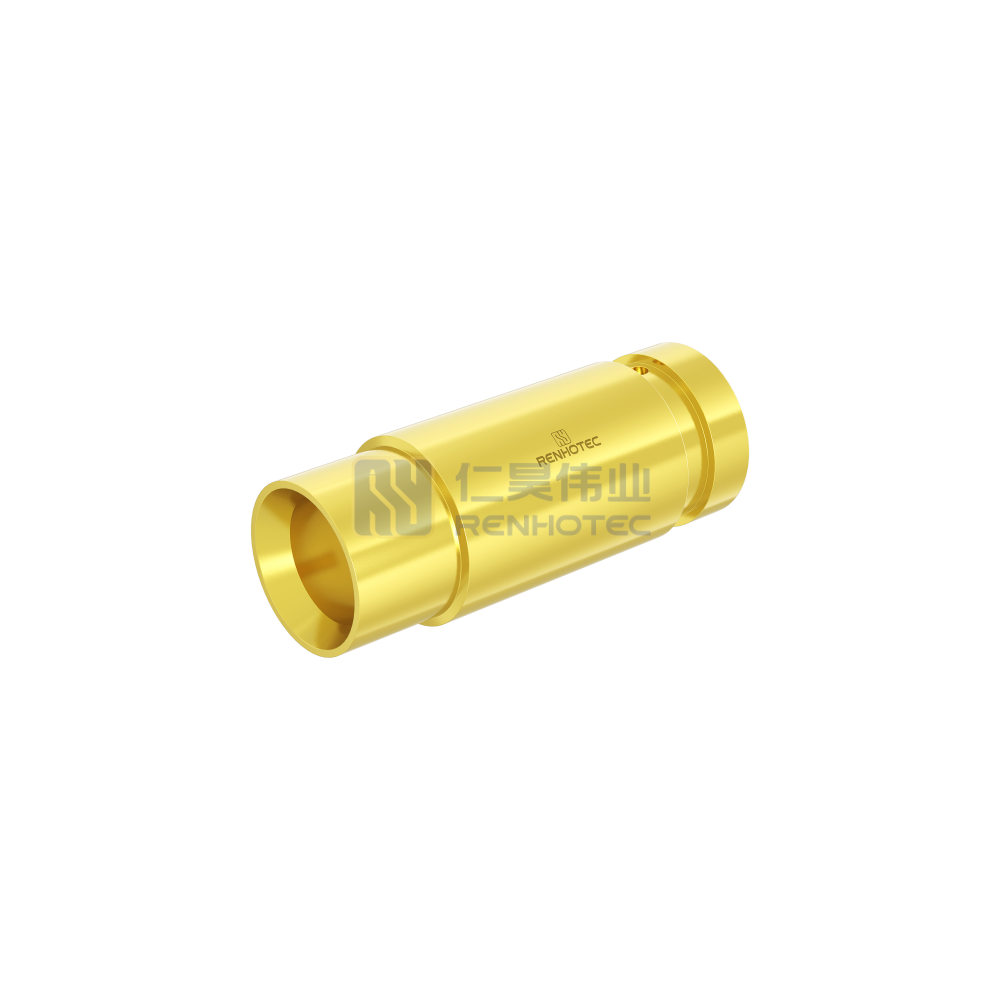

SSMP Plug for RG405 Cable – RHT-628-2005
SSMP plug, 50Ω, crimp attachment for RG405 cable, ultra-compact design enables dense multi-channel RF interconnects, delivers reliable performance up to 65 GHz, widely used in millimeter-wave imaging and high-speed data link systems.
Product Specification
| RF Series | SSMP Type |
||
|---|---|---|---|
| Orientation | Straight |
||
| Connector Type | Plug |
||
| Suitable Cable | RG405 |
||
| Contact Type | Male Pin |
||
| Contact Material | Beryllium Copper |
||
| Contact Finish | Gold Plated |
||
| Shell Material | Beryllium Copper |
||
| Shell Finish | Gold Plated |
||
| Insulator Material | PTFE |
||
| Impedance | 50 ohm |
||
| Frequency Range | 0-40GHz |
||
| VSWR | 1.3 MAX |
||
| Working Voltage | 335 V rms |
||
| Dielectric Withstanding Voltage | 750 V |
||
| Insulation Resistance | 1000MΩ Min |
||
| Temperature Range | -55°C to +155°C |
||
| RF Series | SSMP Type |
Orientation | Straight |
| Connector Type | Plug |
Suitable Cable | RG405 |
| Contact Type | Male Pin |
Contact Material | Beryllium Copper |
| Contact Finish | Gold Plated |
Shell Material | Beryllium Copper |
| Shell Finish | Gold Plated |
Insulator Material | PTFE |
| Impedance | 50 ohm |
Frequency Range | 0-40GHz |
| VSWR | 1.3 MAX |
Working Voltage | 335 V rms |
| Dielectric Withstanding Voltage | 750 V |
Insulation Resistance | 1000MΩ Min |
| Temperature Range | -55°C to +155°C |
| RF Series | SSMP Type |
|---|---|
| Orientation | Straight |
| Connector Type | Plug |
| Suitable Cable | RG405 |
| Contact Type | Male Pin |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold Plated |
| Shell Material | Beryllium Copper |
| Shell Finish | Gold Plated |
| Insulator Material | PTFE |
| Impedance | 50 ohm |
| Frequency Range | 0-40GHz |
| VSWR | 1.3 MAX |
| Working Voltage | 335 V rms |
| Dielectric Withstanding Voltage | 750 V |
| Insulation Resistance | 1000MΩ Min |
| Temperature Range | -55°C to +155°C |
The SMP interface, similar in size to MMCX connectors, supports frequencies from DC to 40 GHz. Frequently employed in compact high-frequency coaxial modules, this interface comes in push-on and snap-on mating variations.
Features
- Full detent, limited detent, smooth bore or catcher’s mitt
- Standard surface mount (versus swept contact) for best performance
- 50 ohm impedance
- Performance to 40 GHz
- Cable-to-board or board-to-board applications
- Push-on interface for quick installation, or blind mate
SMP Connector Types
Cable Mount
Panel Mount
SMP Adaptor
Applications
- Antennas
- Broadband
- Instrumentation
- Medical
- Quantum Computing
