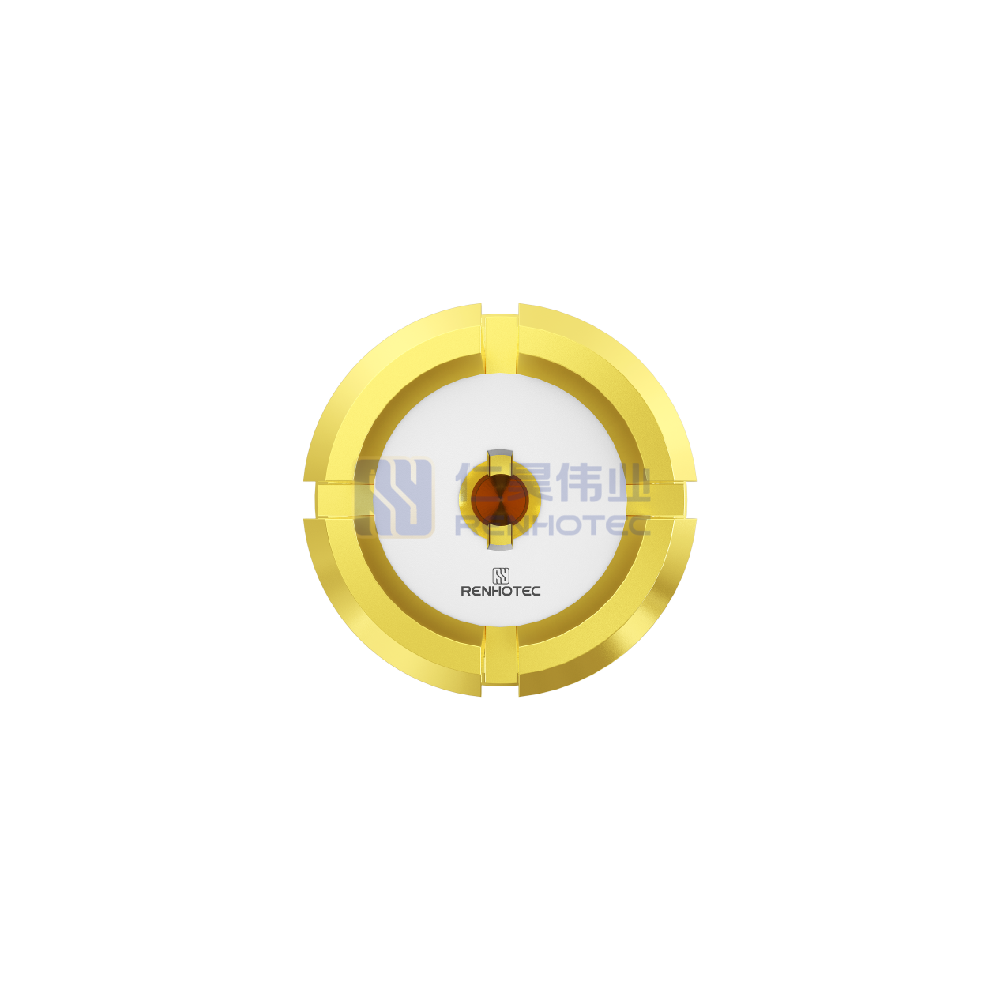

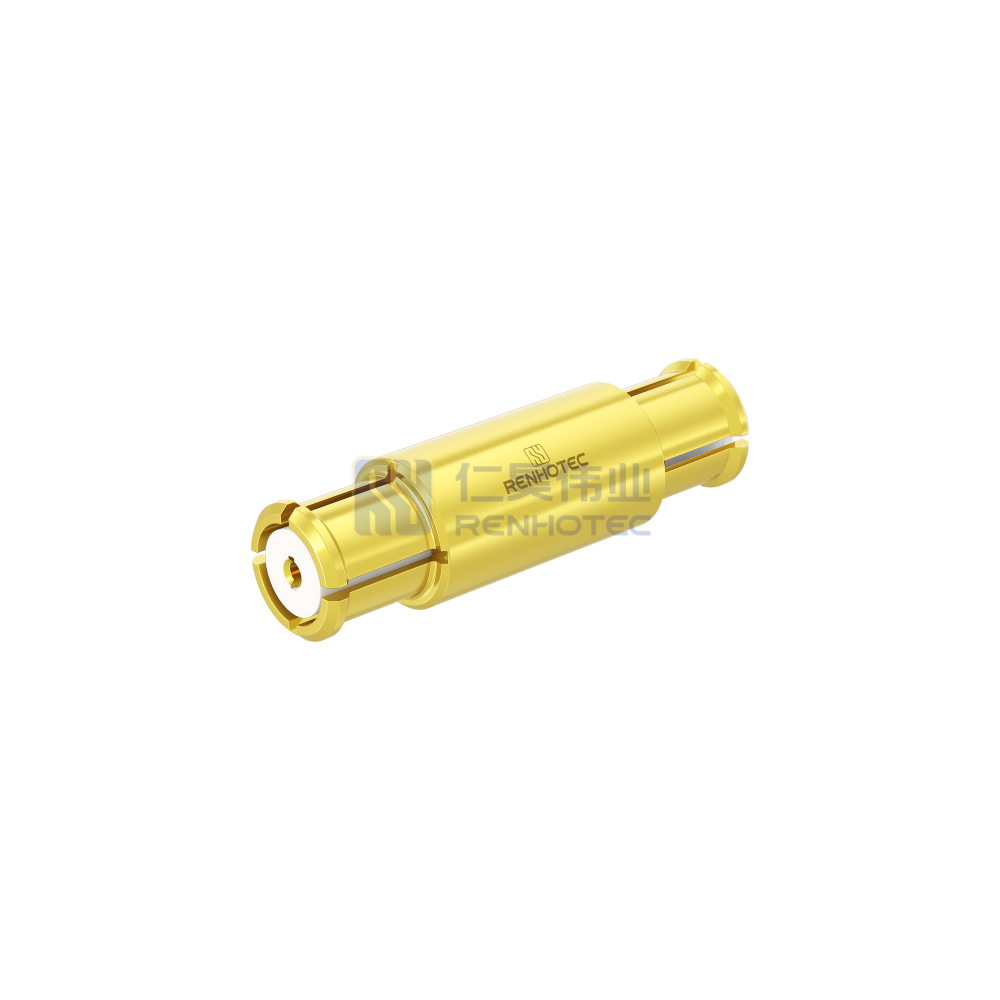

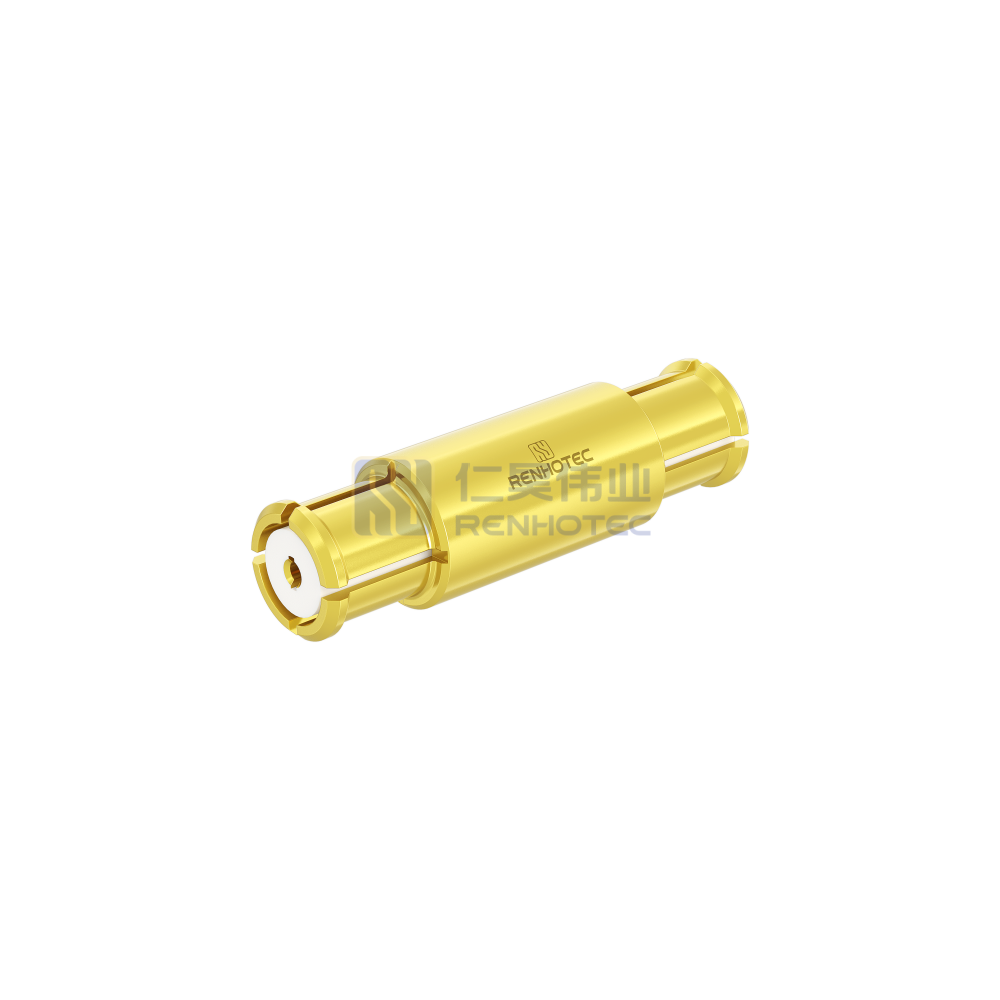

SMP Female to SMP Female Adapter – RHT-628-2024
SMP female-to-female adapter, 50Ω, straight geometry enables inline cable or board connections without signal degradation, supports DC to 40 GHz with consistent phase stability, applied in phased array beamforming networks, test instrumentation, and communication transceivers.
Product Specification
| 1st Connector | Jack |
||
|---|---|---|---|
| 2nd Connector | Jack |
||
| 1st Contact Type | Female Pin |
||
| 2nd Contact Type | Female Pin |
||
| Convert From(Adapter 1) | SMP |
||
| Convert To(Adapter 2) | SMP |
||
| Adapter Style | SMP to SMP |
||
| Contact Finish | Gold Plated |
||
| Contact Material | BeCu |
||
| Dielectric Withstanding Voltage | 500 V |
||
| Frequency Range | DC-40GHz |
||
| Impedance | 50 ohm |
||
| Insulator Material | PTFE |
||
| Orientation | Straight |
||
| Shell Finish | Gold Plated |
||
| Shell Material | BeCu |
||
| Temperature Range | -65°C to +165°C |
||
| 1st Connector | Jack |
2nd Connector | Jack |
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| Convert From(Adapter 1) | SMP |
Convert To(Adapter 2) | SMP |
| Adapter Style | SMP to SMP |
Contact Finish | Gold Plated |
| Contact Material | BeCu |
Dielectric Withstanding Voltage | 500 V |
| Frequency Range | DC-40GHz |
Impedance | 50 ohm |
| Insulator Material | PTFE |
Orientation | Straight |
| Shell Finish | Gold Plated |
Shell Material | BeCu |
| Temperature Range | -65°C to +165°C |
| Return loss | 1.07 MAX. (-30 dB MIN) @ DC – 4 GHz, 1.22 MAX. (-20 dB MIN) @ 4 – 18 GHz, 1.43 MAX. (-15 dB MIN) @ 18 – 26.5 GHz, 1.50 MAX. (-14 dB MIN) @ 26.5 – 40 GHz |
|---|---|
| Return loss | 1.07 MAX. (-30 dB MIN) @ DC – 4 GHz, 1.22 MAX. (-20 dB MIN) @ 4 – 18 GHz, 1.43 MAX. (-15 dB MIN) @ 18 – 26.5 GHz, 1.50 MAX. (-14 dB MIN) @ 26.5 – 40 GHz |
| 1st Connector | Jack |
|---|---|
| 2nd Connector | Jack |
| 1st Contact Type | Female Pin |
| 2nd Contact Type | Female Pin |
| Convert From(Adapter 1) | SMP |
| Convert To(Adapter 2) | SMP |
| Adapter Style | SMP to SMP |
| Contact Finish | Gold Plated |
| Contact Material | BeCu |
| Dielectric Withstanding Voltage | 500 V |
| Frequency Range | DC-40GHz |
| Impedance | 50 ohm |
| Insulator Material | PTFE |
| Orientation | Straight |
| Return loss | 1.07 MAX. (-30 dB MIN) @ DC – 4 GHz, 1.22 MAX. (-20 dB MIN) @ 4 – 18 GHz, 1.43 MAX. (-15 dB MIN) @ 18 – 26.5 GHz, 1.50 MAX. (-14 dB MIN) @ 26.5 – 40 GHz |
| Shell Finish | Gold Plated |
| Shell Material | BeCu |
| Temperature Range | -65°C to +165°C |
Drawing for SMP Female to SMP Female AdapterDownload
