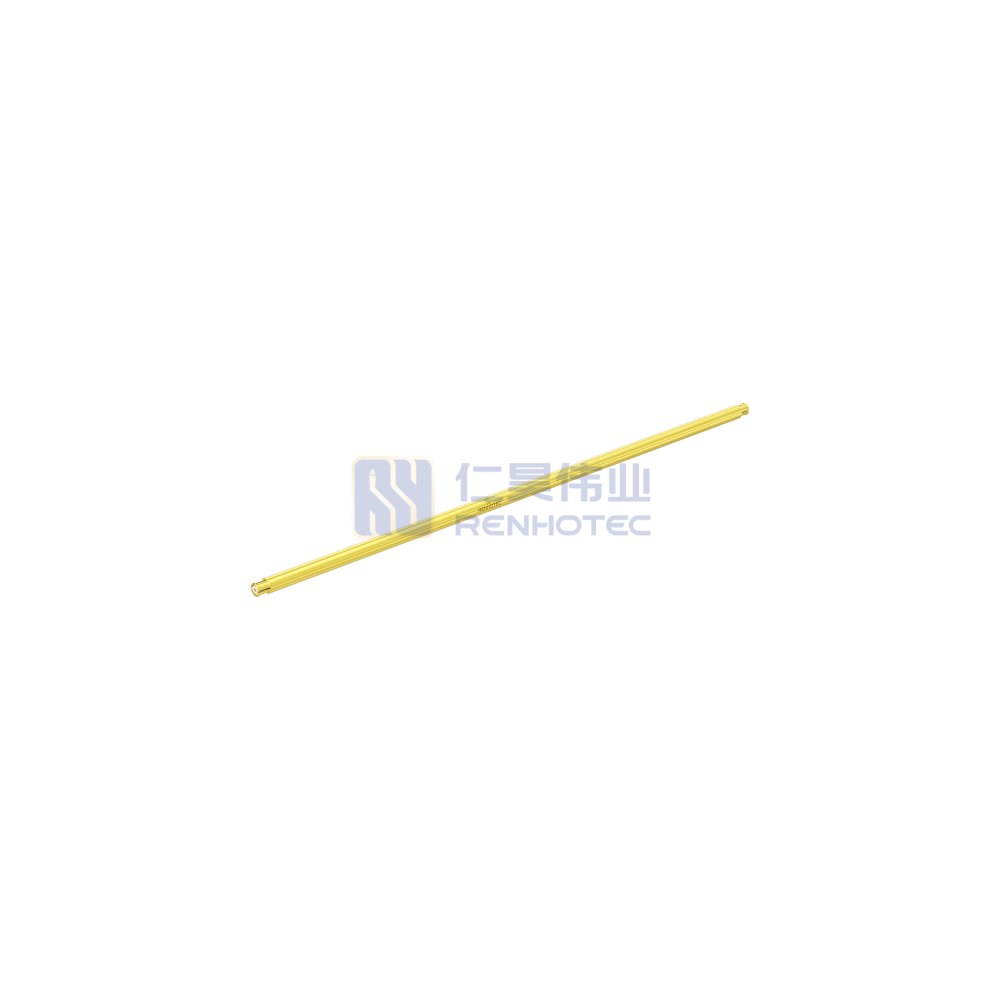

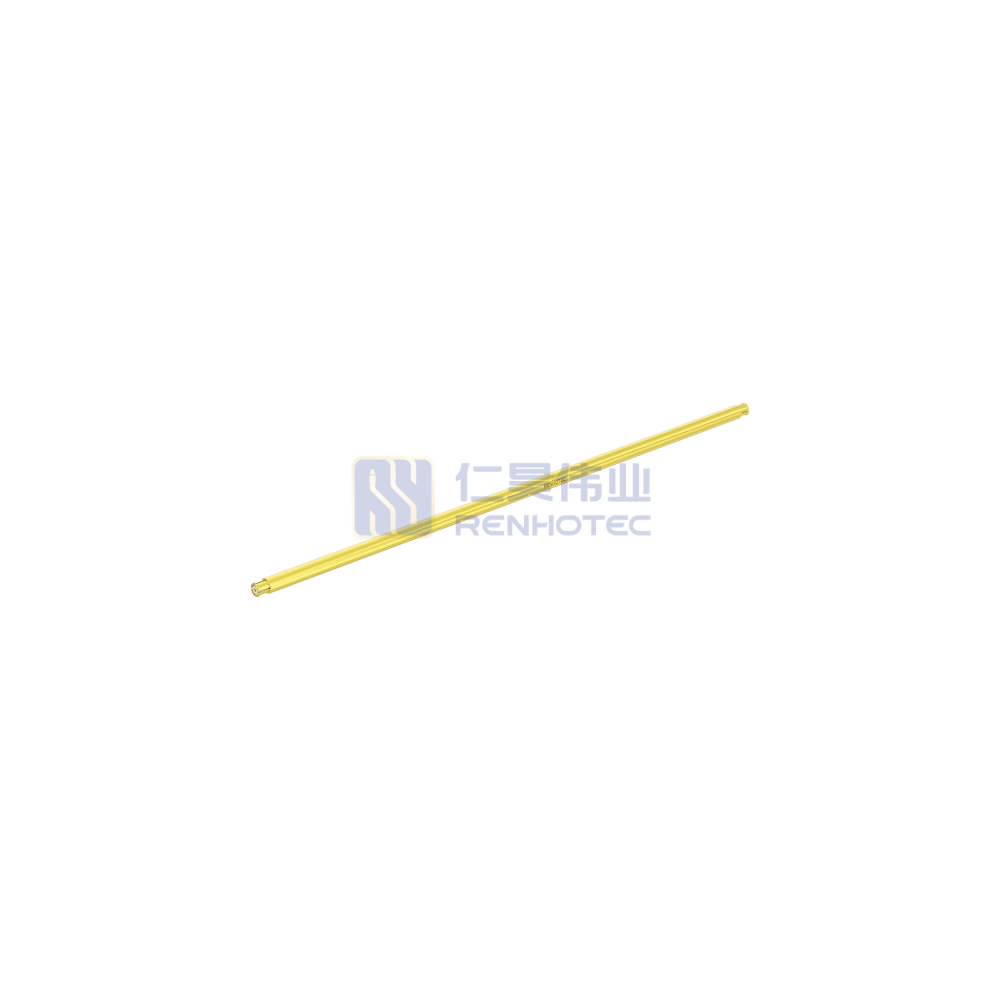

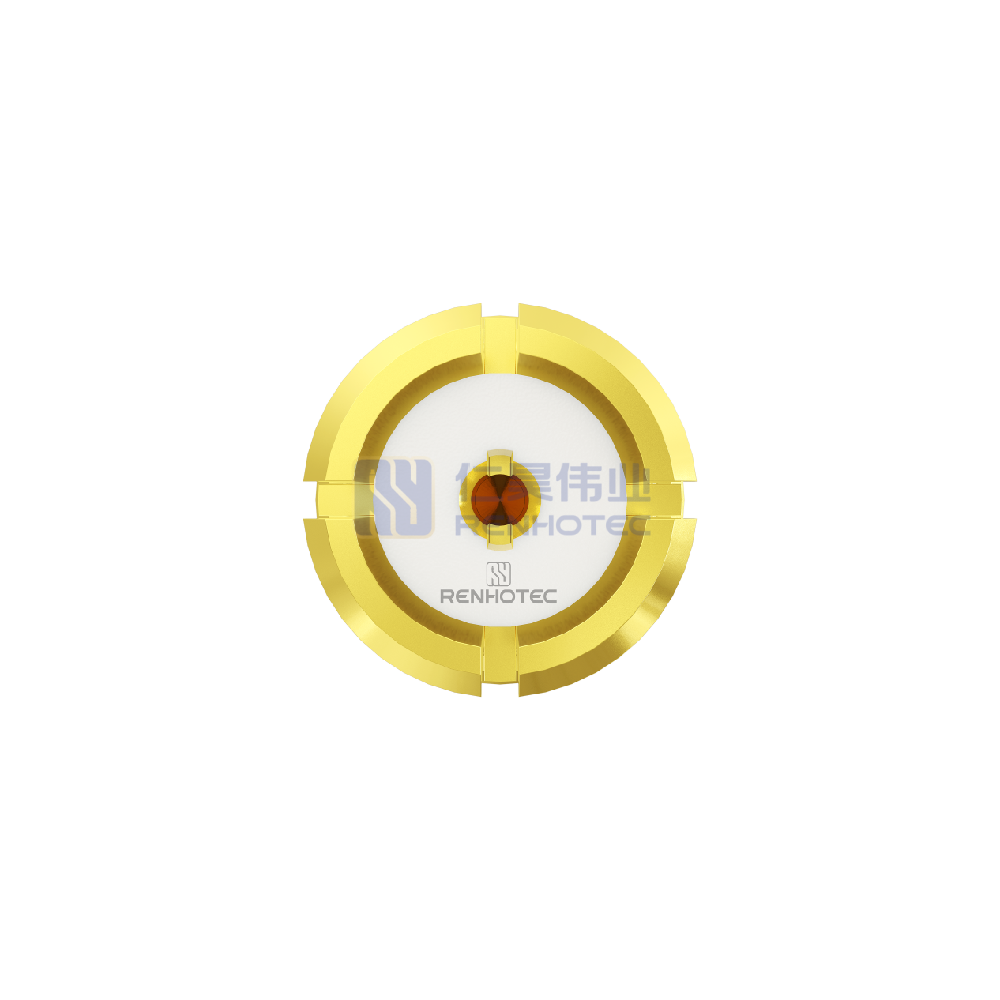

SMP Female to SMP Female Adapter – RHT-628-2017
Product Specification
| 1st Connector | Jack |
||
|---|---|---|---|
| 2nd Connector | Jack |
||
| 1st Contact Type | Female Pin |
||
| 2nd Contact Type | Female Pin |
||
| Convert From(Adapter 1) | SMP |
||
| Convert To(Adapter 2) | SMP |
||
| Adapter Style | SMP to SMP |
||
| Contact Finish | Gold Plated |
||
| Contact Material | Beryllium Copper |
||
| Dielectric Withstanding Voltage | 500 V |
||
| Frequency Range | 0-18GHz |
||
| Impedance | 50 ohm |
||
| Insulation Resistance | 5000MΩ Min |
||
| Insulator Material | PTFE |
||
| Mating Durability | 100 Cycles mini |
||
| Orientation | Straight |
||
| Shell Finish | Gold Plated |
||
| Shell Material | Beryllium Copper |
||
| Temperature Range | -50°C to +155°C |
||
| VSWR | 1.4 MAX |
||
| Working Voltage | 335 V rms |
||
| 1st Connector | Jack |
2nd Connector | Jack |
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| Convert From(Adapter 1) | SMP |
Convert To(Adapter 2) | SMP |
| Adapter Style | SMP to SMP |
Contact Finish | Gold Plated |
| Contact Material | Beryllium Copper |
Dielectric Withstanding Voltage | 500 V |
| Frequency Range | 0-18GHz |
Impedance | 50 ohm |
| Insulation Resistance | 5000MΩ Min |
Insulator Material | PTFE |
| Mating Durability | 100 Cycles mini |
Orientation | Straight |
| Shell Finish | Gold Plated |
Shell Material | Beryllium Copper |
| Temperature Range | -50°C to +155°C |
VSWR | 1.4 MAX |
| Working Voltage | 335 V rms |
| Insertion Loss | 1.0dB MAX |
|---|---|
| Insertion Loss | 1.0dB MAX |
| 1st Connector | Jack |
|---|---|
| 2nd Connector | Jack |
| 1st Contact Type | Female Pin |
| 2nd Contact Type | Female Pin |
| Convert From(Adapter 1) | SMP |
| Convert To(Adapter 2) | SMP |
| Adapter Style | SMP to SMP |
| Contact Finish | Gold Plated |
| Contact Material | Beryllium Copper |
| Dielectric Withstanding Voltage | 500 V |
| Frequency Range | 0-18GHz |
| Impedance | 50 ohm |
| Insertion Loss | 1.0dB MAX |
| Insulation Resistance | 5000MΩ Min |
| Insulator Material | PTFE |
| Mating Durability | 100 Cycles mini |
| Orientation | Straight |
| Shell Finish | Gold Plated |
| Shell Material | Beryllium Copper |
| Temperature Range | -50°C to +155°C |
| VSWR | 1.4 MAX |
| Working Voltage | 335 V rms |
Drawing for SMP Female to SMP Female AdapterDownload
