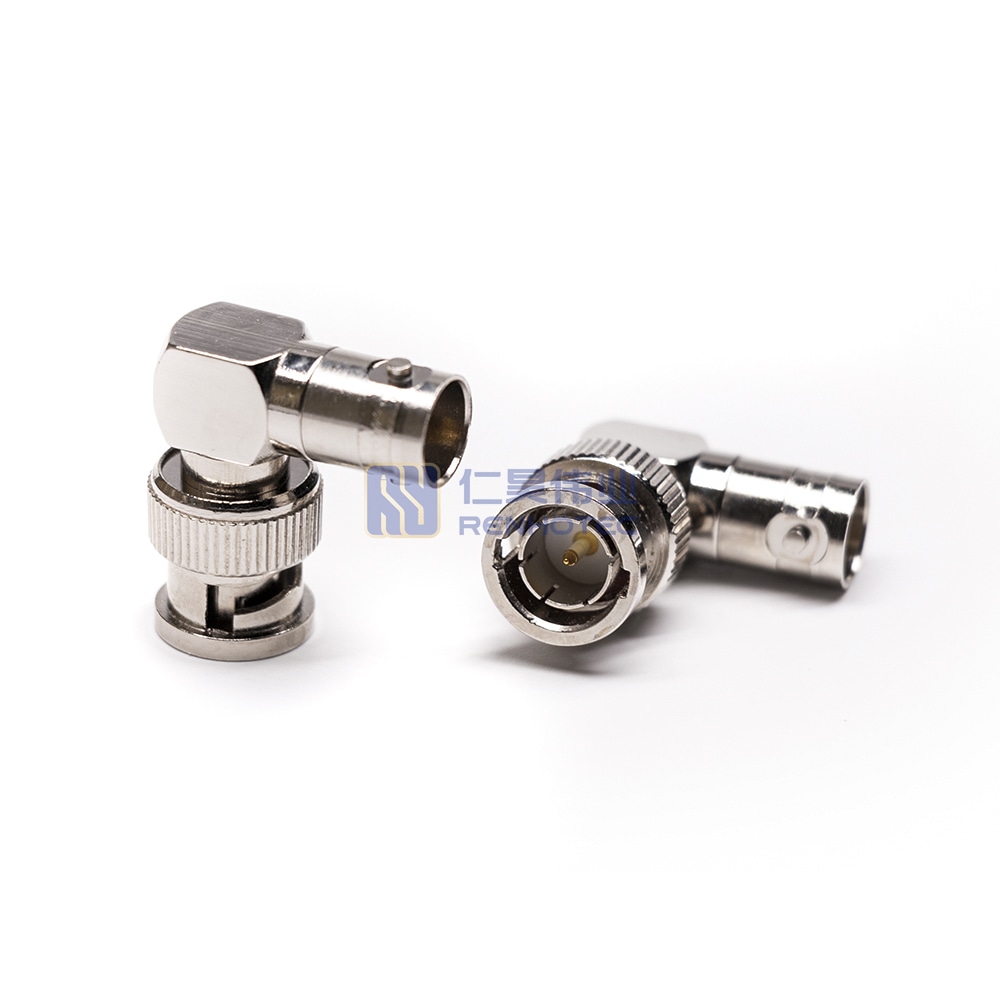

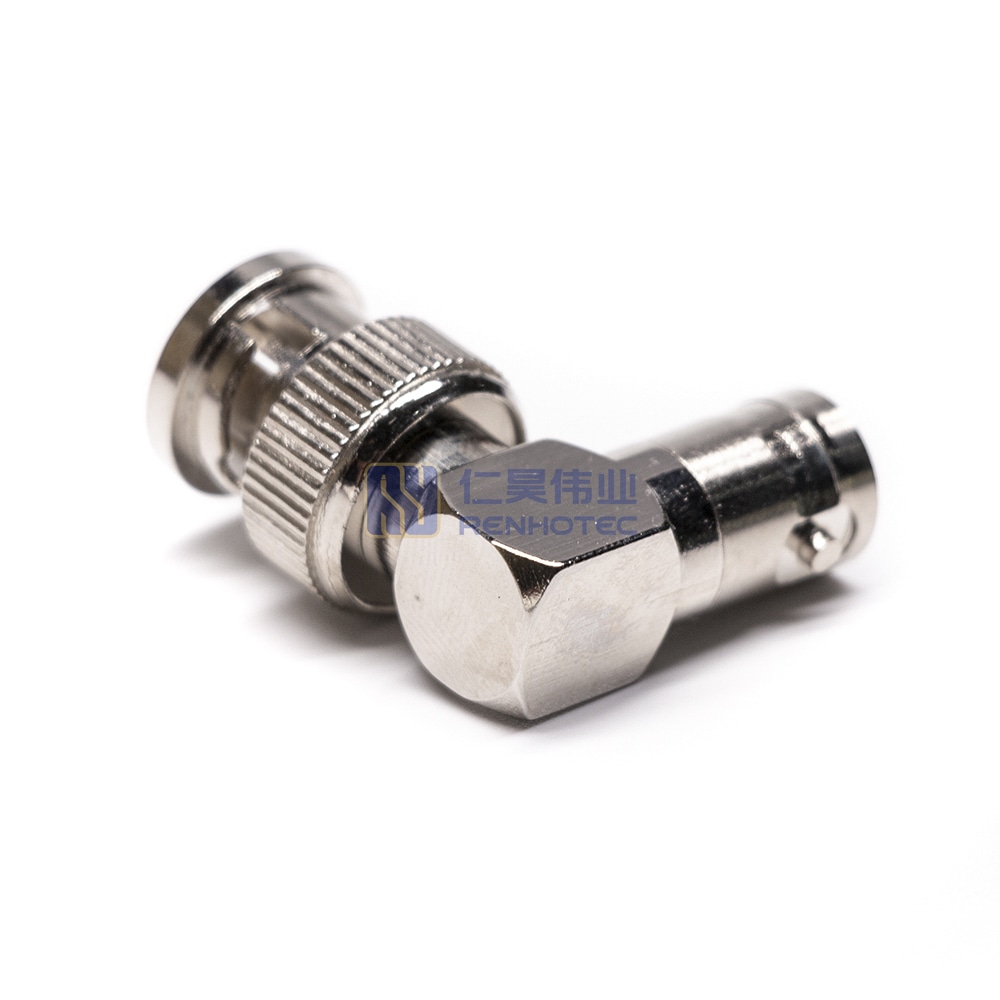

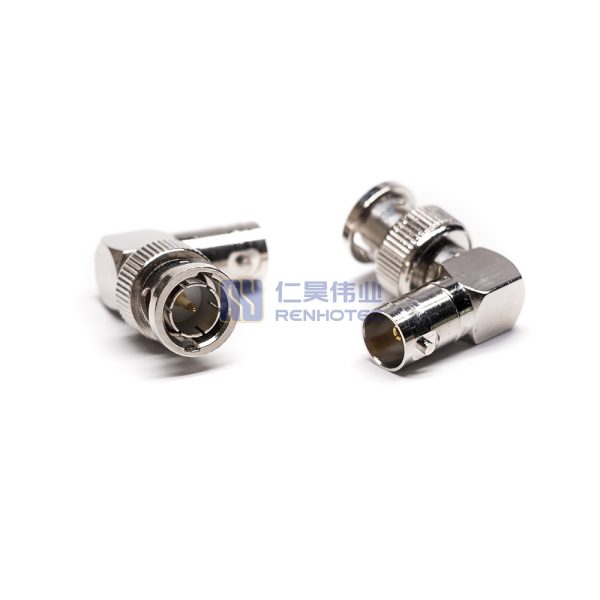

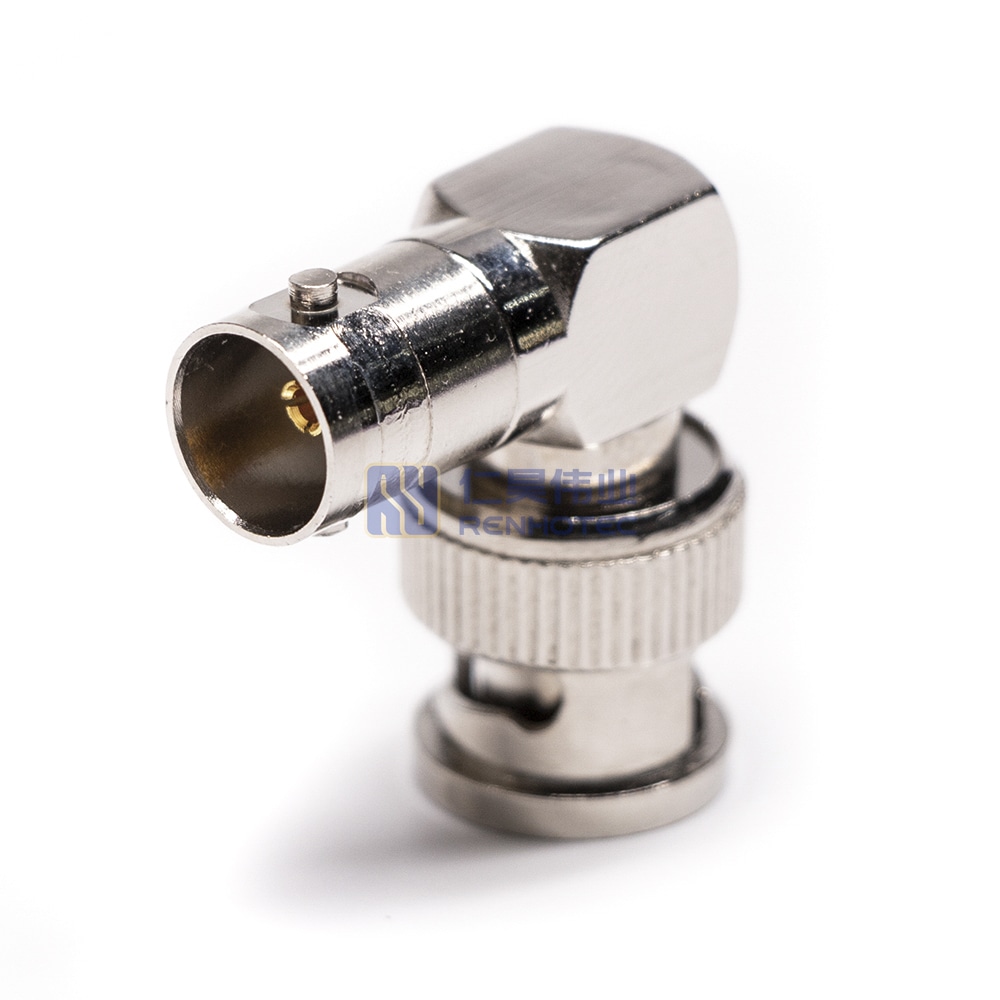

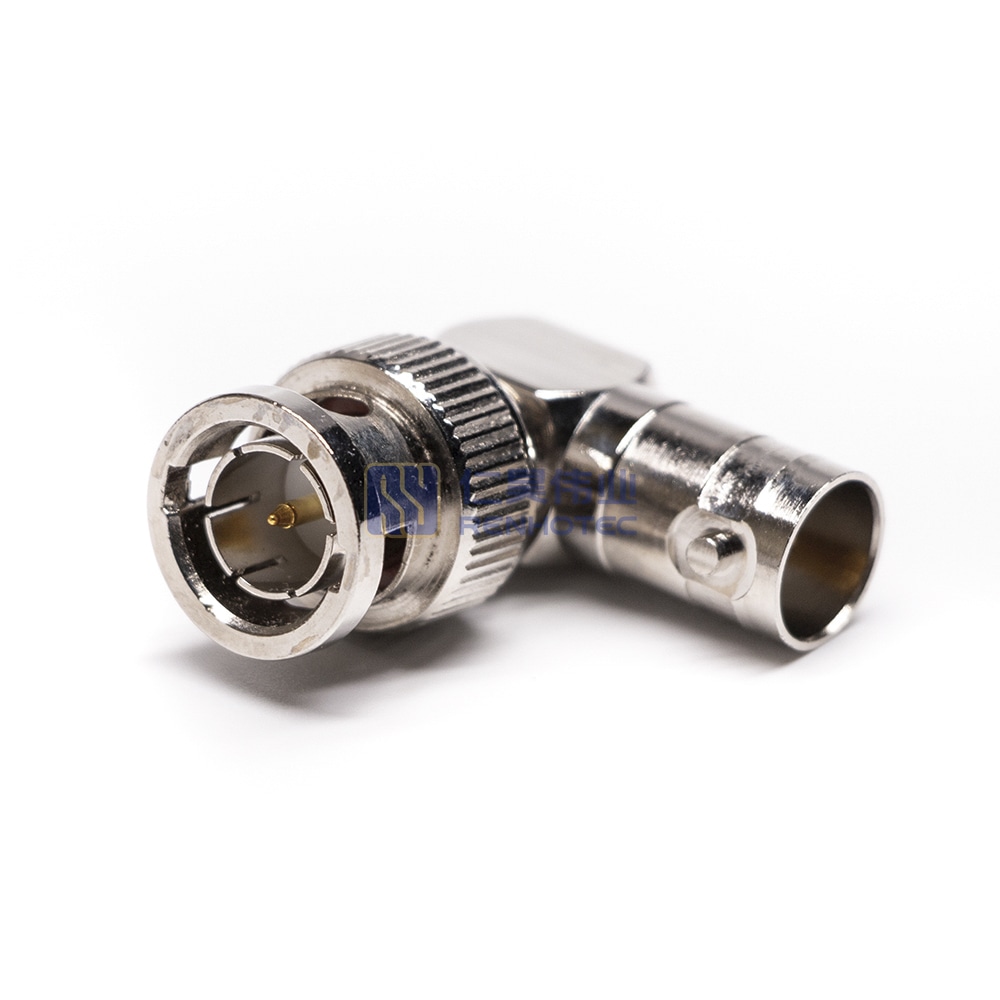

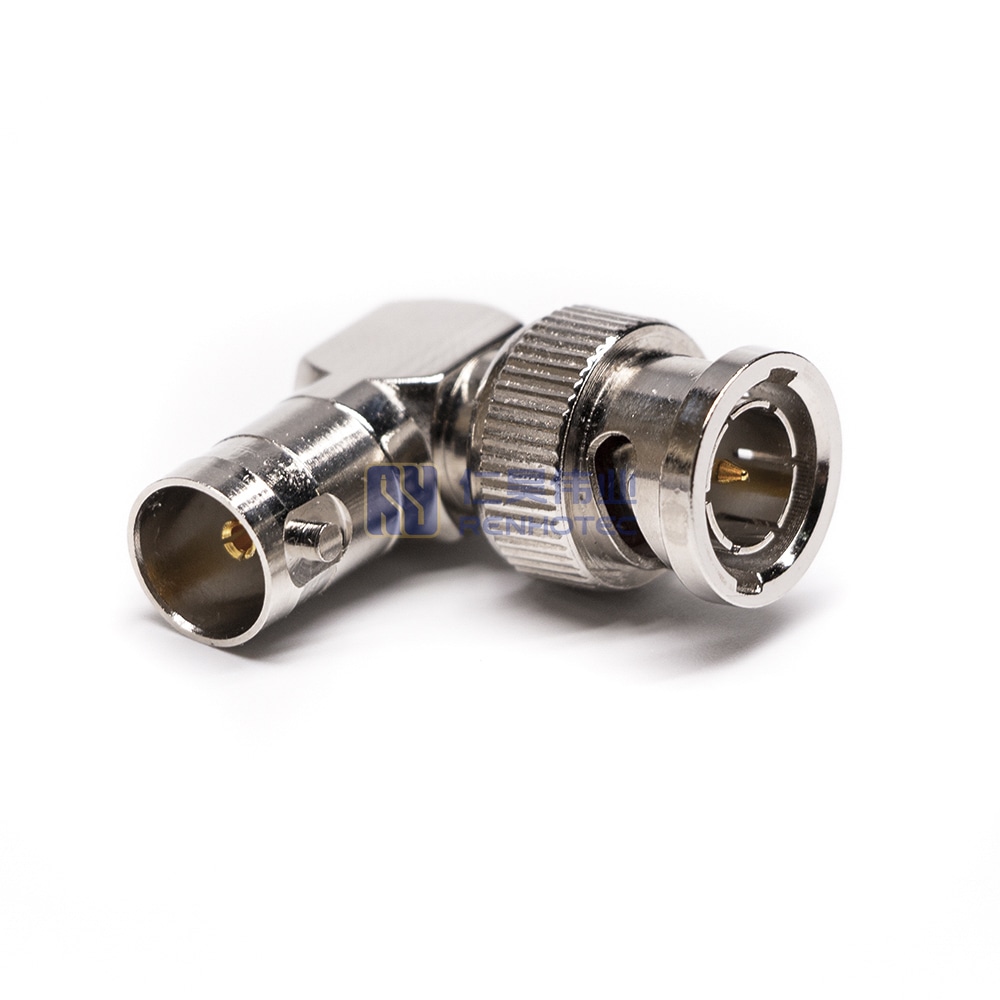

BNC Female to BNC Male Right Angle Adapter

  • Exquisite production technology
  • Accurate signal transmission
  • High-quality anti-corrosion
  • Easy to install

RF adapters for changing gender or as connector protectors in precision test and measurement applications are commonly available.
They are also used to transfer signals between connector interfaces.
Coaxial adapters are available in 50 ohm and 75 ohm designs. Standard polarity and reverse polarity Jack to Jack, Plug to Jack, and Plug to Plug adapters are available across most RF interfaces.
The polarity of an interface can change by changing the center contact from male to female or from female to male, depending on the adapter interface.

RF Adapter Series



Industry Application

Product Specification

Adapter Style

BNC to BNC

Convert From(Adapter 1)

BNC

1st Connector

Plug

1st Contact Type

Male Pin

Convert To(Adapter 2)

BNC

2nd Connector

Jack

2nd Contact Type

Female Pin

Orientation

Right Angle

Shell Material

Brass

Shell Finish

Nickel Plated

Contact Finish

Gold Plated

Impedance

75 ohm
