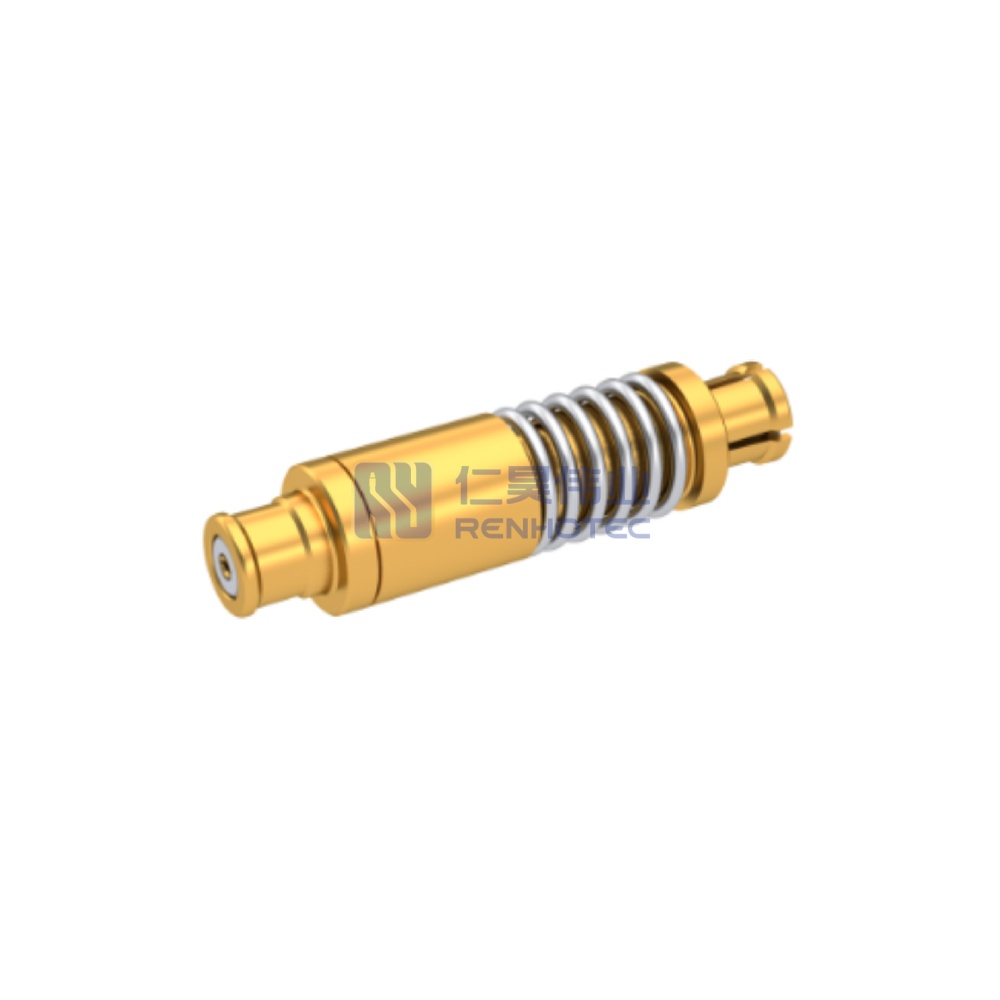

SMP Female To SMP Female Adapter Coaxial Connector 50 Ohms – RHT-639-1351
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-639-1351 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-639-1351 |
| Radiall | R222723120 |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
Product Specification
| 1st Connector | Jack |
||
|---|---|---|---|
| 2nd Connector | Jack |
||
| 1st Contact Type | Female Pin |
||
| 2nd Contact Type | Female Pin |
||
| Convert From(Adapter 1) | SMP |
||
| Convert To(Adapter 2) | SMP |
||
| Adapter Style | SMP to SMP |
||
| Fastening Type | Snap-On |
||
| Frequency Range | 18 GHz |
||
| Impedance | 50 ohm |
||
| Insulation Resistance | 5000MΩ Min |
||
| Mating Durability | 1000 Cycles |
||
| Mounting Type | Free Hanging (In-Line) |
||
| Operating Temperature | -65°C to +85 °C |
||
| Orientation | Straight |
||
| Working Voltage | 335 V rms |
||
| 1st Connector | Jack |
2nd Connector | Jack |
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| Convert From(Adapter 1) | SMP |
Convert To(Adapter 2) | SMP |
| Adapter Style | SMP to SMP |
Fastening Type | Snap-On |
| Frequency Range | 18 GHz |
Impedance | 50 ohm |
| Insulation Resistance | 5000MΩ Min |
Mating Durability | 1000 Cycles |
| Mounting Type | Free Hanging (In-Line) |
Operating Temperature | -65°C to +85 °C |
| Orientation | Straight |
Working Voltage | 335 V rms |
| Body Material | Bronze |
||
|---|---|---|---|
| Center Contact Material | Beryllium Copper |
||
| Center Contact Plating | Gold Plated |
||
| Dielectric Material | PEI; PTFE |
||
| Gender | Female |
||
| Test voltage | 500 V rms |
||
| Body Material | Bronze |
Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold Plated |
Dielectric Material | PEI; PTFE |
| Gender | Female |
Test voltage | 500 V rms |
| 1st Connector | Jack |
|---|---|
| 2nd Connector | Jack |
| 1st Contact Type | Female Pin |
| 2nd Contact Type | Female Pin |
| Convert From(Adapter 1) | SMP |
| Convert To(Adapter 2) | SMP |
| Adapter Style | SMP to SMP |
| Body Material | Bronze |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold Plated |
| Dielectric Material | PEI; PTFE |
| Fastening Type | Snap-On |
| Frequency Range | 18 GHz |
| Gender | Female |
| Impedance | 50 ohm |
| Insulation Resistance | 5000MΩ Min |
| Mating Durability | 1000 Cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65°C to +85 °C |
| Orientation | Straight |
| Test voltage | 500 V rms |
| Working Voltage | 335 V rms |
