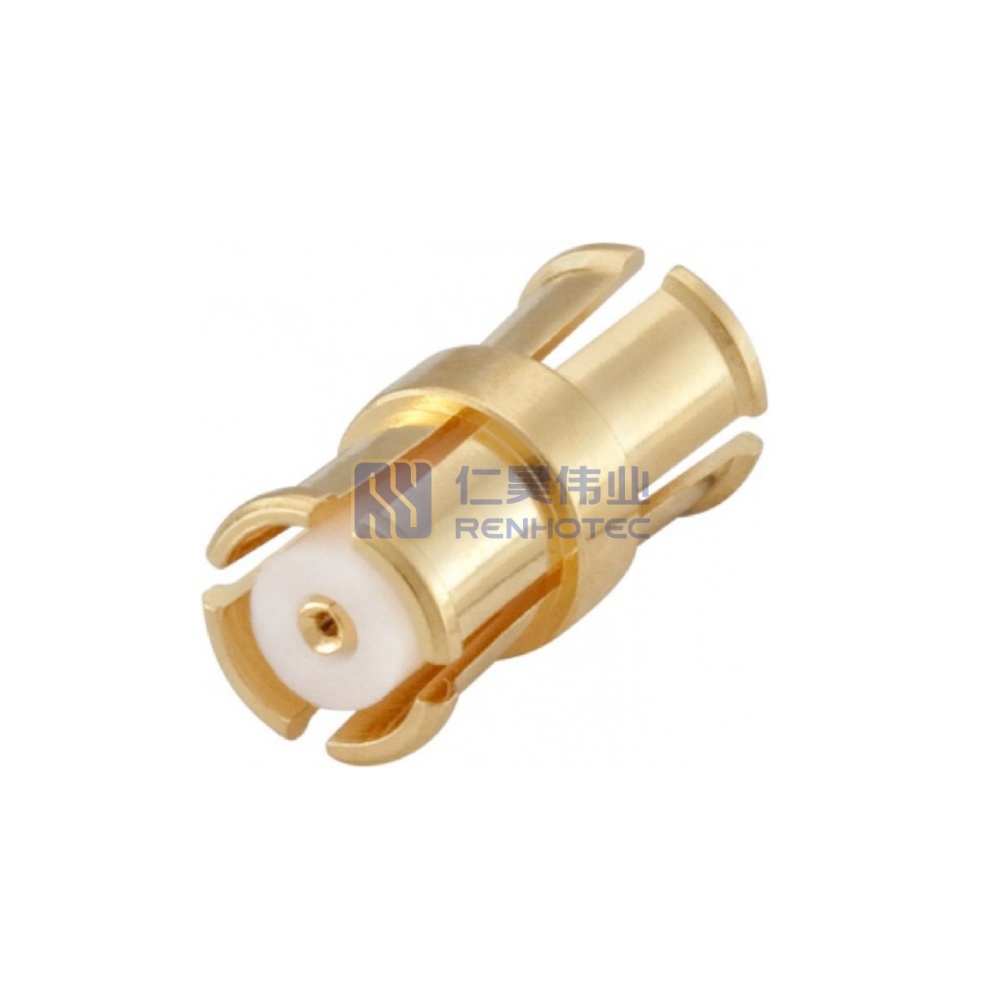

SMP Female To SMP Female Adapter Coaxial Connector Straight 50 Ohms – RHT-639-1395
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-639-1395 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-639-1395 |
| Rosenberger Part No. | 19K101-K00L5 |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
Straight SMP female-to-female adapter, 50Ω, bidirectional design for interconnecting two SMP male connectors, compact body with low insertion loss, supports DC to 40 GHz with consistent impedance, widely used in microwave test setups, modular systems, and antenna feed networks.
Product Specification
| 1st Connector | Jack |
||
|---|---|---|---|
| 2nd Connector | Jack |
||
| 1st Contact Type | Female Pin |
||
| 2nd Contact Type | Female Pin |
||
| Convert From(Adapter 1) | SMP |
||
| Convert To(Adapter 2) | SMP |
||
| Adapter Style | SMP to SMP |
||
| Center Contact Resistance | ≤ 6.0 mΩ |
||
| Frequency Range | DC to 26.5 GHz |
||
| Impedance | 50 ohm |
||
| Insulation Resistance | ≥ 5 GΩ |
||
| Operating Temperature | -65°C to +155°C |
||
| Orientation | Straight |
||
| Outer Contact Resistance | ≤ 2.0 mΩ |
||
| Working Voltage | 335 V rms |
||
| 1st Connector | Jack |
2nd Connector | Jack |
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| Convert From(Adapter 1) | SMP |
Convert To(Adapter 2) | SMP |
| Adapter Style | SMP to SMP |
Center Contact Resistance | ≤ 6.0 mΩ |
| Frequency Range | DC to 26.5 GHz |
Impedance | 50 ohm |
| Insulation Resistance | ≥ 5 GΩ |
Operating Temperature | -65°C to +155°C |
| Orientation | Straight |
Outer Contact Resistance | ≤ 2.0 mΩ |
| Working Voltage | 335 V rms |
| Center Contact Material | Beryllium Copper |
||
|---|---|---|---|
| Center Contact Plating | Gold Plated |
||
| Contact Current | 1.2A DC max. |
||
| Insertion Loss | ≥ 0.05 x dB, √f(GHz)dB, DC to 18 GHz |
||
| Test voltage | 500 V rms |
||
| Center Contact Material | Beryllium Copper |
Center Contact Plating | Gold Plated |
| Contact Current | 1.2A DC max. |
Insertion Loss | ≥ 0.05 x dB, √f(GHz)dB, DC to 18 GHz |
| Test voltage | 500 V rms |
| 1st Connector | Jack |
|---|---|
| 2nd Connector | Jack |
| 1st Contact Type | Female Pin |
| 2nd Contact Type | Female Pin |
| Convert From(Adapter 1) | SMP |
| Convert To(Adapter 2) | SMP |
| Adapter Style | SMP to SMP |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold Plated |
| Center Contact Resistance | ≤ 6.0 mΩ |
| Contact Current | 1.2A DC max. |
| Frequency Range | DC to 26.5 GHz |
| Impedance | 50 ohm |
| Insertion Loss | ≥ 0.05 x dB, √f(GHz)dB, DC to 18 GHz |
| Insulation Resistance | ≥ 5 GΩ |
| Operating Temperature | -65°C to +155°C |
| Orientation | Straight |
| Outer Contact Resistance | ≤ 2.0 mΩ |
| Test voltage | 500 V rms |
| Working Voltage | 335 V rms |
