SKU: RHT-612-0601 Category:

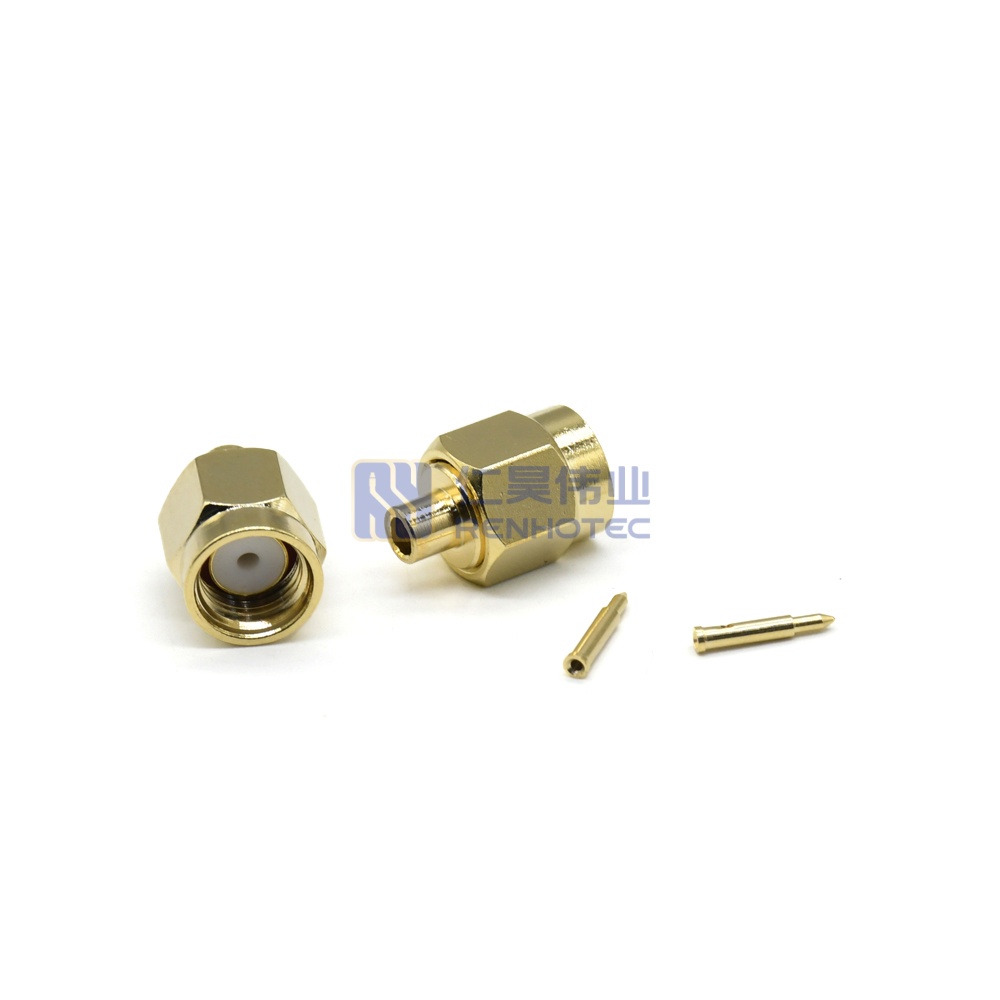

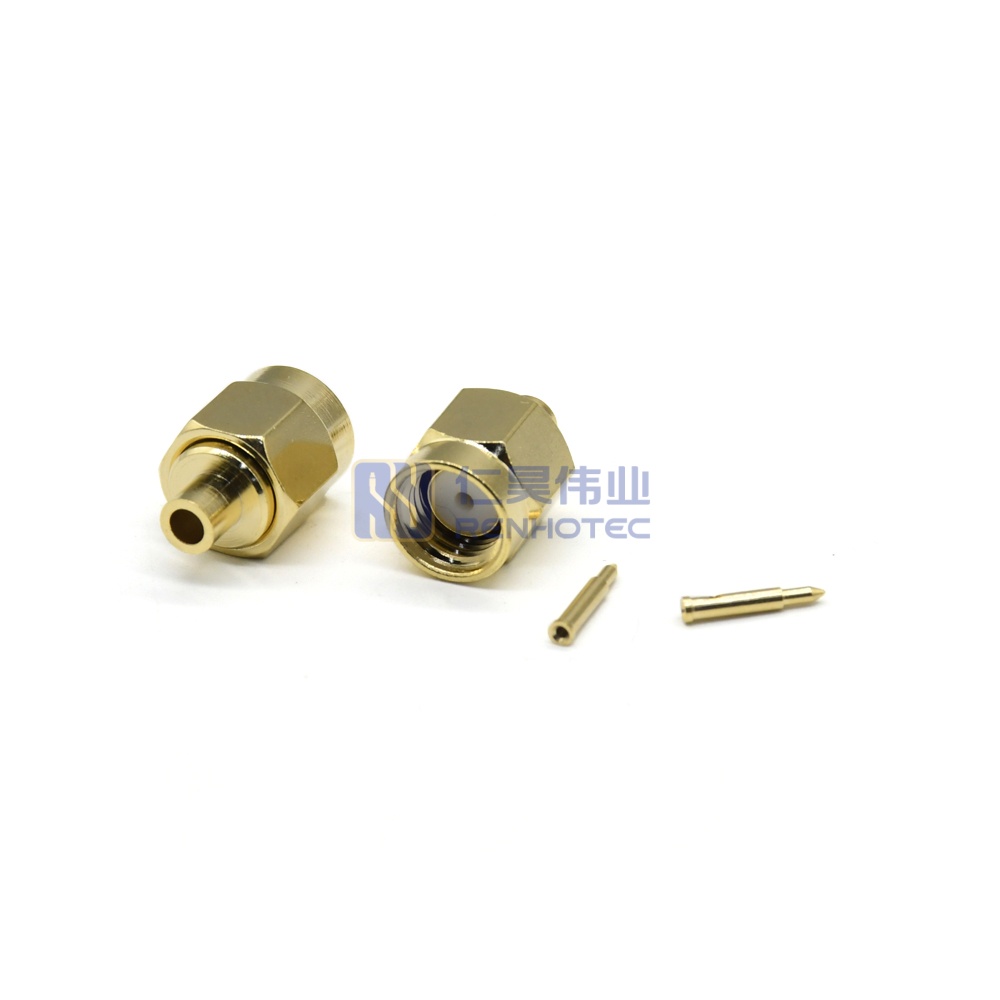

SMA Connector Straight Male Plug Cable Mount 50 Ohm – RHT-612-0601

Product Specification

Center Contact Resistance

6mΩ Max
Connector Type

Plug
Contact Finish

Gold Plated
Contact Material

Brass
Contact Termination Style

Solder
Contact Type

Male Pin
Fastening Type

1/4-36 Threaded
Frequency Range

DC-6GHz
Impedance

50 ohm
Insulator Material

PTFE
Insultation Resistance

5000 Ohms min
Mating Durability

≥ 500 Cycles
Mounting Type

Cable Mount
Temperature Range

-40°C to +125°C
Orientation

Straight
Outer Contact Resistance

≦ 0.2 MΩ (Milliohms Max.)
RF Series

SMA Type
Rated Voltage

500V rms
Shell Finish

Gold Plated
Shell Material

Brass
VSWR

1.5MAX
