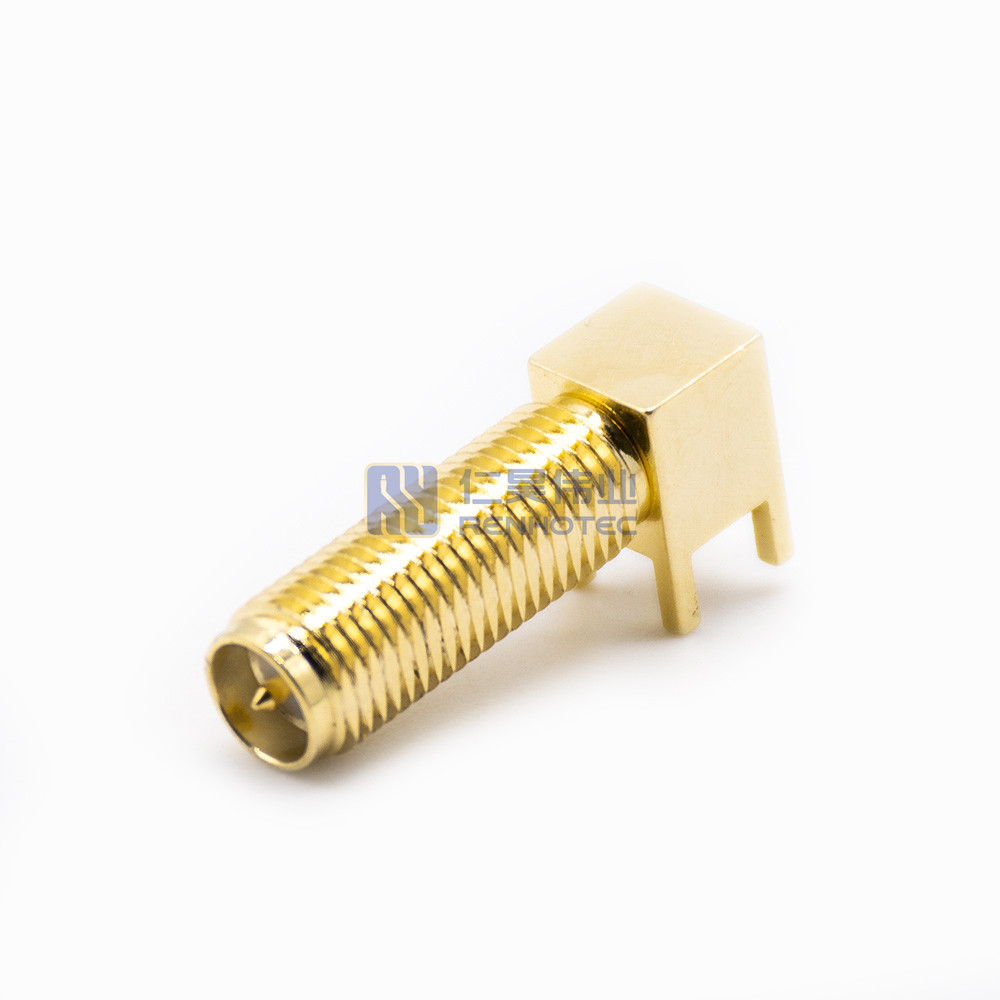

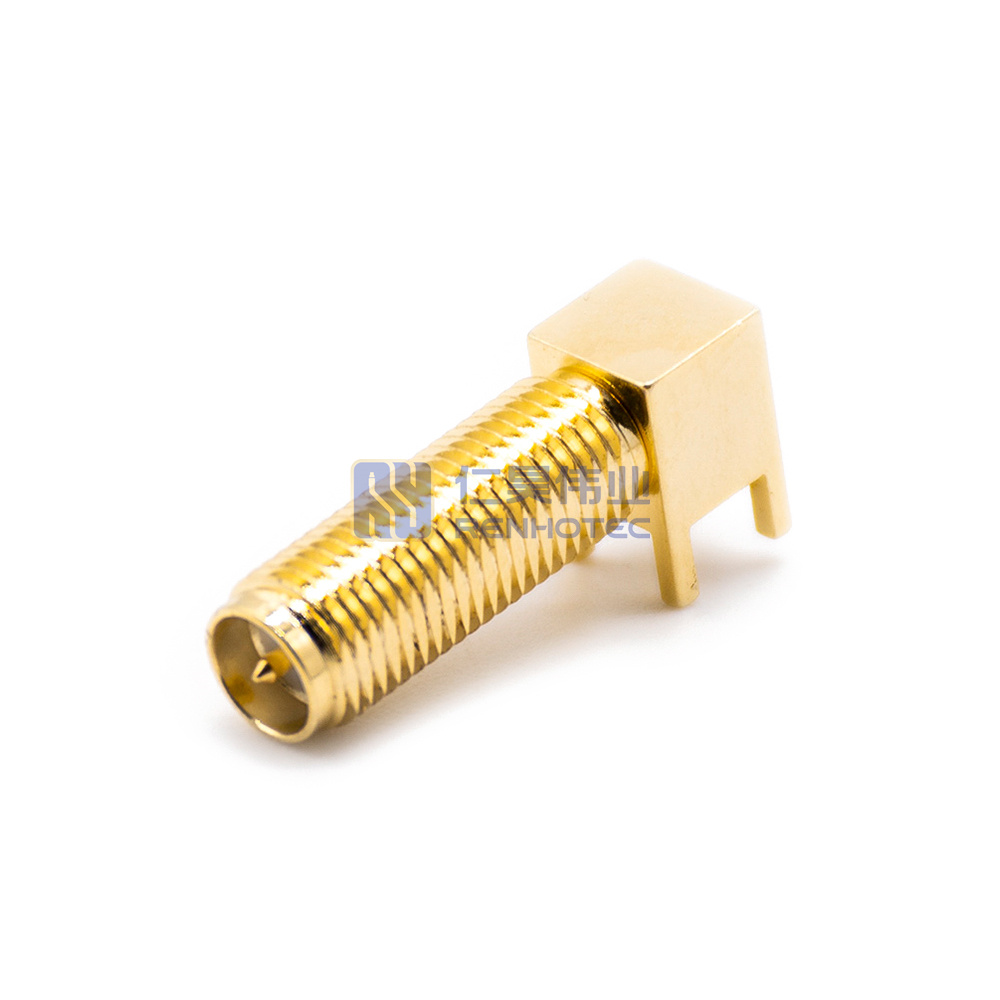

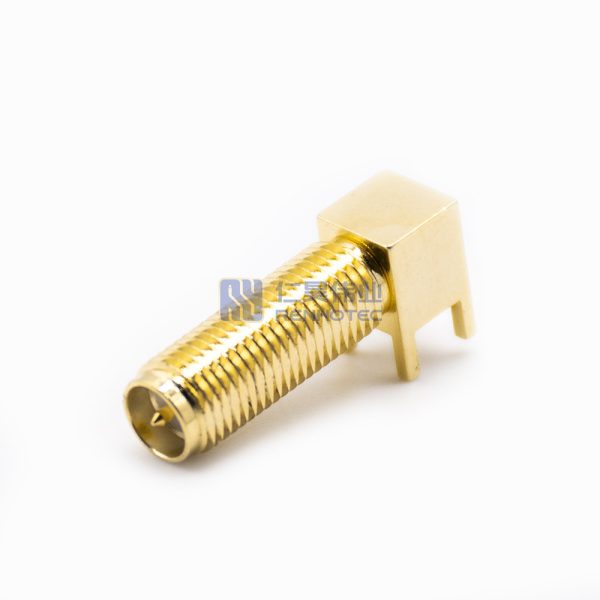

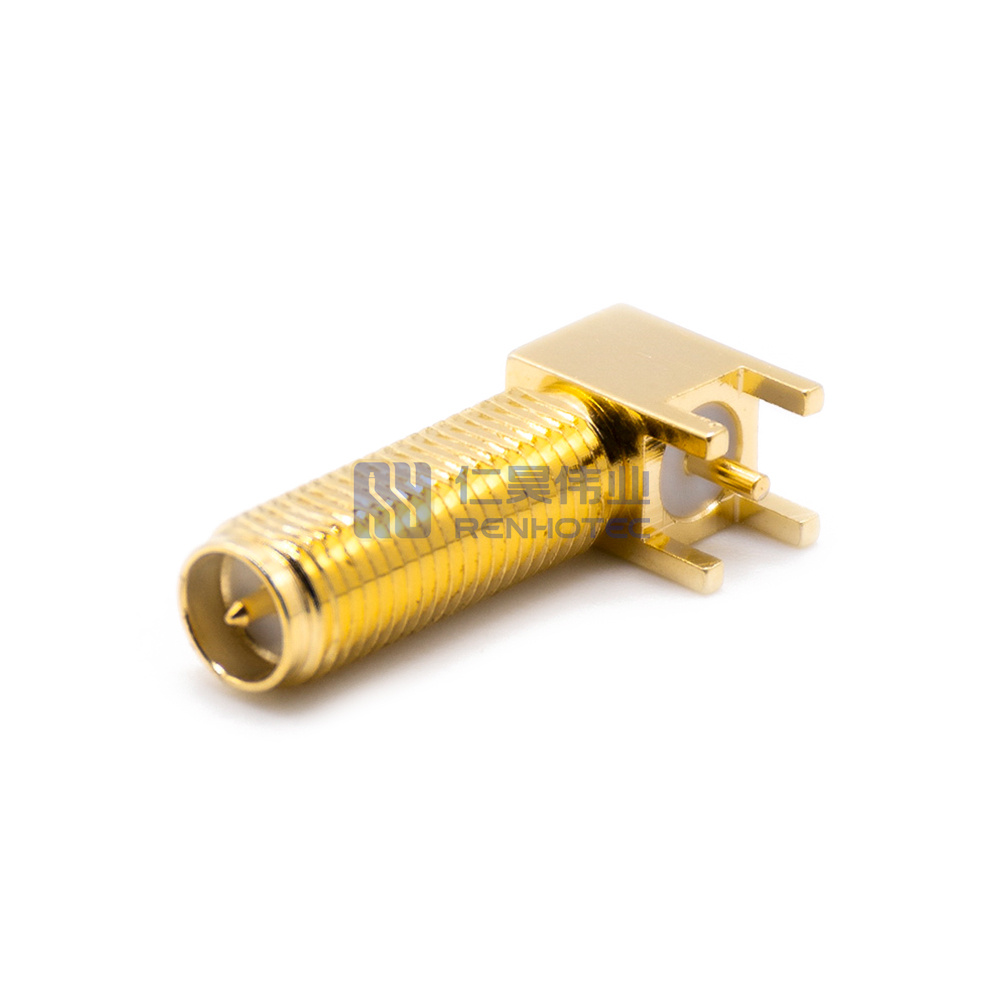

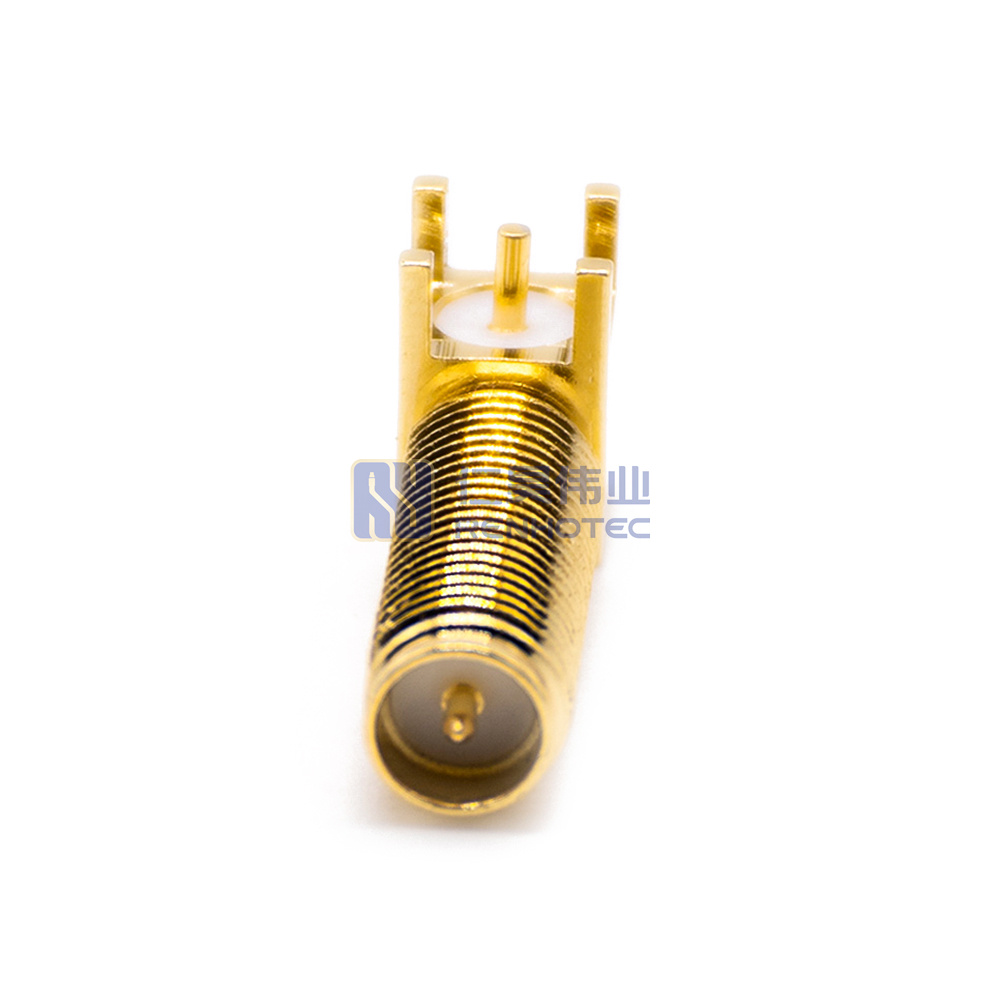

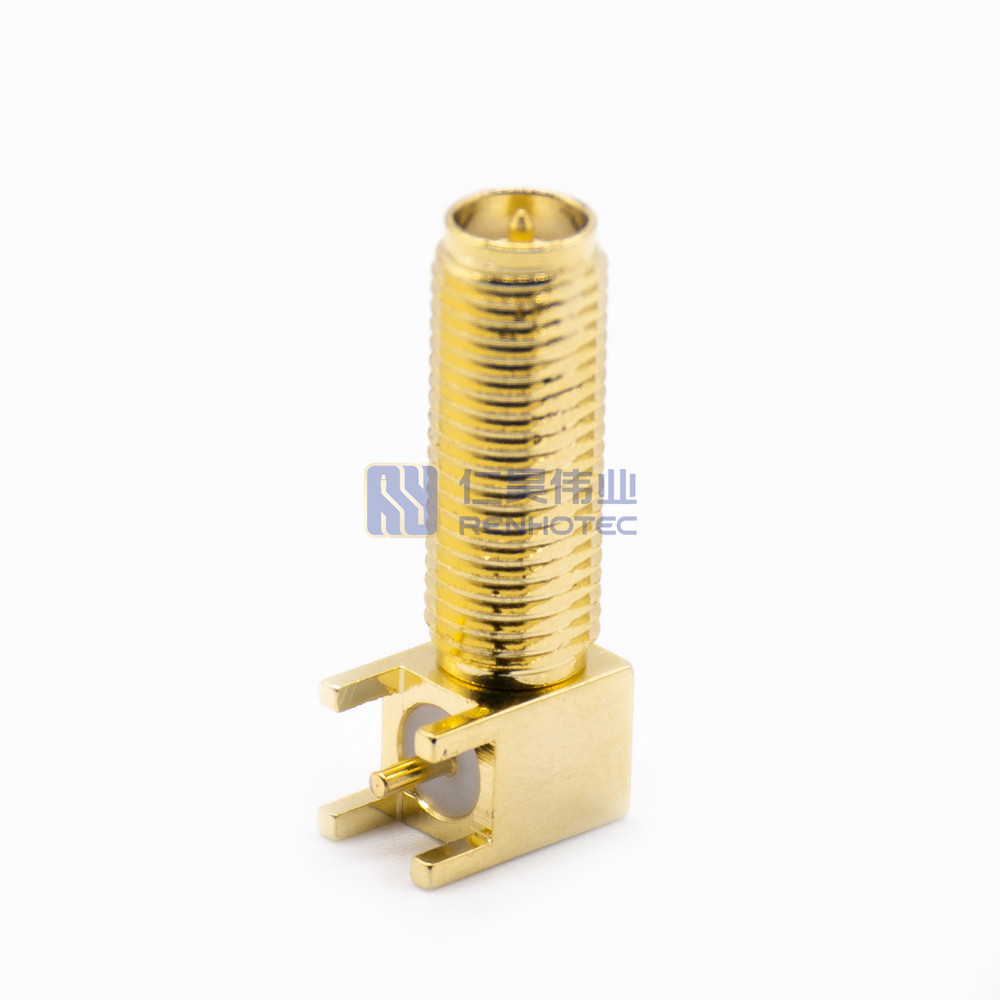

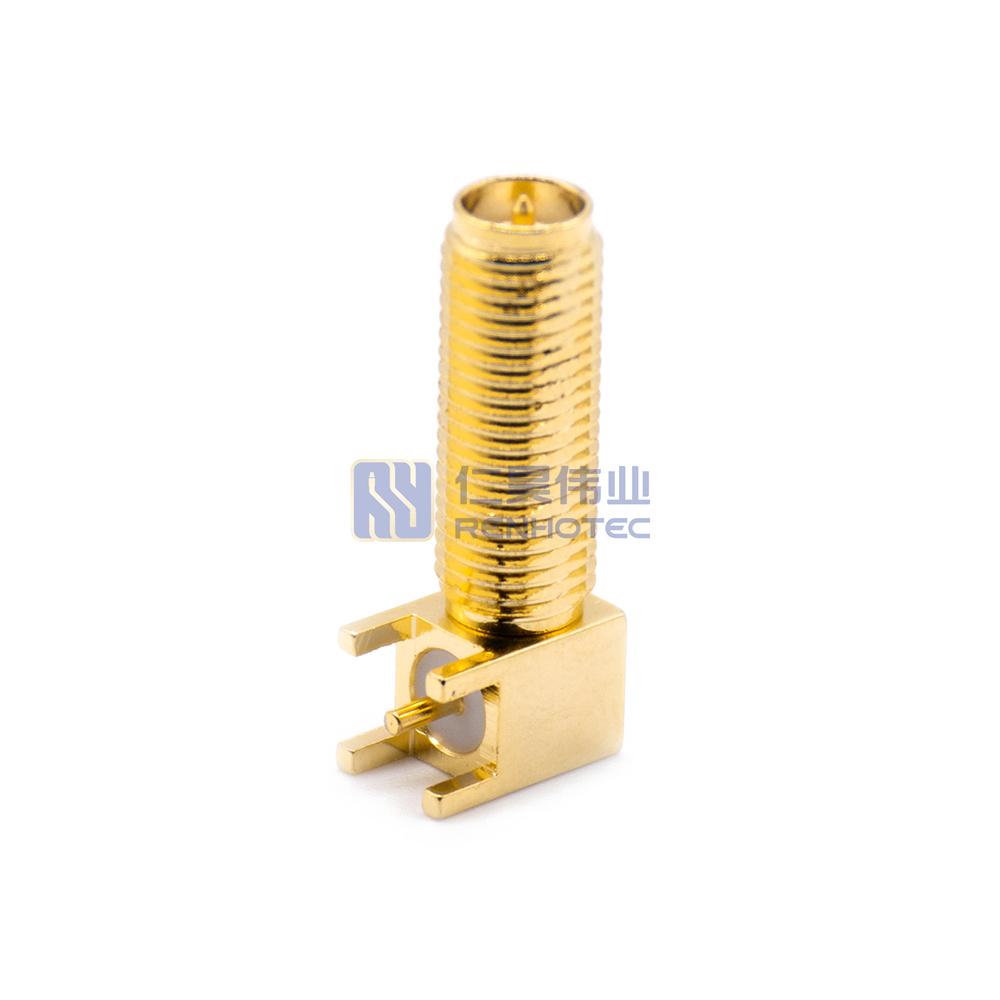

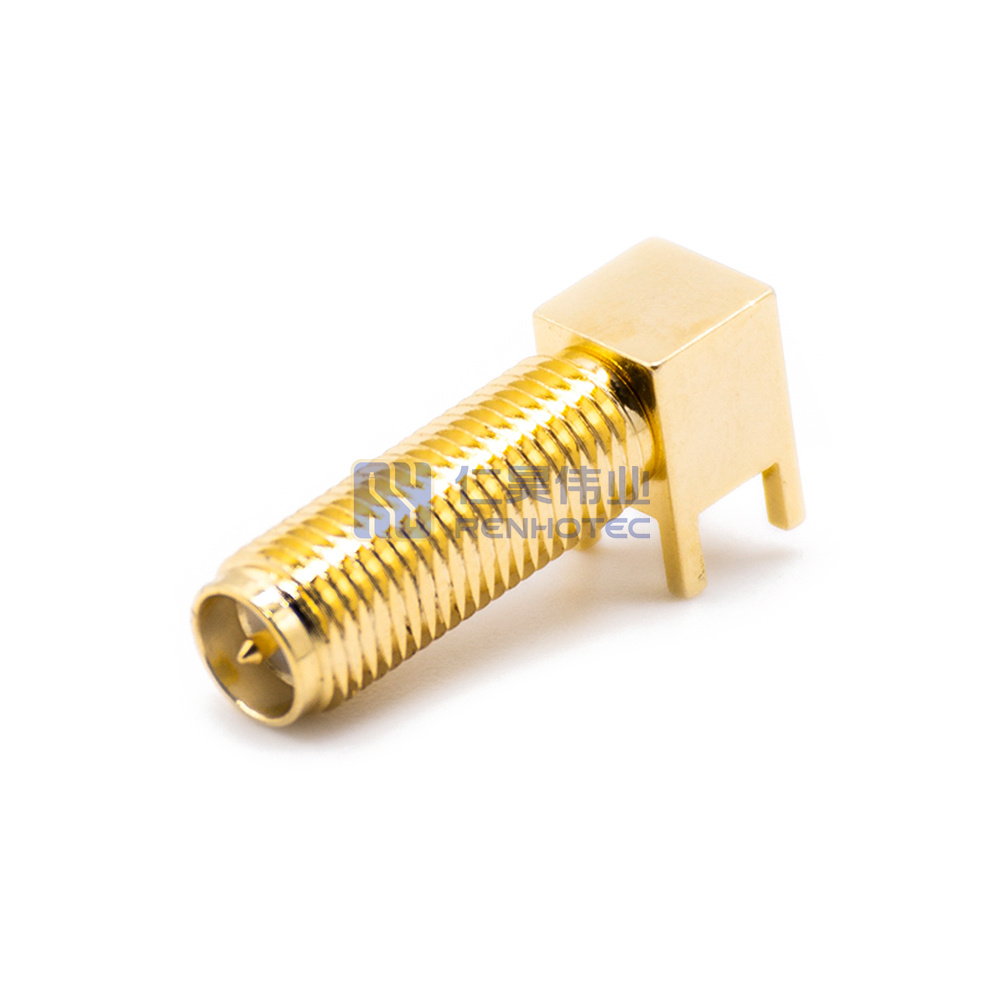

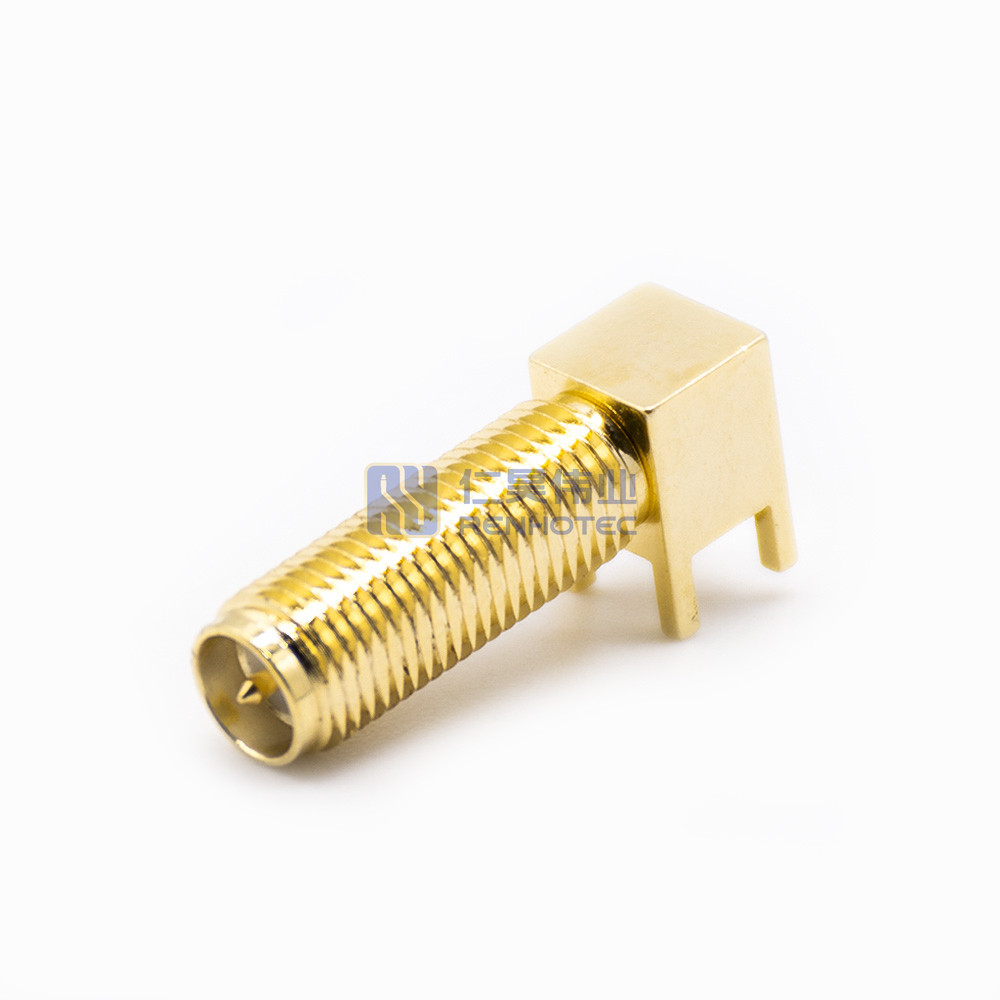

SMA Connector Right Angle Jack Male Pin Panel Mount Through Hole – DOSIN-806-0410
Ensure secure RF connections with this SMA Connector featuring a right angle jack, male pin, and panel mount design. Ideal for robust through-hole installations, SKU: DOSIN-806-0410.
The SMA connector is a semi-precision, ultra-compact RF and microwave connector that is widely used, especially for RF connections in electronic systems with frequencies up to 18 GHz and beyond. While SMA connectors are now widely used, their use is likely to expand further as the operating frequencies of many new RF systems extend into the microwave region.
Light weight, compact and antivibration design for harsh environments
Available in brass and stainless steel with gold, nickel and passivated plating
Terminates to all standard flexible coaxial cables,as semi-rigid and conformable cable
Subminiature design:Space-saving vertical mating
Complete Variety
SMA Male
SMA Female
RP-SMA Male
RP-SMA Female
Crimp Type
Crimp with Solder
Solder Typ
Solder Cup
For Antenna
Through Hole
Edge Mount
Offset Type
Flange Type
Bulkhead Type
Product Application
Telecommunications
PC / LAN
Antenna
Instrumentation
GPS
Base Stations
Our Advantages
Physical factory
Having a professional production team, selfproduced and self sold
Quality assurance
Through strict qualitycontrol, ensure quality
After sales system
Actively follow up andpromptly address anyissues
After sales system
Actively follow up andpromptly address anyissues
Production Process
1. Put forward demand
2. Sketch design
3. Production equipment
4. Production measurement
5. Product assembly
6. Quality test
7. Product packaging
8. Product packag box
9. Deliver goods
Product Specification
RF Series | SMA Type |
||
---|---|---|---|
Connector Type | Jack |
||
Contact Type | Male Pin |
||
Orientation | Right Angle |
||
Mounting Type | Panel Mount |
||
Mounting Feature | Through Hole |
||
Contact Termination Style | Solder |
||
Fastening Type | 1/4-36 Threaded |
||
Impedance | 50 ohm |
||
Insulator Material | PTFE |
||
Shell Material | Copper Alloy |
||
Shell Finish | Gold Plated |
||
Contact Material | Phosphor Bronze |
||
Contact Finish | Gold Plated |
||
VSWR | R/A type ≦ 1.5MAX, Straight type≦1.3 MAX |
||
Frequency Range | DC-6GHz |
||
Center Contact Resistance | 6 MΩ Max |
||
Outer Contact Resistance | ≦ 0.2 MΩ (Milliohms Max.) |
||
Insultation Resistance | ≧ 5 x 10³ MΩ (Megohms MIN.) |
||
Rated Voltage | 335 Volts RMS Continuous |
||
Mating Durability | ≥ 500 Cycles |
||
Temperature Range | -65℃ to +165℃ |
||
RF Series | SMA Type |
Connector Type | Jack |
Contact Type | Male Pin |
Orientation | Right Angle |
Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
Contact Termination Style | Solder |
Fastening Type | 1/4-36 Threaded |
Impedance | 50 ohm |
Insulator Material | PTFE |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Contact Material | Phosphor Bronze |
Contact Finish | Gold Plated |
VSWR | R/A type ≦ 1.5MAX, Straight type≦1.3 MAX |
Frequency Range | DC-6GHz |
Center Contact Resistance | 6 MΩ Max |
Outer Contact Resistance | ≦ 0.2 MΩ (Milliohms Max.) |
Insultation Resistance | ≧ 5 x 10³ MΩ (Megohms MIN.) |
Rated Voltage | 335 Volts RMS Continuous |
Mating Durability | ≥ 500 Cycles |
Temperature Range | -65℃ to +165℃ |
RF Series | SMA Type |
---|---|
Connector Type | Jack |
Contact Type | Male Pin |
Orientation | Right Angle |
Mounting Type | Panel Mount |
Mounting Feature | Through Hole |
Contact Termination Style | Solder |
Fastening Type | 1/4-36 Threaded |
Impedance | 50 ohm |
Insulator Material | PTFE |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Contact Material | Phosphor Bronze |
Contact Finish | Gold Plated |
VSWR | R/A type ≦ 1.5MAX, Straight type≦1.3 MAX |
Frequency Range | DC-6GHz |
Center Contact Resistance | 6 MΩ Max |
Outer Contact Resistance | ≦ 0.2 MΩ (Milliohms Max.) |
Insultation Resistance | ≧ 5 x 10³ MΩ (Megohms MIN.) |
Rated Voltage | 335 Volts RMS Continuous |
Mating Durability | ≥ 500 Cycles |
Temperature Range | -65℃ to +165℃ |
SMA male connector is identified by inside 1/4″-36 threads and a 5/16″ hex nut, and SMA female connector is identified by outside 1/4″-36 threads.
SMA Male / Plug Connectors: the center pin (male pin) is surrounded by a barrel with threads on the inside
SMA Female / Jack Connectors: the center sleeve (female pin) is surrounded by a barrel with threads on the outside
RP-SMA Male/Plug Connectors: the center sleeve (female pin) is surrounded by a barrel with threads on the inside
RP-SMA Female / Jack Connectors: the center pin (male pin) is surrounded by a barrel with threads on the outside
SMA Body: Brass or stainless steel
Insulator: Made of PTFE
Center pin: Made of brass, beryllium copper, phosphor bronze
Please feel free to submit your product requirements and we will provide you with the most suitable suggestions.
The frequency of SMA connectors commonly used in the international market is generally 0-6Ghz. We can also customize 0-18Ghz, pls send us the dimension, performance and usage environment requirements, we’ll provide you product solution.
Durability : 500 mating cycles min. Power rating at 1 GHz : 450W. Temperature range : -65°C / +165°C.
Yes, the center pin of an SMA connector can indeed be plated with a thicker layer of material. Plating thickness can be adjusted based on the specific requirements of the application, such as improved conductivity, increased durability, or enhanced corrosion resistance.
It has MOQ requirement, pls send us your product requirement.
Yes, we can customize different thread length to meet specific requirements, pls advise the thread length, our professional engineer team will provide you product solution.
