SKU: RHT-612-0476 Category:

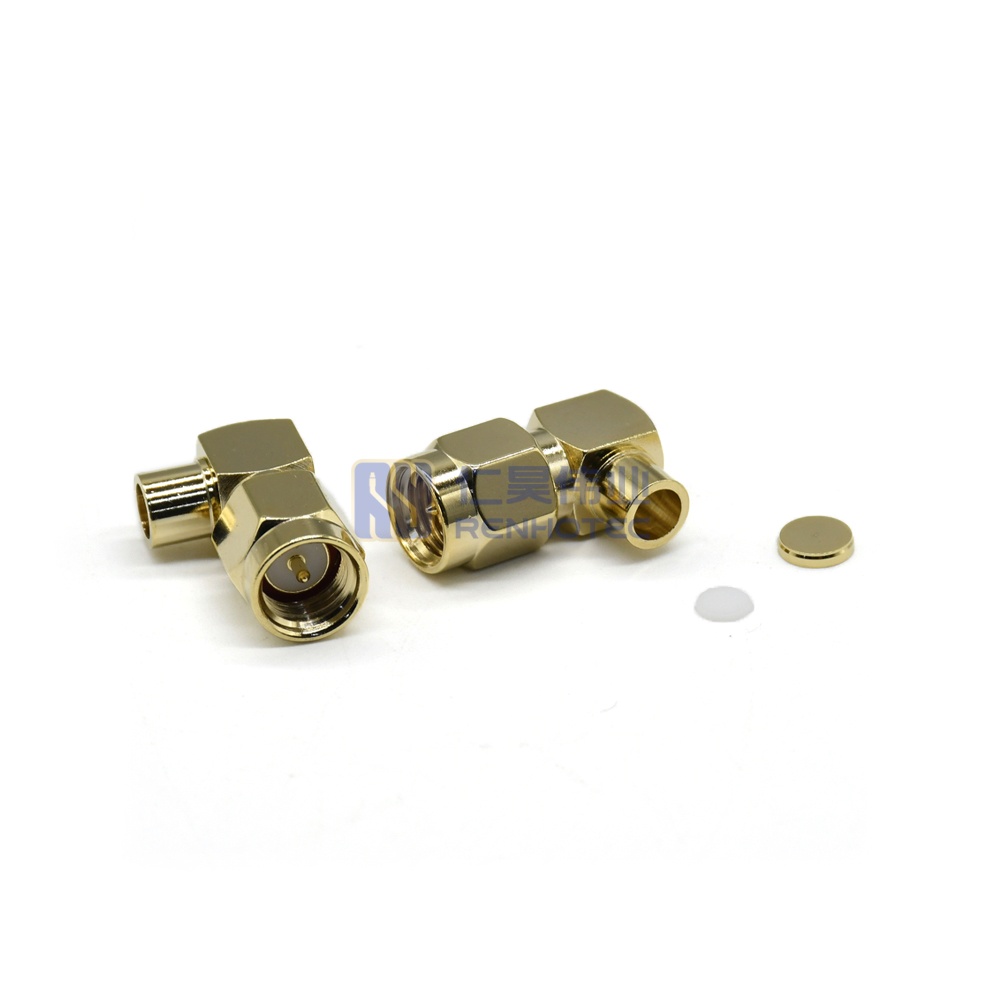

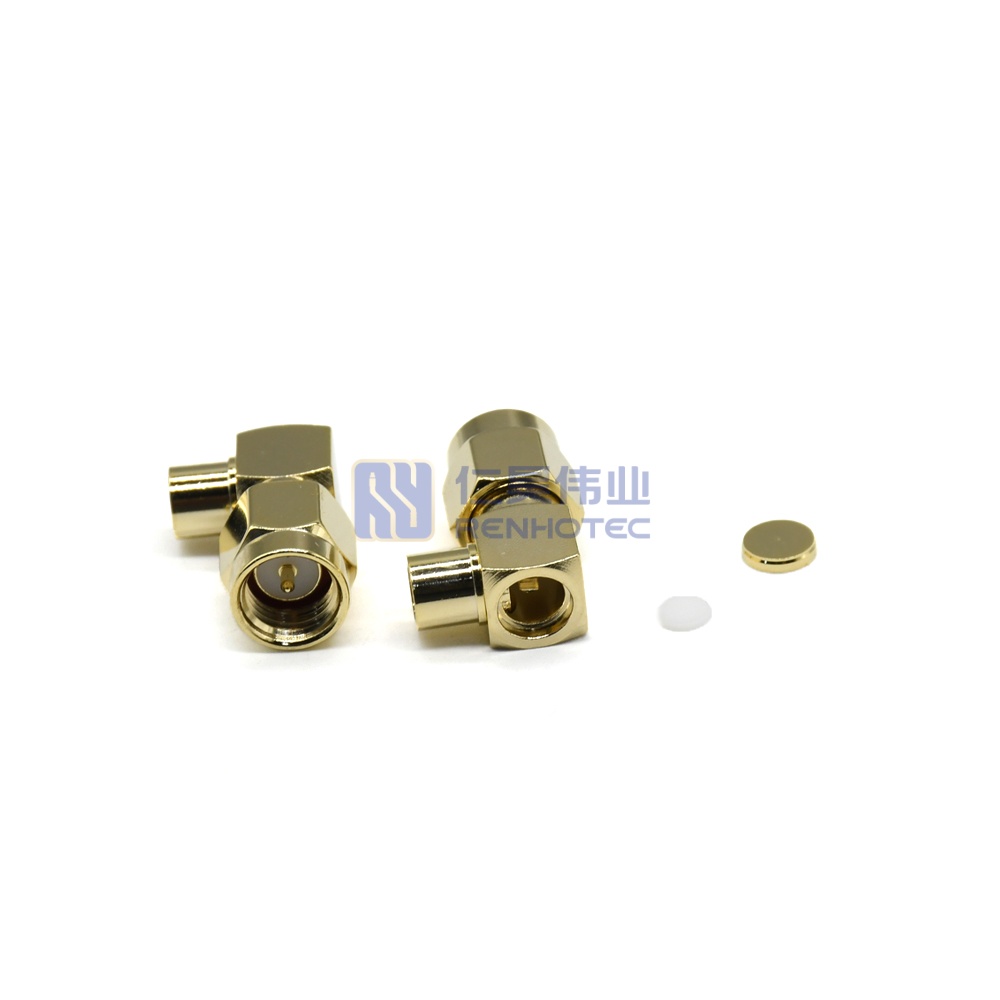

SMA Connector Right Angle Male Plug Cable Mount 50 Ohm – RHT-612-0476

Product Specification

Center Contact Resistance

6mΩ Max
Connector Type

Plug
Contact Finish

Gold Plated
Contact Material

Brass
Contact Termination Style

Solder
Contact Type

Male Pin
Fastening Type

1/4-36 Threaded
Frequency Range

DC-6GHz
Impedance

50 ohm
Insulator Material

PTFE
Insultation Resistance

5000 Ohms min
Mating Durability

≥ 500 Cycles
Mounting Type

Cable Mount
Temperature Range

-55°C to +155°C
Orientation

Right Angle
Outer Contact Resistance

≦ 0.2 MΩ (Milliohms Max.)
RF Series

SMA Type
Rated Voltage

500V rms
Shell Finish

Gold Plated
Shell Material

Brass
VSWR

1.5MAX
Center Contact Resistance

6mΩ Max

 Connector Type

Plug
Contact Finish

Gold Plated

 Contact Material

Brass
Contact Termination Style

Solder

 Contact Type

Male Pin
Fastening Type

1/4-36 Threaded

 Frequency Range

DC-6GHz
Impedance

50 ohm

 Insulator Material

PTFE
Insultation Resistance

5000 Ohms min

 Mating Durability

≥ 500 Cycles
Mounting Type

Cable Mount

 Temperature Range

-55°C to +155°C
Orientation

Right Angle

 Outer Contact Resistance

≦ 0.2 MΩ (Milliohms Max.)
RF Series

SMA Type

 Rated Voltage

500V rms
Shell Finish

Gold Plated

 Shell Material

Brass
VSWR

1.5MAX

Rubber Mat Material

PTFE
Cap Material

Brass
Cap Finish

Gold Plated
Rubber Mat Material

PTFE

 Cap Material

Brass
Cap Finish

Gold Plated
Center Contact Resistance

6mΩ Max
Connector Type

Plug
Contact Finish

Gold Plated
Contact Material

Brass
Contact Termination Style

Solder
Contact Type

Male Pin
Fastening Type

1/4-36 Threaded
Frequency Range

DC-6GHz
Impedance

50 ohm
Insulator Material

PTFE
Insultation Resistance

5000 Ohms min
Mating Durability

≥ 500 Cycles
Mounting Type

Cable Mount
Temperature Range

-55°C to +155°C
Orientation

Right Angle
Outer Contact Resistance

≦ 0.2 MΩ (Milliohms Max.)
RF Series

SMA Type
Rated Voltage

500V rms
Shell Finish

Gold Plated
Shell Material

Brass
VSWR

1.5MAX
Rubber Mat Material

PTFE
Cap Material

Brass
Cap Finish

Gold Plated
