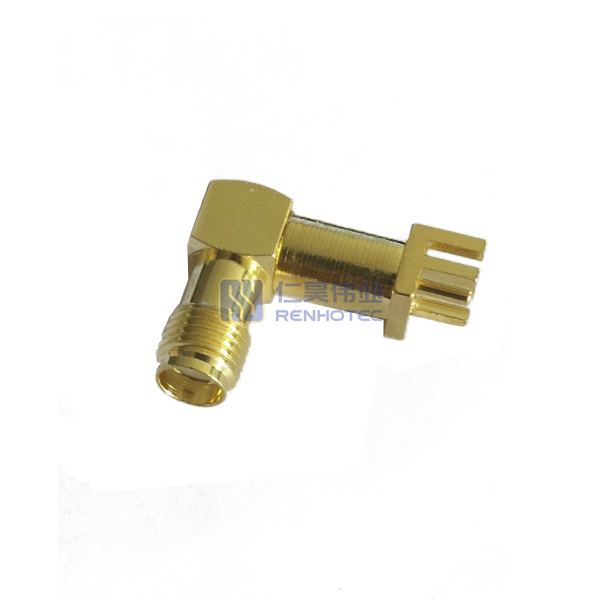

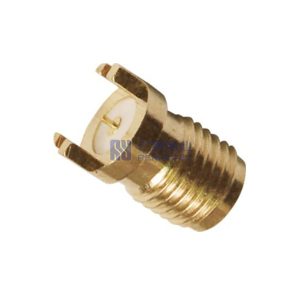

Right Angle SMA Connector Jack Panel Mount Edge Mount
- Lightweight, compact, and vibration-proof design
- High-strength designs for harsh environments
- Available in brass and stainless steel with gold, nickel, and passivated plating
- Terminates to all standard flexible coaxial cables, low-loss (LMR) type cables, and industry-standard semi-rigid and conformable cables
- Subminiature design: Space-saving vertical mating
The SMA (SubMiniature version A) connector is a semi-precision coaxial RF connector developed in the 1960s. As the smallest connector interface for coaxial cables, it has a screw-type coupling mechanism. The connector has a 50 Ω impedance. The SMA connector is typically rated for mode-free operation from DC to 18 GHz and sometimes more.
The SMA connector comes in various formats, male, female, straight, right-angled, bulkhead fitting, and many more, enabling it to meet most requirements. Its sub-miniature size enables it to be used, even within relatively small items of electronic equipment.
Material of SMA connector
Product Specification
| RF Series | SMA Type |
||
|---|---|---|---|
| Connector Type | Jack |
||
| Contact Type | Female Pin |
||
| Orientation | Right Angle |
||
| Mounting Type | Panel Mount |
||
| Mounting Feature | Edge Mount |
||
| Contact Termination Style | Solder |
||
| Fastening Type | 1/4-36 Threaded |
||
| Impedance | 50 ohm |
||
| Insulator Material | PTFE |
||
| Shell Material | Copper Alloy |
||
| Shell Finish | Gold Plated |
||
| Contact Material | Phosphor Bronze |
||
| Contact Finish | Gold Plated |
||
| VSWR | R/A type ≦ 1.5MAX, Straight type≦1.3 MAX |
||
| Frequency Range | DC-6GHz |
||
| Center Contact Resistance | 6 MΩ Max |
||
| Outer Contact Resistance | ≦ 2.0 MΩ (Milliohms Max.) |
||
| Insultation Resistance | ≧ 5 x 10³ MΩ (Megohms MIN.) |
||
| Rated Voltage | 335 Volts RMS Continuous |
||
| Mating Durability | ≥ 500 Cycles |
||
| Temperature Range | -65℃ to +165℃ |
||
| RF Series | SMA Type |
Connector Type | Jack |
| Contact Type | Female Pin |
Orientation | Right Angle |
| Mounting Type | Panel Mount |
Mounting Feature | Edge Mount |
| Contact Termination Style | Solder |
Fastening Type | 1/4-36 Threaded |
| Impedance | 50 ohm |
Insulator Material | PTFE |
| Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
| Contact Material | Phosphor Bronze |
Contact Finish | Gold Plated |
| VSWR | R/A type ≦ 1.5MAX, Straight type≦1.3 MAX |
Frequency Range | DC-6GHz |
| Center Contact Resistance | 6 MΩ Max |
Outer Contact Resistance | ≦ 2.0 MΩ (Milliohms Max.) |
| Insultation Resistance | ≧ 5 x 10³ MΩ (Megohms MIN.) |
Rated Voltage | 335 Volts RMS Continuous |
| Mating Durability | ≥ 500 Cycles |
Temperature Range | -65℃ to +165℃ |
| RF Series | SMA Type |
|---|---|
| Connector Type | Jack |
| Contact Type | Female Pin |
| Orientation | Right Angle |
| Mounting Type | Panel Mount |
| Mounting Feature | Edge Mount |
| Contact Termination Style | Solder |
| Fastening Type | 1/4-36 Threaded |
| Impedance | 50 ohm |
| Insulator Material | PTFE |
| Shell Material | Copper Alloy |
| Shell Finish | Gold Plated |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold Plated |
| VSWR | R/A type ≦ 1.5MAX, Straight type≦1.3 MAX |
| Frequency Range | DC-6GHz |
| Center Contact Resistance | 6 MΩ Max |
| Outer Contact Resistance | ≦ 2.0 MΩ (Milliohms Max.) |
| Insultation Resistance | ≧ 5 x 10³ MΩ (Megohms MIN.) |
| Rated Voltage | 335 Volts RMS Continuous |
| Mating Durability | ≥ 500 Cycles |
| Temperature Range | -65℃ to +165℃ |
