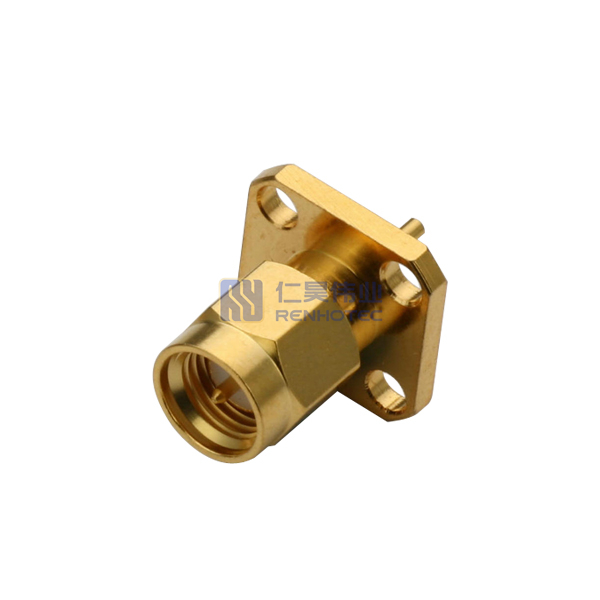

Solder Type Coaxial Connector SMA Straight Male Male Pin Four Flange 50 Ohm – RHT-612-0234
This SMA Straight Male Coaxial Connector with solder type and four flange design is ideal for high-frequency applications in telecommunications, automotive, and aerospace industries. Featuring 50 Ohm impedance, it ensures reliable signal transmission with minimal interference.
Product Specification
| Center Contact Resistance | 6 MΩ Max |
||
|---|---|---|---|
| Connector Type | Plug |
||
| Contact Finish | Gold Plated |
||
| Contact Material | Phosphor Bronze |
||
| Contact Type | Male Pin |
||
| Fastening Type | 1/4-36 Threaded |
||
| Frequency Range | DC-6GHz |
||
| Impedance | 50 ohm |
||
| Insulator Material | PTFE |
||
| Insultation Resistance | ≥5 × 10³MΩ (Megohms MIN.) |
||
| Mating Durability | ≥ 500 Cycles |
||
| Mounting Feature | 4 Hole Flange |
||
| Mounting Type | Panel Mount |
||
| Orientation | Straight |
||
| Outer Contact Resistance | ≦ 0.2 MΩ (Milliohms Max.) |
||
| RF Series | SMA Type |
||
| Rated Voltage | 335 Volts RMS Continuous |
||
| Shell Finish | Gold Plated |
||
| Shell Material | Copper Alloy |
||
| Temperature Range | -65°C to +165°C |
||
| VSWR | R/A type ≤ 1.5MAX, Straight type ≤ 1.3 MAX |
||
| Center Contact Resistance | 6 MΩ Max |
Connector Type | Plug |
| Contact Finish | Gold Plated |
Contact Material | Phosphor Bronze |
| Contact Type | Male Pin |
Fastening Type | 1/4-36 Threaded |
| Frequency Range | DC-6GHz |
Impedance | 50 ohm |
| Insulator Material | PTFE |
Insultation Resistance | ≥5 × 10³MΩ (Megohms MIN.) |
| Mating Durability | ≥ 500 Cycles |
Mounting Feature | 4 Hole Flange |
| Mounting Type | Panel Mount |
Orientation | Straight |
| Outer Contact Resistance | ≦ 0.2 MΩ (Milliohms Max.) |
RF Series | SMA Type |
| Rated Voltage | 335 Volts RMS Continuous |
Shell Finish | Gold Plated |
| Shell Material | Copper Alloy |
Temperature Range | -65°C to +165°C |
| VSWR | R/A type ≤ 1.5MAX, Straight type ≤ 1.3 MAX |
| Center Contact Resistance | 6 MΩ Max |
|---|---|
| Connector Type | Plug |
| Contact Finish | Gold Plated |
| Contact Material | Phosphor Bronze |
| Contact Type | Male Pin |
| Fastening Type | 1/4-36 Threaded |
| Frequency Range | DC-6GHz |
| Impedance | 50 ohm |
| Insulator Material | PTFE |
| Insultation Resistance | ≥5 × 10³MΩ (Megohms MIN.) |
| Mating Durability | ≥ 500 Cycles |
| Mounting Feature | 4 Hole Flange |
| Mounting Type | Panel Mount |
| Orientation | Straight |
| Outer Contact Resistance | ≦ 0.2 MΩ (Milliohms Max.) |
| RF Series | SMA Type |
| Rated Voltage | 335 Volts RMS Continuous |
| Shell Finish | Gold Plated |
| Shell Material | Copper Alloy |
| Temperature Range | -65°C to +165°C |
| VSWR | R/A type ≤ 1.5MAX, Straight type ≤ 1.3 MAX |
SMA Coaxial Connectors
Own factory
Support customization
Real shooting
STRICTLY SELECT MATERIALS AND GUARD DETAILS
The SMA connector is a semi-precision, ultra-compact RF and microwave connector that is widely used, especially for RF connections in electronic systems with frequencies up to 18 GHz and beyond. While SMA connectors are now widely used, their use is likely to expand further as the operating frequencies of many new RF systems extend into the microwave region.
Light weight, compact and antivibration design for harsh environments
Available in brass and stainless steel with gold, nickel and passivated plating
Terminates to all standard flexible coaxial cables,as semi-rigid and conformable cable
Subminiature design:Space-saving vertical mating
Complete Variety
SMA Male
SMA Female
RP-SMA Male
RP-SMA Female
Crimp Type
Crimp with Solder
Solder Typ
Solder Cup
For Antenna
Through Hole
Edge Mount
Offset Type
Flange Type
Bulkhead Type
Product Application
Telecommunications
PC / LAN
Antenna
Instrumentation
GPS
Base Stations
Our Advantages
Physical factory
Having a professional production team, selfproduced and self sold
Quality assurance
Through strict qualitycontrol, ensure quality
After sales system
Actively follow up andpromptly address anyissues
After sales system
Actively follow up andpromptly address anyissues
Production Process
1. Put forward demand
2. Sketch design
3. Production equipment
4. Production measurement
5. Product assembly
6. Quality test
7. Product packaging
8. Product packag box
9. Deliver goods
Drawing for Solder Type Coaxial Connector SMA Straight Male Male Pin Four Flange 50 OhmDownload
1. What are SMA connectors made of?
SMA Body: Brass or stainless steel
Insulator: Made of PTFE
Center pin: Made of brass, beryllium copper, phosphor bronze
Please feel free to submit your product requirements and we will provide you with the most suitable suggestions.
2. What’s frequency range of SMA connector? Can you customize 0-18Ghz SMA connector?
The frequency of SMA connectors commonly used in the international market is generally 0-6Ghz. We can also customize 0-18Ghz, pls send us the dimension, performance and usage environment requirements, we’ll provide you product solution.
3. How durable is the SMA connector?
Durability : 500 mating cycles min. Power rating at 1 GHz : 450W. Temperature range : -65°C / +165°C.
4. What is reverse polarity?
Standard SMA plugs have male contacts, jacks female. Reverse Polarity (RP-SMA) swaps this: plugs have female contacts, jacks male.
5. Can the center pin of the SMA be plated thicker? For example, 10 U
Yes, the center pin of an SMA connector can indeed be plated with a thicker layer of material. Plating thickness can be adjusted based on the specific requirements of the application, such as improved conductivity, increased durability, or enhanced corrosion resistance.
It has MOQ requirement, pls send us your product requirement.
6. Can you customize long thread SMA connector?
Yes, we can customize different thread length to meet specific requirements, pls advise the thread length, our professional engineer team will provide you product solution.
7. Are waterproof SMA connectors available?
Yes, we support waterproof SMA connectors with various IP ratings are available. Waterproofing methods include sealing the mating interface, cable attachment points, and using O-rings for ingress protection.
