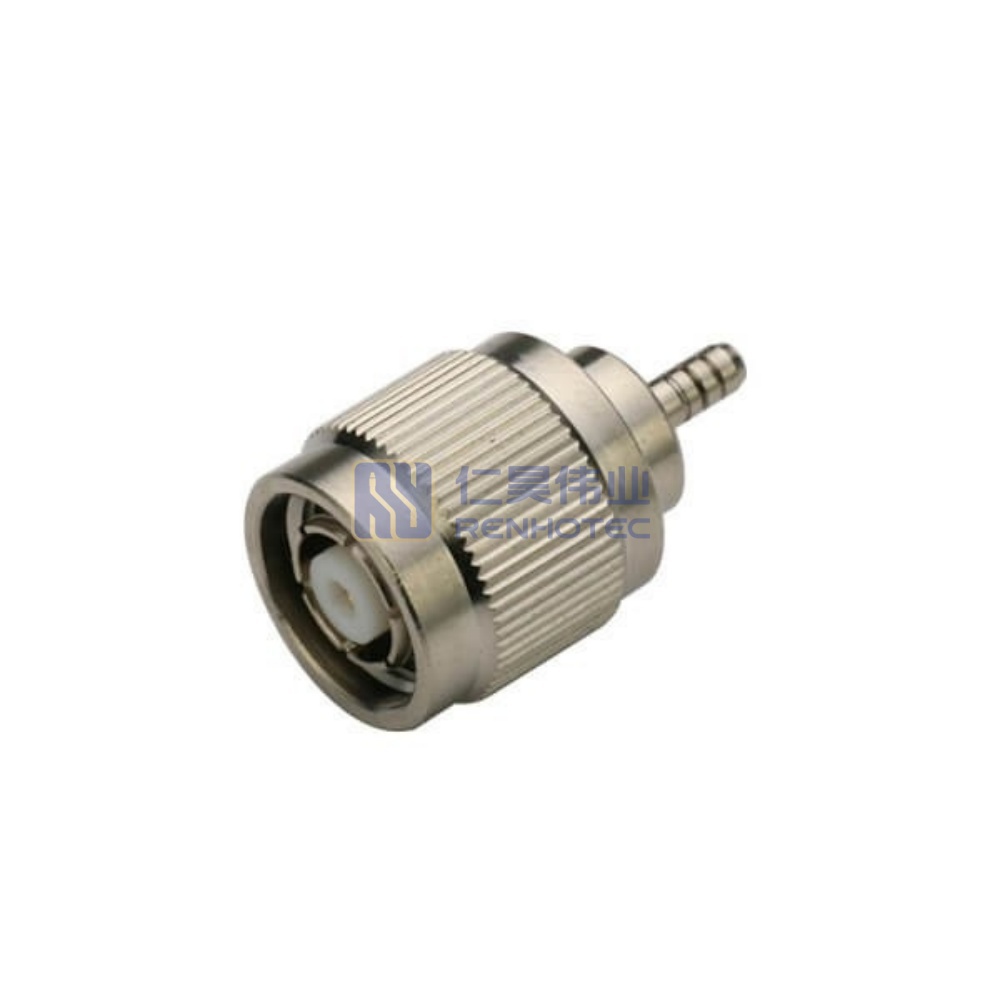

RP TNC Straight Connector Plug, Female Socket Crimp Type for RG400 Cable – RHT-615-0207
- Suitable for aerospace, and high-frequency commercial radio applications requiring robust shielding.
- Features a reverse polarity (RP-TNC) straight plug design specifically matched to RG400 coaxial cables.
- High-grade crimp construction ensures a firm, moisture-resistant cable retention force for outdoor and field use.
- Optimized contact plating supports clean signal conduction with minimal attenuation in dense wiring environments.
Product Specification
| RF Series | TNC Type |
||
|---|---|---|---|
| Cable Type | RG400 |
||
| Contact Type | Female Pin |
||
| Connector Type | Plug |
||
| Fastening Type | Threaded |
||
| Insulation Resistance | 5000MΩ Min |
||
| Impedance | 50 ohm |
||
| Mounting Feature | Bulkhead |
||
| Mounting Type | Cable Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Shell Material | Brass |
||
| Shell Finish | Nickel Plated |
||
| Shield Termination | Crimp |
||
| Contact Material | Beryllium Copper |
||
| Contact Finish | Gold Plated |
||
| Insulator Material | TEFLON |
||
| RF Series | TNC Type |
Cable Type | RG400 |
| Contact Type | Female Pin |
Connector Type | Plug |
| Fastening Type | Threaded |
Insulation Resistance | 5000MΩ Min |
| Impedance | 50 ohm |
Mounting Feature | Bulkhead |
| Mounting Type | Cable Mount |
Number of Ports | 1 |
| Orientation | Straight |
Shell Material | Brass |
| Shell Finish | Nickel Plated |
Shield Termination | Crimp |
| Contact Material | Beryllium Copper |
Contact Finish | Gold Plated |
| Insulator Material | TEFLON |
| Polarity | Reverse pole |
|---|---|
| Polarity | Reverse pole |
| RF Series | TNC Type |
|---|---|
| Cable Type | RG400 |
| Polarity | Reverse pole |
| Contact Type | Female Pin |
| Connector Type | Plug |
| Fastening Type | Threaded |
| Insulation Resistance | 5000MΩ Min |
| Impedance | 50 ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Cable Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| Shell Material | Brass |
| Shell Finish | Nickel Plated |
| Shield Termination | Crimp |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold Plated |
| Insulator Material | TEFLON |
Drawing for RP TNC Straight Connector Plug
