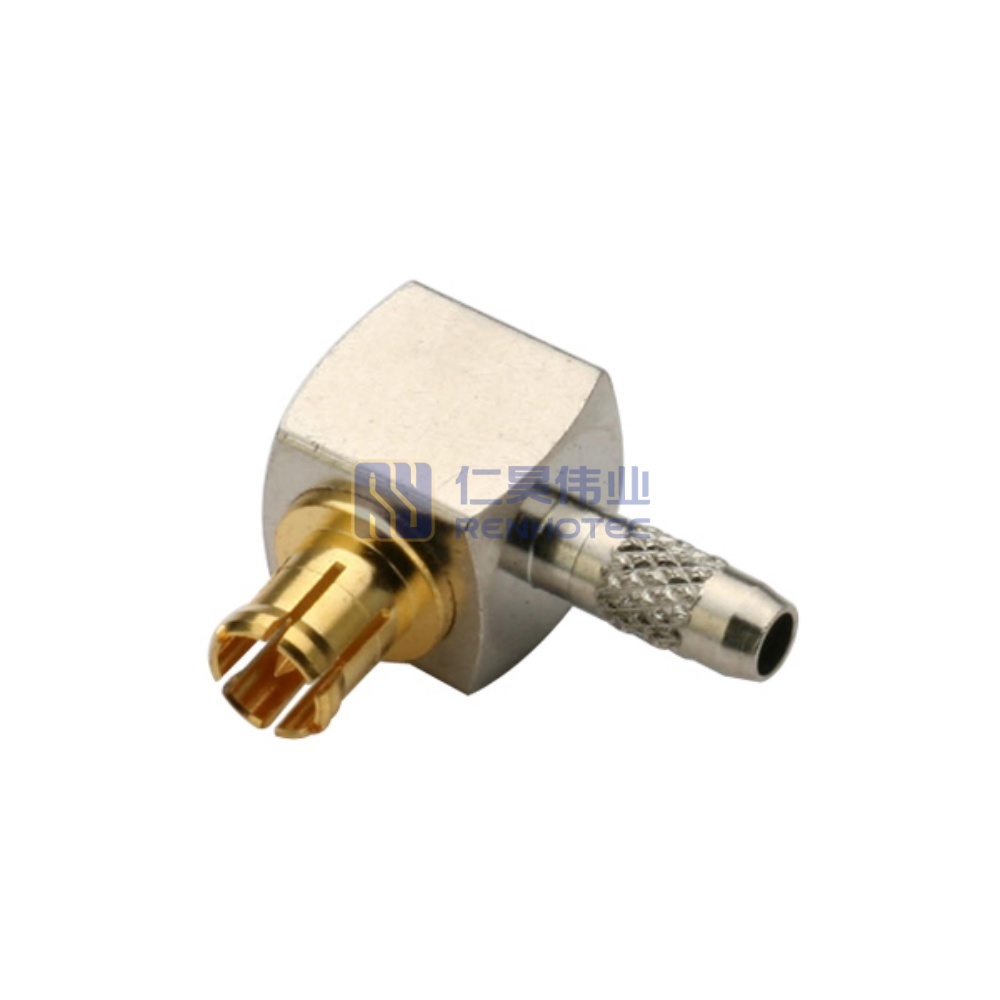

R/A MCX Connector Plug for RG316 Cable 50ohm – RHT-617-1001
Right-angle MCX plug, 50Ω, crimp termination for RG316 coaxial cable, flexible right-angle body facilitates tight chassis routing and strain relief, performs reliably up to 6 GHz, widely used in portable test probes, antenna feeder cables, and internal interconnections within compact RF enclosures.
Product Specification
| RF Series | MCX Type |
||
|---|---|---|---|
| Connector Type | Plug |
||
| Orientation | Right Angle |
||
| Contact Type | Male Pin |
||
| Mounting Type | Cable Mount |
||
| Contact Termination Style | PCB Solder |
||
| Shell Material | Brass |
||
| Shell Finish | Nickel Plating |
||
| Contact Material | Phosphor |
||
| Contact Finish | Gold Plating |
||
| Insulator Material | TEFLON |
||
| Cable Type | RG316 |
||
| Frequency Range | 6GHz |
||
| Impedance | 50 ohm |
||
| Insulation Resistance | 5000 Ohms min |
||
| Center Contact Resistance | 5 MΩ Min |
||
| Outer Contact Resistance | 1 MΩ Min |
||
| Rated Voltage | 500 Volts RMS Max Continuous |
||
| Temperature Range | -65°C to +165°C |
||
| VSWR | 1.5 MAX |
||
| Working Voltage | 500V rms |
||
| Fastening Type | Push-in |
||
| RF Series | MCX Type |
Connector Type | Plug |
| Orientation | Right Angle |
Contact Type | Male Pin |
| Mounting Type | Cable Mount |
Contact Termination Style | PCB Solder |
| Shell Material | Brass |
Shell Finish | Nickel Plating |
| Contact Material | Phosphor |
Contact Finish | Gold Plating |
| Insulator Material | TEFLON |
Cable Type | RG316 |
| Frequency Range | 6GHz |
Impedance | 50 ohm |
| Insulation Resistance | 5000 Ohms min |
Center Contact Resistance | 5 MΩ Min |
| Outer Contact Resistance | 1 MΩ Min |
Rated Voltage | 500 Volts RMS Max Continuous |
| Temperature Range | -65°C to +165°C |
VSWR | 1.5 MAX |
| Working Voltage | 500V rms |
Fastening Type | Push-in |
| Ferrule Material | Brass |
||
|---|---|---|---|
| Ferrule Plating | Gold Plating |
||
| Ferrule Material | Brass |
Ferrule Plating | Gold Plating |
| RF Series | MCX Type |
|---|---|
| Connector Type | Plug |
| Orientation | Right Angle |
| Contact Type | Male Pin |
| Mounting Type | Cable Mount |
| Contact Termination Style | PCB Solder |
| Shell Material | Brass |
| Shell Finish | Nickel Plating |
| Contact Material | Phosphor |
| Contact Finish | Gold Plating |
| Insulator Material | TEFLON |
| Ferrule Material | Brass |
| Ferrule Plating | Gold Plating |
| Cable Type | RG316 |
| Frequency Range | 6GHz |
| Impedance | 50 ohm |
| Insulation Resistance | 5000 Ohms min |
| Center Contact Resistance | 5 MΩ Min |
| Outer Contact Resistance | 1 MΩ Min |
| Rated Voltage | 500 Volts RMS Max Continuous |
| Temperature Range | -65°C to +165°C |
| VSWR | 1.5 MAX |
| Working Voltage | 500V rms |
| Fastening Type | Push-in |
The connector was developed in Europe from the 1980s to the 1990s. It adopts a push-in coupling method and is suitable for quick insertion and removal. Ultra-micro size, small size, lightweight, compact structure, widely used in small communication equipment with space constraints.
MCX connectors are approximately 30% smaller than SMB connectors, are available in both 50 and 75 Ohm versions, and provide good electrical performance to 6 GHz.
Mainly applicable to aerospace and defense, medical, commercial vehicles, telecommunications, data/communications, industrial, etc.
MCX Connector
MMCX Connector
Interface
Application Scenarios
Drawing for R/A MCX Plug for RG316 Cable 50ohmDownload
