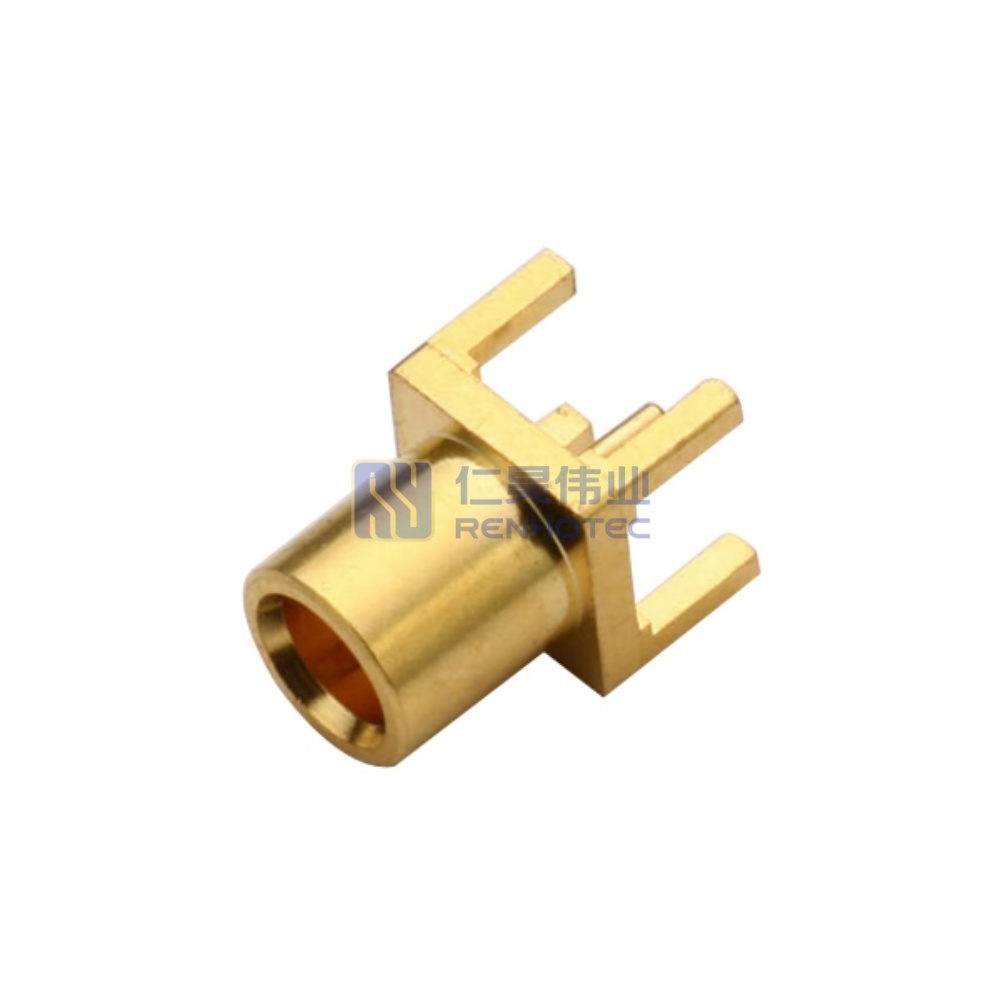

MCX Straight PCB Jack 50ohm – RHT-617-1003
Straight MCX PCB jack, 50Ω, through-hole mounting for robust mechanical retention on printed circuit boards, gold-plated center contact minimizes insertion loss, supports 6 GHz operation, suitable for base station transceivers, RF test ports, and industrial wireless control panels.
| Body Material | Brass |
||
|---|---|---|---|
| Body Plating | Gold Plating |
||
| Termination | Solder |
||
| Body Material | Brass |
Body Plating | Gold Plating |
| Termination | Solder |
Product Specification
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Finish | Gold Plating |
||
| Contact Material | Phosphor |
||
| Contact Type | Female Pin |
||
| Fastening Type | Push-in |
||
| Frequency - Max | 6GHz |
||
| Impedance | 50 ohm |
||
| Insulator Material | TEFLON |
||
| Mounting Feature | Through Hole |
||
| Mounting Type | PCB Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Connector Type | Jack |
Contact Finish | Gold Plating |
| Contact Material | Phosphor |
Contact Type | Female Pin |
| Fastening Type | Push-in |
Frequency - Max | 6GHz |
| Impedance | 50 ohm |
Insulator Material | TEFLON |
| Mounting Feature | Through Hole |
Mounting Type | PCB Mount |
| Number of Ports | 1 |
Orientation | Straight |
| Body Material | Brass |
|---|---|
| Body Plating | Gold Plating |
| Connector Type | Jack |
| Contact Finish | Gold Plating |
| Contact Material | Phosphor |
| Contact Type | Female Pin |
| Fastening Type | Push-in |
| Frequency - Max | 6GHz |
| Impedance | 50 ohm |
| Insulator Material | TEFLON |
| Mounting Feature | Through Hole |
| Mounting Type | PCB Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| Termination | Solder |
The connector was developed in Europe from the 1980s to the 1990s. It adopts a push-in coupling method and is suitable for quick insertion and removal. Ultra-micro size, small size, lightweight, compact structure, widely used in small communication equipment with space constraints.
MCX connectors are approximately 30% smaller than SMB connectors, are available in both 50 and 75 Ohm versions, and provide good electrical performance to 6 GHz.
Mainly applicable to aerospace and defense, medical, commercial vehicles, telecommunications, data/communications, industrial, etc.
MCX Connector
MMCX Connector
Interface
Application Scenarios
Drawing for MCX Straight PCB Jack 50ohmDownload
