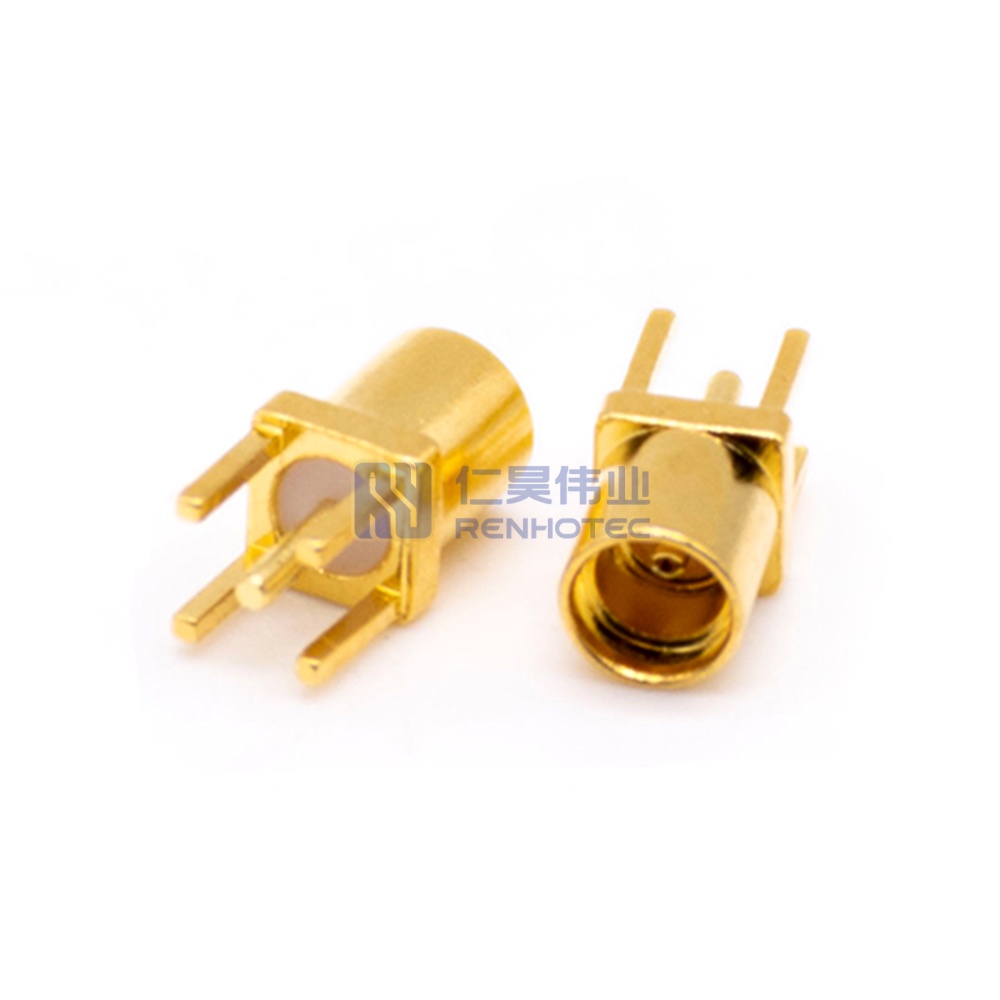

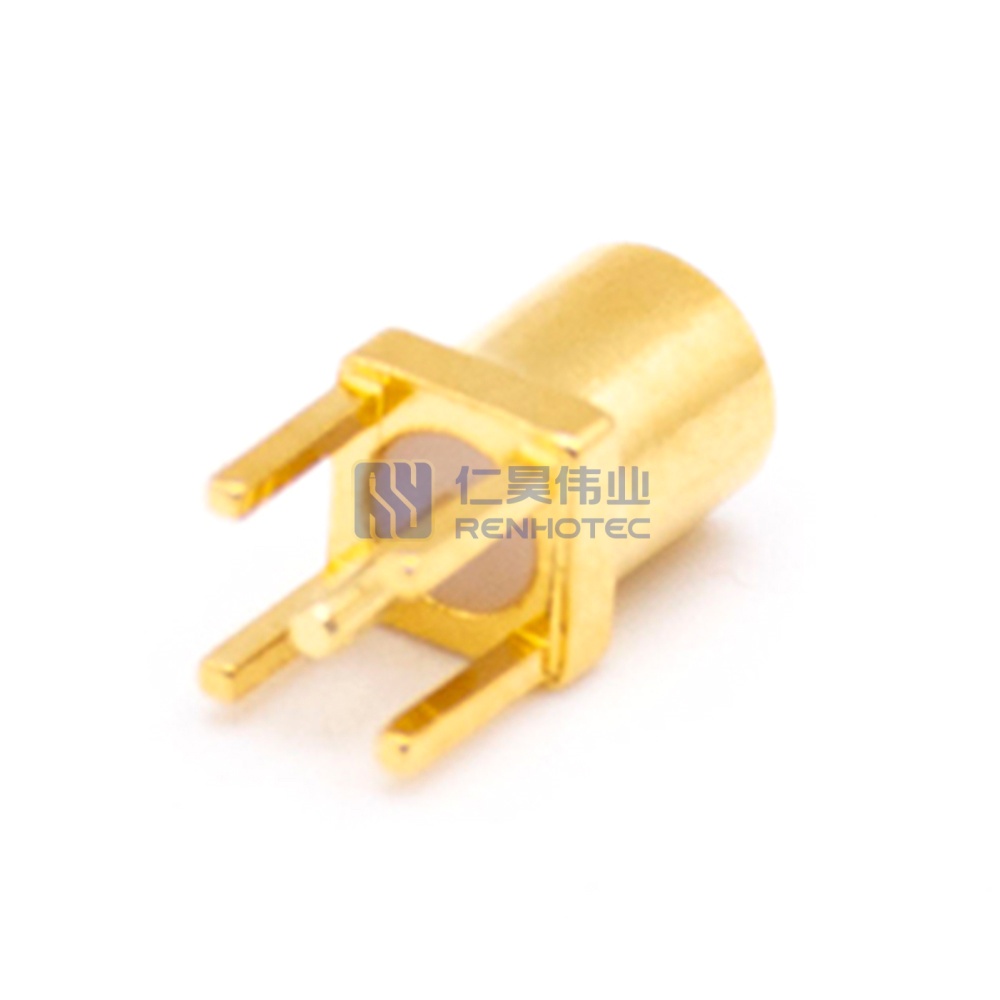

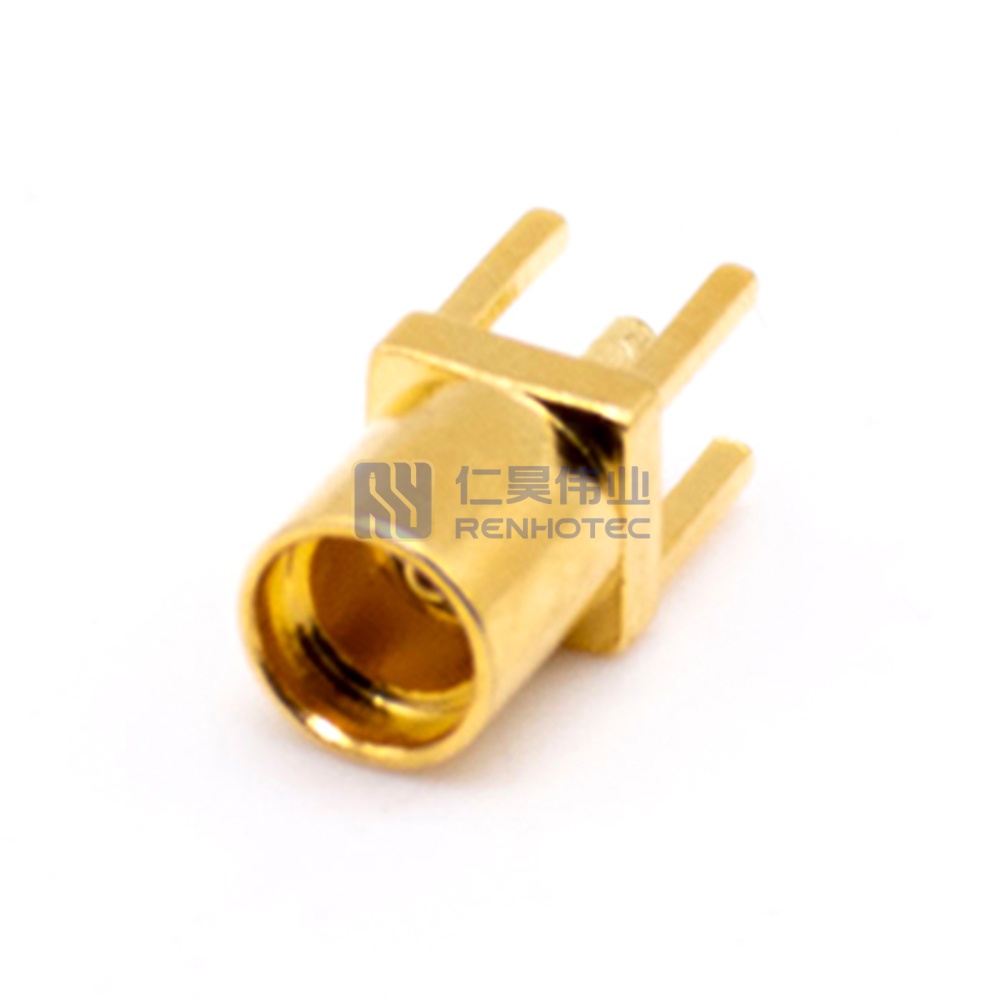

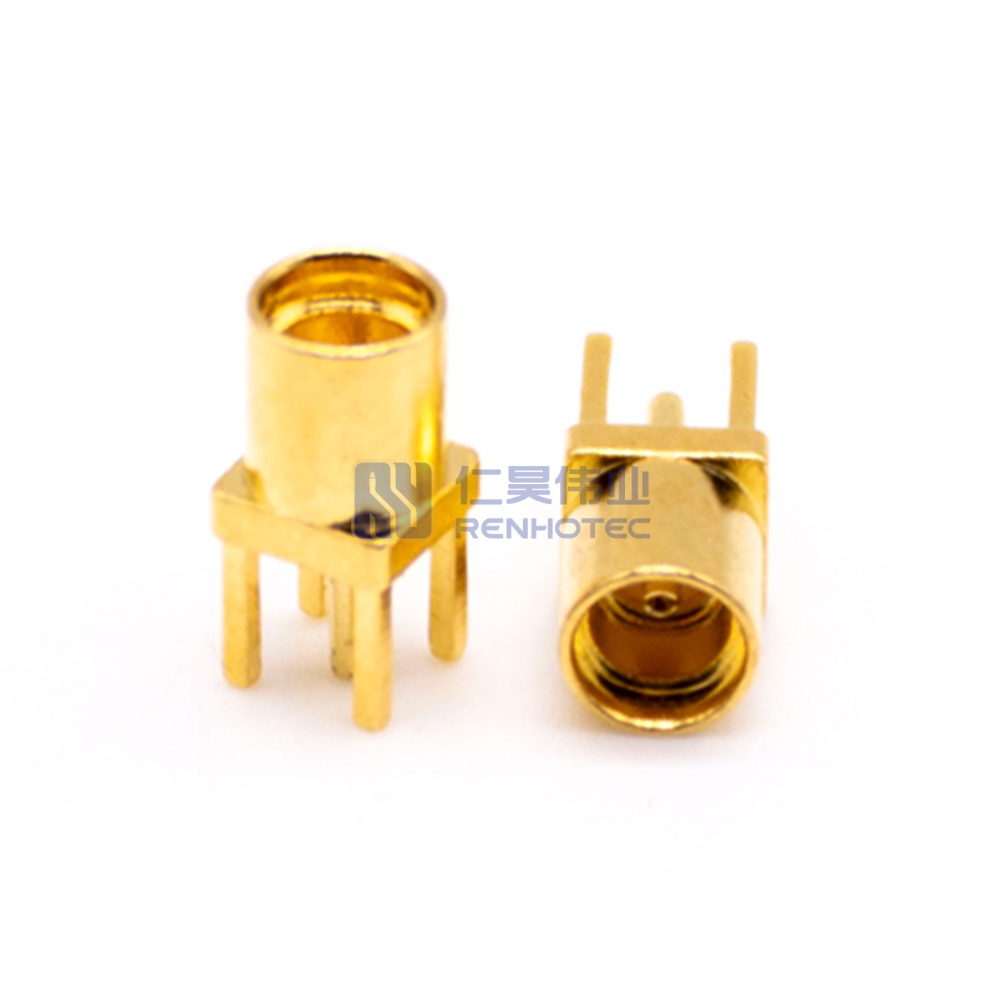

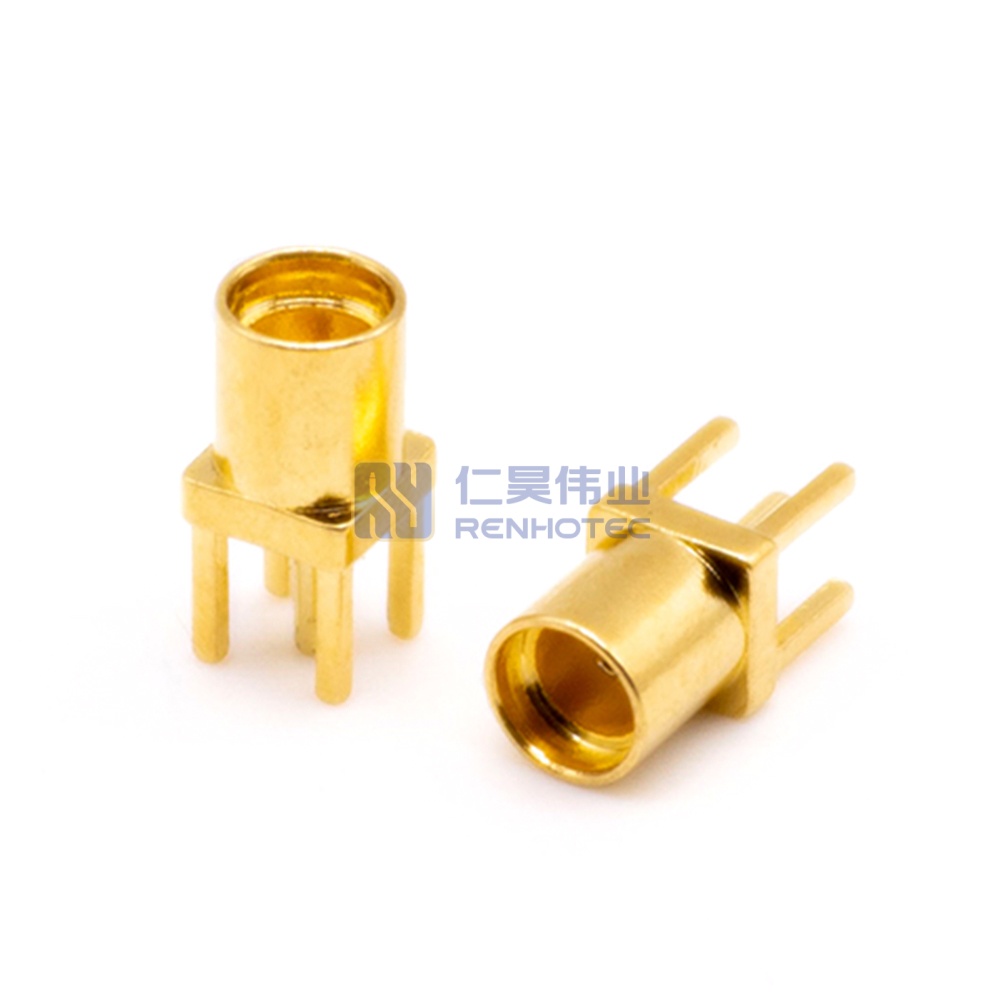

MMCX Connector Straight Jack Solder PCB Mount – RHT-631-0001
- Straight MMCX jack, 50Ω, solder termination for PCB mounting with compact footprint
- Snap-on coupling enables quick mating cycles and secure mechanical retention
- Supports frequencies up to 6 GHz with stable return loss and consistent 50Ω impedance
- Gold-plated contacts provide reliable signal continuity for critical RF paths
- Commonly used in GPS receivers, Wi-Fi modules, portable test instruments, and compact transceivers
Product Specification
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Type | Female Pin |
||
| Center Contact Resistance | 5 MΩ |
||
| Contact Finish | Gold Plated |
||
| Contact Material | Brass |
||
| Fastening Type | Snap On |
||
| Frequency - Max | 6GHz |
||
| Impedance | 50 ohm |
||
| Insulation Resistance | 1000 Ohms min |
||
| Insulator Material | PTFE |
||
| Mating Durability | ≥ 500 Cycles |
||
| Mounting Feature | Through Hole |
||
| Mounting Type | PCB Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Outer Contact Resistance | 2.5M Ohm |
||
| RF Series | MMCX Type |
||
| Shell Finish | Gold Plated |
||
| Shell Material | Brass |
||
| Temperature Range | -55°C to +125°C |
||
| VSWR | 1.2MAX |
||
| Working Voltage | 250V rms |
||
| Connector Type | Jack |
Contact Type | Female Pin |
| Center Contact Resistance | 5 MΩ |
Contact Finish | Gold Plated |
| Contact Material | Brass |
Fastening Type | Snap On |
| Frequency - Max | 6GHz |
Impedance | 50 ohm |
| Insulation Resistance | 1000 Ohms min |
Insulator Material | PTFE |
| Mating Durability | ≥ 500 Cycles |
Mounting Feature | Through Hole |
| Mounting Type | PCB Mount |
Number of Ports | 1 |
| Orientation | Straight |
Outer Contact Resistance | 2.5M Ohm |
| RF Series | MMCX Type |
Shell Finish | Gold Plated |
| Shell Material | Brass |
Temperature Range | -55°C to +125°C |
| VSWR | 1.2MAX |
Working Voltage | 250V rms |
| Termination | Solder |
|---|---|
| Termination | Solder |
| Connector Type | Jack |
|---|---|
| Contact Type | Female Pin |
| Center Contact Resistance | 5 MΩ |
| Contact Finish | Gold Plated |
| Contact Material | Brass |
| Fastening Type | Snap On |
| Frequency - Max | 6GHz |
| Impedance | 50 ohm |
| Insulation Resistance | 1000 Ohms min |
| Insulator Material | PTFE |
| Mating Durability | ≥ 500 Cycles |
| Mounting Feature | Through Hole |
| Mounting Type | PCB Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| Outer Contact Resistance | 2.5M Ohm |
| RF Series | MMCX Type |
| Shell Finish | Gold Plated |
| Shell Material | Brass |
| Temperature Range | -55°C to +125°C |
| Termination | Solder |
| VSWR | 1.2MAX |
| Working Voltage | 250V rms |
Drawing for MMCX Connector Straight Jack Solder PCB Mount Download
