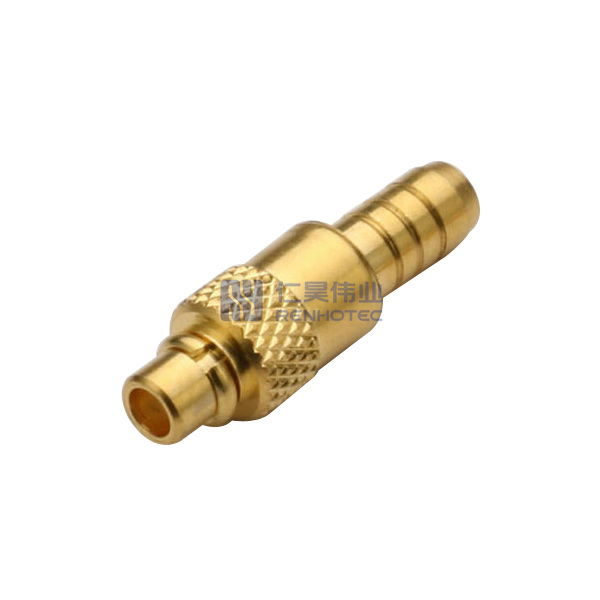

MMCX Connector Male Crimp Type Cable RG178 50ohm – RHT-631-0102

High-quality MMCX male connector designed for RG178 50ohm cable with crimp type feature ensuring secure and reliable connections. Ideal for a wide range of applications requiring precision and durability.

The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It is a 50-ohm impedance interface with broadband capability of DC to 6 GHz and secure, fast, and easy snap-on/snap-off coupling. MMCX connectors have a smaller footprint than the MCX series and are available in a wide array of configurations.

MMCX 50 Ohm microminiature compact and lightweight connectors are designed for densely populated electronic packages with size and weight limitations. The mechanical stability is maintained via a snap-on interface that uses no slotting in the outer conductor. Typical applications include wireless/PCS devices, telecommunications, GPS receivers, and consumer electronics.

Mainly applicable to aerospace and defense, medical, commercial vehicles, telecommunications, data/communications, industrial, etc.

MCX Connector

MMCX Connector

Interface

Application Scenarios

Product Specification

RF Series

MMCX Type

Connector Type

Plug

Orientation

Straight

Contact Type

Male Pin

Contact Termination Style

Crimp

Shield Termination

Crimp

Mounting Type

Cable Mount

Fastening Type

Snap On

Cable Type

RG178

Number of Ports

1

Impedance

50 ohm

Frequency - Max

6GHz

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Insulator Material

PTFE

Contact Material

Brass

Contact Finish

Gold Plated

Rated Voltage

500 Volts RMS Max Continuous

Dielectric Withstanding Voltage

1000 VRMS Max

Insultation Resistance

500 MΩ Min

Center Contact Resistance

5 MΩ Min

Outer Contact Resistance

1 MΩ Min

Temperature Range

-65℃ to +165℃

Mating Durability

≥ 500 Cycles

VSWR

≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz)

Vibration

MIL-STD-202 Meth. 204

Corrosion Resistance

MIL-STD-202 Meth. 101

RF Series

MMCX Type

Connector Type

Plug

Orientation

Straight

Contact Type

Male Pin

Contact Termination Style

Crimp

Shield Termination

Crimp

Mounting Type

Cable Mount

Fastening Type

Snap On

Cable Type

RG178

Number of Ports

1

Impedance

50 ohm

Frequency - Max

6GHz

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Insulator Material

PTFE

Contact Material

Brass

Contact Finish

Gold Plated

Rated Voltage

500 Volts RMS Max Continuous

Dielectric Withstanding Voltage

1000 VRMS Max

Insultation Resistance

500 MΩ Min

Center Contact Resistance

5 MΩ Min

Outer Contact Resistance

1 MΩ Min

Temperature Range

-65℃ to +165℃

Mating Durability

≥ 500 Cycles

VSWR

≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz)

Vibration

MIL-STD-202 Meth. 204

Corrosion Resistance

MIL-STD-202 Meth. 101

RF Series

MMCX Type

Connector Type

Plug

Orientation

Straight

Contact Type

Male Pin

Contact Termination Style

Crimp

Shield Termination

Crimp

Mounting Type

Cable Mount

Fastening Type

Snap On

Cable Type

RG178

Number of Ports

1

Impedance

50 ohm

Frequency - Max

6GHz

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Insulator Material

PTFE

Contact Material

Brass

Contact Finish

Gold Plated

Rated Voltage

500 Volts RMS Max Continuous

Dielectric Withstanding Voltage

1000 VRMS Max

Insultation Resistance

500 MΩ Min

Center Contact Resistance

5 MΩ Min

Outer Contact Resistance

1 MΩ Min

Temperature Range

-65℃ to +165℃

Mating Durability

≥ 500 Cycles

VSWR

≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz)

Vibration

MIL-STD-202 Meth. 204

Corrosion Resistance

MIL-STD-202 Meth. 101
