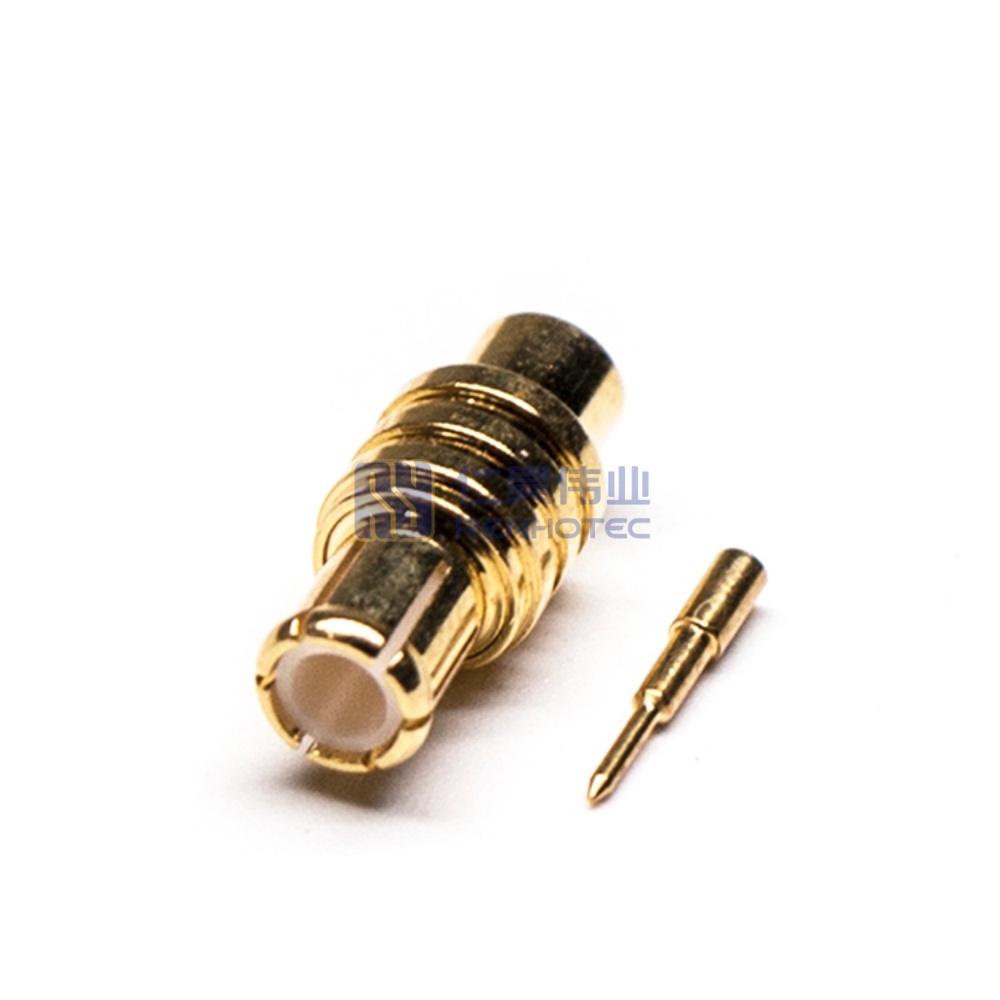

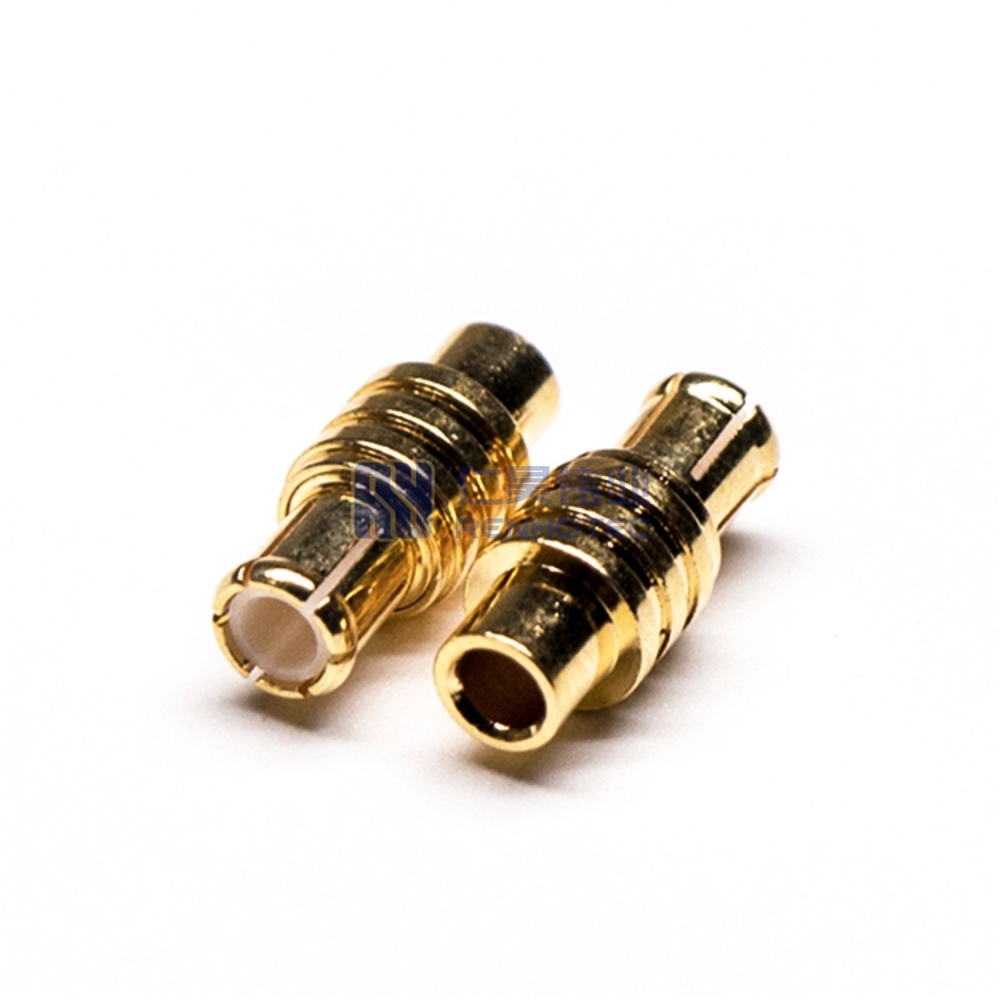

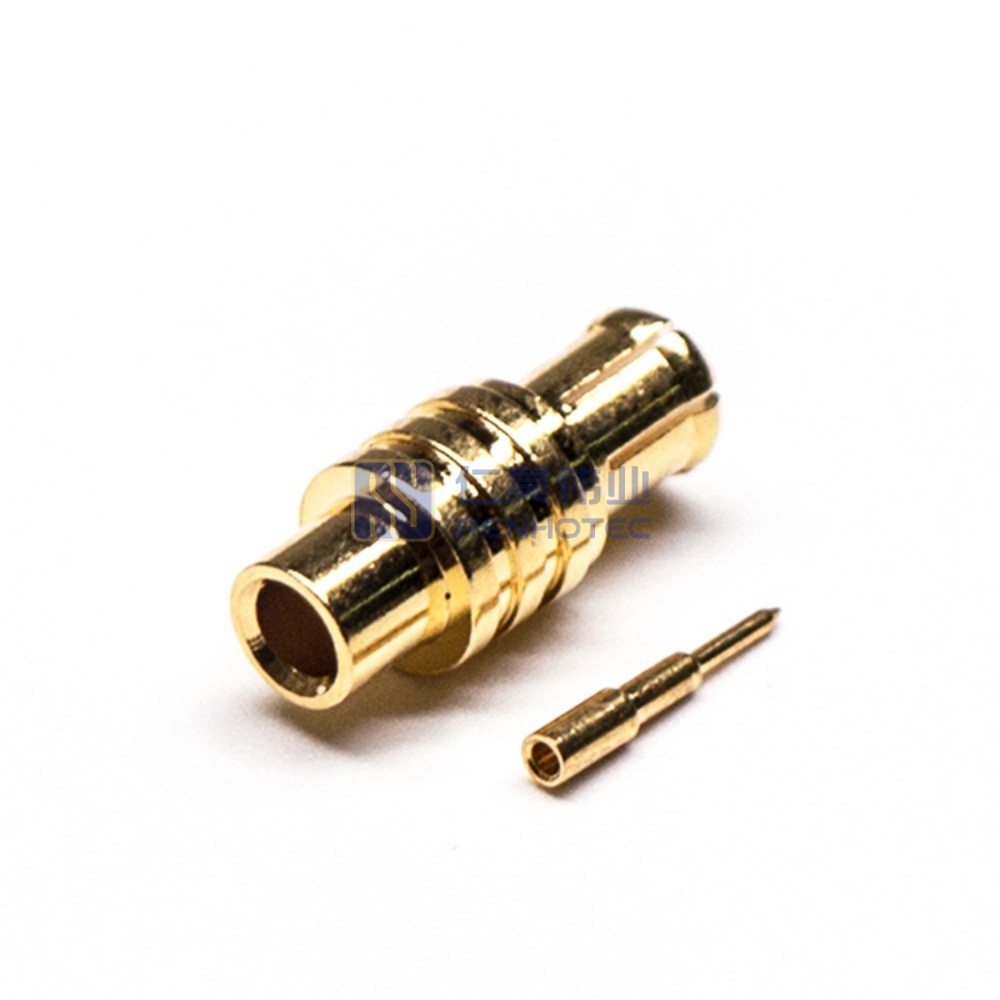

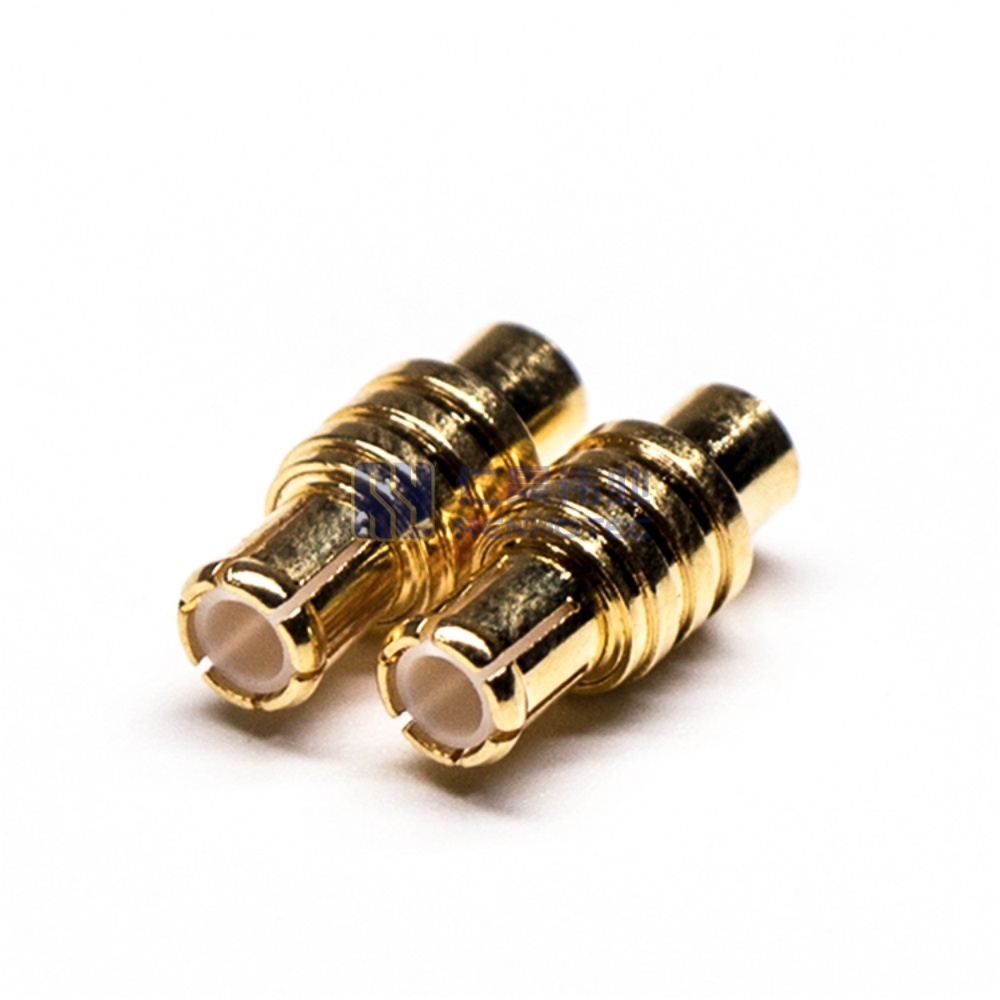

MCX Straight Plug 75ohm – RHT-617-0068
Straight MCX plug, 75Ω characteristic impedance, optimized for broadcast video, digital audio, and cable television signal distribution, maintains low return loss and high signal fidelity, widely applied in set-top boxes, AV switches, professional studio equipment, and high-definition interface modules.
| Body Material | Brass |
||
|---|---|---|---|
| Body Plating | Gold Plating |
||
| Ferrule Material | Brass |
||
| Ferrule Plating | Gold Plating |
||
| Termination | Solder |
||
| Body Material | Brass |
Body Plating | Gold Plating |
| Ferrule Material | Brass |
Ferrule Plating | Gold Plating |
| Termination | Solder |
Product Specification
| Connector Type | Plug |
||
|---|---|---|---|
| Contact Finish | Gold Plating |
||
| Contact Material | Brass |
||
| Contact Type | Male Pin |
||
| Fastening Type | Push-in |
||
| Frequency - Max | 6GHz |
||
| Impedance | 75 ohm |
||
| Insulation Resistance | 5000 Ohms min |
||
| Insulator Material | TEFLON |
||
| Mounting Type | Cable |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Temperature Range | -55°C to +155°C |
||
| VSWR | 1.5 MAX |
||
| Working Voltage | 500V rms |
||
| Connector Type | Plug |
Contact Finish | Gold Plating |
| Contact Material | Brass |
Contact Type | Male Pin |
| Fastening Type | Push-in |
Frequency - Max | 6GHz |
| Impedance | 75 ohm |
Insulation Resistance | 5000 Ohms min |
| Insulator Material | TEFLON |
Mounting Type | Cable |
| Number of Ports | 1 |
Orientation | Straight |
| Temperature Range | -55°C to +155°C |
VSWR | 1.5 MAX |
| Working Voltage | 500V rms |
| Body Material | Brass |
|---|---|
| Body Plating | Gold Plating |
| Connector Type | Plug |
| Contact Finish | Gold Plating |
| Contact Material | Brass |
| Contact Type | Male Pin |
| Fastening Type | Push-in |
| Ferrule Material | Brass |
| Ferrule Plating | Gold Plating |
| Frequency - Max | 6GHz |
| Impedance | 75 ohm |
| Insulation Resistance | 5000 Ohms min |
| Insulator Material | TEFLON |
| Mounting Type | Cable |
| Number of Ports | 1 |
| Orientation | Straight |
| Temperature Range | -55°C to +155°C |
| Termination | Solder |
| VSWR | 1.5 MAX |
| Working Voltage | 500V rms |
The connector was developed in Europe from the 1980s to the 1990s. It adopts a push-in coupling method and is suitable for quick insertion and removal. Ultra-micro size, small size, lightweight, compact structure, widely used in small communication equipment with space constraints.
MCX connectors are approximately 30% smaller than SMB connectors, are available in both 50 and 75 Ohm versions, and provide good electrical performance to 6 GHz.
Mainly applicable to aerospace and defense, medical, commercial vehicles, telecommunications, data/communications, industrial, etc.
MCX Connector
MMCX Connector
Interface
Application Scenarios
Drawing for MCX Straight Plug 75ohmDownload
