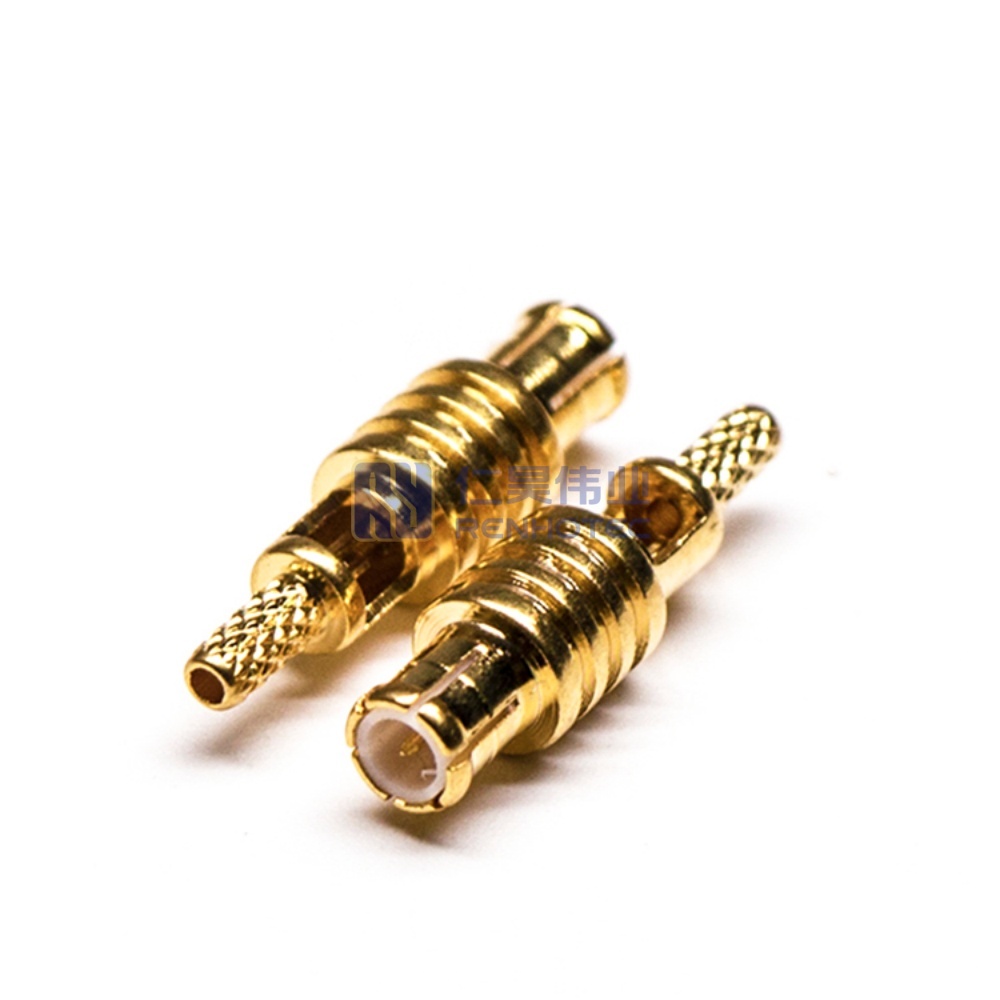

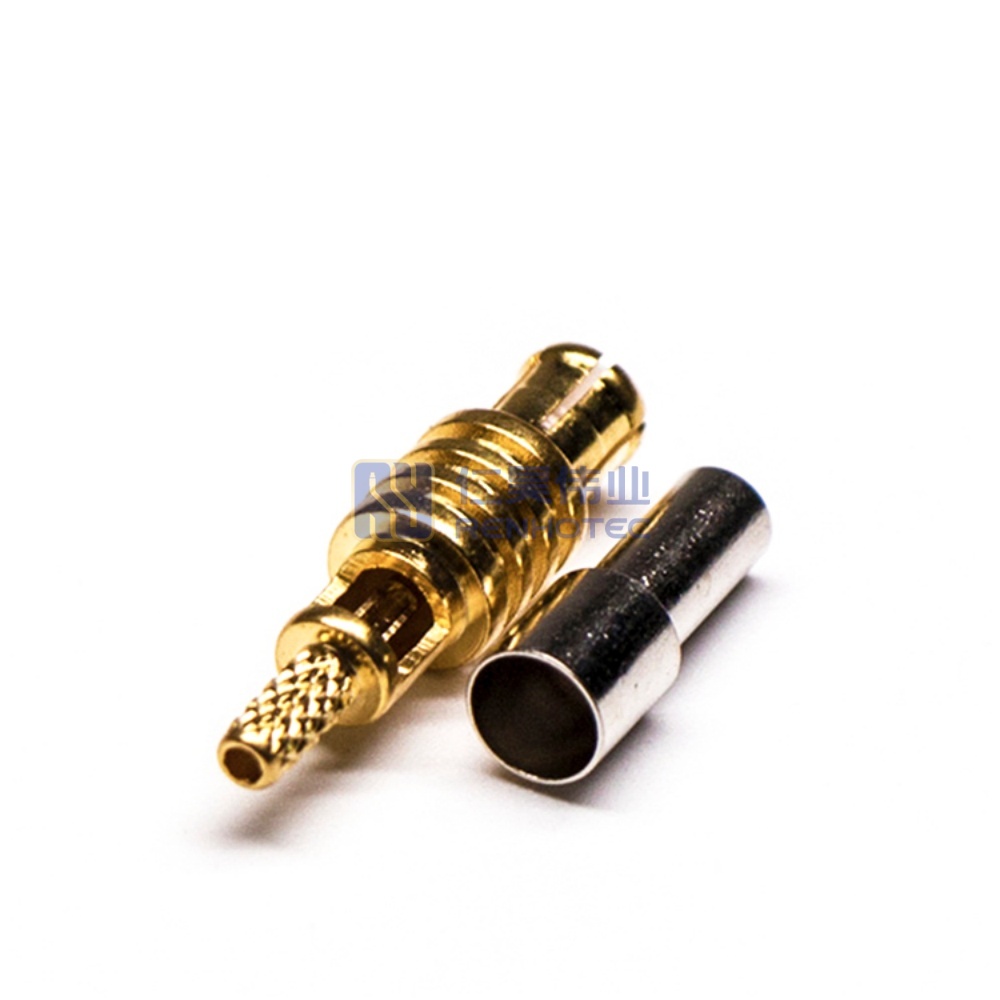

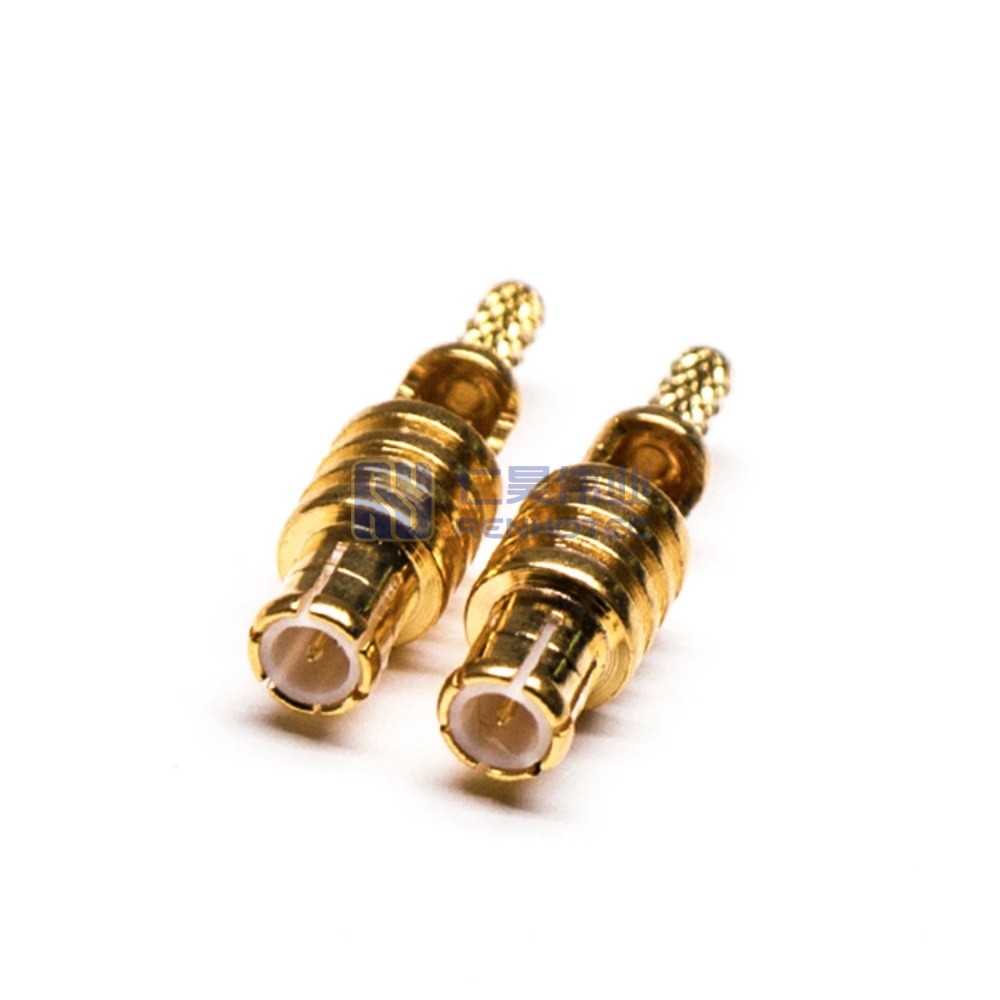

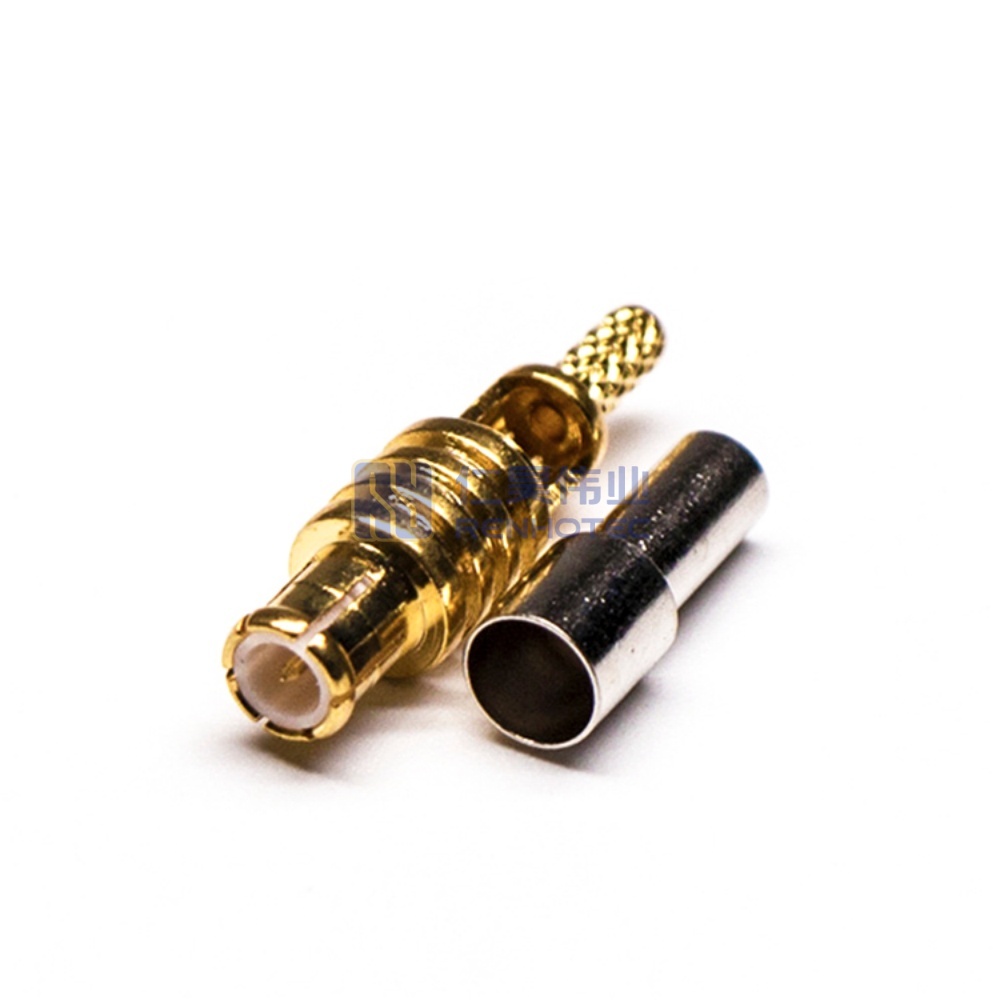

MCX Plug for RG178 Cable 50ohm – RHT-617-0129
Straight MCX plug, 50Ω, crimp termination for RG178 miniature coaxial cable, lightweight and highly flexible design suits airborne avionics, portable navigation systems, and compact wearable RF devices, delivers stable performance up to 6 GHz in demanding vibration-prone environments.
Product Specification
| RF Series | MCX Type |
||
|---|---|---|---|
| Connector Type | Plug |
||
| Orientation | Straight |
||
| Contact Type | Male Pin |
||
| Mounting Type | Cable Mount |
||
| Contact Termination Style | Crimp |
||
| Shell Material | Brass |
||
| Shell Finish | Gold Plating |
||
| Contact Material | Copper |
||
| Contact Finish | Gold Plating |
||
| Insulator Material | TEFLON |
||
| Cable Type | RG178 |
||
| Frequency Range | 6GHz |
||
| Impedance | 50 ohm |
||
| Insulation Resistance | 5000 Ohms min |
||
| Center Contact Resistance | 5 MΩ Min |
||
| Outer Contact Resistance | 1 MΩ Min |
||
| Rated Voltage | 500 Volts RMS Max Continuous |
||
| Temperature Range | -65°C to +165°C |
||
| VSWR | 1.25 MAX |
||
| Working Voltage | ＜170V rms |
||
| Fastening Type | Push-in |
||
| RF Series | MCX Type |
Connector Type | Plug |
| Orientation | Straight |
Contact Type | Male Pin |
| Mounting Type | Cable Mount |
Contact Termination Style | Crimp |
| Shell Material | Brass |
Shell Finish | Gold Plating |
| Contact Material | Copper |
Contact Finish | Gold Plating |
| Insulator Material | TEFLON |
Cable Type | RG178 |
| Frequency Range | 6GHz |
Impedance | 50 ohm |
| Insulation Resistance | 5000 Ohms min |
Center Contact Resistance | 5 MΩ Min |
| Outer Contact Resistance | 1 MΩ Min |
Rated Voltage | 500 Volts RMS Max Continuous |
| Temperature Range | -65°C to +165°C |
VSWR | 1.25 MAX |
| Working Voltage | ＜170V rms |
Fastening Type | Push-in |
| Ferrule Material | Brass |
||
|---|---|---|---|
| Ferrule Plating | Nickel Plating |
||
| Ferrule Material | Brass |
Ferrule Plating | Nickel Plating |
| RF Series | MCX Type |
|---|---|
| Connector Type | Plug |
| Orientation | Straight |
| Contact Type | Male Pin |
| Mounting Type | Cable Mount |
| Contact Termination Style | Crimp |
| Shell Material | Brass |
| Shell Finish | Gold Plating |
| Contact Material | Copper |
| Contact Finish | Gold Plating |
| Insulator Material | TEFLON |
| Ferrule Material | Brass |
| Ferrule Plating | Nickel Plating |
| Cable Type | RG178 |
| Frequency Range | 6GHz |
| Impedance | 50 ohm |
| Insulation Resistance | 5000 Ohms min |
| Center Contact Resistance | 5 MΩ Min |
| Outer Contact Resistance | 1 MΩ Min |
| Rated Voltage | 500 Volts RMS Max Continuous |
| Temperature Range | -65°C to +165°C |
| VSWR | 1.25 MAX |
| Working Voltage | ＜170V rms |
| Fastening Type | Push-in |
The connector was developed in Europe from the 1980s to the 1990s. It adopts a push-in coupling method and is suitable for quick insertion and removal. Ultra-micro size, small size, lightweight, compact structure, widely used in small communication equipment with space constraints.
MCX connectors are approximately 30% smaller than SMB connectors, are available in both 50 and 75 Ohm versions, and provide good electrical performance to 6 GHz.
Mainly applicable to aerospace and defense, medical, commercial vehicles, telecommunications, data/communications, industrial, etc.
MCX Connector
MMCX Connector
Interface
Application Scenarios
Drawing for MCX Plug for RG178 Cable 50ohmDownload
