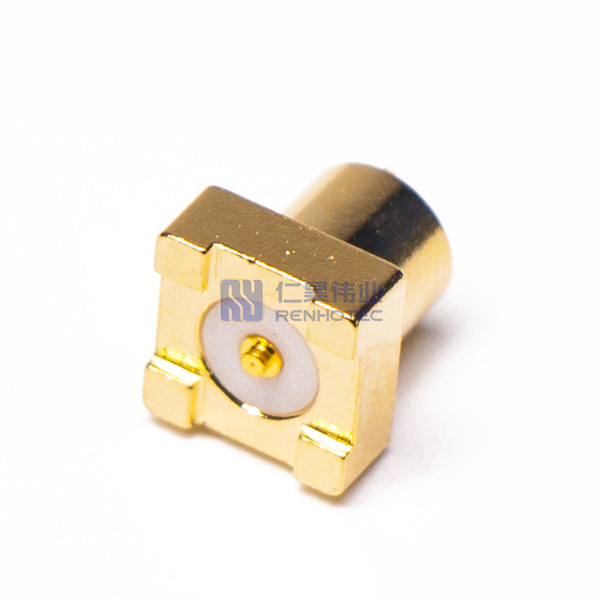

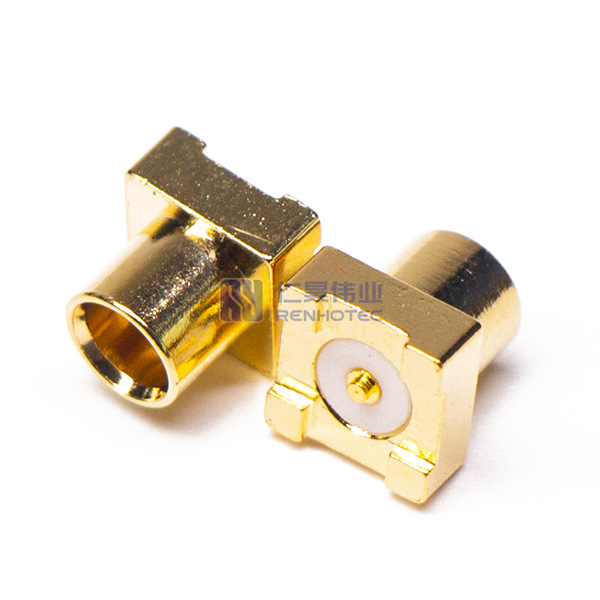

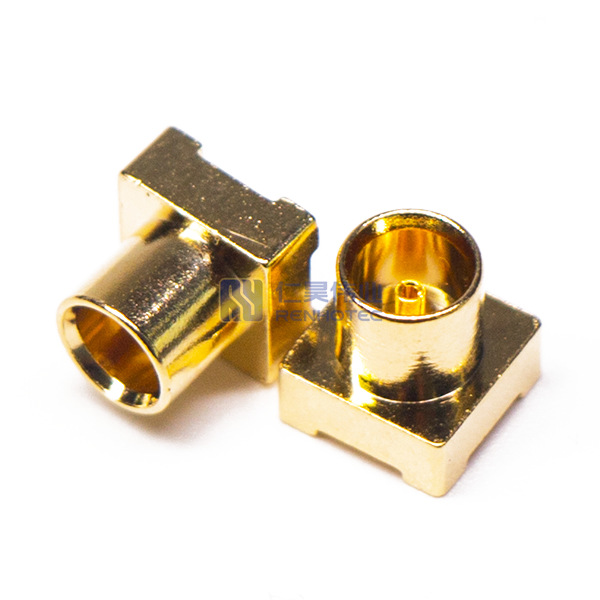

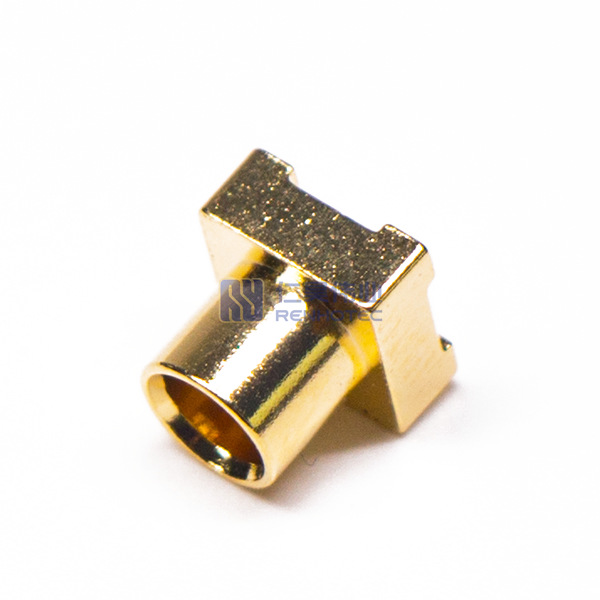

MCX Connector Jack Solder RG316 Panel Mount SMT 50ohm – RHT-617-0007
High-quality MCX connector with a panel mount design for easy installation. Features a sturdy jack design suitable for RG316 cables. Solder connection ensures reliable performance. Ideal for various RF applications.
MCX / MMCX (Micro-Miniature Coaxial) connector are developed in Europe during the 1980s to 1990s, broadband capability of DC to 6 GHz and secure, fast and easy snap-on/snap-off coupling. Conforms to the European CECC 22000 specification.With small size, less weight, compact structure and easy fit, they are widely used in small sized communication equipment.
Broadband performance with low reflection
Quick connect/disconnect snap-on mating reduces installation time
Available in straight and right angle plugs and printed circuit board connectors
High-quality solution at a low cost
Complete Variety
MCX Connector
Crimp Type
Solder Type
Through Hole
SMT Type
Flange Mount
Edge Type
MMCX Connector
Crimp Type
Solder Type
R/A Solder Type
Through Hole
R/A Through Hole
Surface Type
Product Application
Our Advantages
Physical factory
Having a professional production team, selfproduced and self sold
Quality assurance
Through strict qualitycontrol, ensure quality
After sales system
Actively follow up andpromptly address anyissues
After sales system
Actively follow up andpromptly address anyissues
Production Process
1. Put forward demand
2. Sketch design
3. Production equipment
4. Production measurement
5. Product assembly
6. Quality test
7. Product packaging
8. Product packag box
9. Deliver goods
Product Specification
RF Series | MCX Type |
||
---|---|---|---|
Connector Type | Jack |
||
Orientation | Straight |
||
Contact Type | Female Pin |
||
Contact Termination Style | Solder |
||
Shield Termination | Solder |
||
Mounting Type | Panel Mount |
||
Mounting Feature | SMT |
||
Cable Type | RG316 |
||
Fastening Type | Push-Pull |
||
Number of Ports | 1 |
||
Impedance | 50 ohm |
||
Frequency - Max | 6GHz |
||
Shell Material | Copper Alloy |
||
Shell Finish | Gold Plated |
||
Insulator Material | Teflon White |
||
Contact Material | Brass |
||
Contact Finish | Gold Plated |
||
Rated Voltage | 500 Volts RMS Max Continuous |
||
Dielectric Withstanding Voltage | 1000 VRMS Max |
||
Insultation Resistance | 500 MΩ Min |
||
Center Contact Resistance | 5 MΩ Min |
||
Outer Contact Resistance | 1 MΩ Min |
||
Temperature Range | -65℃ to +165℃ |
||
Mating Durability | ≥ 500 Cycles |
||
VSWR | ≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz) |
||
Vibration | MIL-STD-202 Meth. 204 |
||
Corrosion Resistance | MIL-STD-202 Meth. 101 |
||
RF Series | MCX Type |
Connector Type | Jack |
Orientation | Straight |
Contact Type | Female Pin |
Contact Termination Style | Solder |
Shield Termination | Solder |
Mounting Type | Panel Mount |
Mounting Feature | SMT |
Cable Type | RG316 |
Fastening Type | Push-Pull |
Number of Ports | 1 |
Impedance | 50 ohm |
Frequency - Max | 6GHz |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Insulator Material | Teflon White |
Contact Material | Brass |
Contact Finish | Gold Plated |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 1000 VRMS Max |
Insultation Resistance | 500 MΩ Min |
Center Contact Resistance | 5 MΩ Min |
Outer Contact Resistance | 1 MΩ Min |
Temperature Range | -65℃ to +165℃ |
Mating Durability | ≥ 500 Cycles |
VSWR | ≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz) |
Vibration | MIL-STD-202 Meth. 204 |
Corrosion Resistance | MIL-STD-202 Meth. 101 |
RF Series | MCX Type |
---|---|
Connector Type | Jack |
Orientation | Straight |
Contact Type | Female Pin |
Contact Termination Style | Solder |
Shield Termination | Solder |
Mounting Type | Panel Mount |
Mounting Feature | SMT |
Cable Type | RG316 |
Fastening Type | Push-Pull |
Number of Ports | 1 |
Impedance | 50 ohm |
Frequency - Max | 6GHz |
Shell Material | Copper Alloy |
Shell Finish | Gold Plated |
Insulator Material | Teflon White |
Contact Material | Brass |
Contact Finish | Gold Plated |
Rated Voltage | 500 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 1000 VRMS Max |
Insultation Resistance | 500 MΩ Min |
Center Contact Resistance | 5 MΩ Min |
Outer Contact Resistance | 1 MΩ Min |
Temperature Range | -65℃ to +165℃ |
Mating Durability | ≥ 500 Cycles |
VSWR | ≤1.15 (DC to 4 GHz), ≤1.40 (4 to 6 GHz) |
Vibration | MIL-STD-202 Meth. 204 |
Corrosion Resistance | MIL-STD-202 Meth. 101 |
The MMCX (Micro-Miniature Coaxial) connector series is a micro-miniature version of the MCX. It has the all features of the MCX series, including 50 Ω impedance with a broadband capability of DC to 6 GHz and secure, fast and easy snap-on/ snap-off coupling, and a wide range of available connectors. However, MMCX connectors have a smaller foot print than the MCX series.
MCX
MMCX
We can offer 50 ohms/75 ohms.
They offer broadband capability from DC to 6Ghz.
It's push-on/pull-off mating design facilitates a quick connect/disconnect capability. Connex MCX connectors are popularly used in the cellular telephone, information systems and communications markets.
