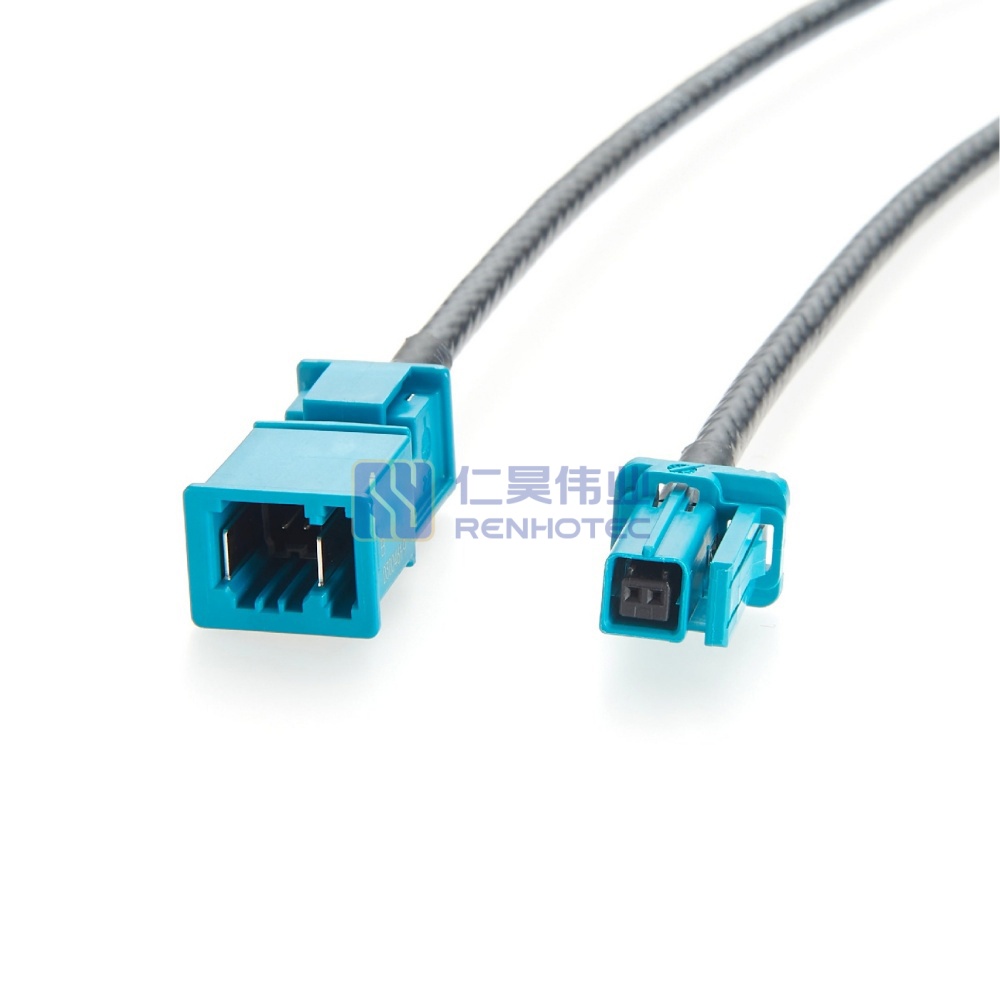

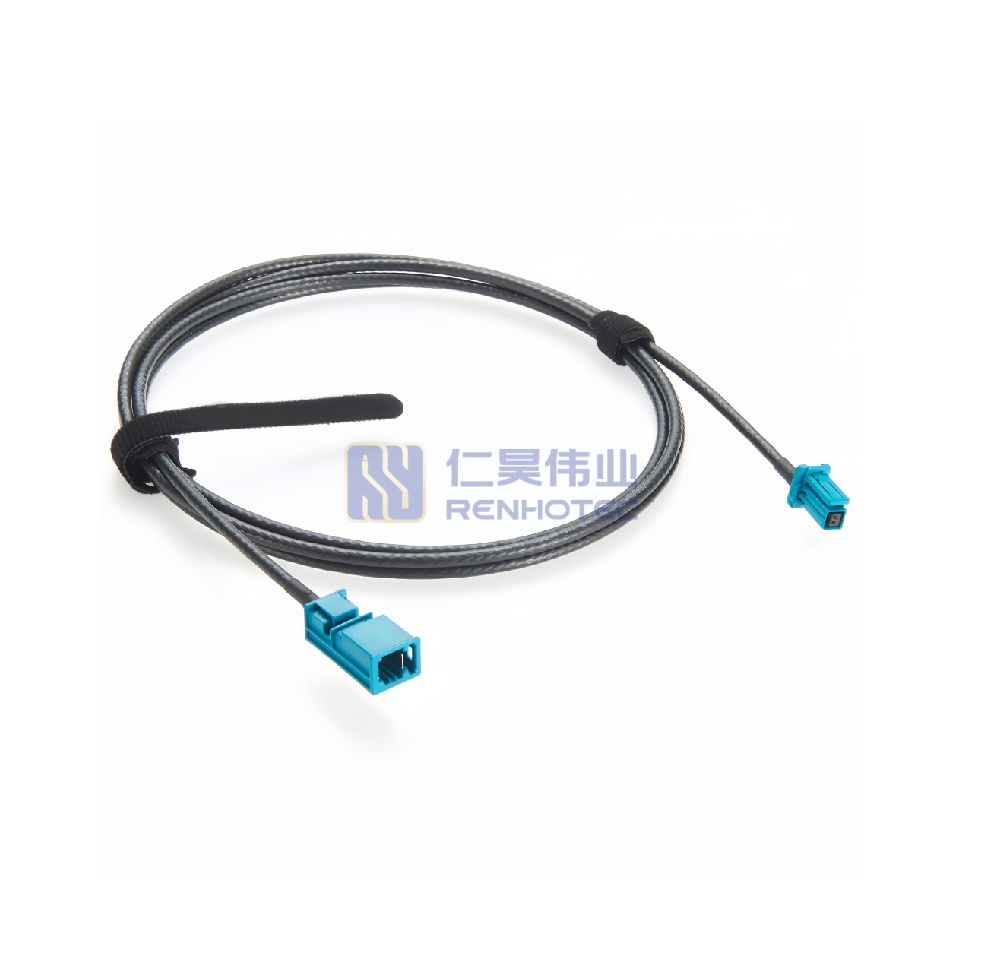

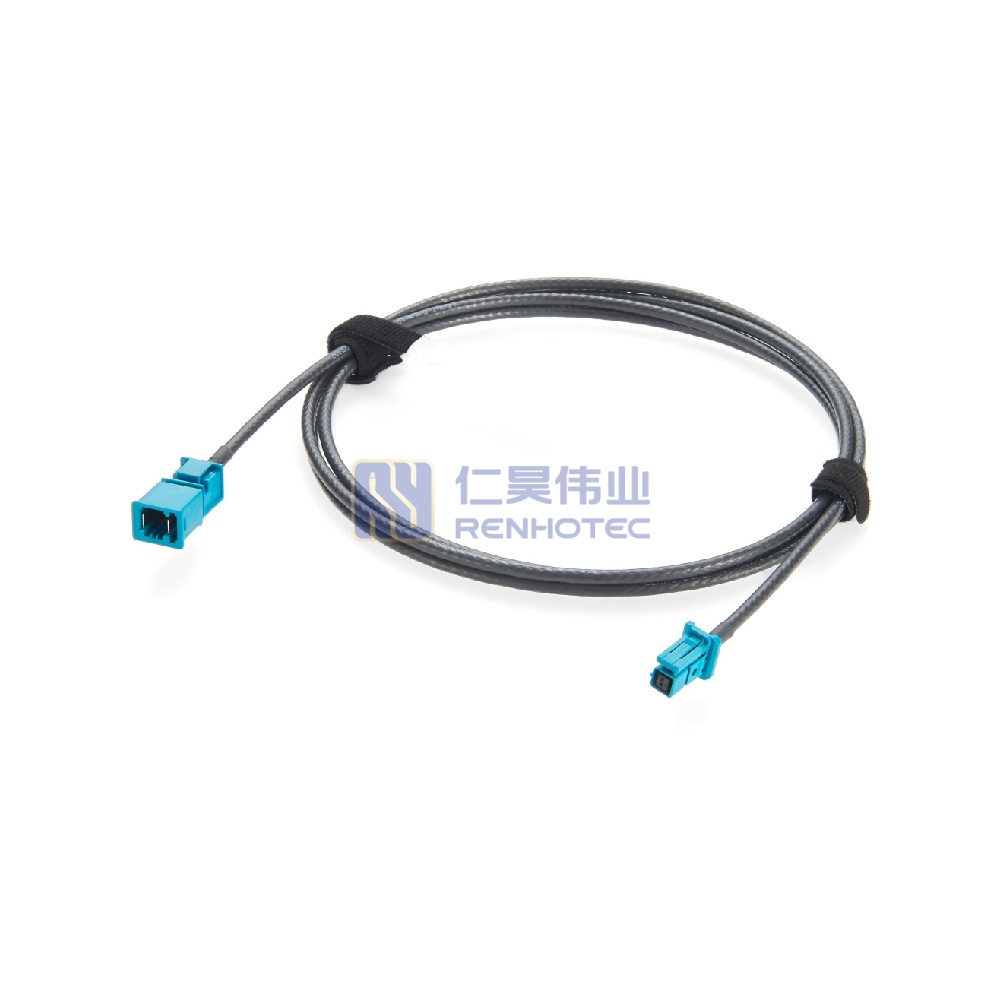

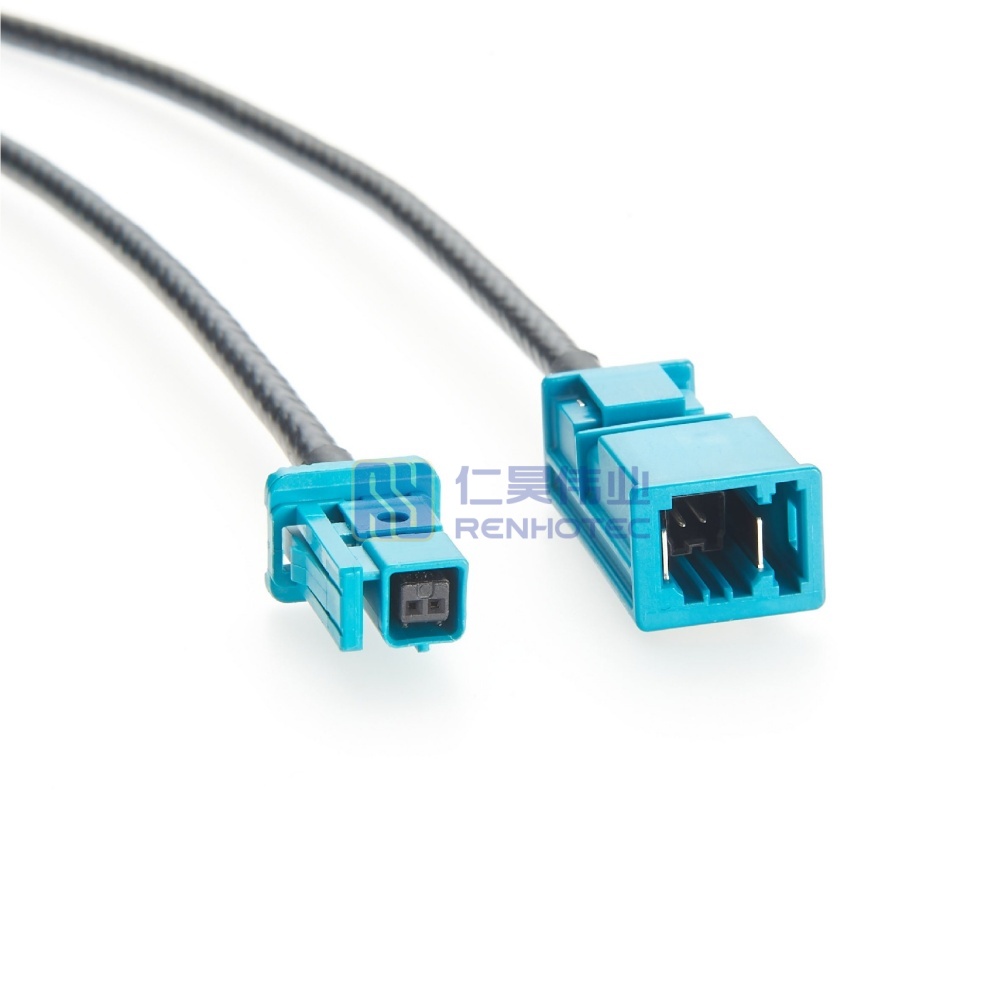

MATEnet Male to Female Extension Automotive Ethernet Cable – RHT-605-20833
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-605-20833 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-605-20833 |
| TE Connectivity Alternative | 1st Connector 2302461-9; 2nd Connector 2302510-9 |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
| Combination | MATEnet + MATEnet |
||
|---|---|---|---|
| Length | Customized |
||
| Combination | MATEnet + MATEnet |
Length | Customized |
Product Specification
| 1st Connector | 2302461-9 |
||
|---|---|---|---|
| 1st Connector Orientation | Straight |
||
| 1st Contact Type | Male Pin |
||
| 2nd Connector | 2302510-9 |
||
| 2nd Connector Orientation | Straight |
||
| 2nd Contact Type | Female Pin |
||
| Cable Type | LEONI DACAR 647-4 |
||
| Frequency Range | DC – 10 GHz |
||
| Impedance | 100 Ω |
||
| Temperature Range | -40°C to +105°C |
||
| 1st Connector | 2302461-9 |
1st Connector Orientation | Straight |
| 1st Contact Type | Male Pin |
2nd Connector | 2302510-9 |
| 2nd Connector Orientation | Straight |
2nd Contact Type | Female Pin |
| Cable Type | LEONI DACAR 647-4 |
Frequency Range | DC – 10 GHz |
| Impedance | 100 Ω |
Temperature Range | -40°C to +105°C |
| Combination | MATEnet + MATEnet |
|---|---|
| 1st Connector | 2302461-9 |
| 1st Connector Orientation | Straight |
| 1st Contact Type | Male Pin |
| 2nd Connector | 2302510-9 |
| 2nd Connector Orientation | Straight |
| 2nd Contact Type | Female Pin |
| Cable Type | LEONI DACAR 647-4 |
| Frequency Range | DC – 10 GHz |
| Impedance | 100 Ω |
| Length | Customized |
| Temperature Range | -40°C to +105°C |
