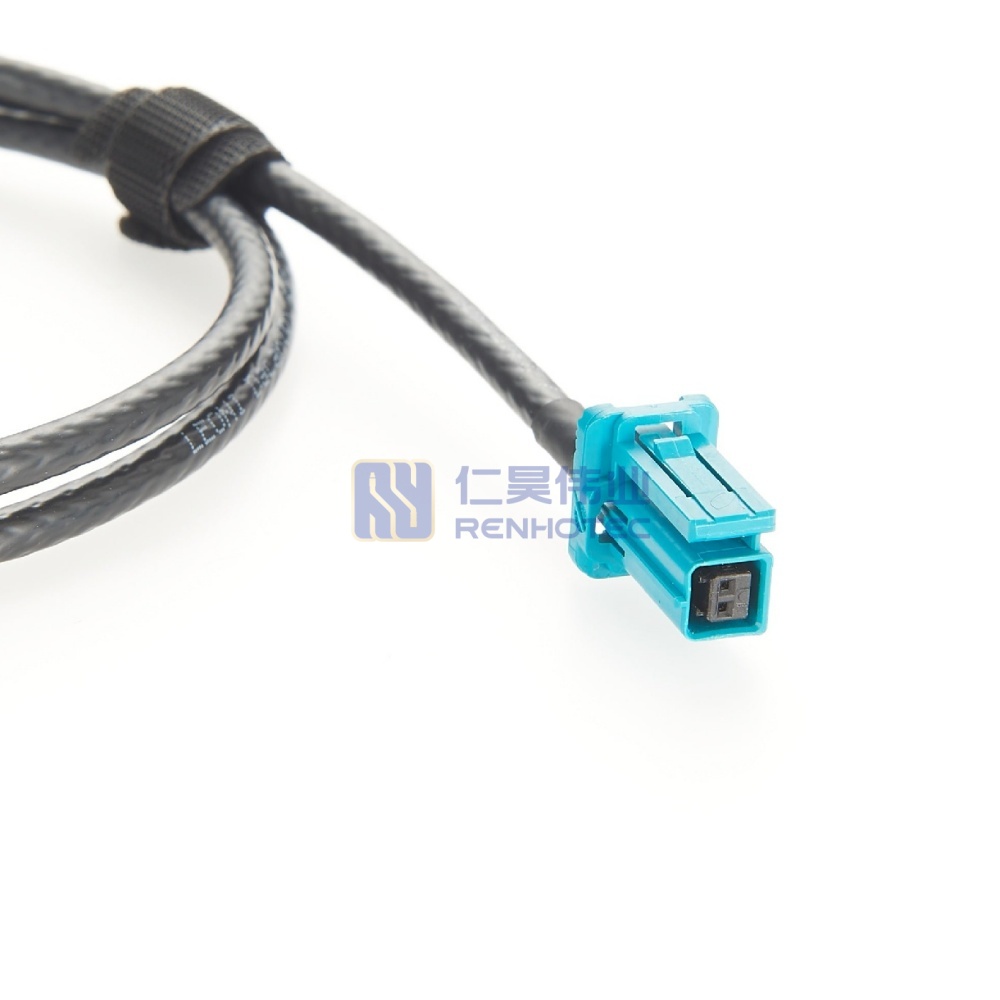

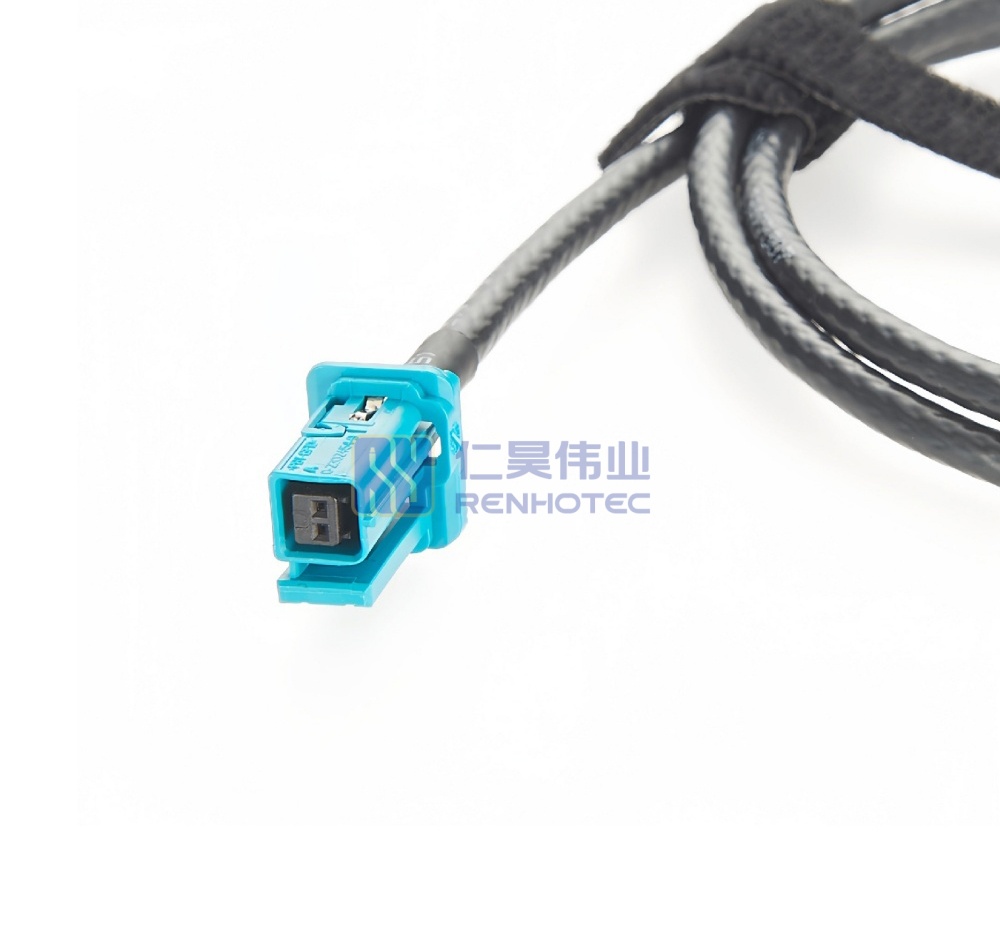

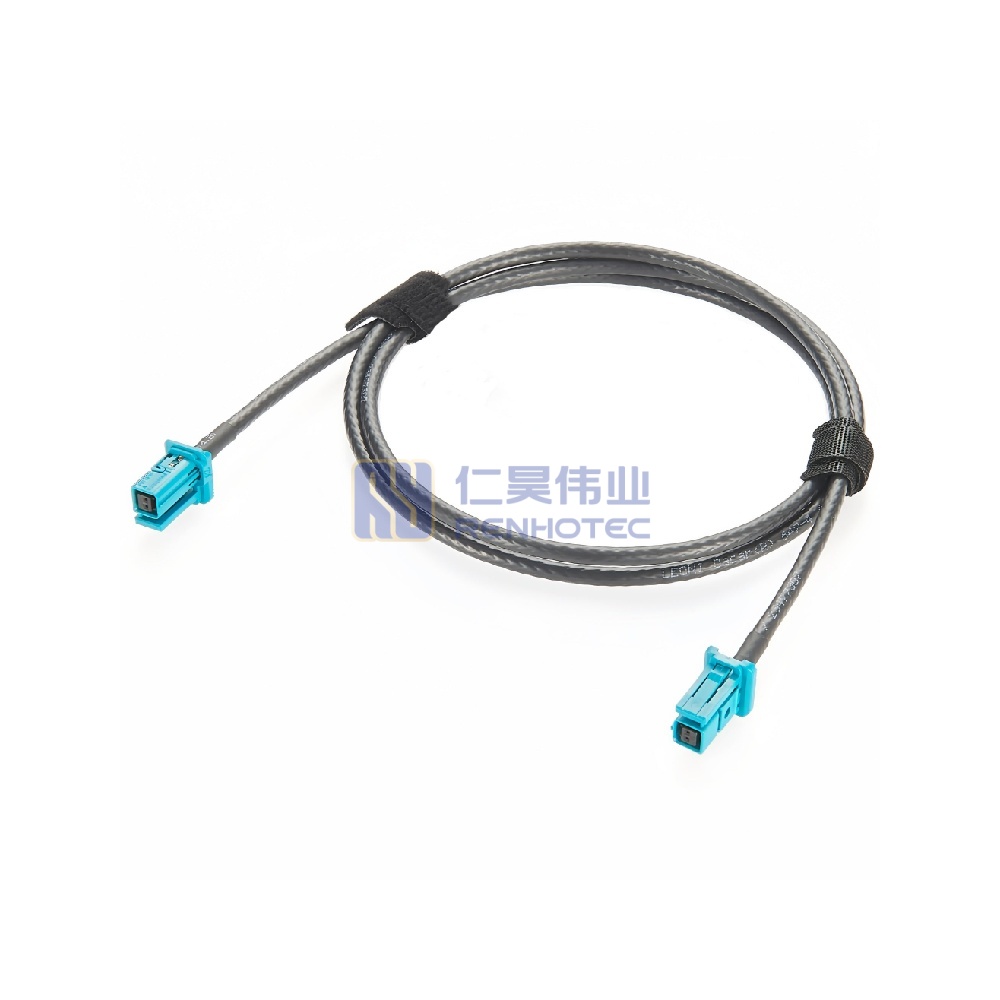

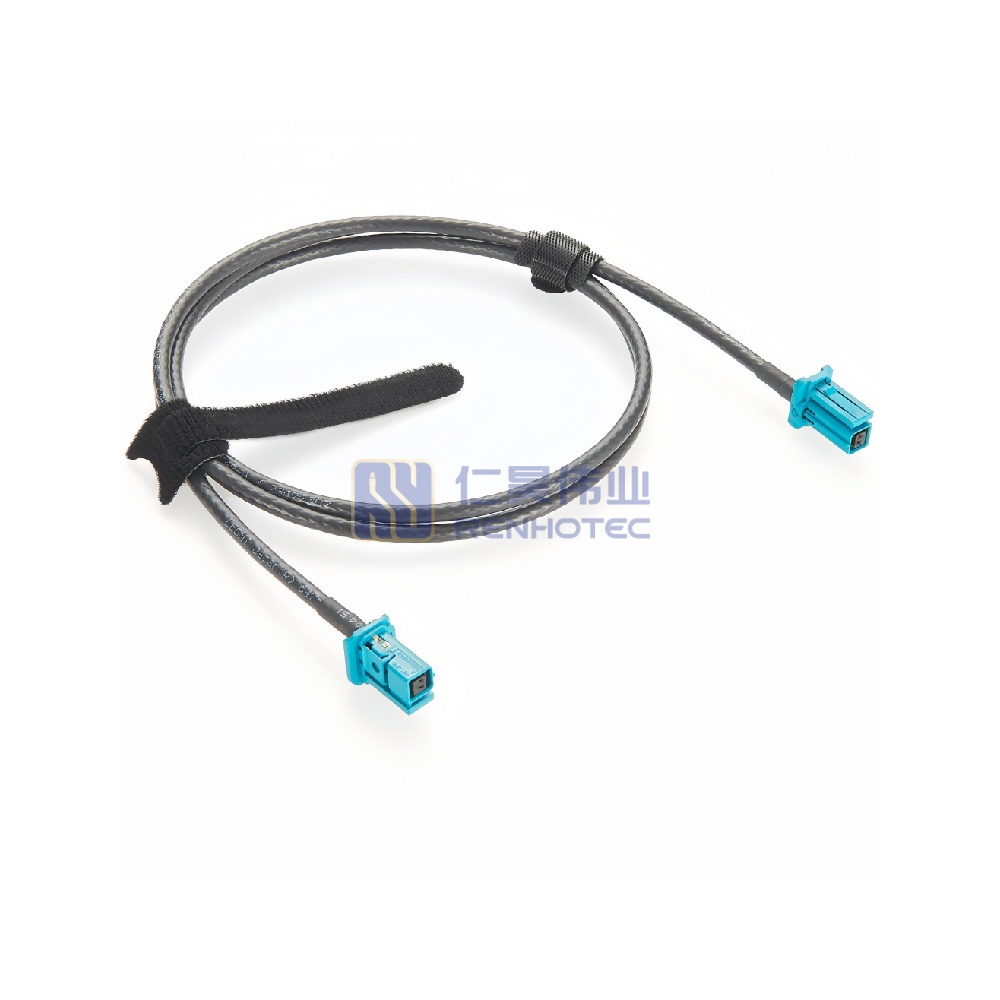

MATEnet Female to Female Automotive Ethernet Cable Assembly – RHT-605-20835
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF RHT-605-20835 can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | RHT-605-20835 |
| TE Connectivity Alternative | 1st Connector 2302510-9; 2nd Connector 2302510-9 |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
Product Specification
| 1st Contact Type | Female Pin |
||
|---|---|---|---|
| 2nd Contact Type | Female Pin |
||
| 1st Connector | 2302510-9 |
||
| 2nd Connector | 2302510-9 |
||
| 1st Connector Orientation | Straight |
||
| 2nd Connector Orientation | Straight |
||
| Cable Type | LEONI DACAR 647-4 |
||
| Impedance | 100Ω |
||
| Frequency Range | DC ~ 10 GHz |
||
| Temperature Range | -40°C to +105°C |
||
| 1st Contact Type | Female Pin |
2nd Contact Type | Female Pin |
| 1st Connector | 2302510-9 |
2nd Connector | 2302510-9 |
| 1st Connector Orientation | Straight |
2nd Connector Orientation | Straight |
| Cable Type | LEONI DACAR 647-4 |
Impedance | 100Ω |
| Frequency Range | DC ~ 10 GHz |
Temperature Range | -40°C to +105°C |
| Length | Customized |
|---|---|
| Length | Customized |
| 1st Contact Type | Female Pin |
|---|---|
| 2nd Contact Type | Female Pin |
| 1st Connector | 2302510-9 |
| 2nd Connector | 2302510-9 |
| 1st Connector Orientation | Straight |
| 2nd Connector Orientation | Straight |
| Cable Type | LEONI DACAR 647-4 |
| Length | Customized |
| Impedance | 100Ω |
| Frequency Range | DC ~ 10 GHz |
| Temperature Range | -40°C to +105°C |
