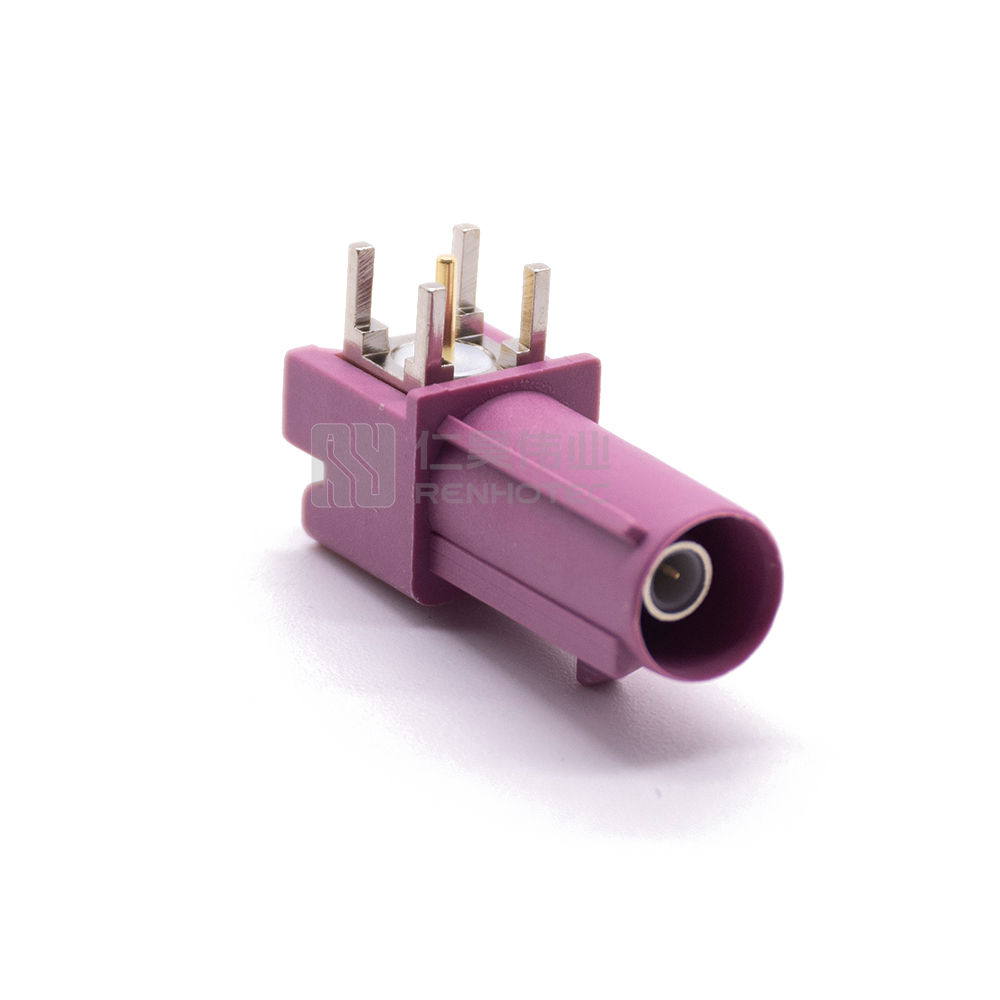

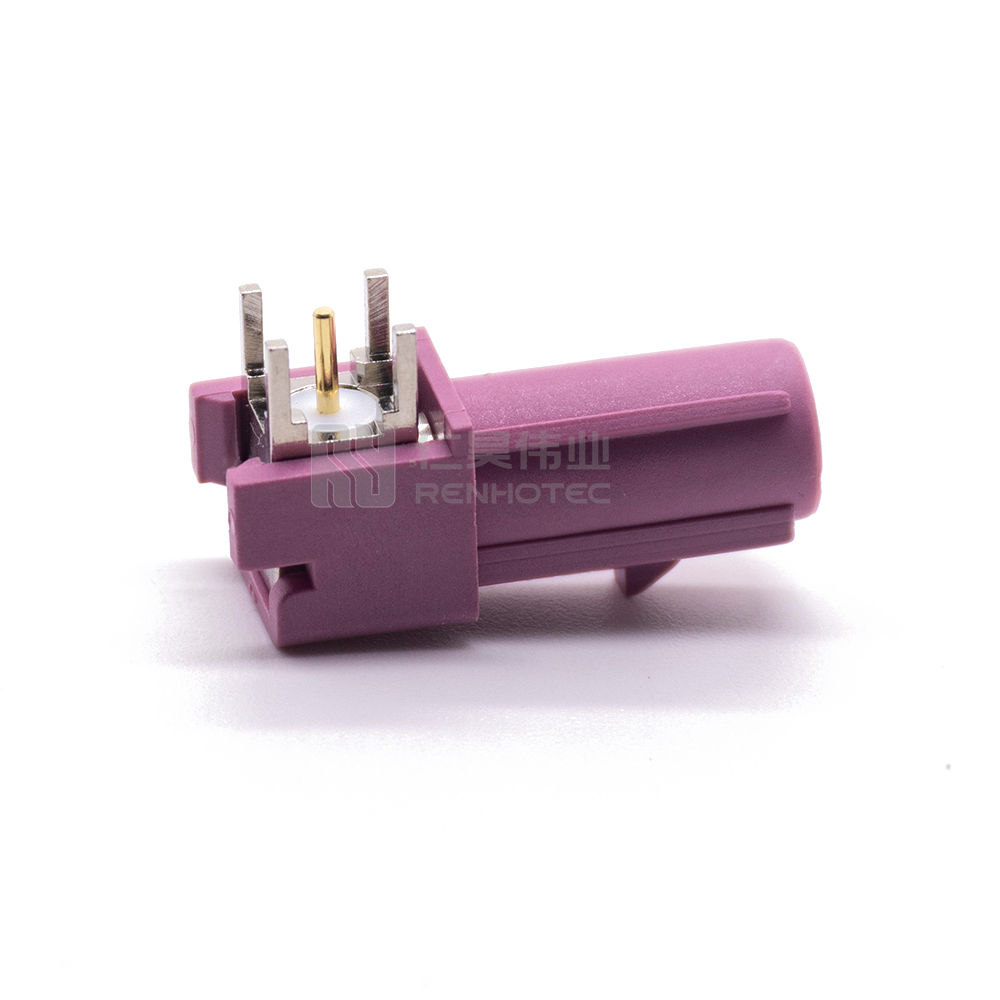

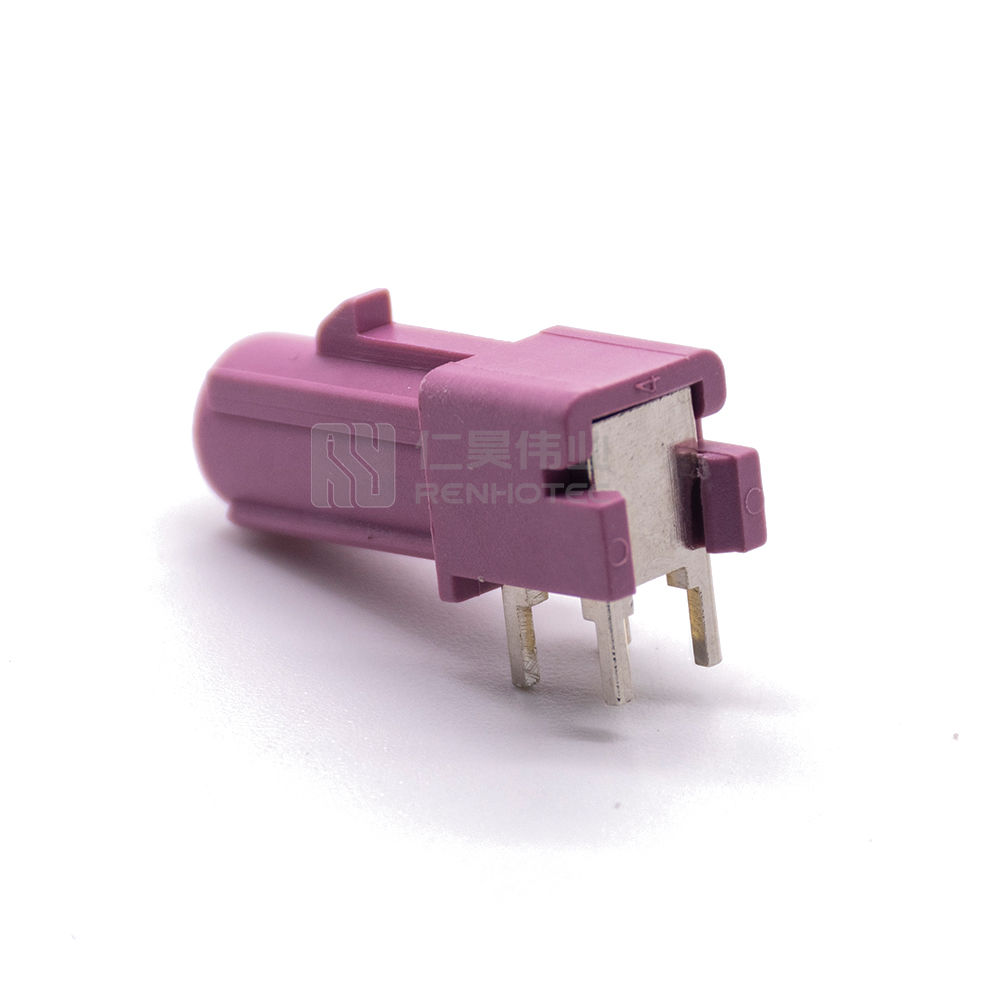

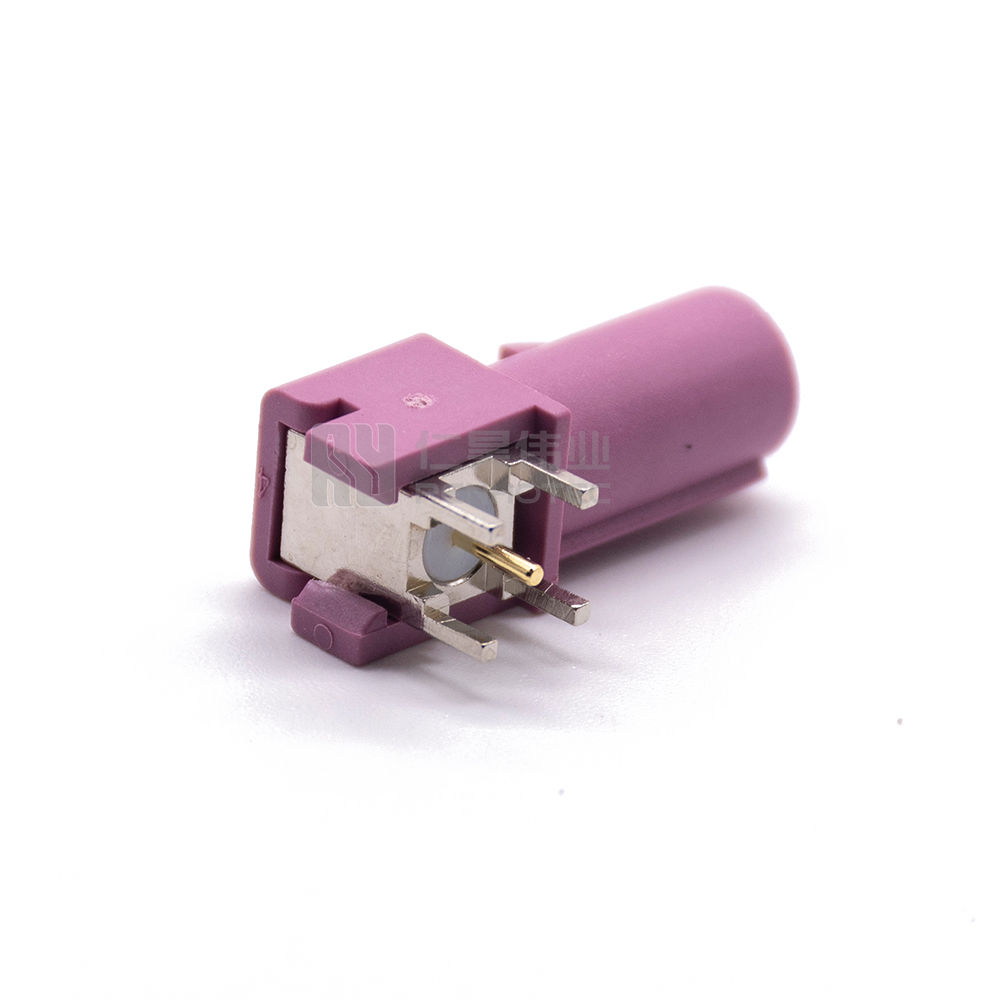

Fakra Socket Right Angle Male Pin Violet H Code Panel Mount Through Hole – 101-11-10205

This Fakra socket features a right angle male pin design with a vibrant violet H code panel mount for easy installation. Through-hole mounting ensures stable connections in various applications.

FAKRA is an acronym for Fachkreis Automobile or Working Group Automobile. These versatile connectors are in widespread use in the global automotive industry, primarily in telematics, safety, and communications applications. An average connected car contains at least 15 FAKRA connectors.

The FAKRA standard defines the connector’s interface and mechanical and electrical characteristics. FAKRA connectors consist of a plug and jack that mate via a push-on mechanism embedded within a plastic housing. An audible locking confirmation lets operators know a connection has been made. Some variations include a secondary lock. They are available in 14 different mechanical layouts. Color-coding enables easy identification and prevents mismatching. FAKRA connectors can operate up to 6 GHz.

FAKRA connectors are used throughout automotive vehicles in applications such as telematic and GPS navigation, entertainment systems, Bluetooth, cellular, keyless entry, climate controls, and radio antennas. They are also used in sensor systems for autonomous controls. Other non-auto applications include outdoor routers, industrial process control boxes, machine-to-machine modules, and IoT devices.

There are several subtypes of FAKRA connectors: The original FAKRA I connectors are now primarily used in antenna applications. FAKRA II, the second generation of FAKRA, is considered the current base standard. They are available in a variety of angles and configurations, including an IP6K9K sealed and weather-resistant version for use in outdoor applications. Customized and miniaturized versions are available from some manufacturers.

Fakra Code

Interface Dimensions

Application

  • Cameras
  • Sensors for detection, evaluation and reaction
  • High Performance Computing
  • Radio antenna
  • GPS telematics or navigation
  • Infotainment & television
  • Mobile communication
  • RF bluetooth / WLAN applications
  • Radio frequency remote control for keyless entry
  • Vehicle auxiliary heating

Product Specification

RF Series

Fakra

Connector Type

Plug

Orientation

Right Angle

Contact Type

Male Pin

Contact Termination Style

Plug Board

Mounting Type

Panel Mount

Fastening Type

Push-On

Number of Ports

1

Impedance

50 ohm

Frequency - Max

6GHz

Shell Material

Zinc Alloy

Shell Finish

Nickel Plated

Contact Material

Copper Alloy

Contact Finish

Gold Plated

Color

Violet

RF Series

Fakra

Connector Type

Plug

Orientation

Right Angle

Contact Type

Male Pin

Contact Termination Style

Plug Board

Mounting Type

Panel Mount

Fastening Type

Push-On

Number of Ports

1

Impedance

50 ohm

Frequency - Max

6GHz

Shell Material

Zinc Alloy

Shell Finish

Nickel Plated

Contact Material

Copper Alloy

Contact Finish

Gold Plated

Color

Violet

RF Series

Fakra

Connector Type

Plug

Orientation

Right Angle

Contact Type

Male Pin

Contact Termination Style

Plug Board

Mounting Type

Panel Mount

Fastening Type

Push-On

Number of Ports

1

Impedance

50 ohm

Frequency - Max

6GHz

Shell Material

Zinc Alloy

Shell Finish

Nickel Plated

Contact Material

Copper Alloy

Contact Finish

Gold Plated

Color

Violet

Renhotec Information

Where is your factory located? Can I visit your factory?

We have two factories, one is located in Dongguan city, another in Jiangmen city. Visitors are always welcome.

RF Connector Compatibility

Yes, our RF connector interface dimension conform international standards. Normally it’s interchangeable with similar products of other brands, it’s better to send us the datasheet/sample of other brands for check before order.

We recommend that you provide us with detailed specifications of your existing interfaces and cables, performance requirement and usage environment, so that our technical team can evaluate them.

Please advise your PCB layout dimension requirement, we’ll recommend you the most suitable Renhotec drawing for check.

Customization and Sample Testing

Yes, we offer customization services to meet your specific needs. Please provide your specification, performance requirement or drawing, photos, or samples for evaluation.

Yes, we provide customised services, it has MOQ requirement, please send your requirement for our engineer team evaluation.

Yes, please advise the thread length for evaluation.

Yes, we can. Please send us the datasheet or connector and cable requirement, we can produce as per request.

Yes, please share it and the requirement with us, our engineer team will evaluate it.

RF Connector Specifications

The impedance of an RF connector typically refers to the characteristic impedance of the transmission line it supports. The most common characteristic impedances for RF connectors are 50 ohms and 75 ohms. Please select an RF connector with the appropriate characteristic impedance to ensure optimal signal transmission and minimal signal loss within the system.

Order Lead Time

Lead time depends on the product type, quantity, and production status. For items ready in stock, the lead time is 3-5 working days. For common items, the lead time for 10K is 10-12 working days. The accurate lead time can be provided once the order is confirmed.

Shipping and Packaging

For small quantities, we ship by express. For larger quantities, we ship by sea, air, railway, or truck.

Our standard packaging methods include blister box/polybag with label in a carton box. We can also package as per request.

Payment Methods

Accepted payment methods include T/T, Paypal, etc.

Quality Assurance

Yes, we can provide regular inspection reports. If you have a special requirement, please let us know.

Yes, they conform. RoHS and REACH test reports are available.

Our products have 12 months’ warranty. It’s better to provide the feedback within one month after you receive the goods.
