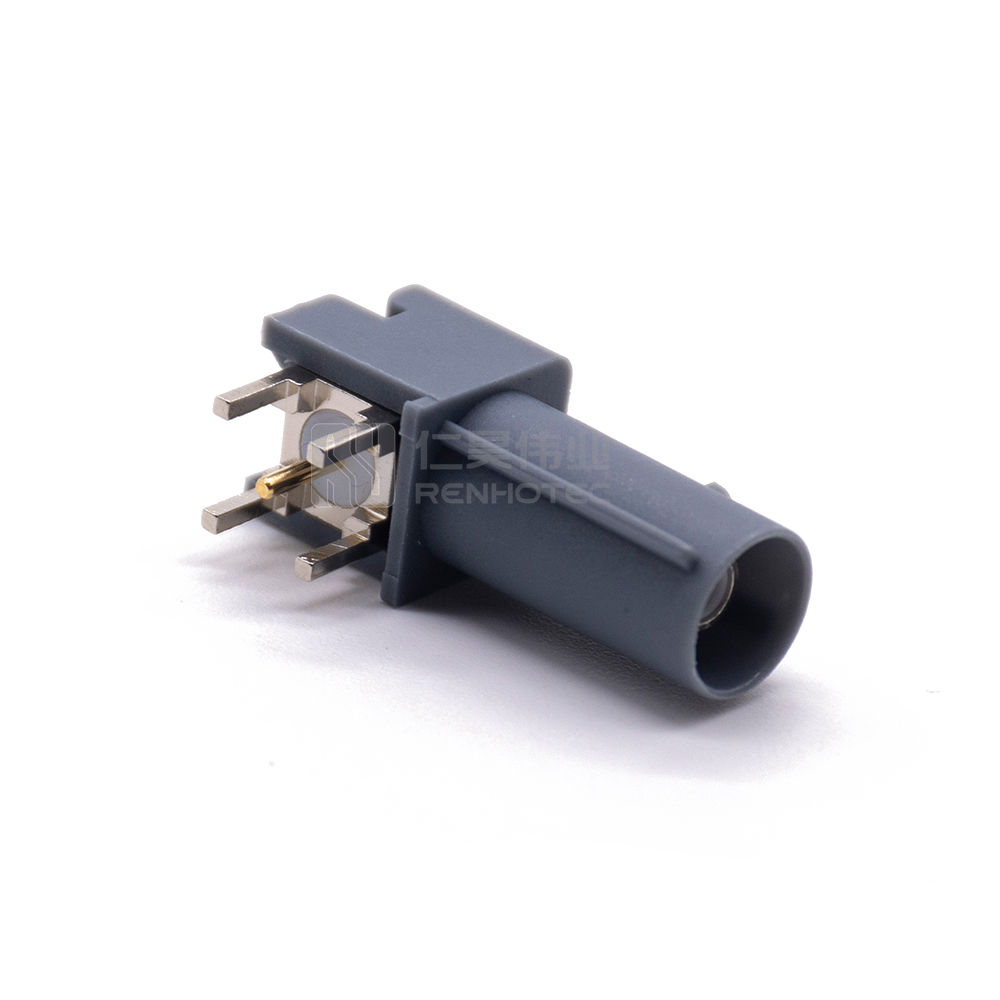

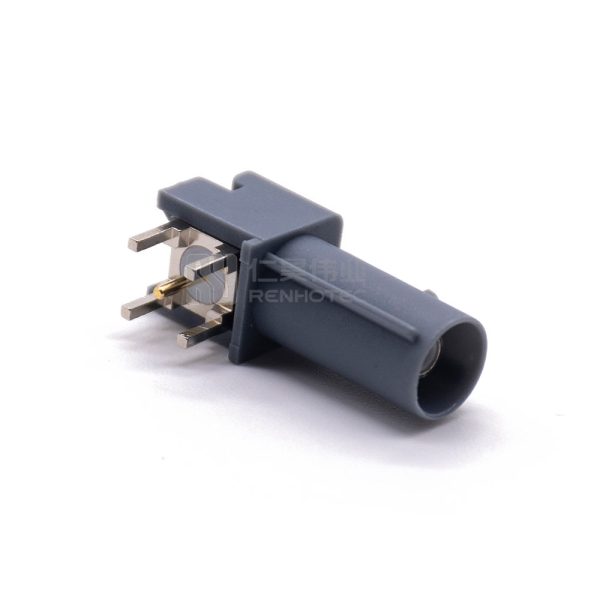

Fakra Socket Right Angle Male Pin Grey G Code Panel Mount Through Hole - 101-11-10204

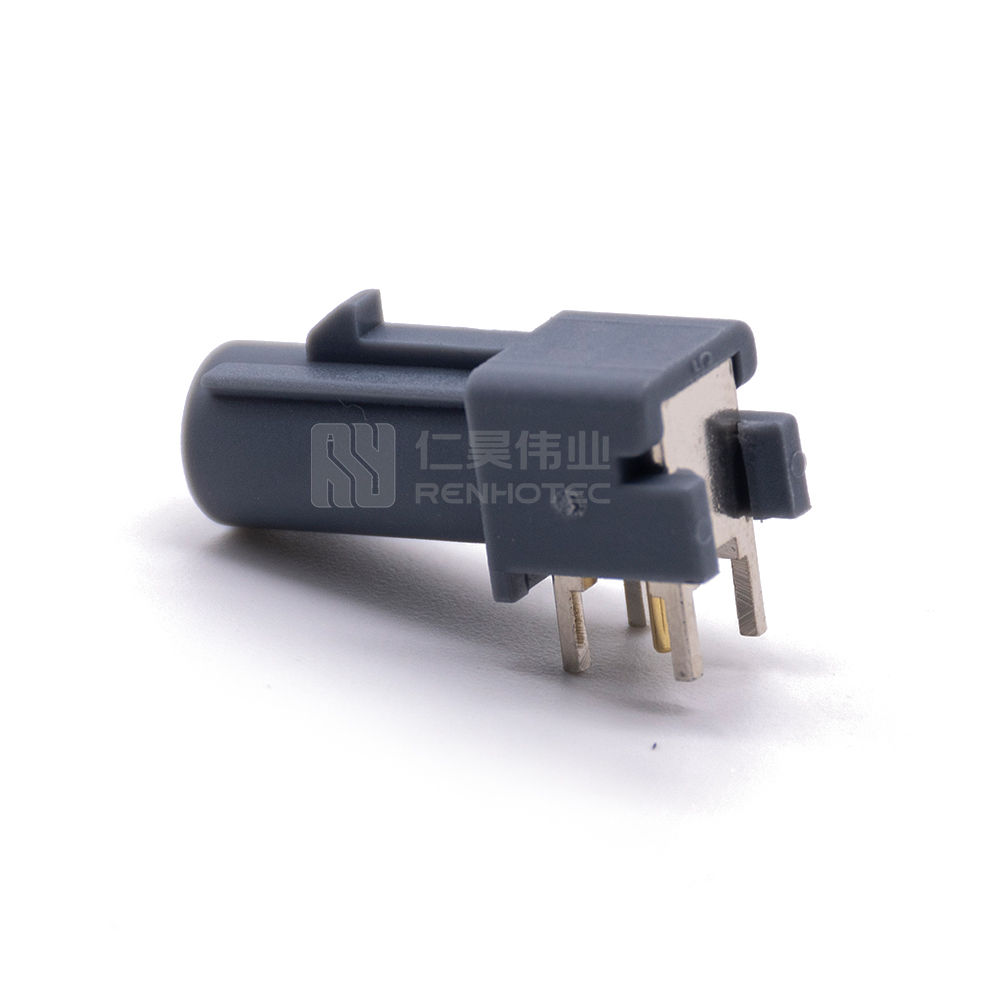

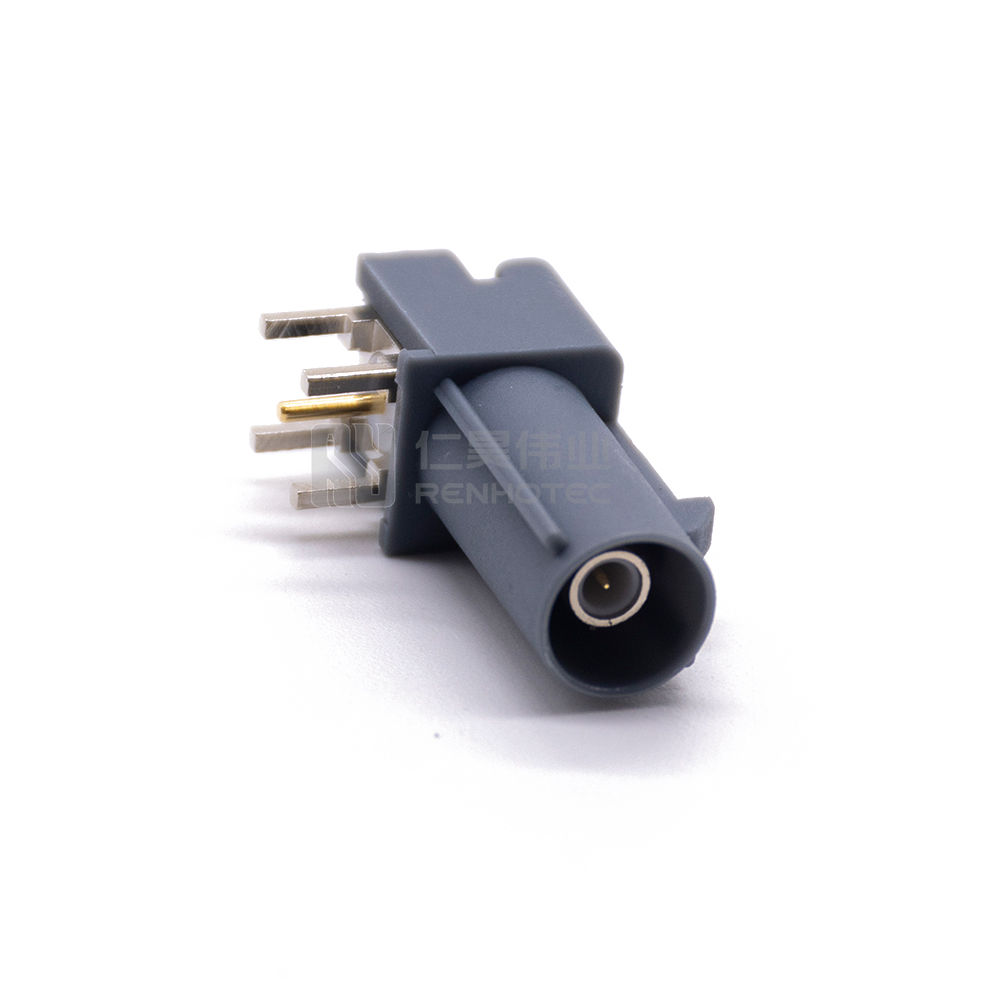

Fakra Socket Right Angle Male Pin Grey G Code Panel Mount Through Hole - 101-11-10204 - Image 2

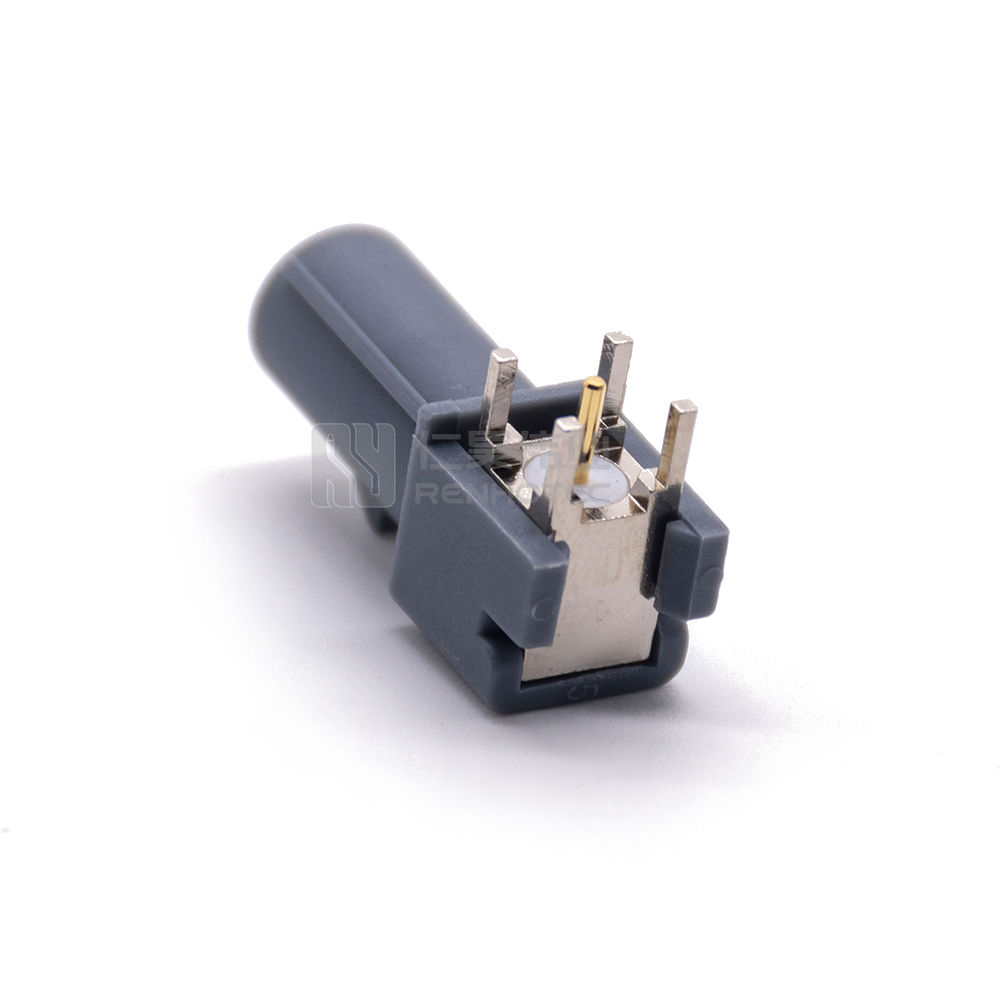

Fakra Socket Right Angle Male Pin Grey G Code Panel Mount Through Hole - 101-11-10204 - Image 3

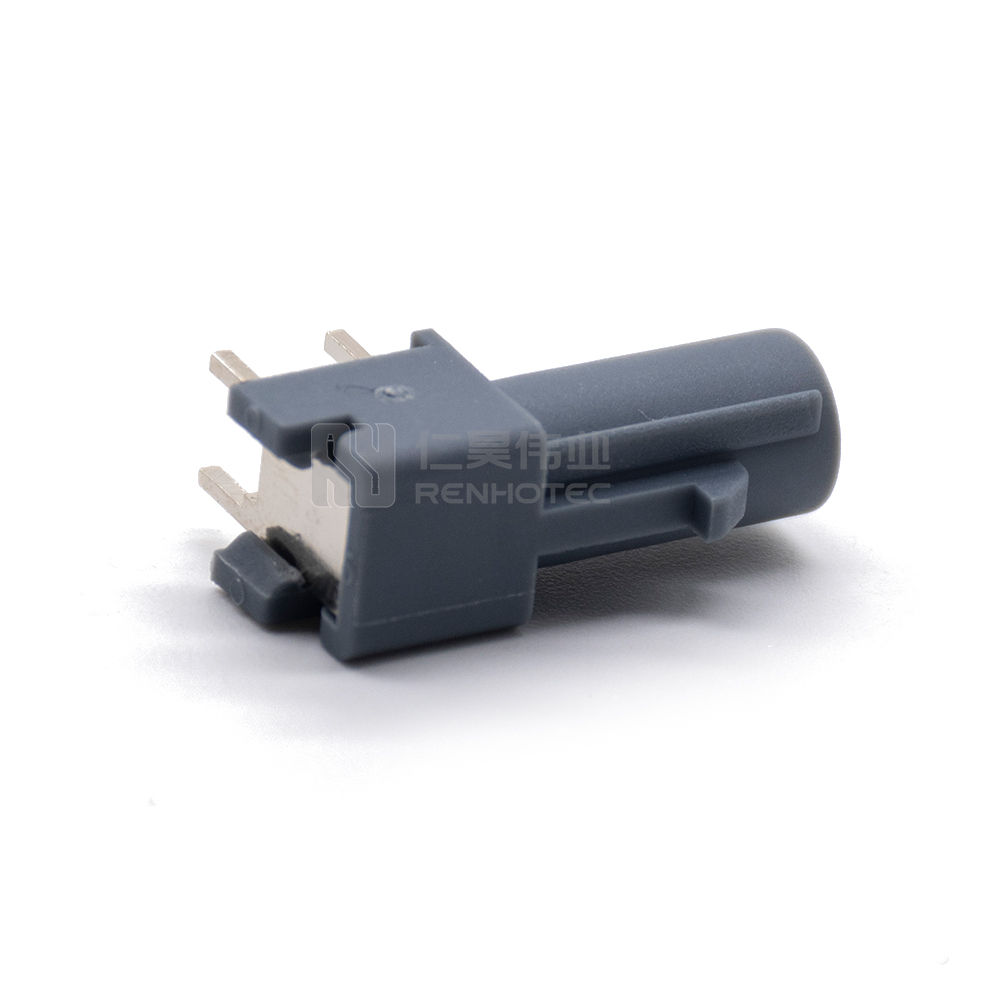

Fakra Socket Right Angle Male Pin Grey G Code Panel Mount Through Hole - 101-11-10204 - Image 4
Fakra Socket Right Angle Male Pin Grey G Code Panel Mount Through Hole - 101-11-10204 - Image 5
SKU: 101-11-10204 Category:

Authorized Sellers


Request for Quotation

Fakra Socket Right Angle Male Pin Grey G Code Panel Mount Through Hole – 101-11-10204

  • Fakra Socket Right Angle Male Pin Grey G Code (101-11-10204), designed for secure and high-performance automotive RF signal connections.
  • Right angle male pin configuration offers a space-saving and compact installation solution for automotive applications.
  • Fakra G Code ensures compatibility with various RF systems, ideal for use in GPS, antenna, and automotive communication applications.
  • Panel mount through hole design ensures a stable, permanent connection, providing durability and reliable performance in automotive environments.
  • Built for harsh automotive conditions, offering resistance to extreme temperatures, moisture, and vibrations, ensuring long-lasting reliability.

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

  • Secure primary locking system with tactile and audible locking
  • Shock and vibration resistant coded housing
  • Protection against unintentional opening by protective bar and protective strips
  • High axial holding power of the coaxial insert due to secondary locking
  • Mechanical and color coding system with 14 different codes
  • Fastening groove for cable connectors for chassis mounting
  • Coaxial insert and cable freely rotatable in the housing
  • Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
  • Efficient, automated further processing option
  • Customized packaging possible
Code A B C D E F G
Color Deep Black Cream White Signal Blue Bordeaux Violet Leaf Green Brown Blue Gray
Application Radio with phantom supply Radio without phantom supply GPS telematics or navigation GSM Cellular Phone TV (UHF) TV (VHF) SDARS terrestrial
Code H I K L M N Z
Color Violet Beige Curry Yellow Carmine Red Pastel Orange Pastel Green Water Blue
Application GPS telematics and navigation Bluetooth Controlled
Parking Heating		 SDARS satellite Not defined Keyless entry
Tire pressure monitoring		 Not defined Neutral
