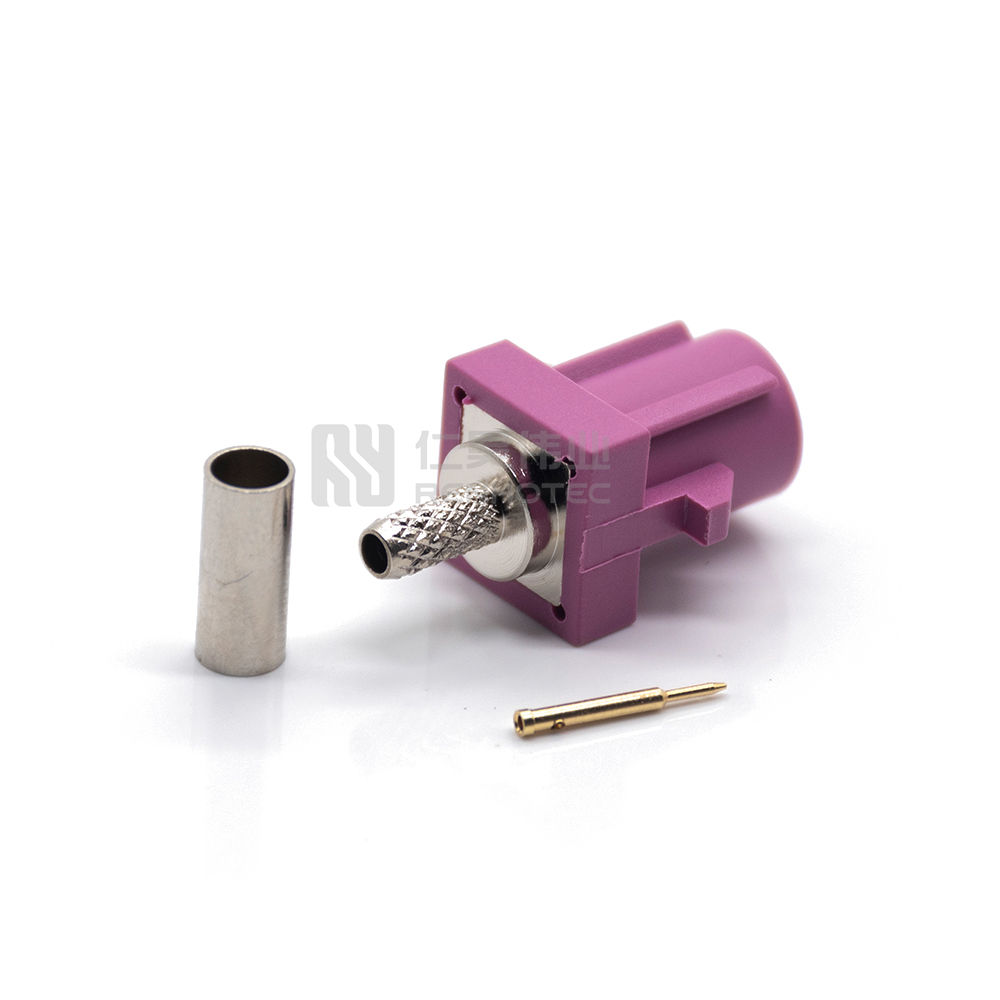

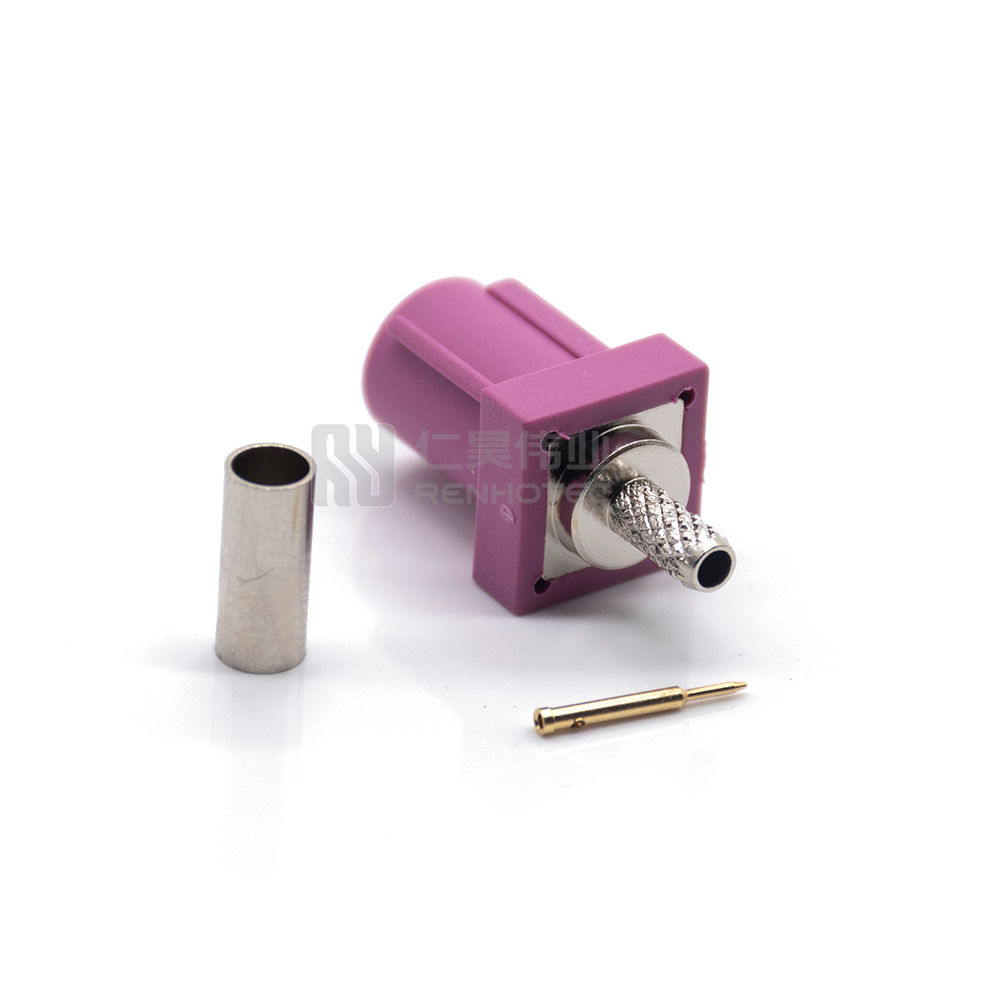

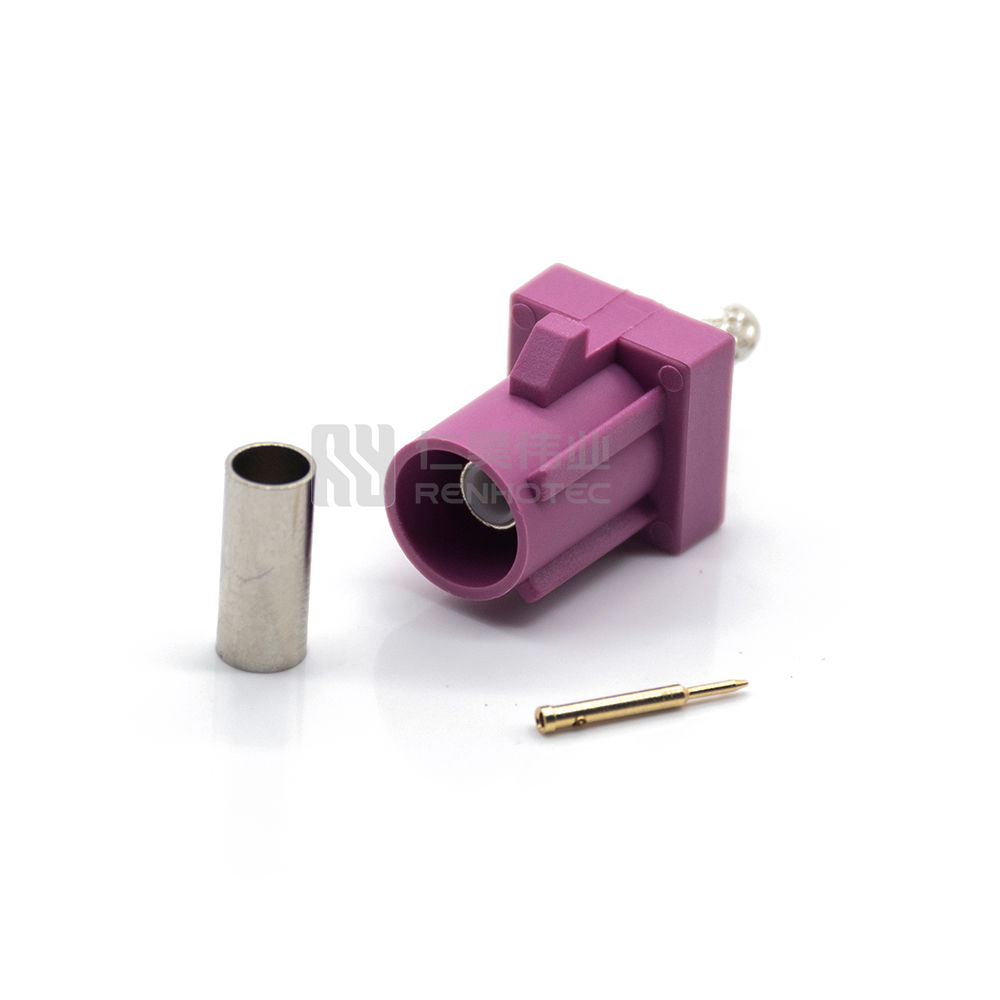

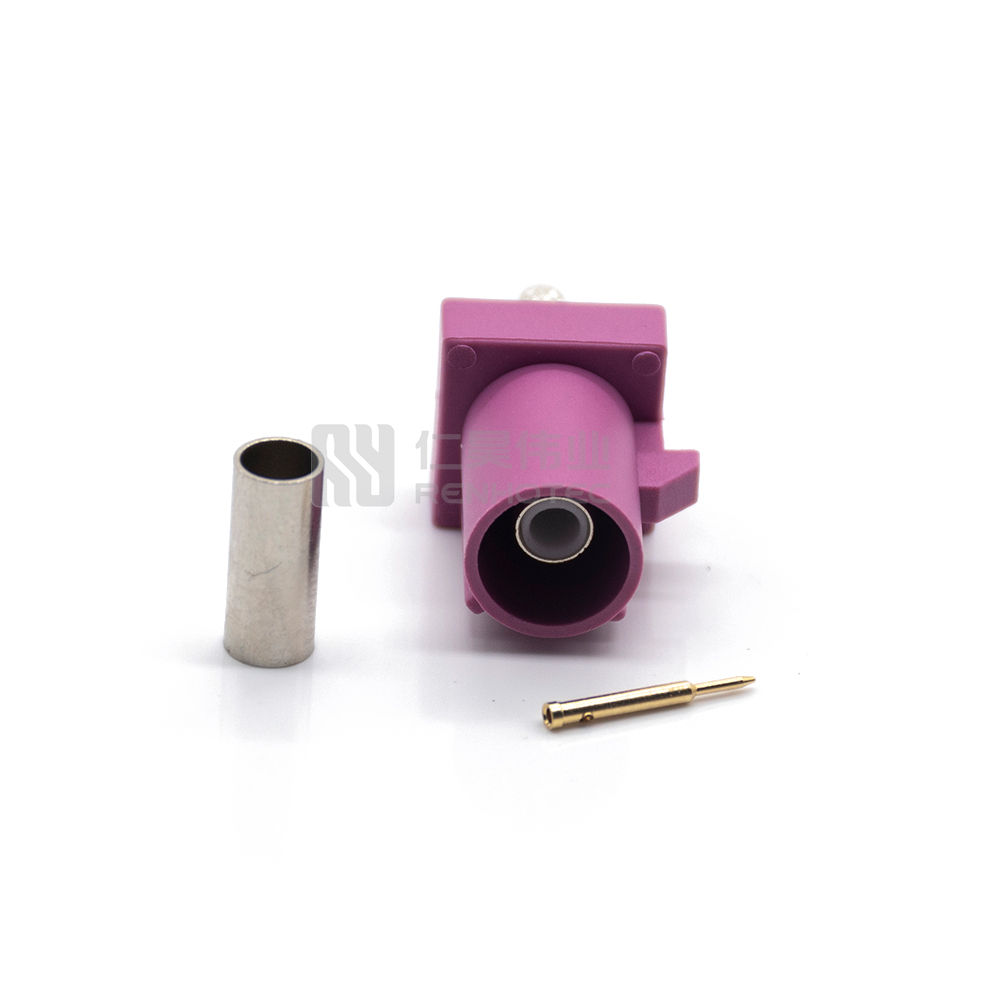

Fakra Socket Straight Male Pin Violet H Code Crimp RG174 – 101-11-10187

High-quality Fakra Socket Straight Male Pin in violet color with H code, suitable for RG174 cables. Precision crimp ensures secure connections. Ideal for automotive applications requiring reliable signal transmission.

FAKRA is an acronym for Fachkreis Automobile or Working Group Automobile. These versatile connectors are in widespread use in the global automotive industry, primarily in telematics, safety, and communications applications. An average connected car contains at least 15 FAKRA connectors.

The FAKRA standard defines the connector’s interface and mechanical and electrical characteristics. FAKRA connectors consist of a plug and jack that mate via a push-on mechanism embedded within a plastic housing. An audible locking confirmation lets operators know a connection has been made. Some variations include a secondary lock. They are available in 14 different mechanical layouts. Color-coding enables easy identification and prevents mismatching. FAKRA connectors can operate up to 6 GHz.

FAKRA connectors are used throughout automotive vehicles in applications such as telematic and GPS navigation, entertainment systems, Bluetooth, cellular, keyless entry, climate controls, and radio antennas. They are also used in sensor systems for autonomous controls. Other non-auto applications include outdoor routers, industrial process control boxes, machine-to-machine modules, and IoT devices.

There are several subtypes of FAKRA connectors: The original FAKRA I connectors are now primarily used in antenna applications. FAKRA II, the second generation of FAKRA, is considered the current base standard. They are available in a variety of angles and configurations, including an IP6K9K sealed and weather-resistant version for use in outdoor applications. Customized and miniaturized versions are available from some manufacturers.

Fakra Code

Interface Dimensions

Application

  • Cameras
  • Sensors for detection, evaluation and reaction
  • High Performance Computing
  • Radio antenna
  • GPS telematics or navigation
  • Infotainment & television
  • Mobile communication
  • RF bluetooth / WLAN applications
  • Radio frequency remote control for keyless entry
  • Vehicle auxiliary heating

Product Specification

RF Series

Fakra

Connector Type

Plug

Orientation

Straight

Contact Type

Male Pin

Contact Termination Style

Crimp

Mounting Type

Cable Mount

Fastening Type

Push-On

Cable Type

RG174

Number of Ports

1

Impedance

50 ohm

Frequency - Max

6GHz

Shell Material

Zinc Alloy

Shell Finish

Nickel Plated

Contact Material

Copper Alloy

Contact Finish

Gold Plated

Color

Violet
