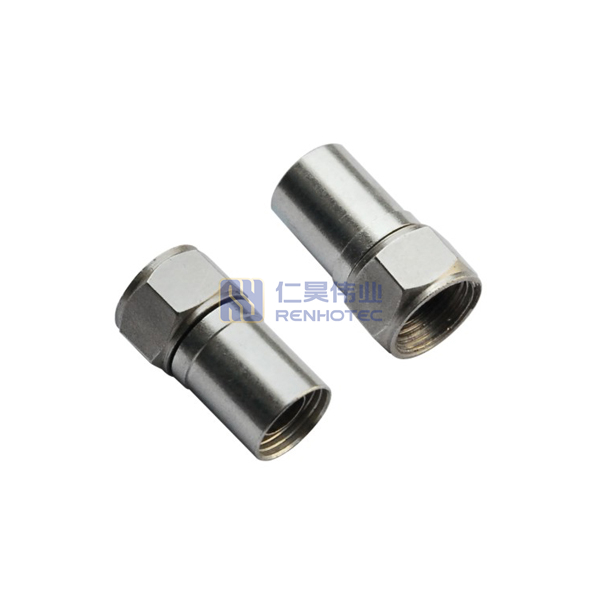

F Type Connector Straight Male Crimp Cable Type RG6 – RHT-611-0047
High-quality F Type Connector designed for secure and reliable connections. Straight Male Crimp Cable Type RG6 ensures excellent signal transmission. Ideal for various audio and video applications.
The F-type connector (also F-connector) is a coaxial RF connector. It is commonly used for “over-the-air” terrestrial TV, and cable TV. and commonly used for satellite TV and cable modems. Usually used with RG-6/U cable or with RG-59/U cable.
The F connector is an inexpensive, gendered, threaded, compression connector for radio frequency signals. It has a good 75 ?? impedance match for frequencies well over 1 GHz[2] and has usable bandwidth up to several GHz.
Application
Product Specification
RF Series | F Type |
||
---|---|---|---|
Connector Type | Plug |
||
Orientation | Straight |
||
Mounting Type | Cable Mount |
||
Shield Termination | Crimp |
||
Fastening Type | 3/8-32 Threaded |
||
Impedance | 75 ohm |
||
Shell Material | Zinc Alloy |
||
Shell Finish | Nickel Plated |
||
VSWR | R/A type ?Q 1.3MAX, Straight type?Q1.2 MAX |
||
Frequency Range | DC-1GHz |
||
Center Contact Resistance | ?Q 10 M?? (Milliohms Max.) |
||
Outer Contact Resistance | ?Q 5 M?? (Milliohms Max.)?? |
||
Insultation Resistance | ?? 1000 M?? |
||
Mating Durability | ?? 500 Cycles |
||
Contact Retention | 20 in-lbs min. |
||
Temperature Range | ?40??C to +140??C |
||
RF Series | F Type |
Connector Type | Plug |
Orientation | Straight |
Mounting Type | Cable Mount |
Shield Termination | Crimp |
Fastening Type | 3/8-32 Threaded |
Impedance | 75 ohm |
Shell Material | Zinc Alloy |
Shell Finish | Nickel Plated |
VSWR | R/A type ?Q 1.3MAX, Straight type?Q1.2 MAX |
Frequency Range | DC-1GHz |
Center Contact Resistance | ?Q 10 M?? (Milliohms Max.) |
Outer Contact Resistance | ?Q 5 M?? (Milliohms Max.)?? |
Insultation Resistance | ?? 1000 M?? |
Mating Durability | ?? 500 Cycles |
Contact Retention | 20 in-lbs min. |
Temperature Range | ?40??C to +140??C |
RF Series | F Type |
---|---|
Connector Type | Plug |
Orientation | Straight |
Mounting Type | Cable Mount |
Shield Termination | Crimp |
Fastening Type | 3/8-32 Threaded |
Impedance | 75 ohm |
Shell Material | Zinc Alloy |
Shell Finish | Nickel Plated |
VSWR | R/A type ?Q 1.3MAX, Straight type?Q1.2 MAX |
Frequency Range | DC-1GHz |
Center Contact Resistance | ?Q 10 M?? (Milliohms Max.) |
Outer Contact Resistance | ?Q 5 M?? (Milliohms Max.)?? |
Insultation Resistance | ?? 1000 M?? |
Mating Durability | ?? 500 Cycles |
Contact Retention | 20 in-lbs min. |
Temperature Range | ?40??C to +140??C |
Renhotec Information
We have two factories, one is located in Dongguan city, another in Jiangmen city. Visitors are always welcome.
RF Connector Compatibility
Yes, our RF connector interface dimension conform international standards. Normally it’s interchangeable with similar products of other brands, it’s better to send us the datasheet/sample of other brands for check before order.
We recommend that you provide us with detailed specifications of your existing interfaces and cables, performance requirement and usage environment, so that our technical team can evaluate them.
Please advise your PCB layout dimension requirement, we’ll recommend you the most suitable Renhotec drawing for check.
Customization and Sample Testing
Yes, we offer customization services to meet your specific needs. Please provide your specification, performance requirement or drawing, photos, or samples for evaluation.
Yes, we provide customised services, it has MOQ requirement, please send your requirement for our engineer team evaluation.
Yes, please advise the thread length for evaluation.
Yes, we can. Please send us the datasheet or connector and cable requirement, we can produce as per request.
Yes, please share it and the requirement with us, our engineer team will evaluate it.
RF Connector Specifications
The impedance of an RF connector typically refers to the characteristic impedance of the transmission line it supports. The most common characteristic impedances for RF connectors are 50 ohms and 75 ohms. Please select an RF connector with the appropriate characteristic impedance to ensure optimal signal transmission and minimal signal loss within the system.
Order Lead Time
Lead time depends on the product type, quantity, and production status. For items ready in stock, the lead time is 3-5 working days. For common items, the lead time for 10K is 10-12 working days. The accurate lead time can be provided once the order is confirmed.
Shipping and Packaging
For small quantities, we ship by express. For larger quantities, we ship by sea, air, railway, or truck.
Our standard packaging methods include blister box/polybag with label in a carton box. We can also package as per request.
Payment Methods
Accepted payment methods include T/T, Paypal, etc.
Quality Assurance
Yes, we can provide regular inspection reports. If you have a special requirement, please let us know.
Yes, they conform. RoHS and REACH test reports are available.
Our products have 12 months’ warranty. It’s better to provide the feedback within one month after you receive the goods.
