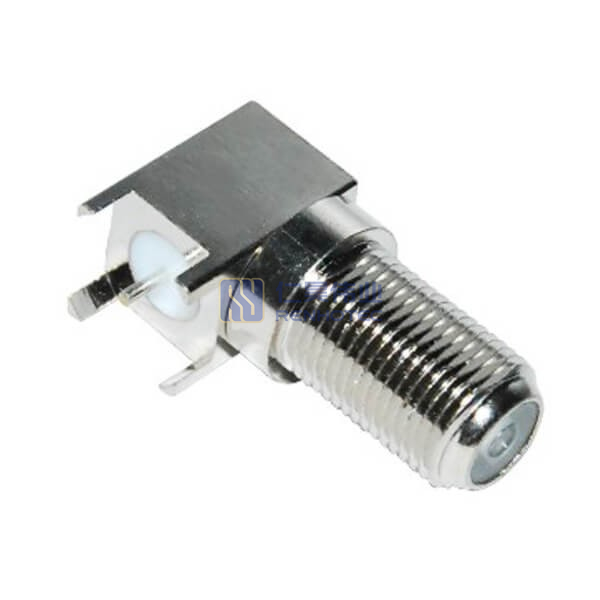

F Type Connector Right Angle Jack Panel Mount Through Hole – RHT-611-0010

This F Type Connector features a right-angle design for convenient installation on panels. The jack connector is suitable for through-hole installation, ensuring a secure and reliable connection for your electronic devices.

The F-type connector (also F-connector) is a coaxial RF connector. It is commonly used for “over-the-air” terrestrial TV, and cable TV. and commonly used for satellite TV and cable modems. Usually used with RG-6/U cable or with RG-59/U cable.

The F connector is an inexpensive, gendered, threaded, compression connector for radio frequency signals. It has a good 75 ?? impedance match for frequencies well over 1 GHz[2] and has usable bandwidth up to several GHz.

Application

Product Specification

RF Series

F Type
Connector Type

Jack
Contact Type

Female Pin
Orientation

Right Angle
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Contact Termination Style

Solder
Fastening Type

3/8-32 Threaded
Impedance

75 ohm
Insulator Material

POM
Shell Material

Zinc Alloy
Shell Finish

Nickel Plated
Contact Material

Brass
Contact Finish

Tin Plated
VSWR

R/A type ?Q 1.3MAX, Straight type?Q1.2 MAX
Frequency Range

DC-1GHz
Center Contact Resistance

?Q 10 M?? (Milliohms Max.)
Outer Contact Resistance

?Q 5 M?? (Milliohms Max.)??
Insultation Resistance

?? 1000 M??
Mating Durability

?? 500 Cycles
Contact Retention

20 in-lbs min.
Temperature Range

?40??C to +140??C
RF Series

F Type

 Connector Type

Jack
Contact Type

Female Pin

 Orientation

Right Angle
Mounting Type

Panel Mount

 Mounting Feature

Through Hole
Contact Termination Style

Solder

 Fastening Type

3/8-32 Threaded
Impedance

75 ohm

 Insulator Material

POM
Shell Material

Zinc Alloy

 Shell Finish

Nickel Plated
Contact Material

Brass

 Contact Finish

Tin Plated
VSWR

R/A type ?Q 1.3MAX, Straight type?Q1.2 MAX

 Frequency Range

DC-1GHz
Center Contact Resistance

?Q 10 M?? (Milliohms Max.)

 Outer Contact Resistance

?Q 5 M?? (Milliohms Max.)??
Insultation Resistance

?? 1000 M??

 Mating Durability

?? 500 Cycles
Contact Retention

20 in-lbs min.

 Temperature Range

?40??C to +140??C
RF Series

F Type
Connector Type

Jack
Contact Type

Female Pin
Orientation

Right Angle
Mounting Type

Panel Mount
Mounting Feature

Through Hole
Contact Termination Style

Solder
Fastening Type

3/8-32 Threaded
Impedance

75 ohm
Insulator Material

POM
Shell Material

Zinc Alloy
Shell Finish

Nickel Plated
Contact Material

Brass
Contact Finish

Tin Plated
VSWR

R/A type ?Q 1.3MAX, Straight type?Q1.2 MAX
Frequency Range

DC-1GHz
Center Contact Resistance

?Q 10 M?? (Milliohms Max.)
Outer Contact Resistance

?Q 5 M?? (Milliohms Max.)??
Insultation Resistance

?? 1000 M??
Mating Durability

?? 500 Cycles
Contact Retention

20 in-lbs min.
Temperature Range

?40??C to +140??C
Drawing for F Type Connector Right Angle Jack Panel Mount Through HoleDownload
