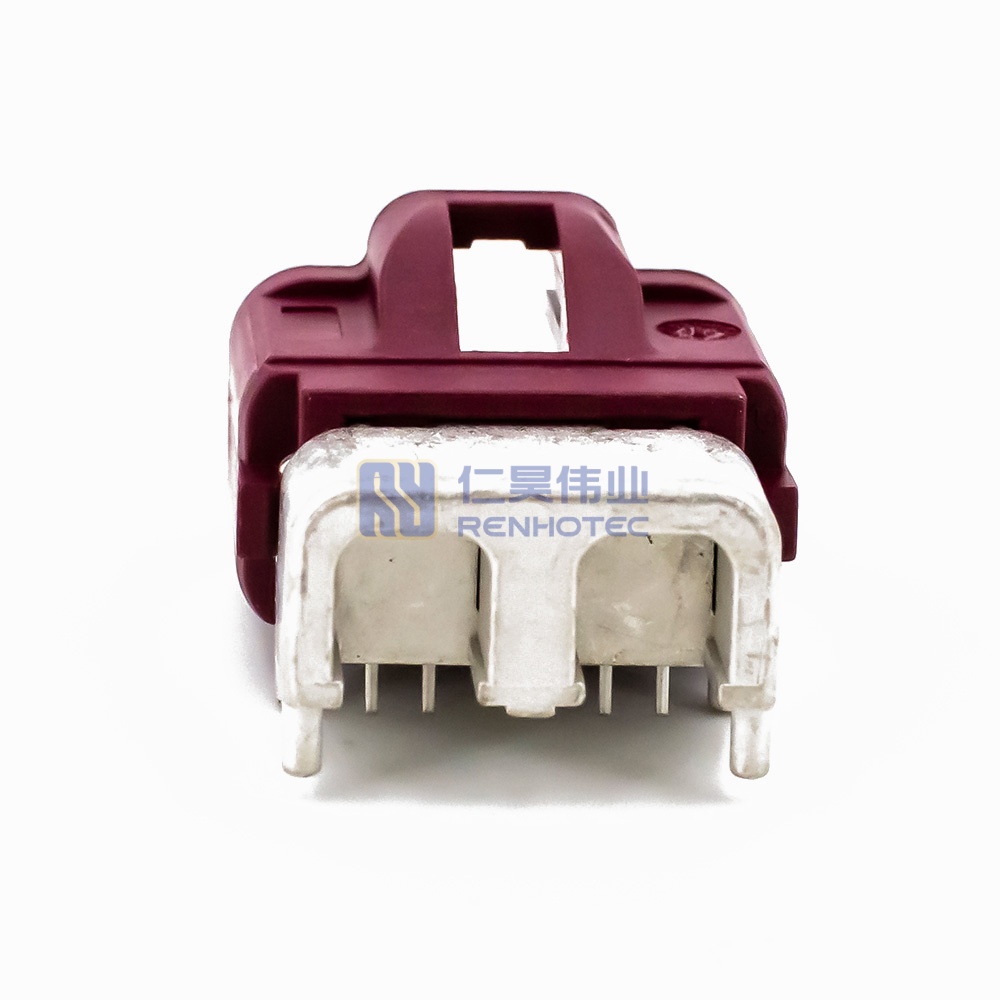

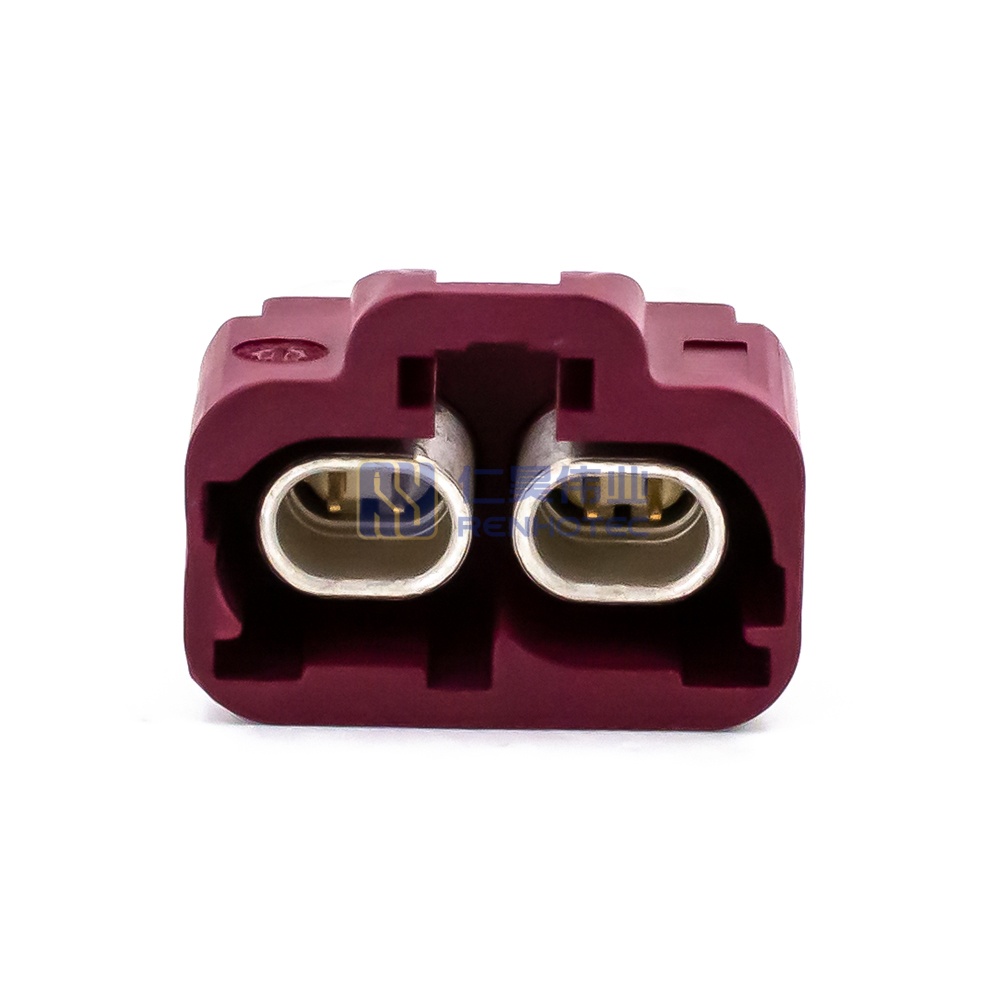

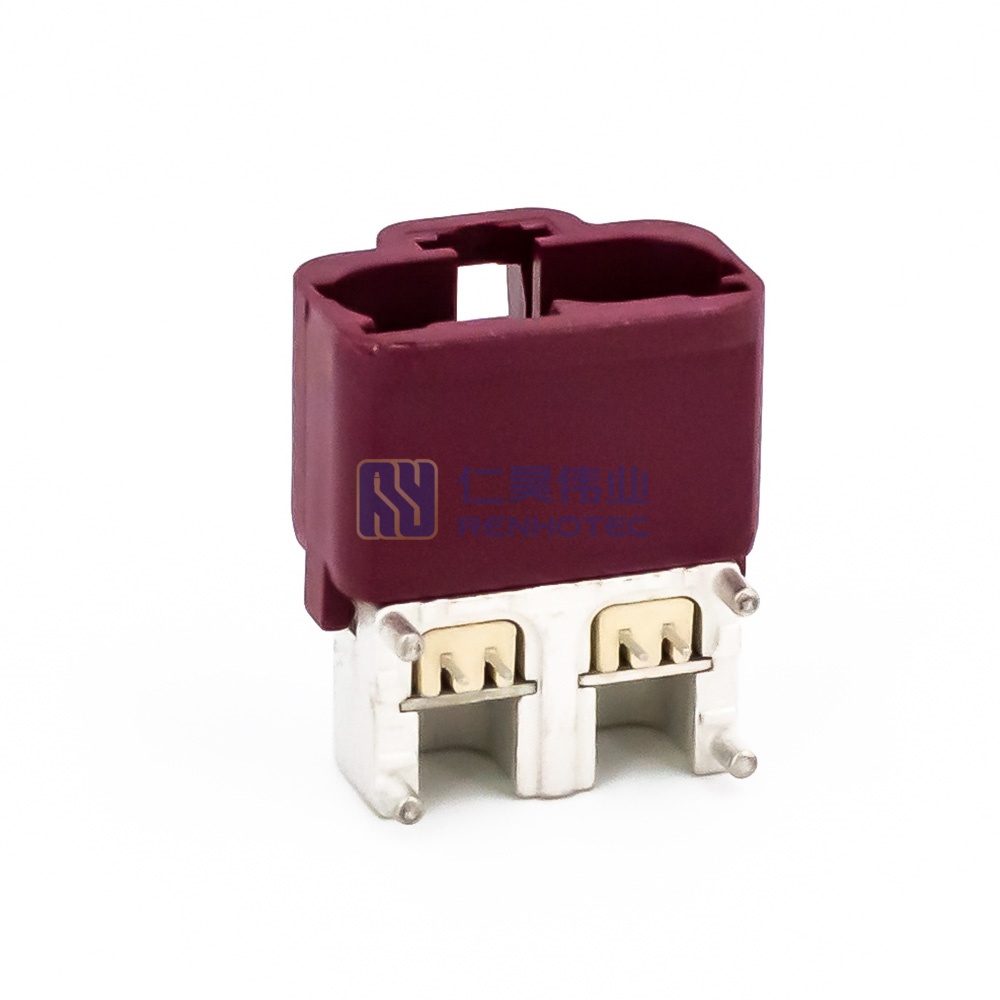

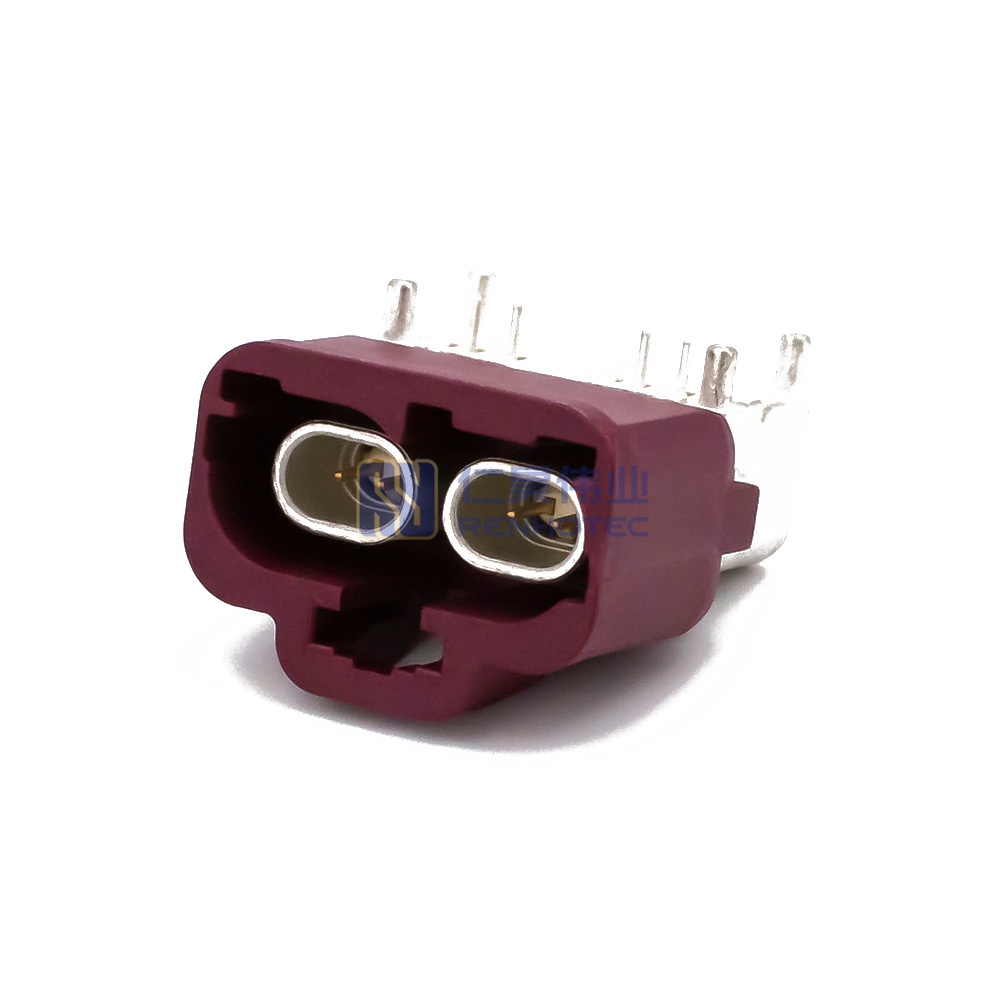

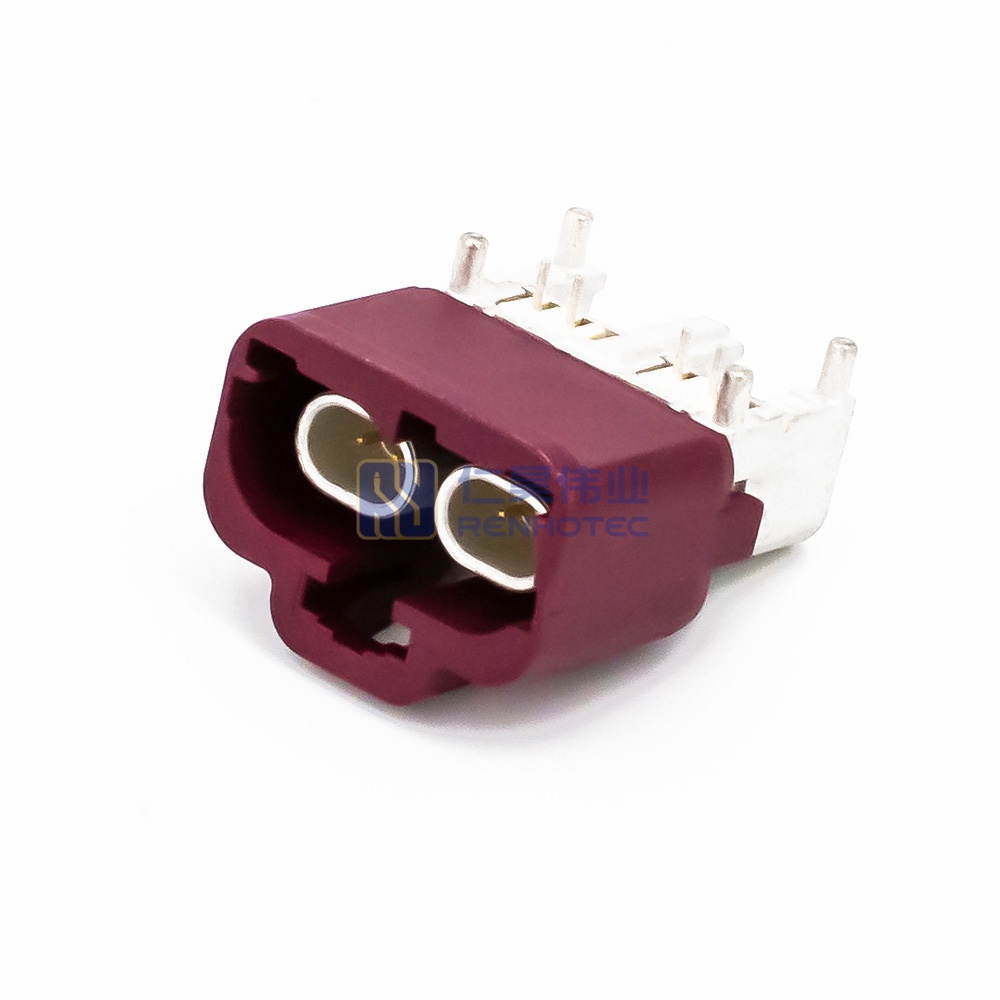

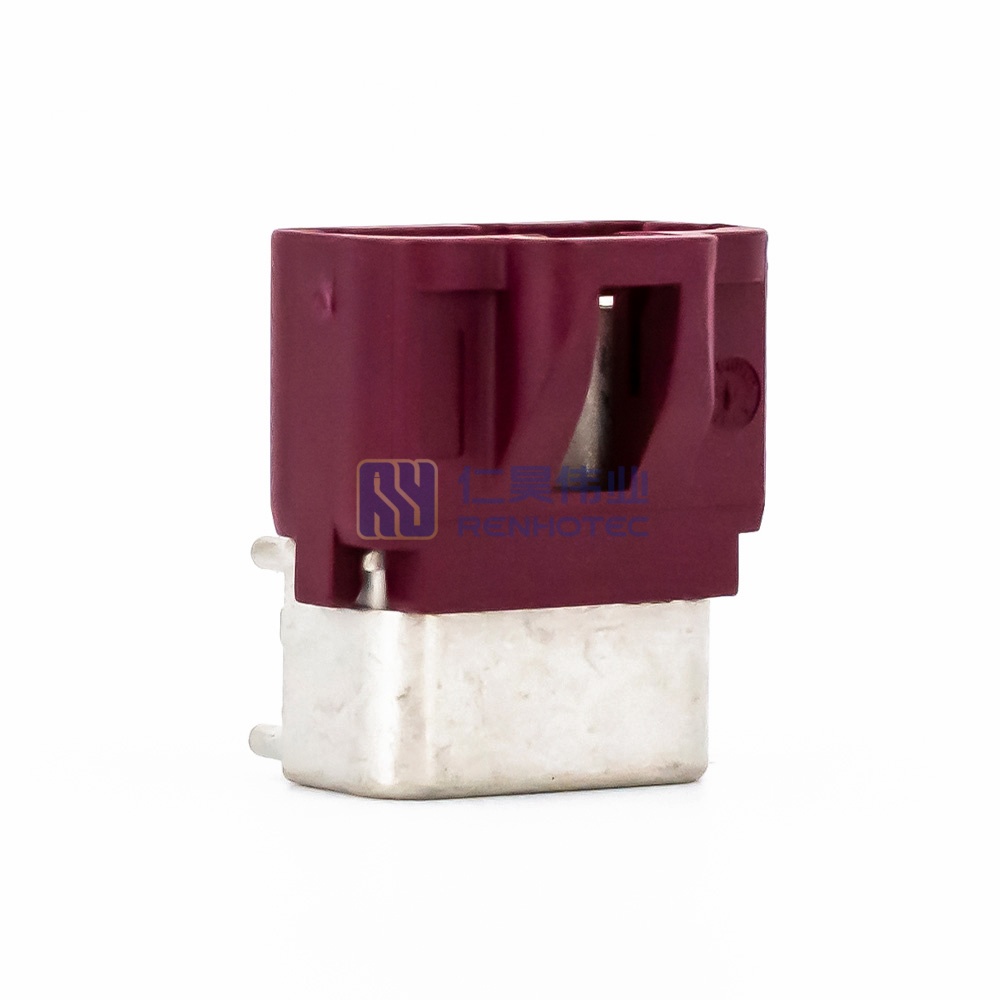

Dual HMTD Male D Code R/A PCB Mount Connector
OEM Compatibility & Manufacturer Part Number Reference
RenhotecRF 33-1402-1542-D can be used as a compatible alternative for the following manufacturer part numbers after drawing and mating-interface verification.
| RenhotecRF Part No. | 33-1402-1542-D |
| Rosenberger Part No. | E6S202-40MT5-D |
Manufacturer names and part numbers are used for compatibility reference only. Final compatibility should be confirmed by drawing, key code, impedance, and mounting dimensions.
| Product Type | Connector |
||
|---|---|---|---|
| Key Code | D |
||
| Mating Cycles | min. 25 |
||
| Mount Type | Board Mount |
||
| Position Count | 4 |
||
| Return loss | ≥ 30 dB, 0.01 GHz to 3 GHz; ≥ 25 dB, 3 GHz to 6 GHz; ≥ 20 dB, 6 GHz to 10 GHz |
||
| Product Type | Connector |
Key Code | D |
| Mating Cycles | min. 25 |
Mount Type | Board Mount |
| Position Count | 4 |
Return loss | ≥ 30 dB, 0.01 GHz to 3 GHz; ≥ 25 dB, 3 GHz to 6 GHz; ≥ 20 dB, 6 GHz to 10 GHz |
Product Specification
| Cable Color | Purple |
||
|---|---|---|---|
| Connector Type | Plug |
||
| Contact Finish | Gold Plated |
||
| Contact Material | Brass |
||
| Frequency - Max | 10 GHz |
||
| Impedance | 100 Ω |
||
| Insulation Resistance | ≥ 100 MΩ |
||
| Insulator Material | PTFE |
||
| Orientation | Right Angle |
||
| Plastic Housing | PA66 |
||
| Shell Finish | Nickel Plated |
||
| Shell Material | Brass |
||
| Temperature Range | -40 °C to +105 °C |
||
| Cable Color | Purple |
Connector Type | Plug |
| Contact Finish | Gold Plated |
Contact Material | Brass |
| Frequency - Max | 10 GHz |
Impedance | 100 Ω |
| Insulation Resistance | ≥ 100 MΩ |
Insulator Material | PTFE |
| Orientation | Right Angle |
Plastic Housing | PA66 |
| Shell Finish | Nickel Plated |
Shell Material | Brass |
| Temperature Range | -40 °C to +105 °C |
| Product Type | Connector |
|---|---|
| Cable Color | Purple |
| Connector Type | Plug |
| Contact Finish | Gold Plated |
| Contact Material | Brass |
| Frequency - Max | 10 GHz |
| Impedance | 100 Ω |
| Insulation Resistance | ≥ 100 MΩ |
| Insulator Material | PTFE |
| Key Code | D |
| Mating Cycles | min. 25 |
| Mount Type | Board Mount |
| Orientation | Right Angle |
| Plastic Housing | PA66 |
| Position Count | 4 |
| Return loss | ≥ 30 dB, 0.01 GHz to 3 GHz; ≥ 25 dB, 3 GHz to 6 GHz; ≥ 20 dB, 6 GHz to 10 GHz |
| Shell Finish | Nickel Plated |
| Shell Material | Brass |
| Temperature Range | -40 °C to +105 °C |
H-MTD Automotive Ethernet Connectors
H-MTD is a differential connector system for high-speed data transmission of up to 20 GHz or 56 Gbps, contained in a compact yet robust automotive grade housing.
Apart from ensuring high-bitrate data transmission and savings on installation space and weight, a further major advantage of this connector system is its modularity, providing the flexibility to support a wide range of Ethernet applications and industry protocols.
The application field of the H-MTD is countless as it can be used with a variety of different cables including Shielded Twisted Pair, Unshielded Twisted Pair and new High-Performance cables. With H-MTD the customer can count on an interface that accommodates future vehicle networks, applications and protocols.
