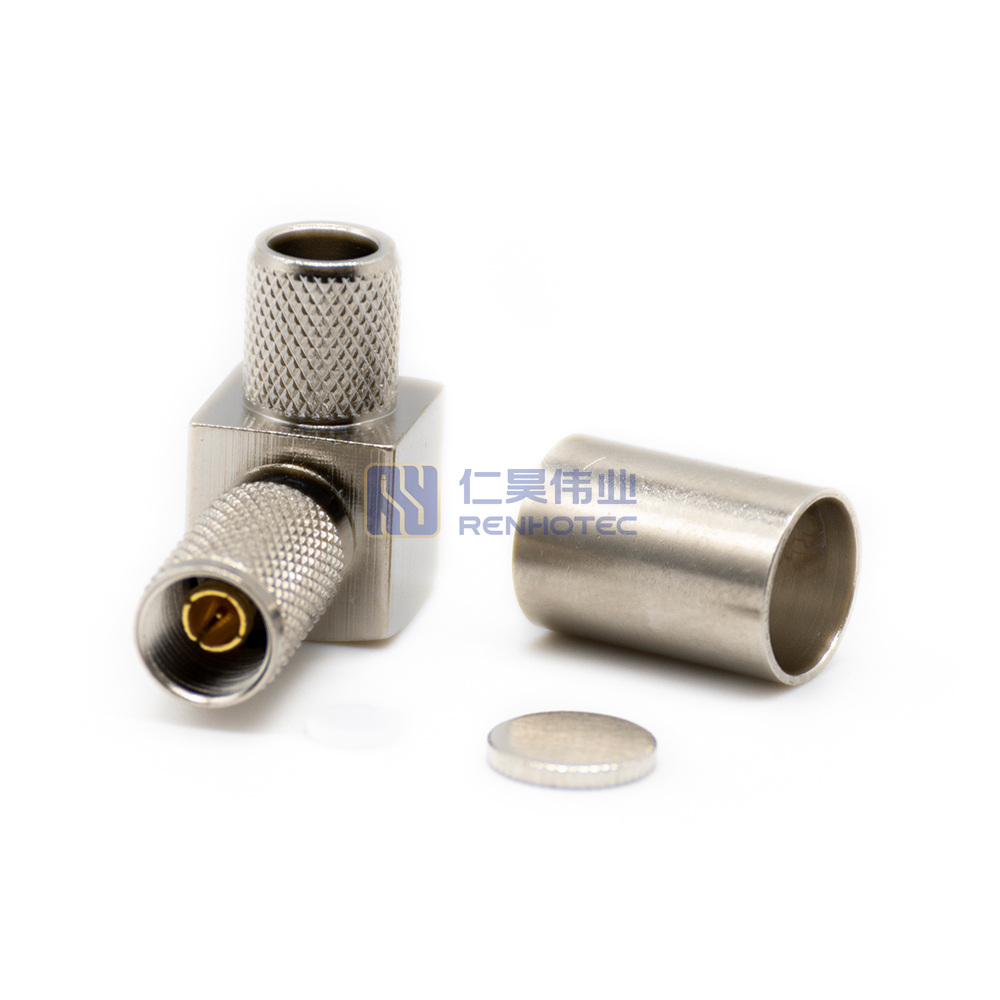

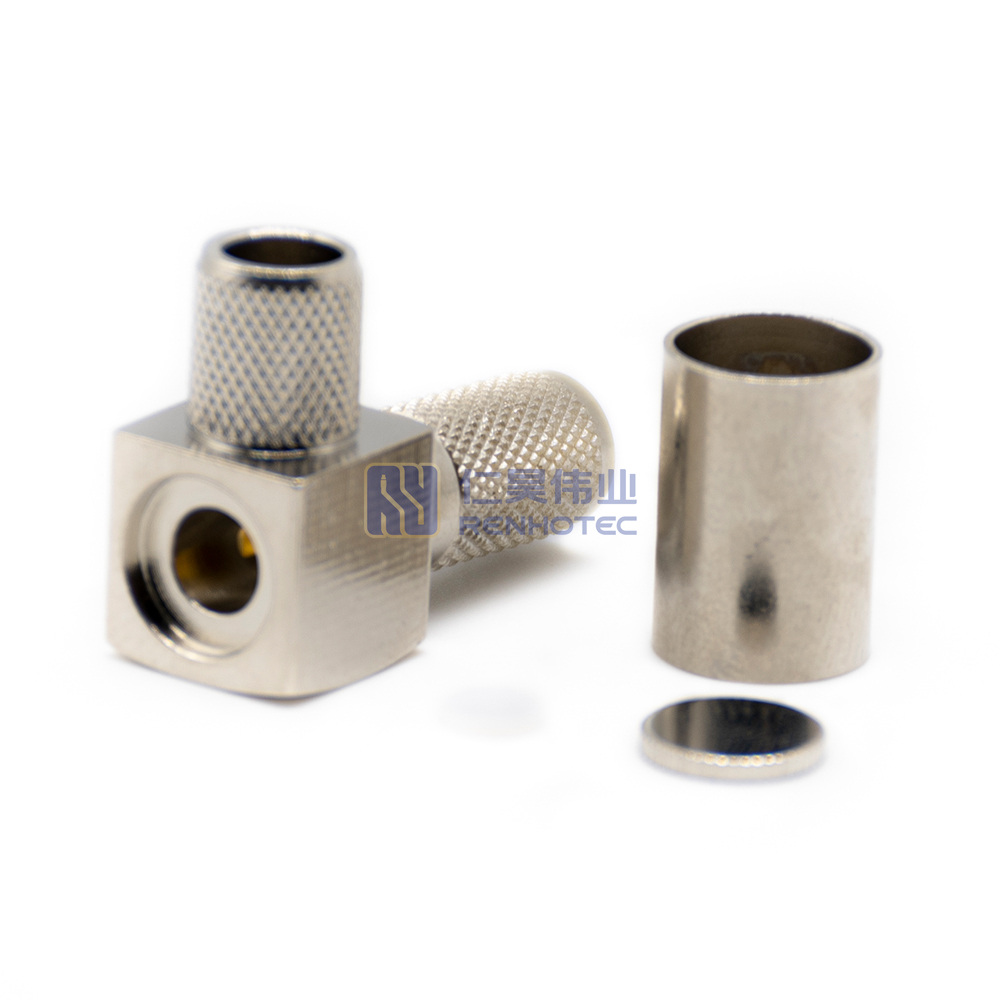

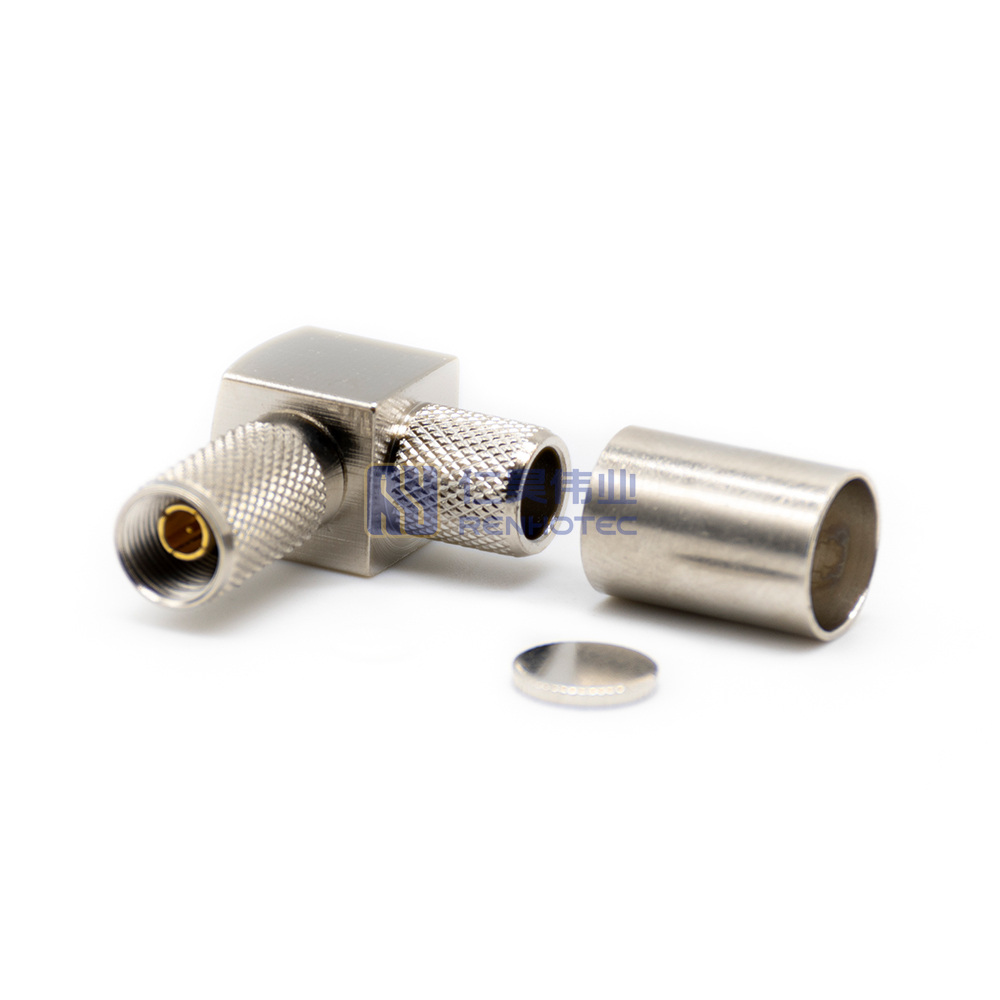

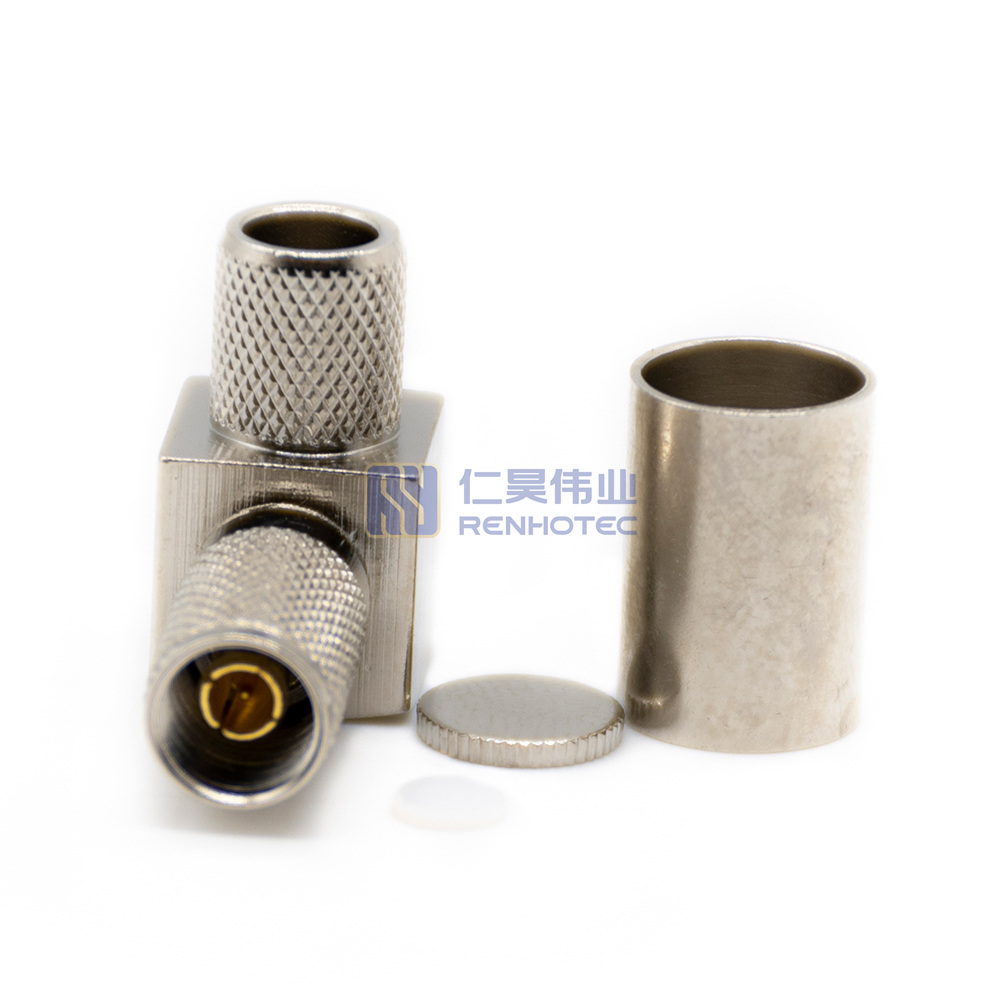

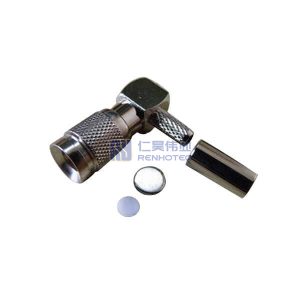

DIN 1.0/2.3 Connector Right Angle Male Crimp Cable Type 75ohm – RHT-618-0720
High-quality DIN 1.0/2.3 Connector featuring a Right Angle Male Crimp and designed for 75ohm cable connections. Ensure secure and reliable signal transmission with this precision-engineered connector. Ideal for various communication applications.
The 1.0-2.3 connector series was originally launched by the European Telecommunications Market in the 1990s. Compact design allows dense connector packaging, which is an ideal solution for applications with space constraints. It has 50 Ω and 75 Ω impedance for choice and is compatible with the most widely used cable sizes. The push/pull lock and release feature makes it really easy to use.
DIN 1.0-2.3 connectors are available to perform at 50 ohm with a maximum frequency of 10 GHz. As well as 75 ohm with a maximum frequency of 4 GHz. These performance specifications support high data rates for AES Audio, SD video, HD video, 3Gb/s video, and other high-density digital broadcast formats.
Interface
Product Specification
RF Series | DIN 1.0/2.3 |
||
---|---|---|---|
Connector Type | Plug |
||
Orientation | Right Angle |
||
Contact Type | Male Pin |
||
Contact Termination Style | Crimp |
||
Shield Termination | Crimp |
||
Mounting Type | Cable Mount |
||
Fastening Type | Snap On |
||
Number of Ports | 1 |
||
Impedance | 75 ohm |
||
Frequency Range | DC – 10 GHz for 50 ohm, DC – 3 GHz for 75 ohm |
||
Shell Material | Copper Alloy |
||
Shell Finish | Nickel Plated |
||
Insulator Material | PTFE |
||
Contact Material | Brass |
||
Contact Finish | Gold Plated |
||
Temperature Range | -65℃ to +165℃ |
||
Mating Durability | ≥ 500 Cycles |
||
Insultation Resistance | 10000 MΩ Min |
||
Rated Voltage | 250 Volts RMS Max Continuous |
||
Dielectric Withstanding Voltage | 750 VRMS Max |
||
RF Series | DIN 1.0/2.3 |
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Male Pin |
Contact Termination Style | Crimp |
Shield Termination | Crimp |
Mounting Type | Cable Mount |
Fastening Type | Snap On |
Number of Ports | 1 |
Impedance | 75 ohm |
Frequency Range | DC – 10 GHz for 50 ohm, DC – 3 GHz for 75 ohm |
Shell Material | Copper Alloy |
Shell Finish | Nickel Plated |
Insulator Material | PTFE |
Contact Material | Brass |
Contact Finish | Gold Plated |
Temperature Range | -65℃ to +165℃ |
Mating Durability | ≥ 500 Cycles |
Insultation Resistance | 10000 MΩ Min |
Rated Voltage | 250 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 750 VRMS Max |
RF Series | DIN 1.0/2.3 |
---|---|
Connector Type | Plug |
Orientation | Right Angle |
Contact Type | Male Pin |
Contact Termination Style | Crimp |
Shield Termination | Crimp |
Mounting Type | Cable Mount |
Fastening Type | Snap On |
Number of Ports | 1 |
Impedance | 75 ohm |
Frequency Range | DC – 10 GHz for 50 ohm, DC – 3 GHz for 75 ohm |
Shell Material | Copper Alloy |
Shell Finish | Nickel Plated |
Insulator Material | PTFE |
Contact Material | Brass |
Contact Finish | Gold Plated |
Temperature Range | -65℃ to +165℃ |
Mating Durability | ≥ 500 Cycles |
Insultation Resistance | 10000 MΩ Min |
Rated Voltage | 250 Volts RMS Max Continuous |
Dielectric Withstanding Voltage | 750 VRMS Max |
