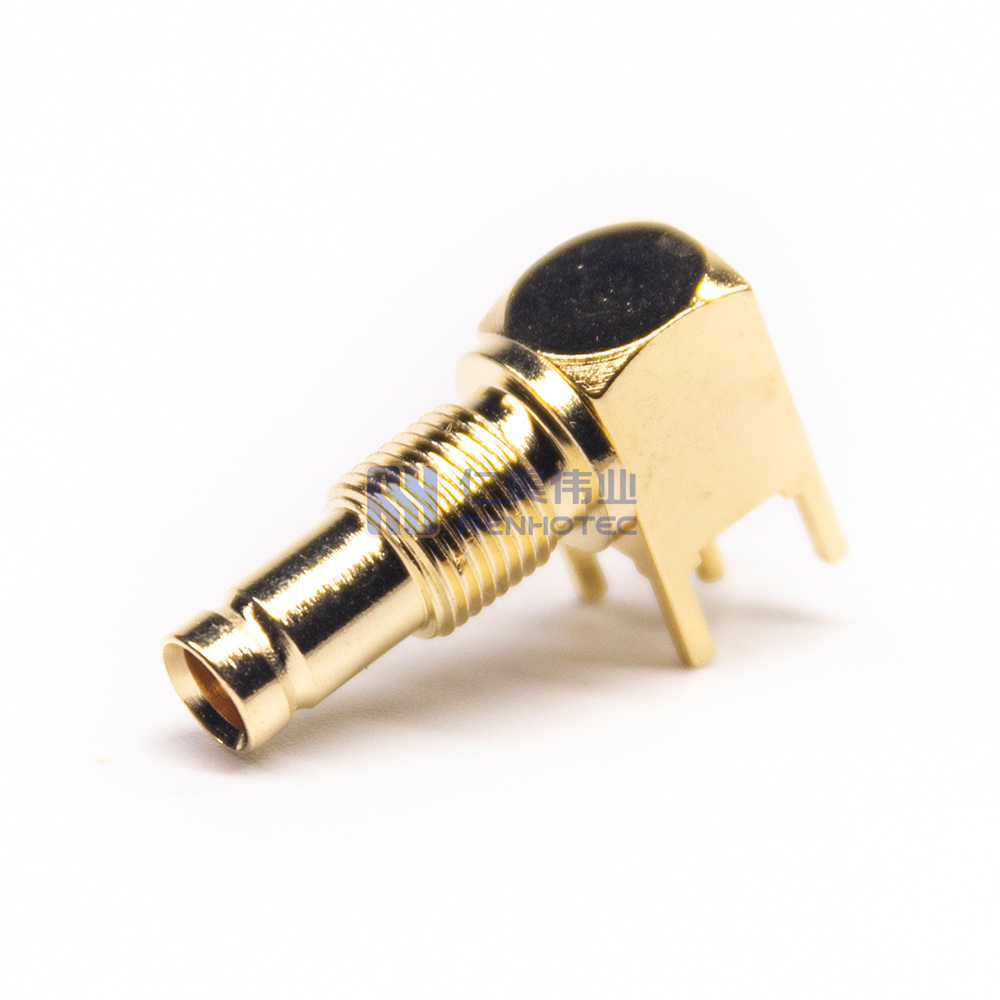

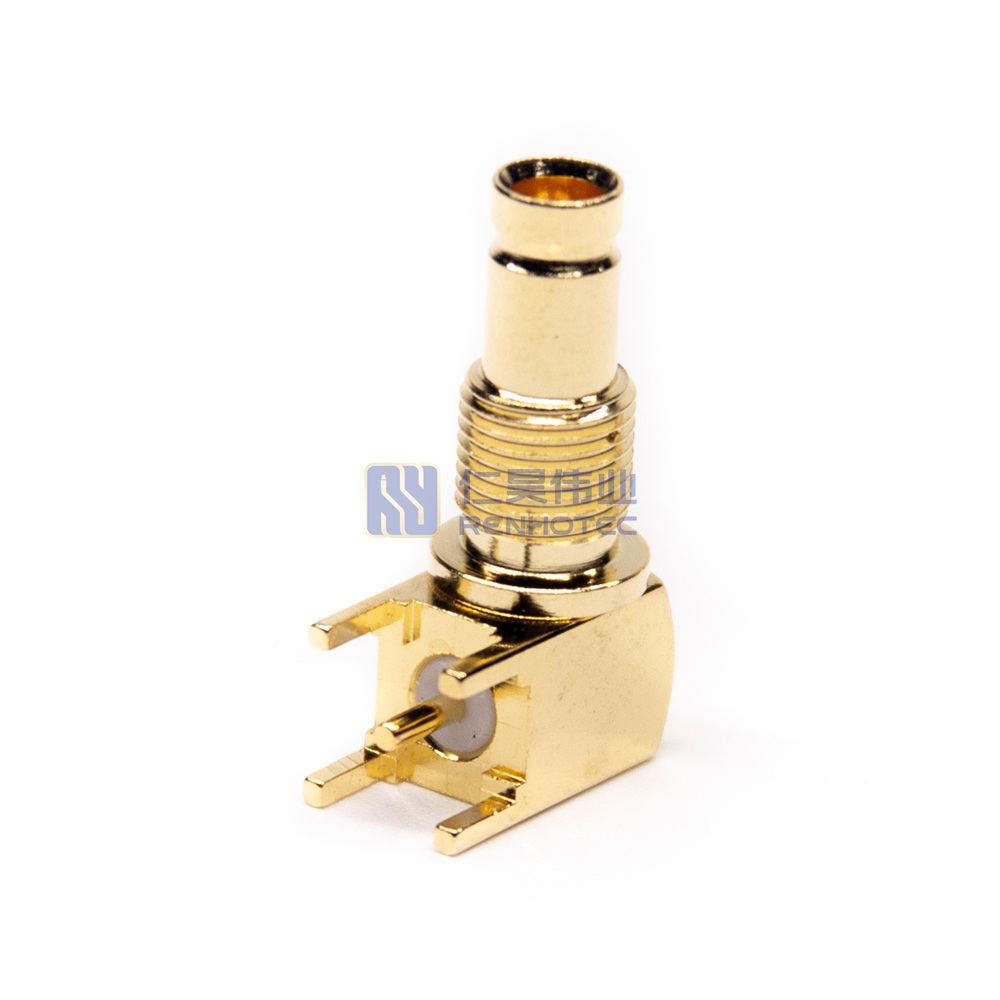

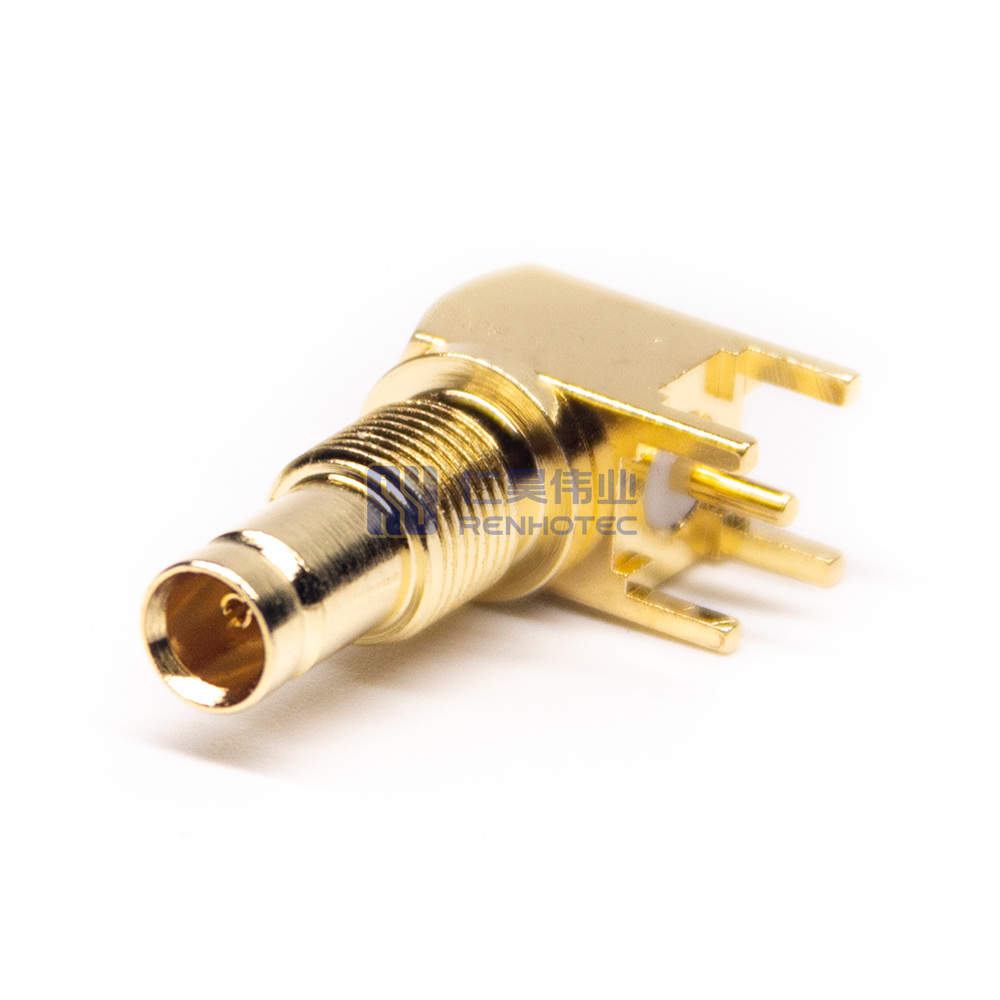

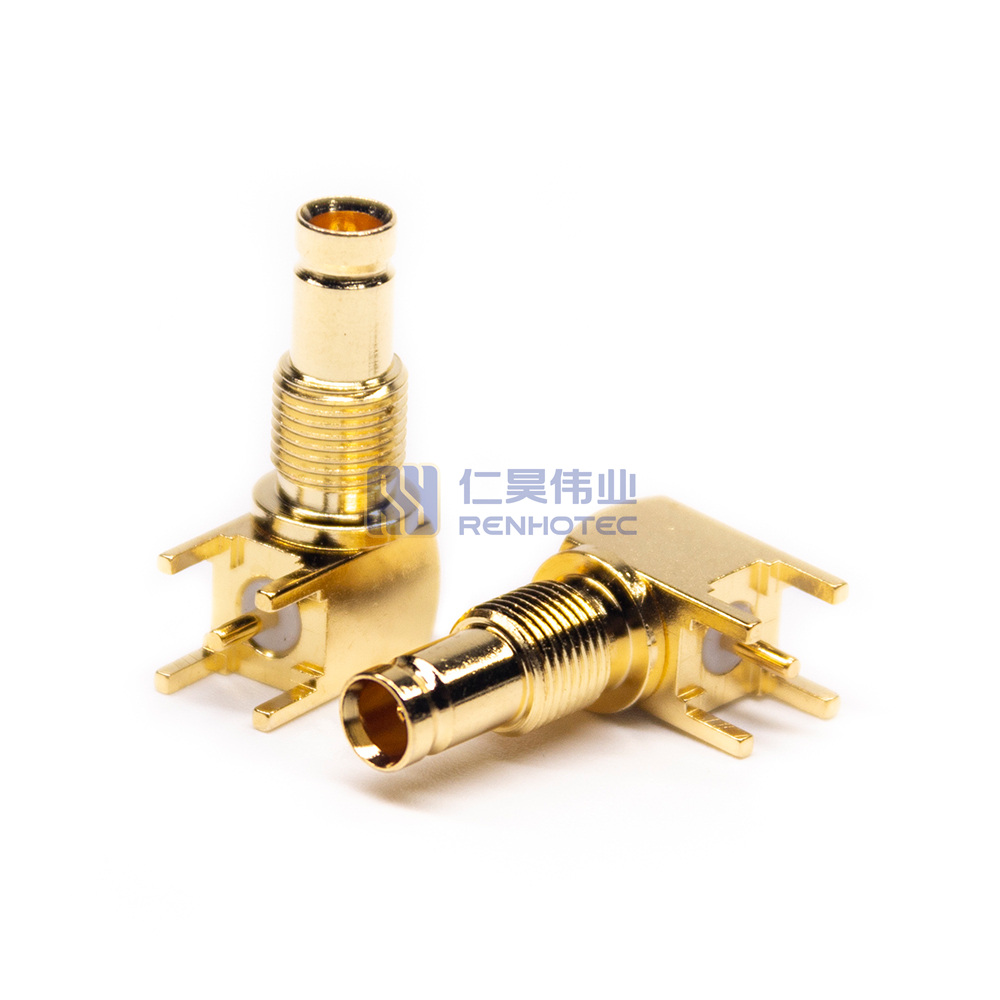

DIN 1.0/2.3 Connector Right Angle Jack Solder Panel Mount Through Hole 75ohm – RHT-618-0716

High-quality DIN 1.0/2.3 Connector with Right Angle Jack and Solder Panel Mount design. Features 75ohm impedance for efficient signal transmission. Ideal for professional audio and video applications.

The 1.0-2.3 connector series was originally launched by the European Telecommunications Market in the 1990s. Compact design allows dense connector packaging, which is an ideal solution for applications with space constraints. It has 50 Ω and 75 Ω impedance for choice and is compatible with the most widely used cable sizes. The push/pull lock and release feature makes it really easy to use.

DIN 1.0-2.3 connectors are available to perform at 50 ohm with a maximum frequency of 10 GHz. As well as 75 ohm with a maximum frequency of 4 GHz. These performance specifications support high data rates for AES Audio, SD video, HD video, 3Gb/s video, and other high-density digital broadcast formats.

Interface

Product Specification

RF Series

DIN 1.0/2.3

Connector Type

Jack

Orientation

Right Angle

Contact Type

Female Pin

Contact Termination Style

Solder

Shield Termination

Solder

Mounting Type

Panel Mount

Mounting Feature

Through Hole

Fastening Type

Snap On

Number of Ports

1

Impedance

75 ohm

Frequency Range

DC – 10 GHz for 50 ohm, DC – 3 GHz for 75 ohm

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Insulator Material

PTFE

Contact Material

Brass

Contact Finish

Gold Plated

Temperature Range

-65℃ to +165℃

Mating Durability

≥ 500 Cycles

Insultation Resistance

10000 MΩ Min

Rated Voltage

250 Volts RMS Max Continuous

Dielectric Withstanding Voltage

750 VRMS Max

RF Series

DIN 1.0/2.3

Connector Type

Jack

Orientation

Right Angle

Contact Type

Female Pin

Contact Termination Style

Solder

Shield Termination

Solder

Mounting Type

Panel Mount

Mounting Feature

Through Hole

Fastening Type

Snap On

Number of Ports

1

Impedance

75 ohm

Frequency Range

DC – 10 GHz for 50 ohm, DC – 3 GHz for 75 ohm

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Insulator Material

PTFE

Contact Material

Brass

Contact Finish

Gold Plated

Temperature Range

-65℃ to +165℃

Mating Durability

≥ 500 Cycles

Insultation Resistance

10000 MΩ Min

Rated Voltage

250 Volts RMS Max Continuous

Dielectric Withstanding Voltage

750 VRMS Max

RF Series

DIN 1.0/2.3

Connector Type

Jack

Orientation

Right Angle

Contact Type

Female Pin

Contact Termination Style

Solder

Shield Termination

Solder

Mounting Type

Panel Mount

Mounting Feature

Through Hole

Fastening Type

Snap On

Number of Ports

1

Impedance

75 ohm

Frequency Range

DC – 10 GHz for 50 ohm, DC – 3 GHz for 75 ohm

Shell Material

Copper Alloy

Shell Finish

Gold Plated

Insulator Material

PTFE

Contact Material

Brass

Contact Finish

Gold Plated

Temperature Range

-65℃ to +165℃

Mating Durability

≥ 500 Cycles

Insultation Resistance

10000 MΩ Min

Rated Voltage

250 Volts RMS Max Continuous

Dielectric Withstanding Voltage

750 VRMS Max
