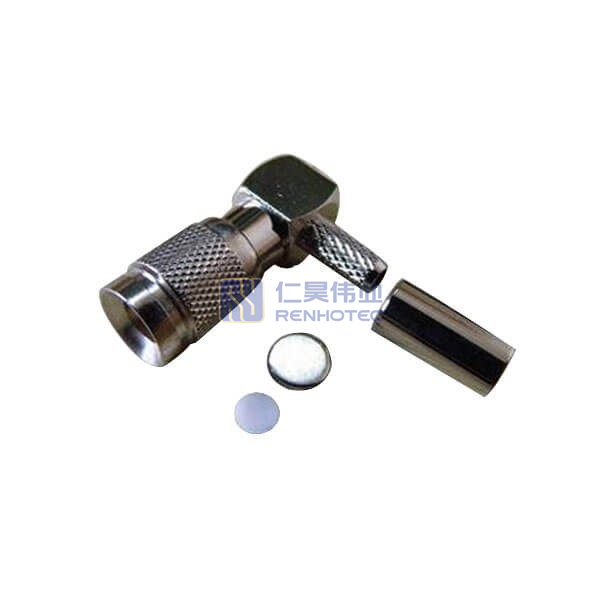

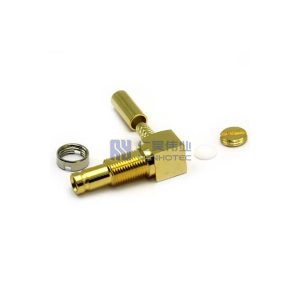

DIN 1.0/2.3 Connector Right Angle Male Crimp Cable Type 75ohm

  • Quick connect and disconnect
  • Space-saving compact design
  • Ideal for high vibration applications
  • Available for a wide variety of cable types
  • Delivers high conductivity and corrosion resistance
  • Self-flared design uses standard hand tools for easy installation

The 1.0-2.3 connector series was originally launched by the European Telecommunications Market in the 1990s. Compact design allows dense connector packaging, which is an ideal solution for applications with space constraints. It has 50 Ω and 75 Ω impedance for choice and is compatible with the most widely used cable sizes. The push/pull lock and release feature makes it really easy to use.

DIN 1.0-2.3 connectors are available to perform at 50 ohm with a maximum frequency of 10 GHz. As well as 75 ohm with a maximum frequency of 4 GHz. These performance specifications support high data rates for AES Audio, SD video, HD video, 3Gb/s video, and other high-density digital broadcast formats.

Interface

Product Specification

RF Series

DIN 1.0/2.3

Connector Type

Plug

Orientation

Right Angle

Contact Type

Male Pin

Contact Termination Style

Crimp

Shield Termination

Crimp

Mounting Type

Cable Mount

Fastening Type

Snap On

Number of Ports

1

Impedance

75 ohm

Frequency Range

DC – 10 GHz for 50 ohm, DC – 3 GHz for 75 ohm

Shell Material

Copper Alloy

Shell Finish

Nickel Plated

Insulator Material

PTFE

Contact Material

Brass

Contact Finish

Gold Plated

Temperature Range

-65℃ to +165℃

Mating Durability

≥ 500 Cycles

Insultation Resistance

10000 MΩ Min

Rated Voltage

250 Volts RMS Max Continuous

Dielectric Withstanding Voltage

750 VRMS Max
