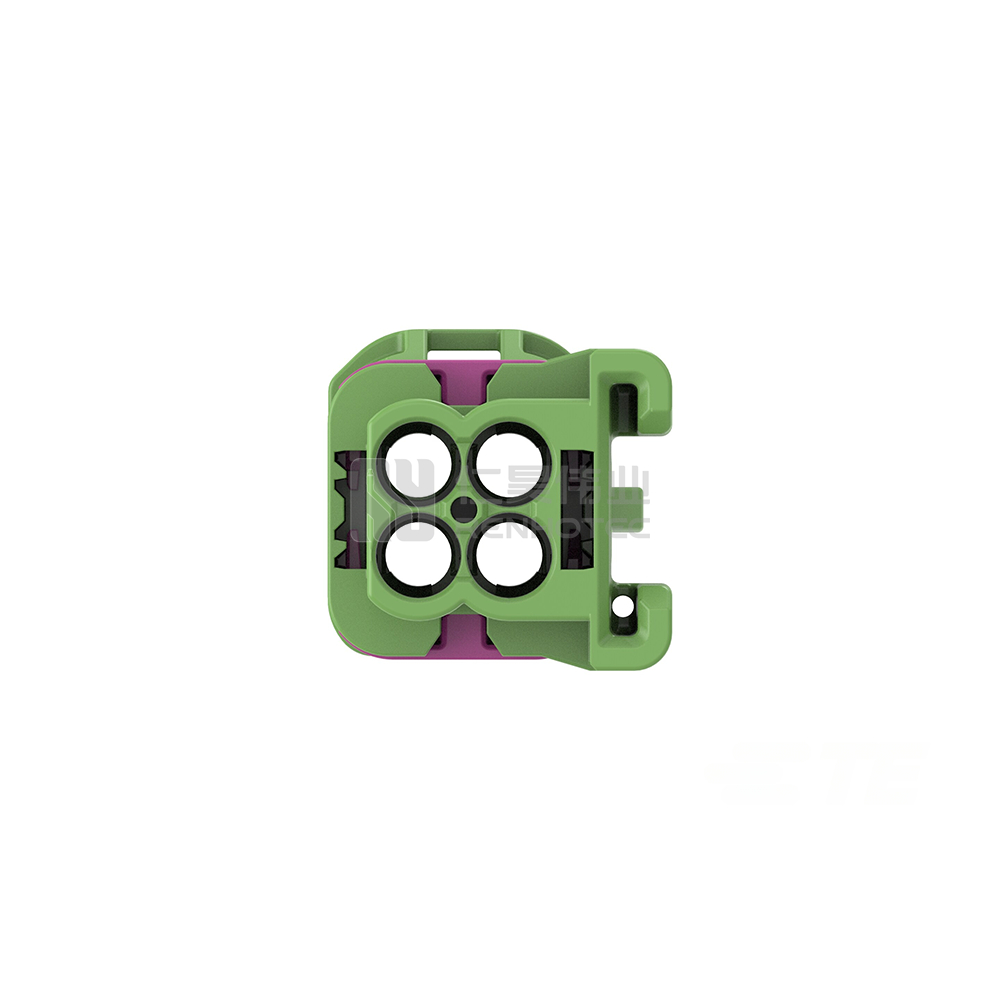

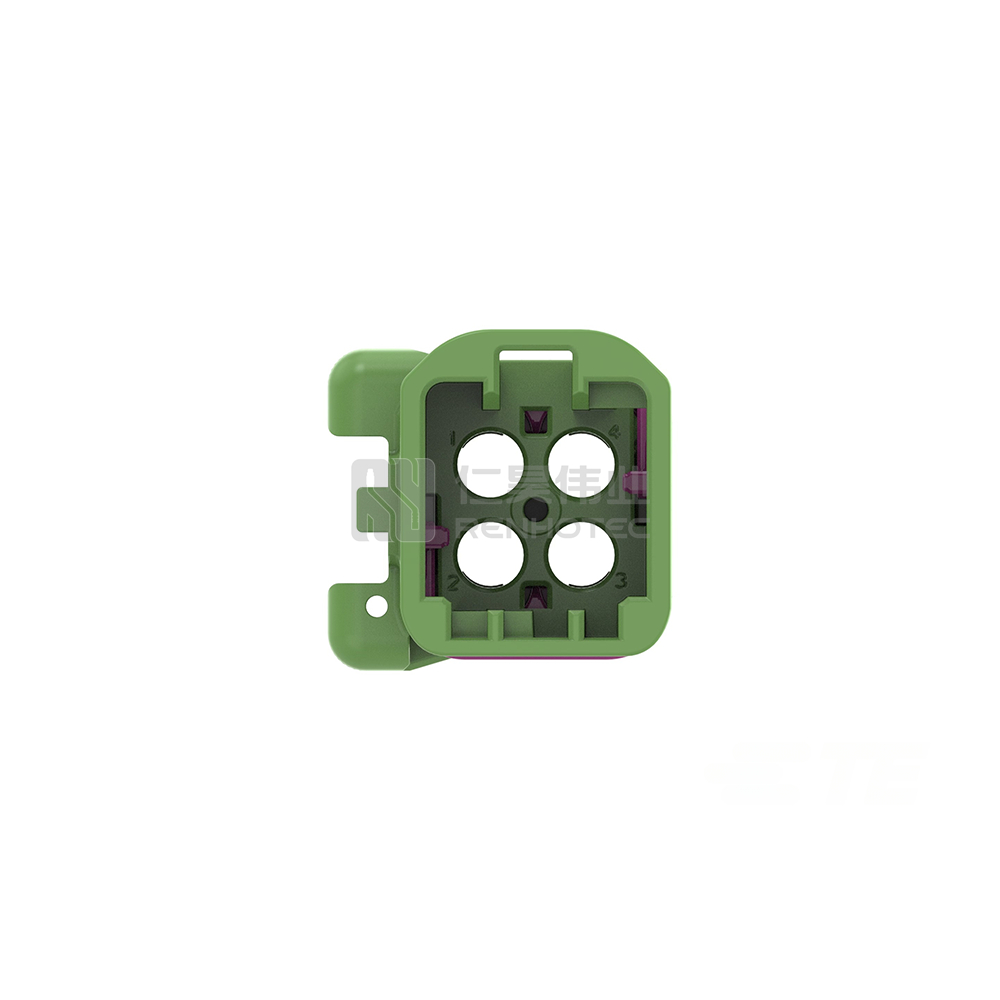

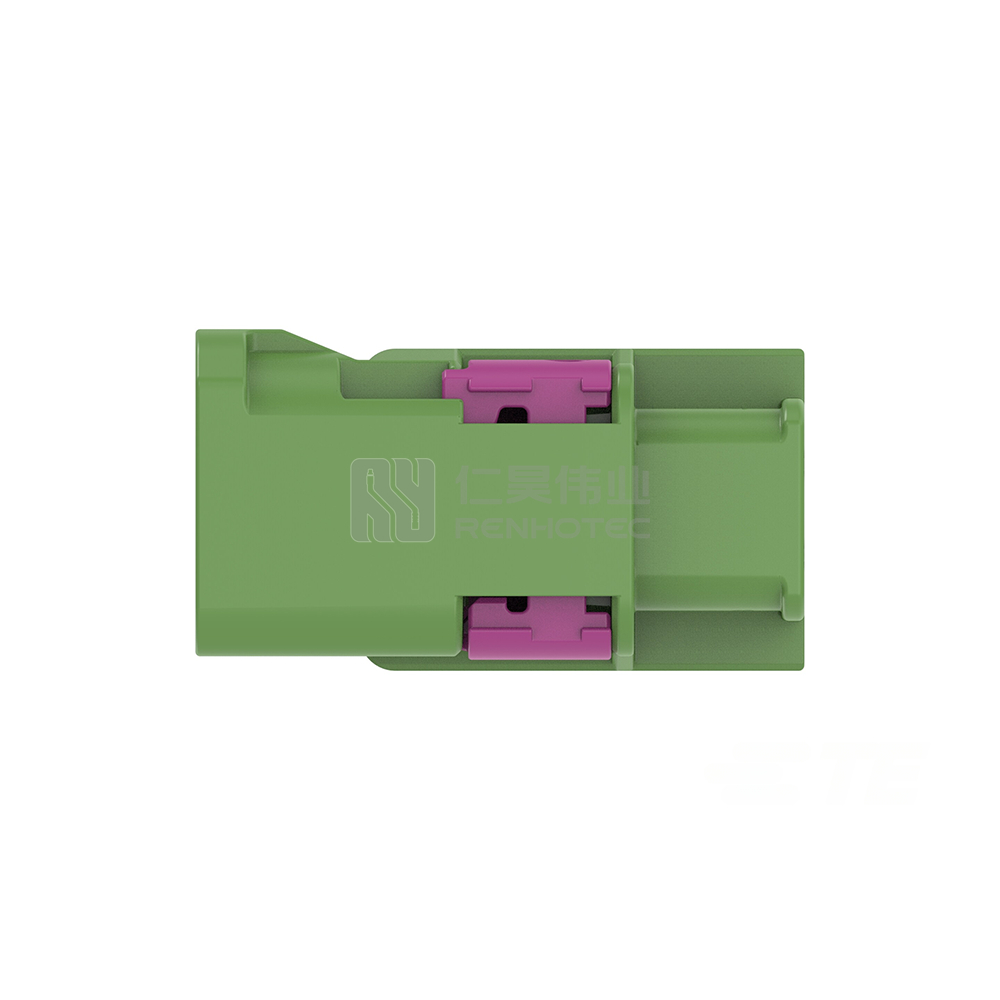

Cable-to-Cable / Wire-to-Wire, 180° Cable Exit, 4 Position, E Code, Housing for Male Terminals, 4 mm Centerline, Data Connectivity Housings

Termination Point

Wire & Cable
Connector System

Cable-to-Cable | Wire-to-Wire
Sealable

No
Row Count

2
Position Count

4
Key Code

E
Pin Diameter

.4 mm [ .015 in ]
Mount Type

Cable Mount (Free-Hanging)
Housing Color

Green
Pitch

4 mm [ .157 in ]
Shielded

No
Max Temperature

105 °C [ 221 °F ]
Primary Lock

On the Terminal
Housing Type

Housing for Male Terminals
Cable Exit Angle

180°
Cable Termination

Crimp
Position Assurance

No
Termination Point

Wire & Cable

 Connector System

Cable-to-Cable | Wire-to-Wire
Sealable

No

 Row Count

2
Position Count

4

 Key Code

E
Pin Diameter

.4 mm [ .015 in ]

 Mount Type

Cable Mount (Free-Hanging)
Housing Color

Green

 Pitch

4 mm [ .157 in ]
Shielded

No

 Max Temperature

105 °C [ 221 °F ]
Primary Lock

On the Terminal

 Housing Type

Housing for Male Terminals
Cable Exit Angle

180°

 Cable Termination

Crimp
Position Assurance

No

Product Specification

Contact Type

Pin
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Cable Type

RTK 031
Contact Type

Pin

 Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Cable Type

RTK 031
Termination Point

Wire & Cable
Connector System

Cable-to-Cable | Wire-to-Wire
Sealable

No
Row Count

2
Position Count

4
Key Code

E
Contact Type

Pin
Pin Diameter

.4 mm [ .015 in ]
Mount Type

Cable Mount (Free-Hanging)
Housing Color

Green
Pitch

4 mm [ .157 in ]
Shielded

No
Max Temperature

105 °C [ 221 °F ]
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Primary Lock

On the Terminal
Housing Type

Housing for Male Terminals
Cable Exit Angle

180°
Cable Termination

Crimp
Cable Type

RTK 031
Position Assurance

No
