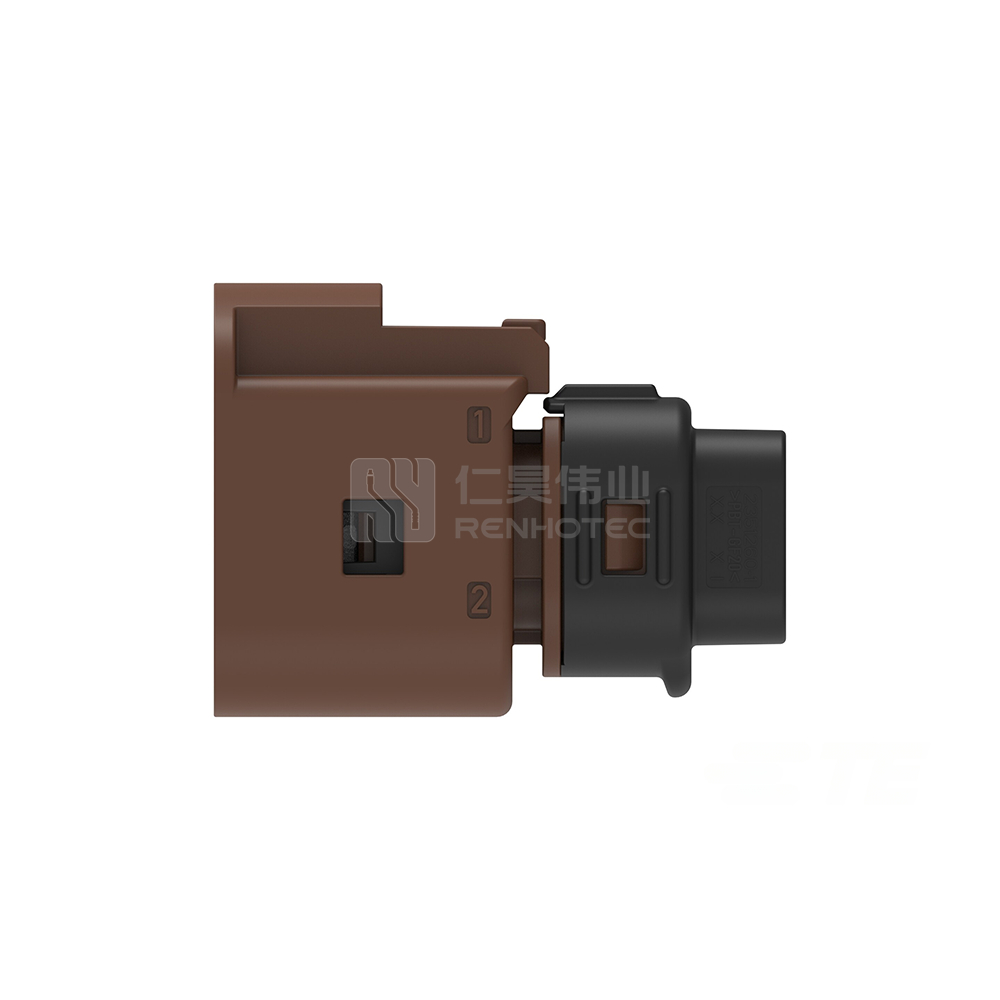

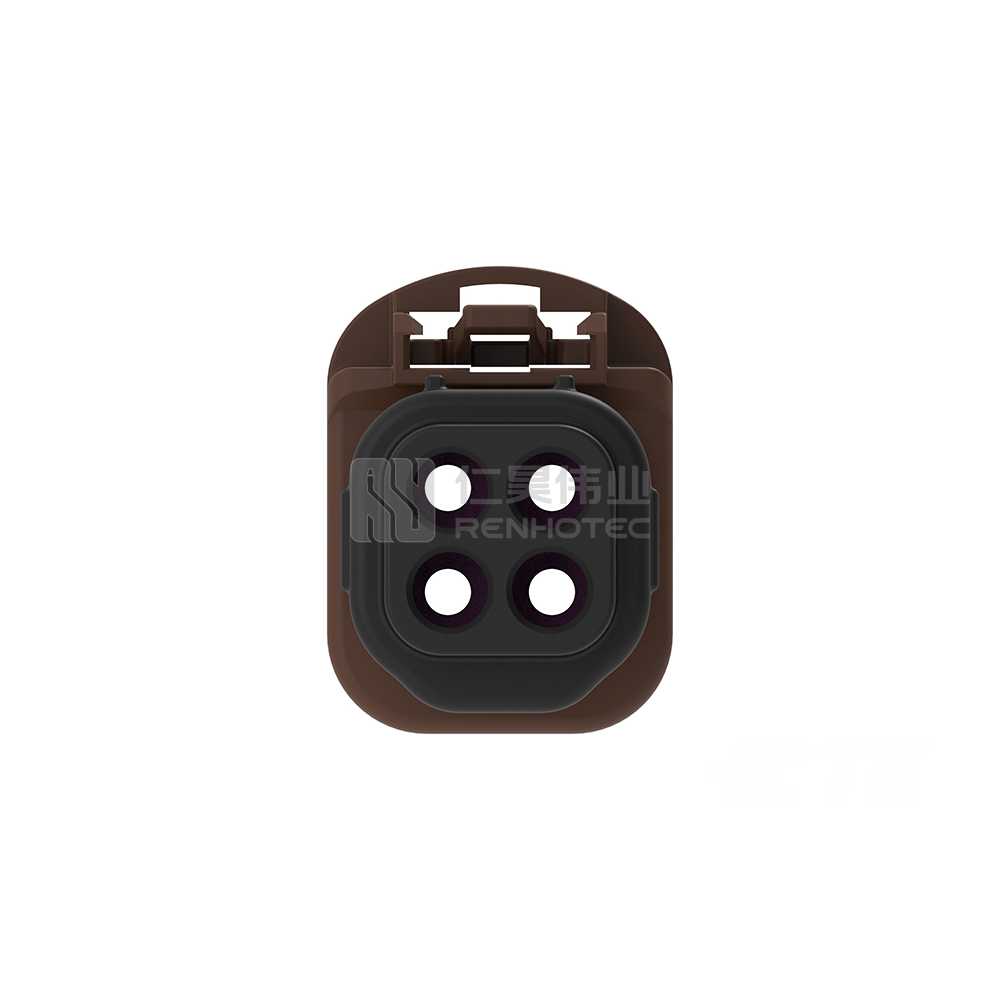

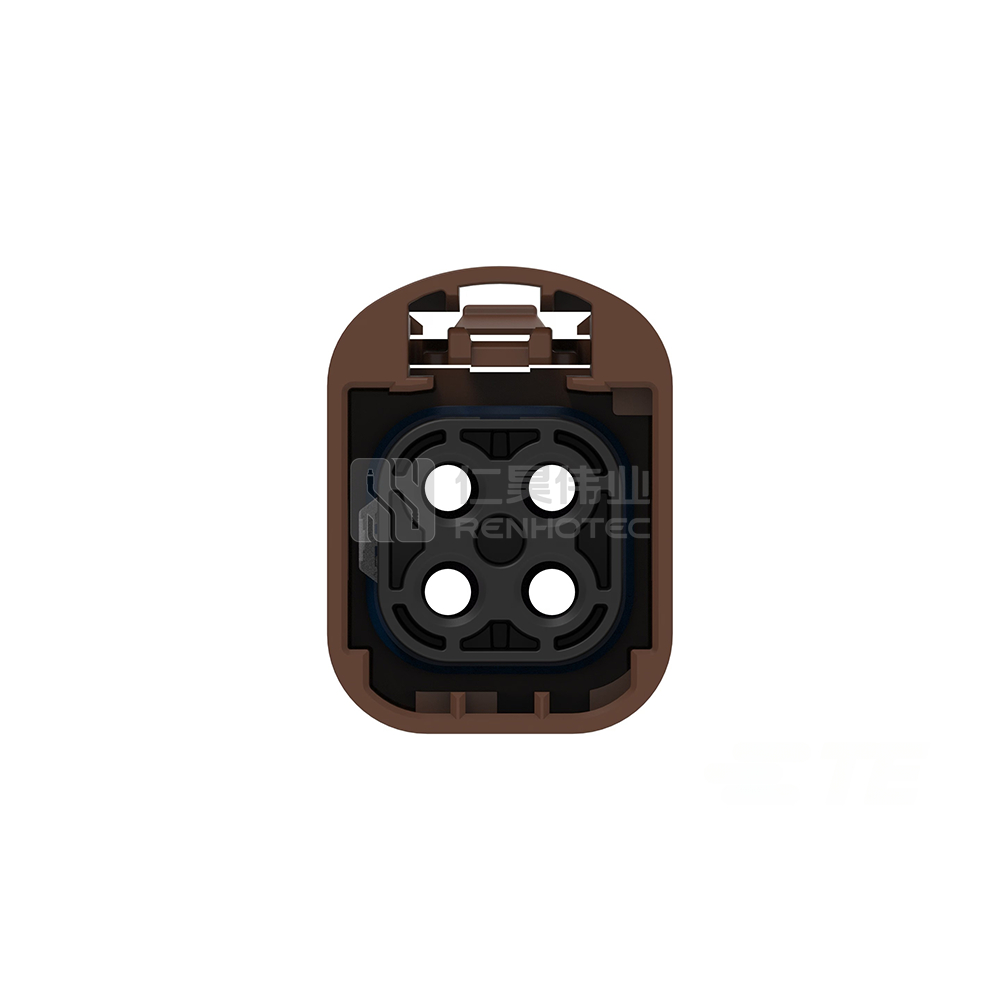

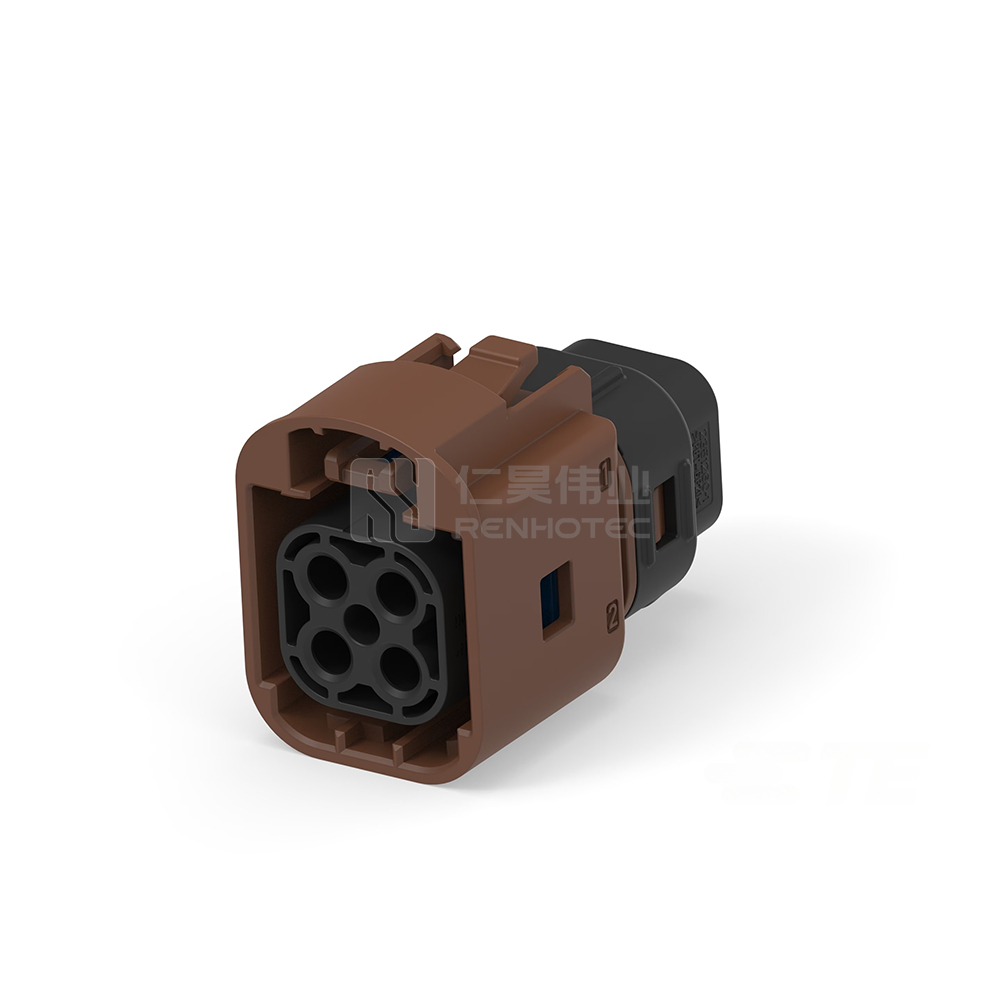

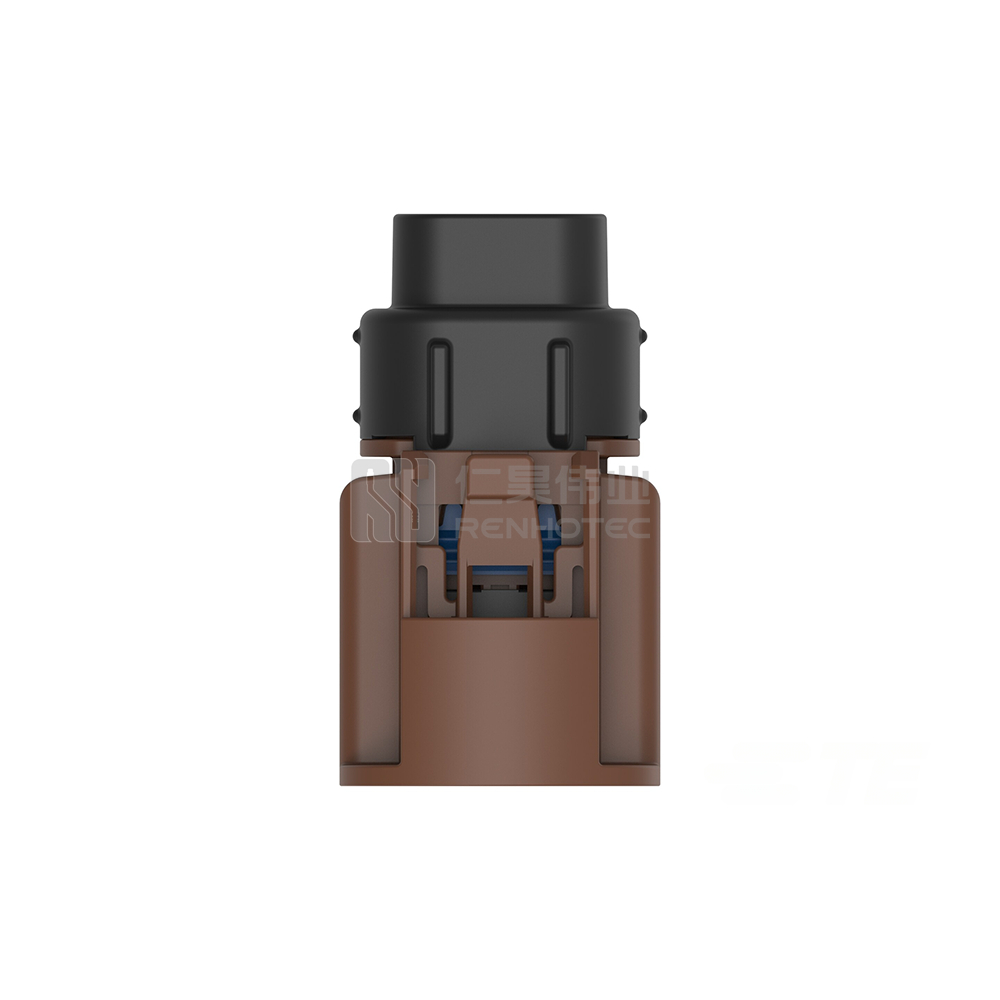

Cable-to-Cable, Sealable, 180° Cable Exit, 4 Position, F Code, Housing for Female Terminals, 5 mm Centerline, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	Yes
Row Count	2
Position Count	4
Key Code	F
Pin Diameter	.4 mm [ .015 in ]
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black \| Nut Brown
Pitch	5 mm [ .197 in ]
Connector Height	23.4 mm [ .92 in ]
Product Length	30.85 mm [ 1.21 in ]
Product Width	17.3 mm [ .68 in ]
Shielded	No
Max Temperature	105 °C [ 221 °F ]
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Position Assurance	No
Termination Point	Wire & Cable	Connector System	Cable-to-Cable
Sealable	Yes	Row Count	2
Position Count	4	Key Code	F
Pin Diameter	.4 mm [ .015 in ]	Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black \| Nut Brown	Pitch	5 mm [ .197 in ]
Connector Height	23.4 mm [ .92 in ]	Product Length	30.85 mm [ 1.21 in ]
Product Width	17.3 mm [ .68 in ]	Shielded	No
Max Temperature	105 °C [ 221 °F ]	Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals	Cable Exit Angle	180°
Cable Termination	Crimp	Position Assurance	No

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	Yes
Row Count	2
Position Count	4
Key Code	F
Pin Diameter	.4 mm [ .015 in ]
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black \| Nut Brown
Pitch	5 mm [ .197 in ]
Connector Height	23.4 mm [ .92 in ]
Product Length	30.85 mm [ 1.21 in ]
Product Width	17.3 mm [ .68 in ]
Shielded	No
Max Temperature	105 °C [ 221 °F ]
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	RG 174 \| RTK 031
Position Assurance	No
