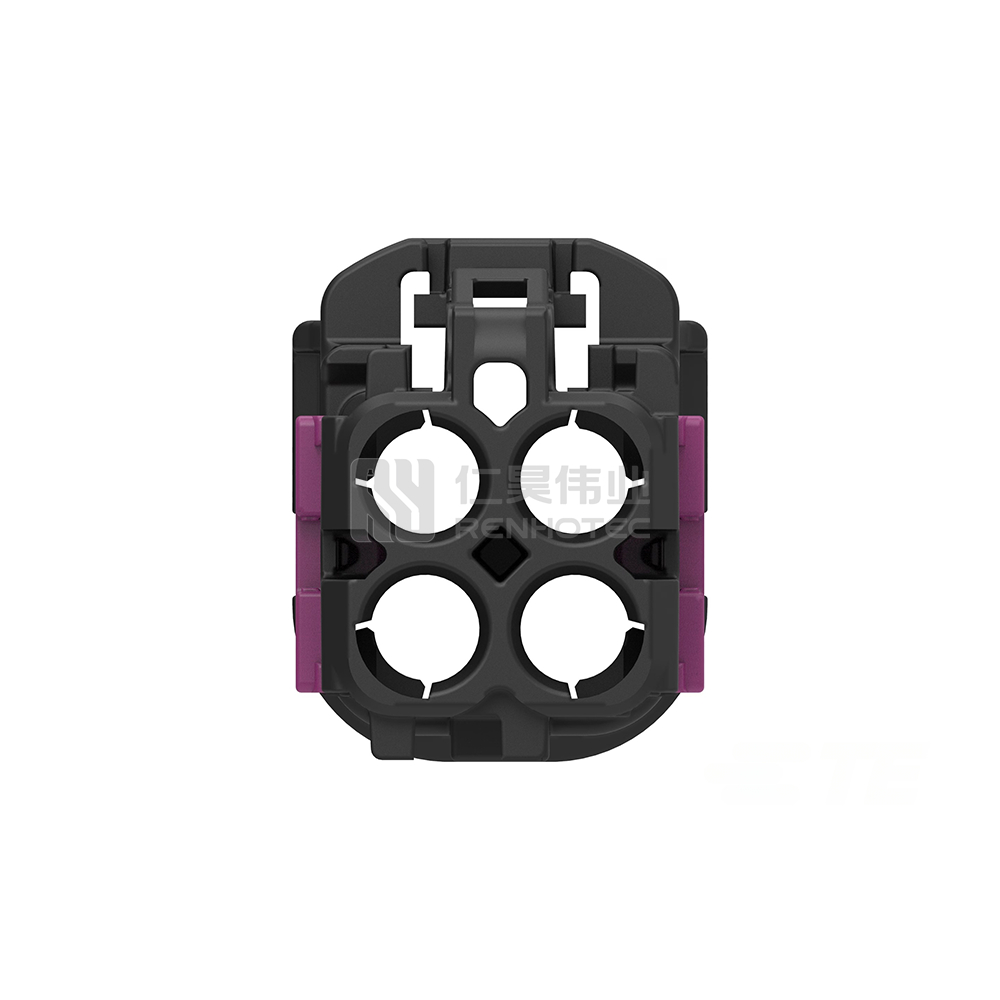

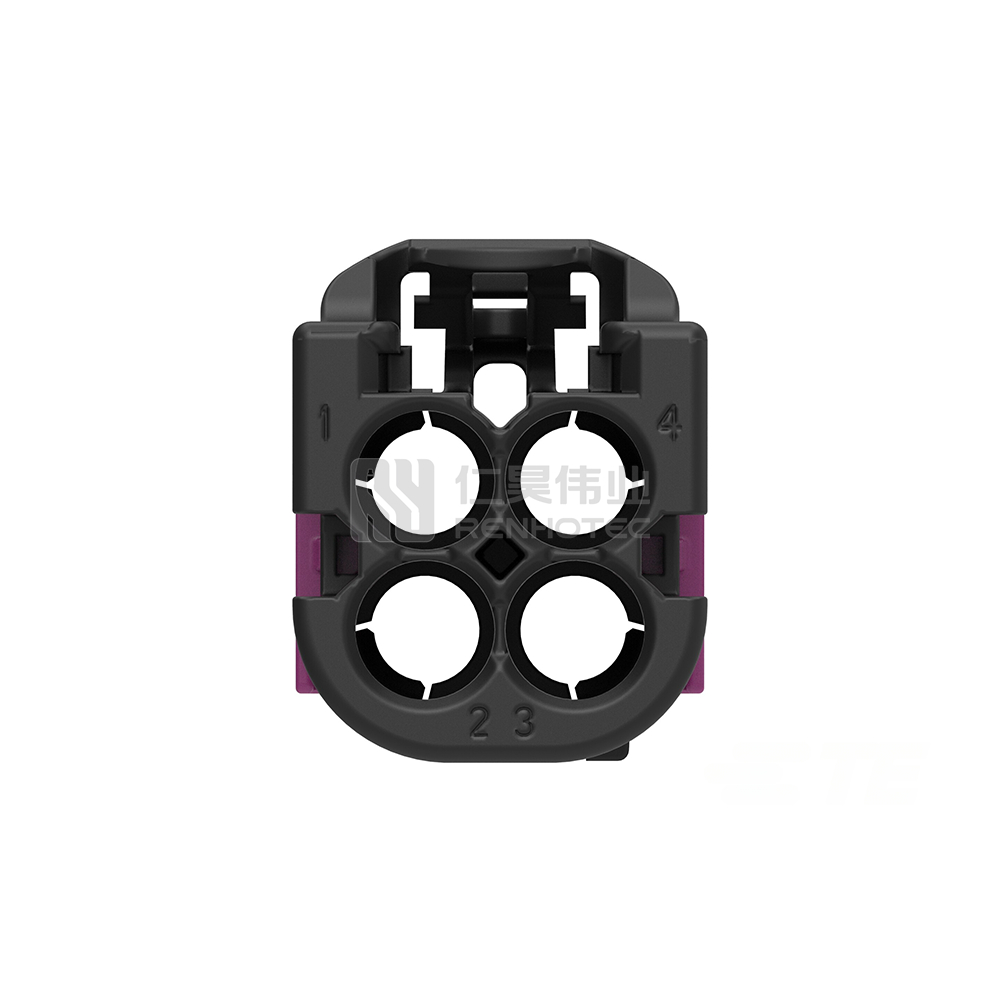

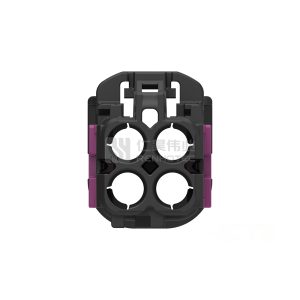

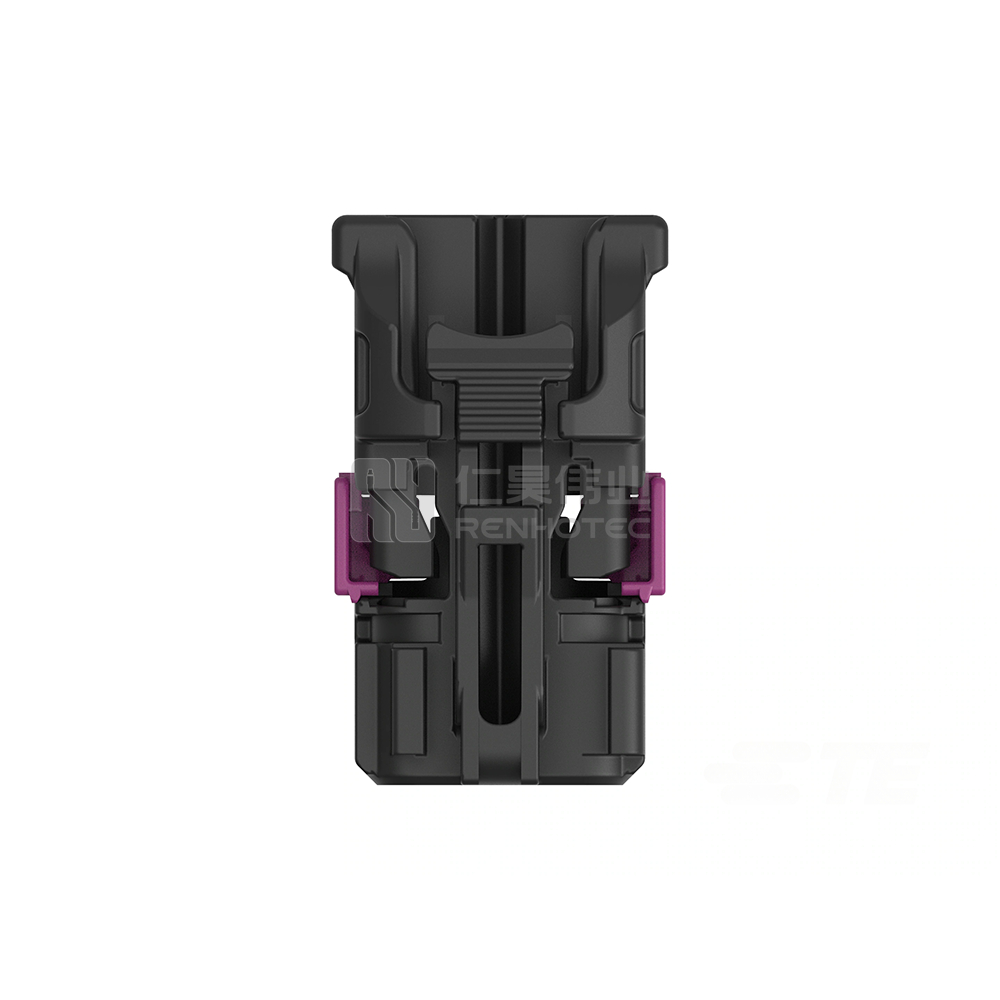

Cable-to-Cable, 180° Cable Exit, 4 Position, F Code, Housing for Female Terminals, 4 mm Centerline, Crimp, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	2
Position Count	4
Key Code	A
Center Contact	With
Contact Plating	Silver (Ag)
Center Contact Plating	Silver (Ag)
Pin Diameter	.4 mm [ .016 in ]
Max Current A	3
Mating Retention	Without
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black
Pitch	4 mm [ .157 in ]
Connector Height	14 mm [ .55 in ]
Product Length	18.8 mm [ .74 in ]
Product Width	11.1 mm [ .43 in ]
Operating Voltage VDC	60
Body Material	PA66 GF30
Outer Contact Plating	Tin (Sn)
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Snap Lock	With
Cable Exit Type	Straight
Cable Exit Angle	180°
Cable Termination	Crimp
Termination Point	Wire & Cable	Connector System	Cable-to-Cable
Sealable	No	Row Count	2
Position Count	4	Key Code	A
Center Contact	With	Contact Plating	Silver (Ag)
Center Contact Plating	Silver (Ag)	Pin Diameter	.4 mm [ .016 in ]
Max Current A	3	Mating Retention	Without
Mount Type	Cable Mount (Free-Hanging)	Housing Color	Jet Black
Pitch	4 mm [ .157 in ]	Connector Height	14 mm [ .55 in ]
Product Length	18.8 mm [ .74 in ]	Product Width	11.1 mm [ .43 in ]
Operating Voltage VDC	60	Body Material	PA66 GF30
Outer Contact Plating	Tin (Sn)	Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals	Snap Lock	With
Cable Exit Type	Straight	Cable Exit Angle	180°
Cable Termination	Crimp

Contact Type	Socket
Contact Type	Socket

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	2
Position Count	4
Key Code	A
Contact Type	Socket
Center Contact	With
Contact Plating	Silver (Ag)
Center Contact Plating	Silver (Ag)
Pin Diameter	.4 mm [ .016 in ]
Max Current A	3
Mating Retention	Without
Mount Type	Cable Mount (Free-Hanging)
Housing Color	Jet Black
Pitch	4 mm [ .157 in ]
Connector Height	14 mm [ .55 in ]
Product Length	18.8 mm [ .74 in ]
Product Width	11.1 mm [ .43 in ]
Operating Voltage VDC	60
Body Material	PA66 GF30
Outer Contact Plating	Tin (Sn)
Impedance Ω	50
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Snap Lock	With
Cable Exit Type	Straight
Cable Exit Angle	180°
Cable Termination	Crimp
