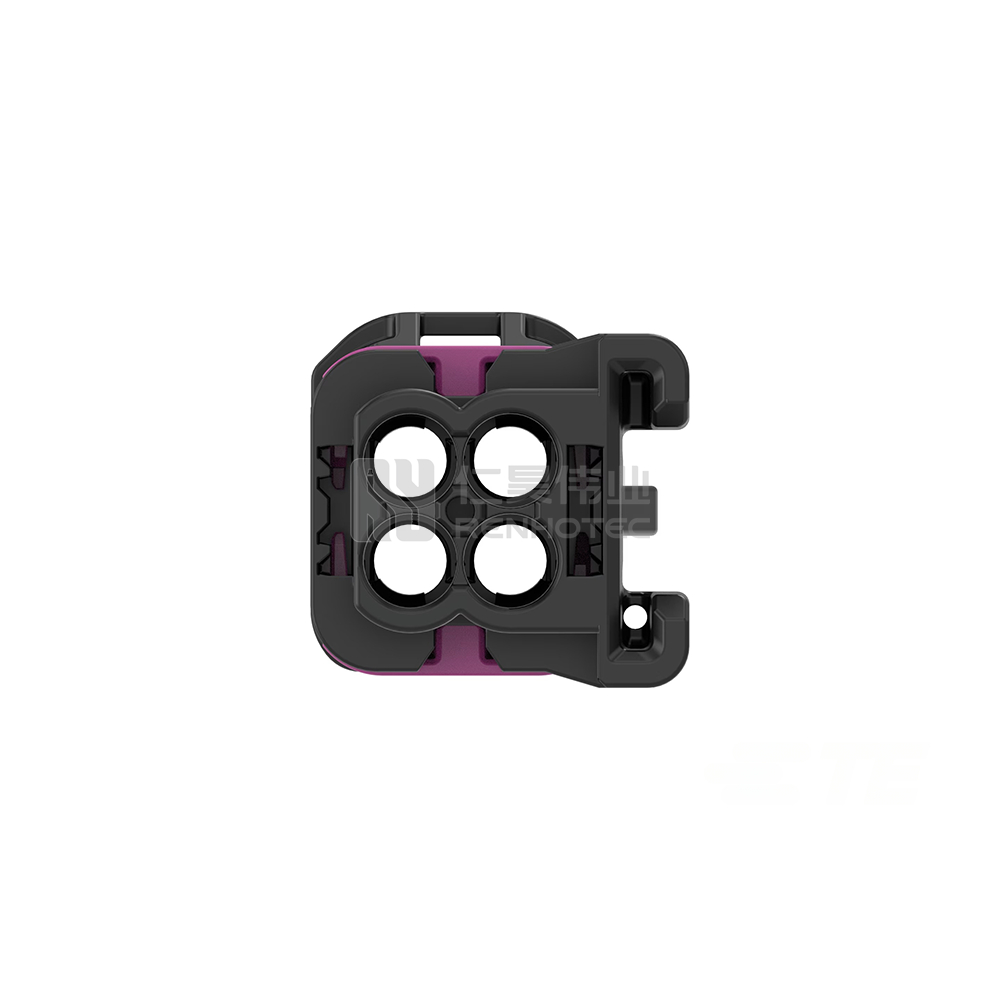

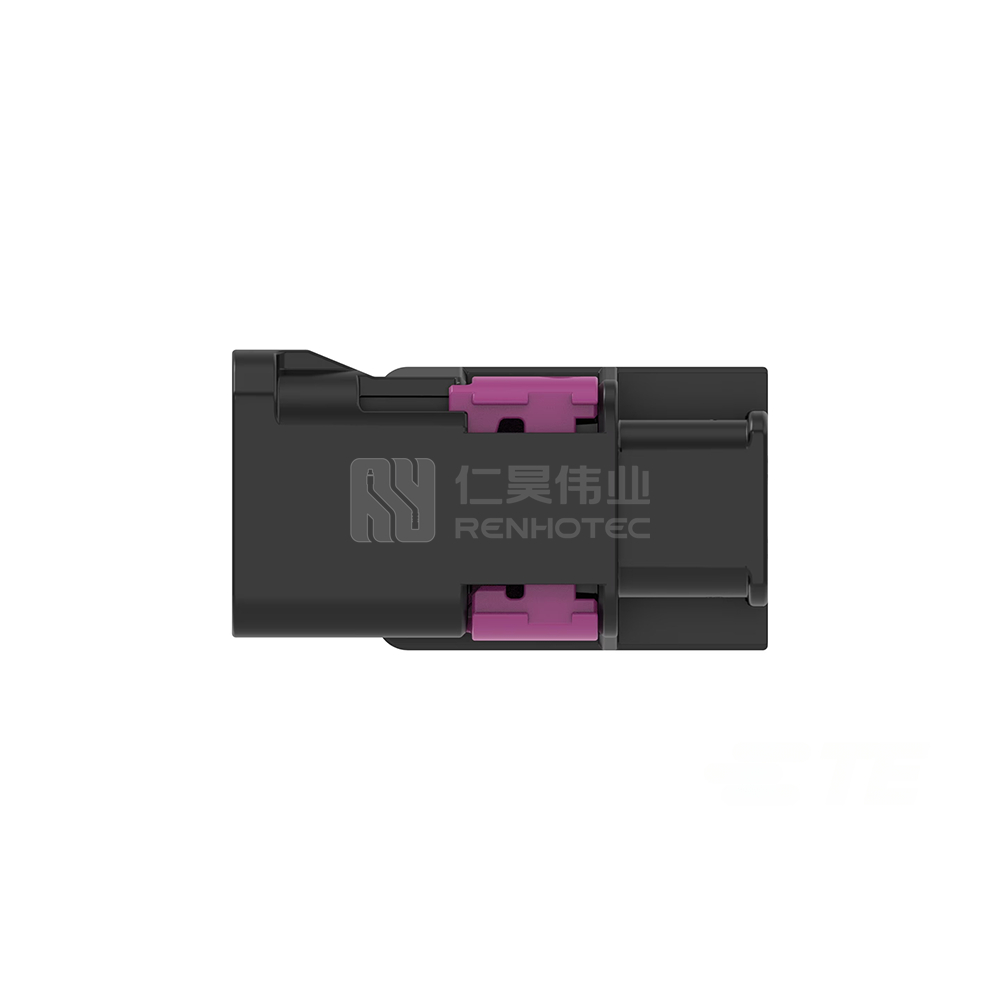

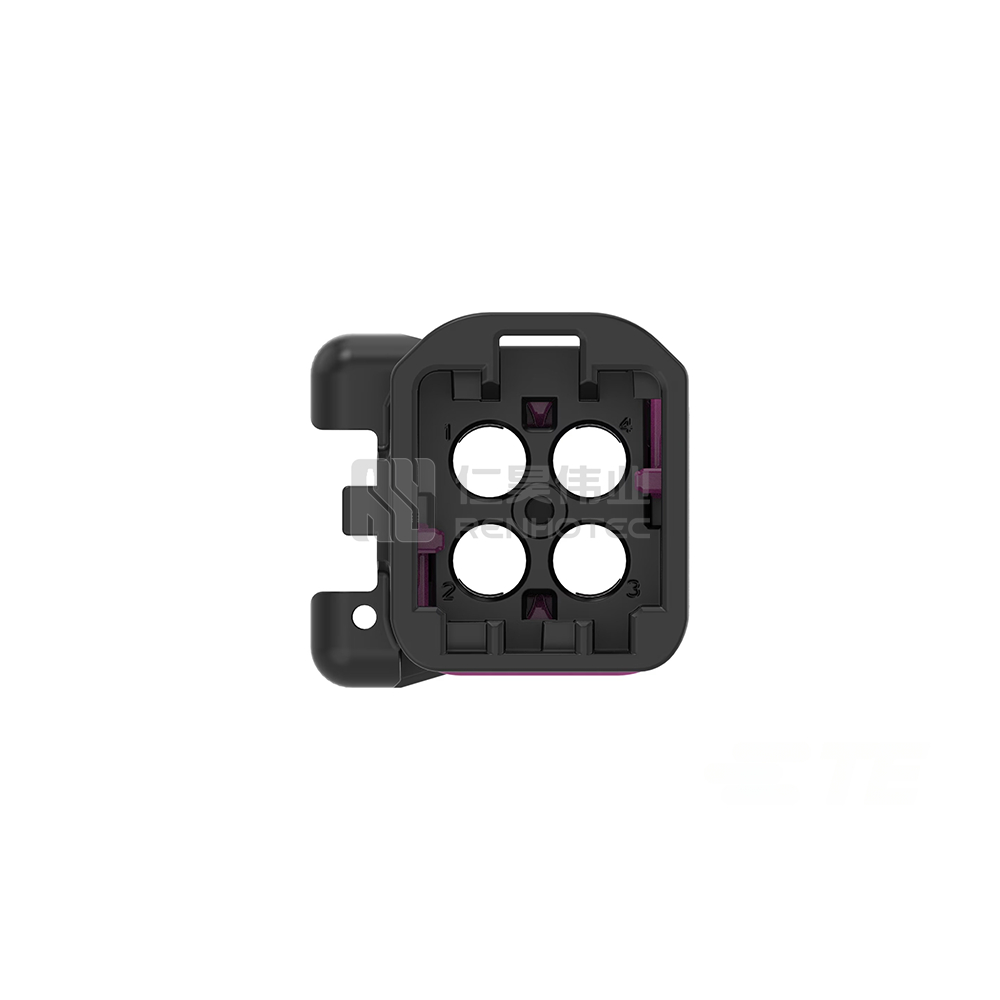

Cable-to-Cable, 180° Cable Exit, 4 Position, A Code, Housing for Female Terminals, 4 mm Centerline, Crimp, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	2
Position Count	4
Key Code	A
Pin Diameter	.4 mm [ .016 in ]
Max Current A	3
Mount Type	DIN Rail
Housing Color	Jet Black
Pitch	4 mm [ .157 in ]
Shielded	No
Circuit Application	High Speed Data
Max Temperature	105 °C [ 221 °F ]
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Position Assurance	No
Termination Point	Wire & Cable	Connector System	Cable-to-Cable
Sealable	No	Row Count	2
Position Count	4	Key Code	A
Pin Diameter	.4 mm [ .016 in ]	Max Current A	3
Mount Type	DIN Rail	Housing Color	Jet Black
Pitch	4 mm [ .157 in ]	Shielded	No
Circuit Application	High Speed Data	Max Temperature	105 °C [ 221 °F ]
Primary Lock	On the Terminal	Housing Type	Housing for Female Terminals
Cable Exit Angle	180°	Cable Termination	Crimp
Position Assurance	No

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	2
Position Count	4
Key Code	A
Pin Diameter	.4 mm [ .016 in ]
Max Current A	3
Mount Type	DIN Rail
Housing Color	Jet Black
Pitch	4 mm [ .157 in ]
Shielded	No
Circuit Application	High Speed Data
Max Temperature	105 °C [ 221 °F ]
Temperature Range	-40 – 105 °C [ -40 – 221 °F ]
Primary Lock	On the Terminal
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	Coaxial
Position Assurance	No
