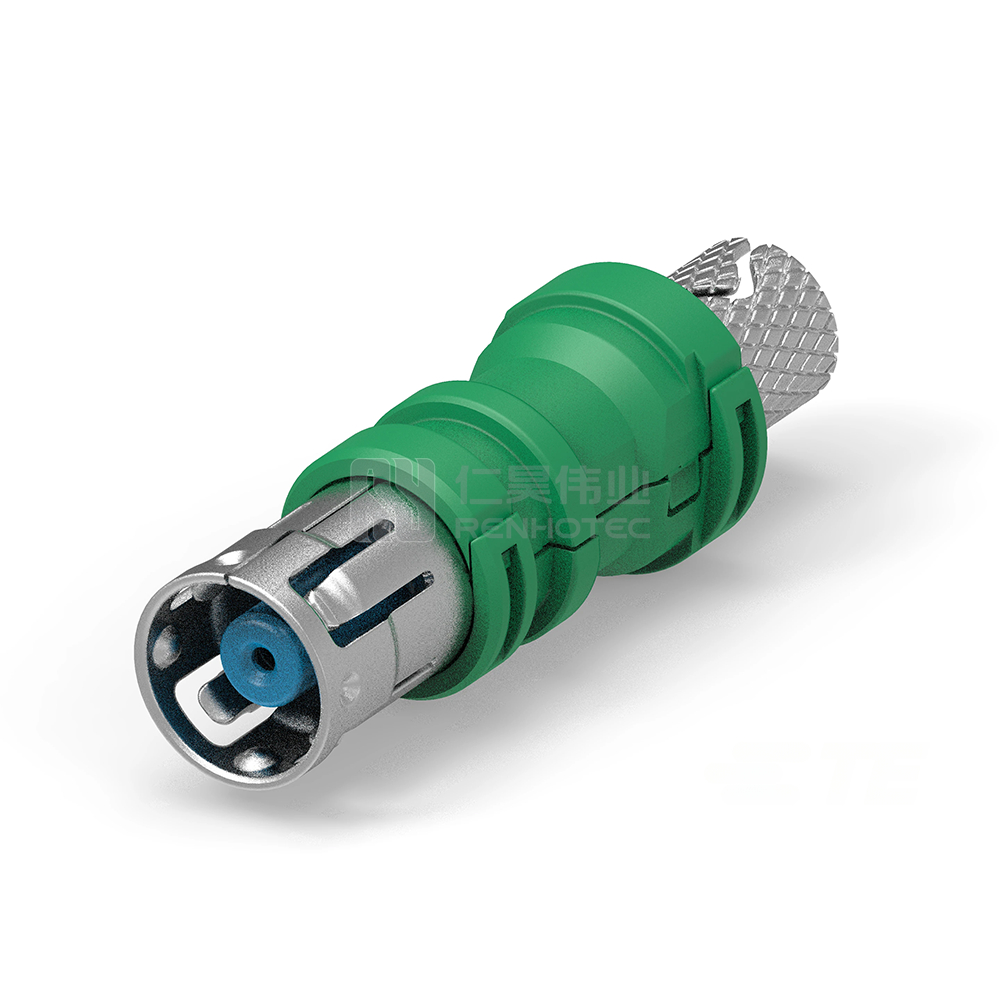

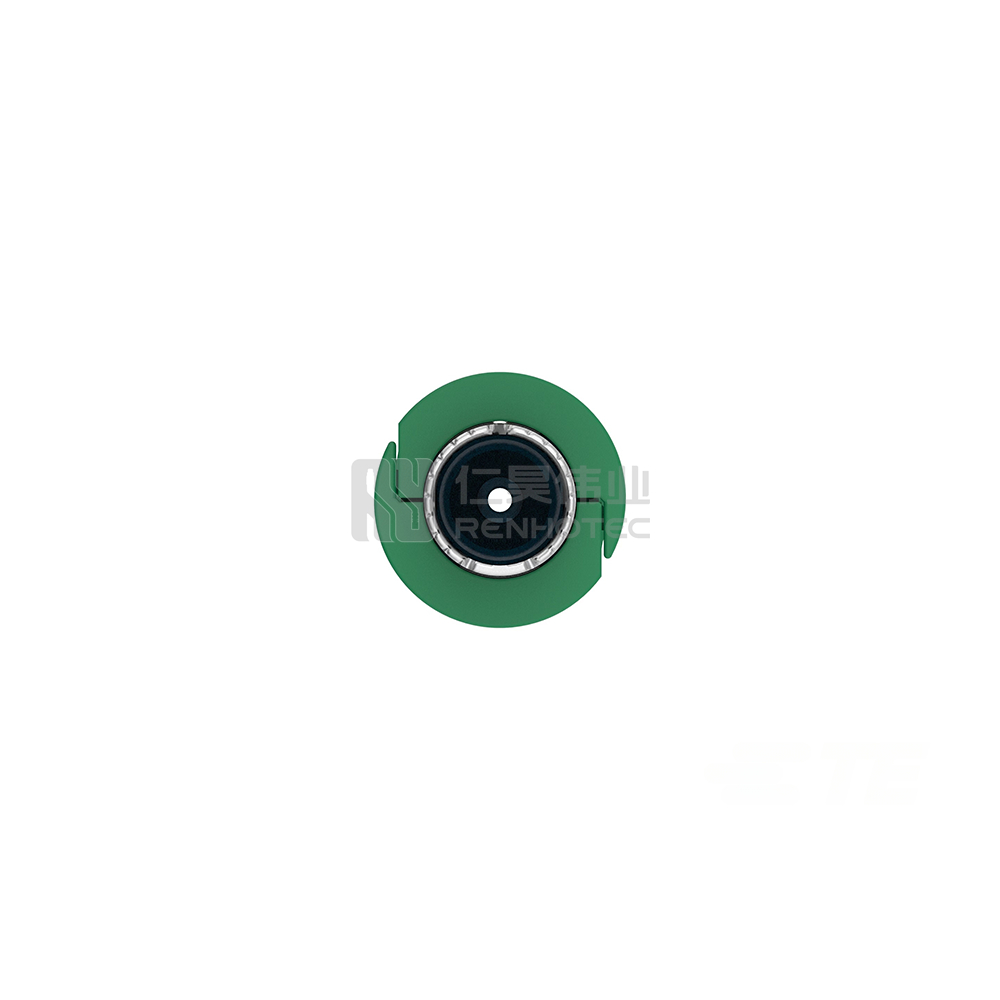

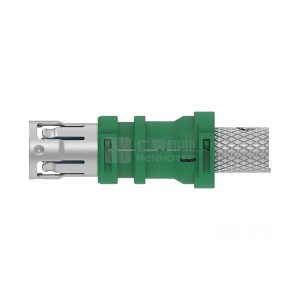

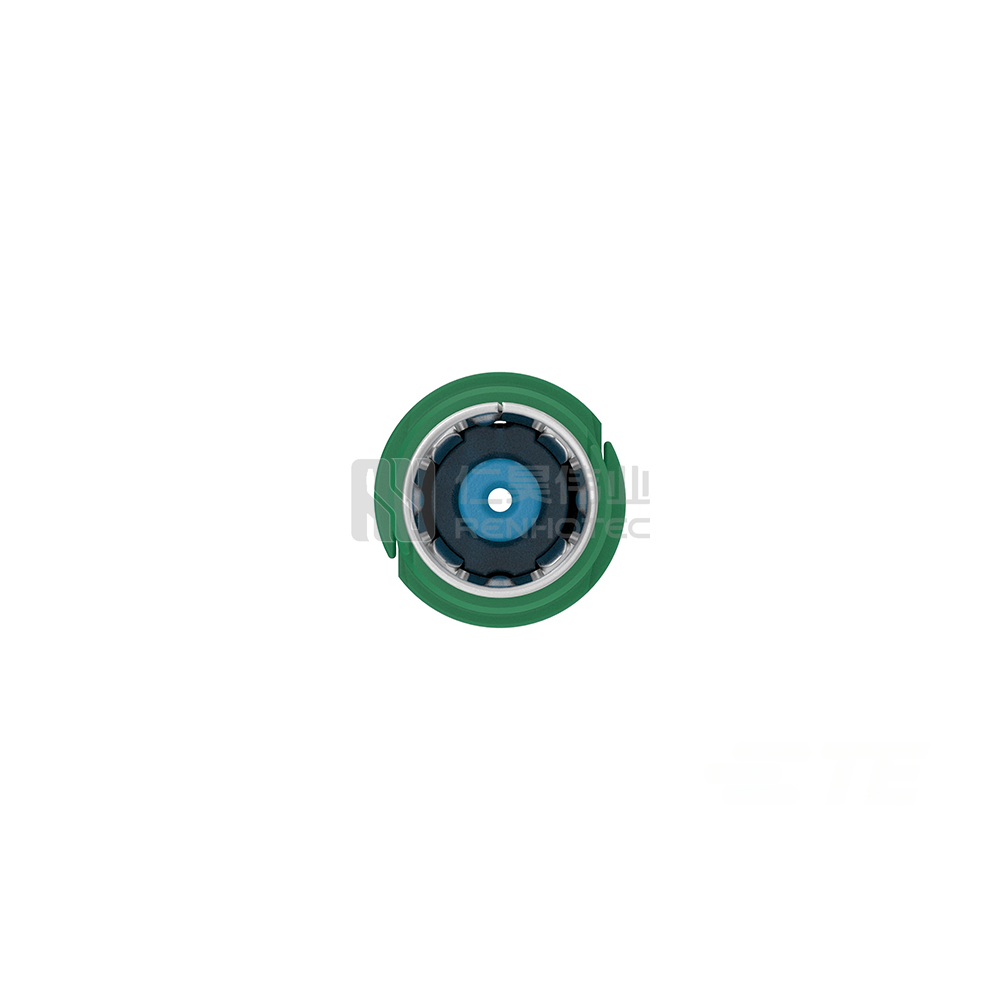

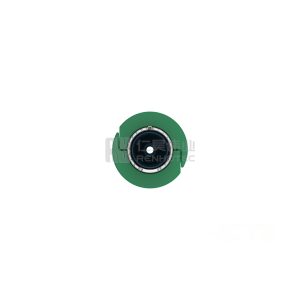

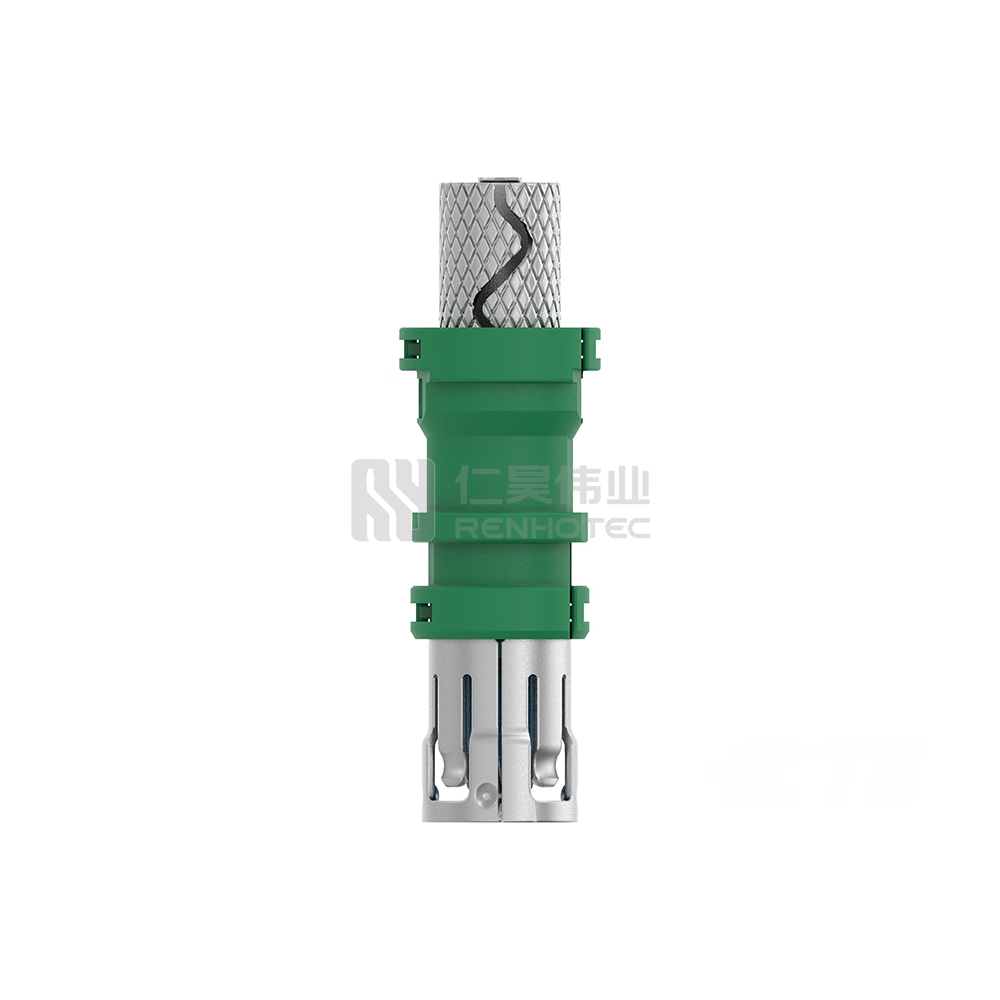

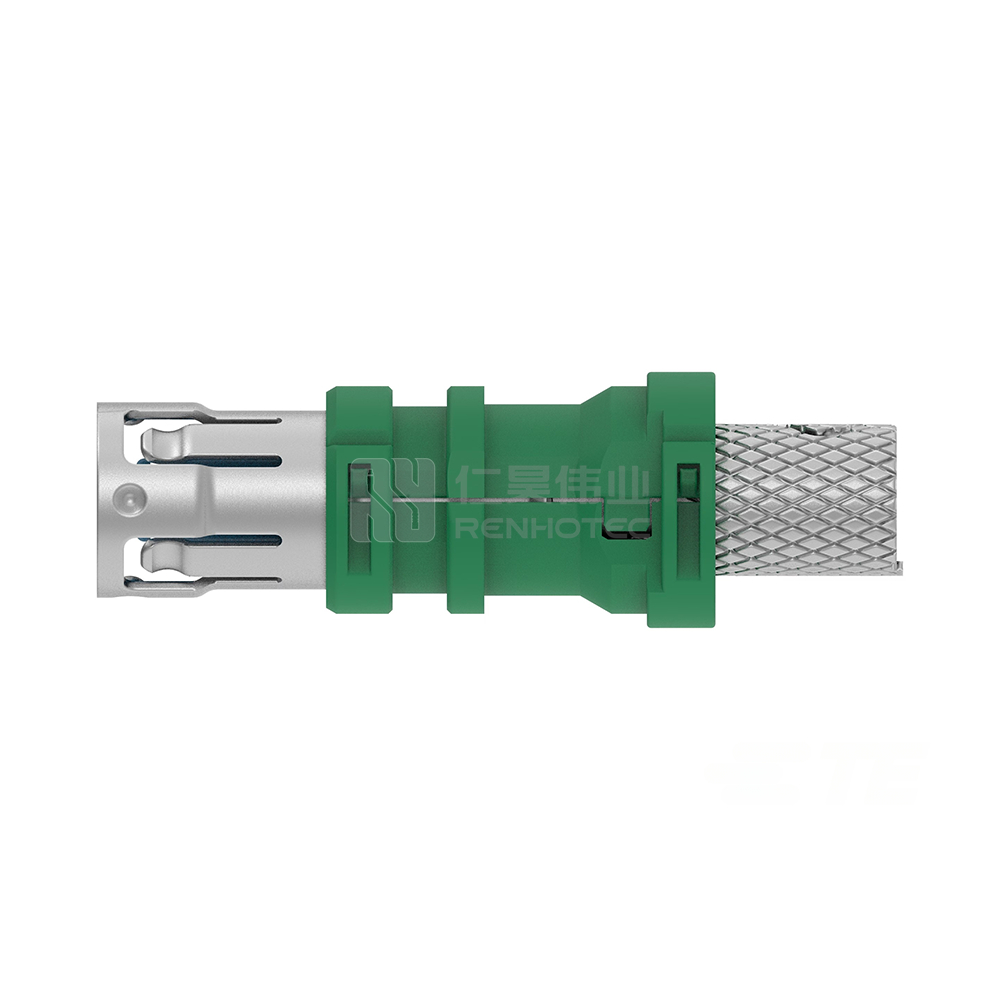

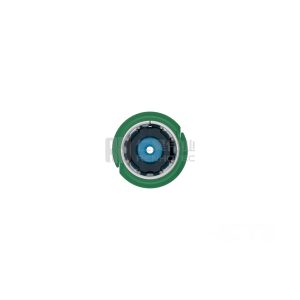

Cable-to-Cable, 180° Cable Exit, 1 Position, Housing for Female Terminals, Crimp, Signal, FAKRA, Data Connectivity Housings

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	1
Position Count	1
Center Contact	With
Pin Diameter	.48 mm [ .019 in ]
Mount Type	Cable Mount (Free-Hanging)
Shielded	No
Circuit Application	Signal
Package Qty	2500
Max Temperature	125 °C [ 257 °F ]
Package Method	Reel
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Position Assurance	No
Nominal Voltage V	800
Termination Point	Wire & Cable	Connector System	Cable-to-Cable
Sealable	No	Row Count	1
Position Count	1	Center Contact	With
Pin Diameter	.48 mm [ .019 in ]	Mount Type	Cable Mount (Free-Hanging)
Shielded	No	Circuit Application	Signal
Package Qty	2500	Max Temperature	125 °C [ 257 °F ]
Package Method	Reel	Housing Type	Housing for Female Terminals
Cable Exit Angle	180°	Cable Termination	Crimp
Position Assurance	No	Nominal Voltage V	800

Termination Point	Wire & Cable
Connector System	Cable-to-Cable
Sealable	No
Row Count	1
Position Count	1
Contact Type	Socket
Center Contact	With
Pin Diameter	.48 mm [ .019 in ]
Mount Type	Cable Mount (Free-Hanging)
Shielded	No
Circuit Application	Signal
Package Qty	2500
Max Temperature	125 °C [ 257 °F ]
Temperature Range	-40 – 125 °C [ -40 – 257 °F ]
Package Method	Reel
Housing Type	Housing for Female Terminals
Cable Exit Angle	180°
Cable Termination	Crimp
Cable Type	RG 174 \| RG 58
Position Assurance	No
Nominal Voltage V	800

Product Details
