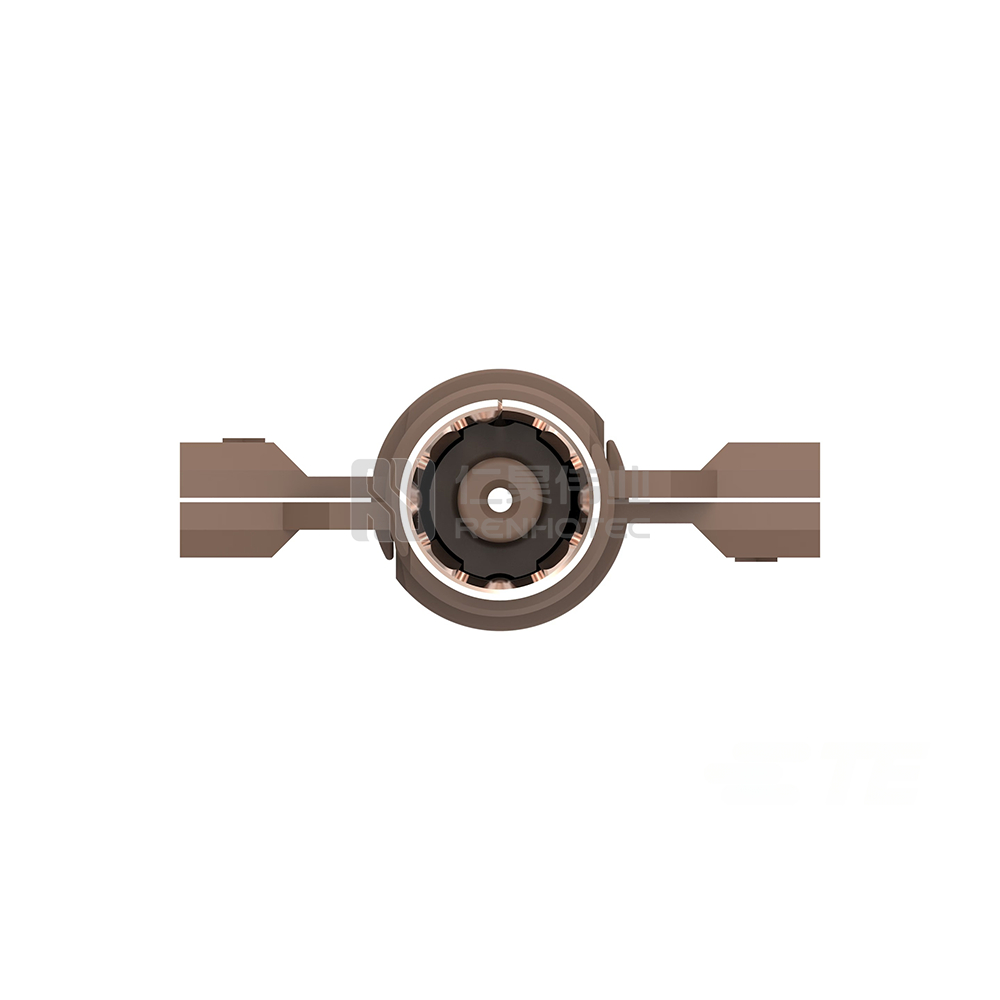

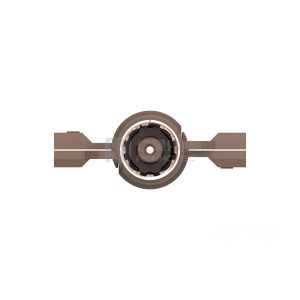

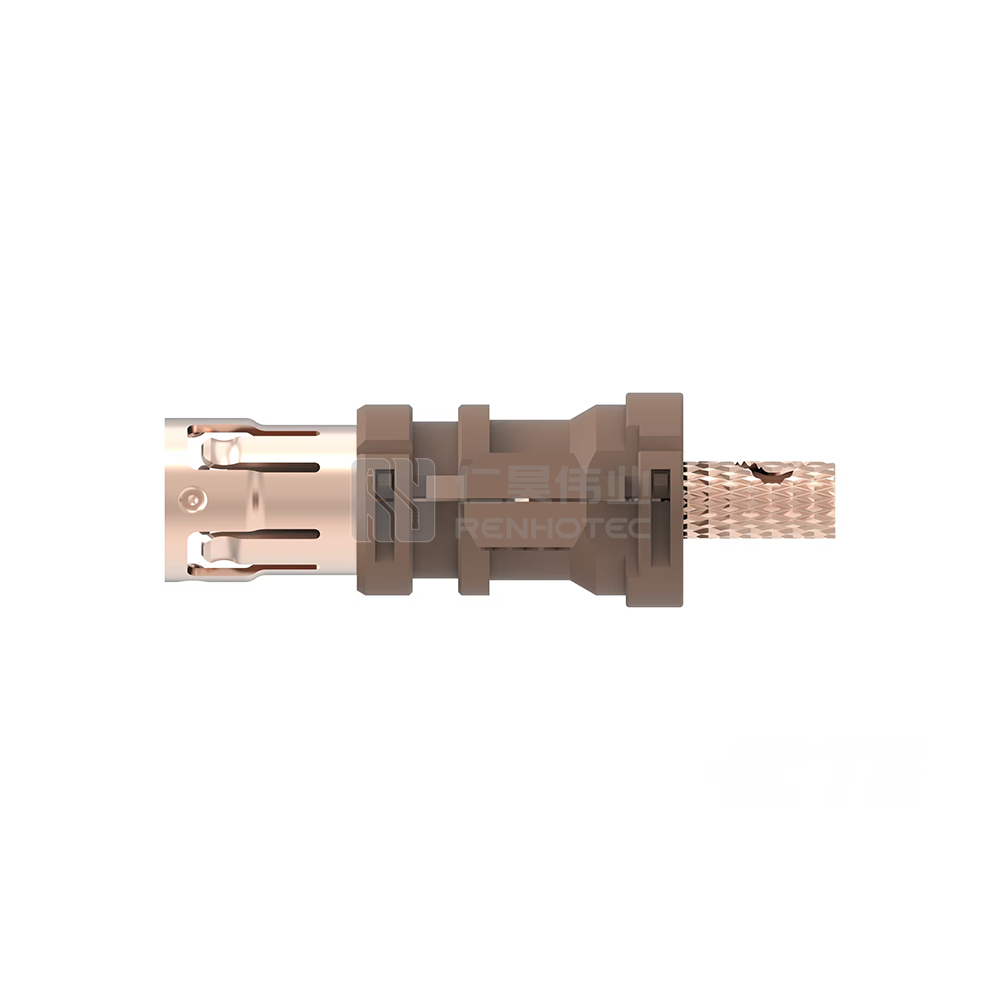

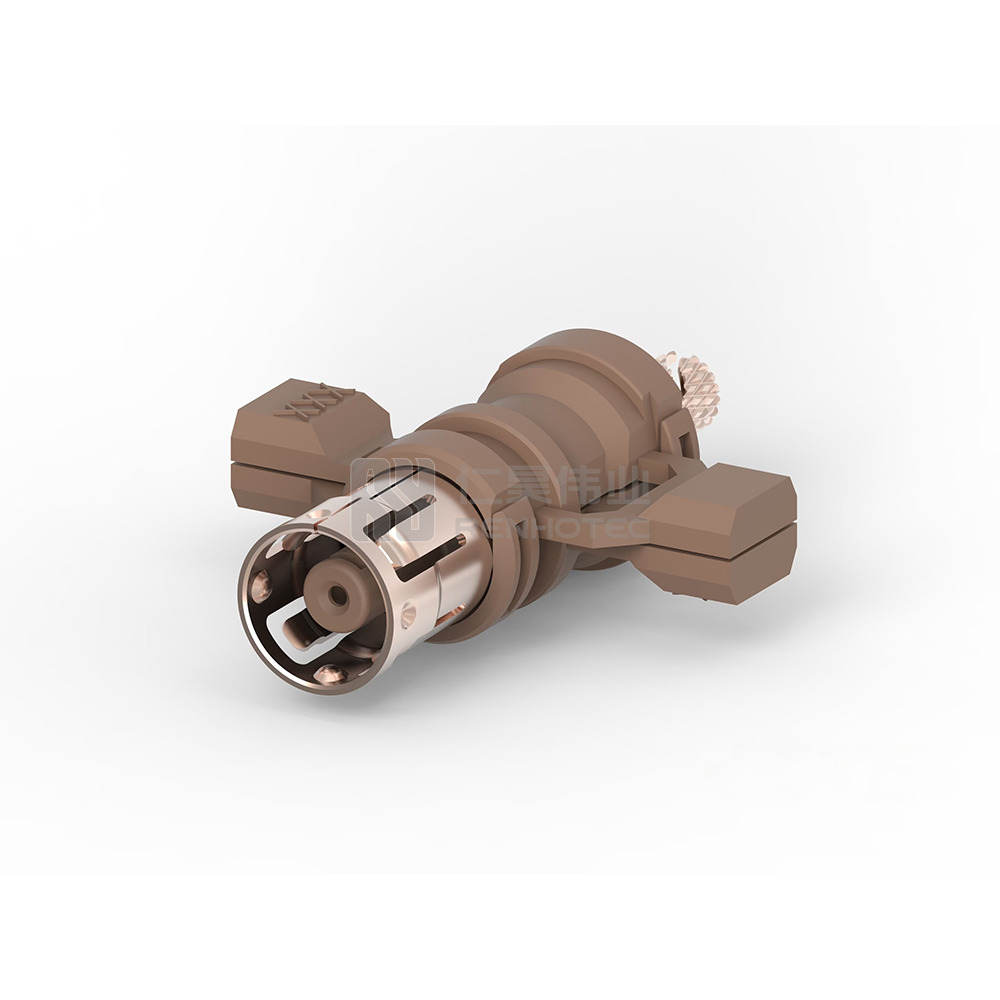

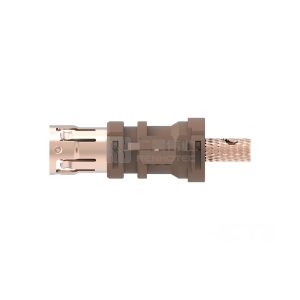

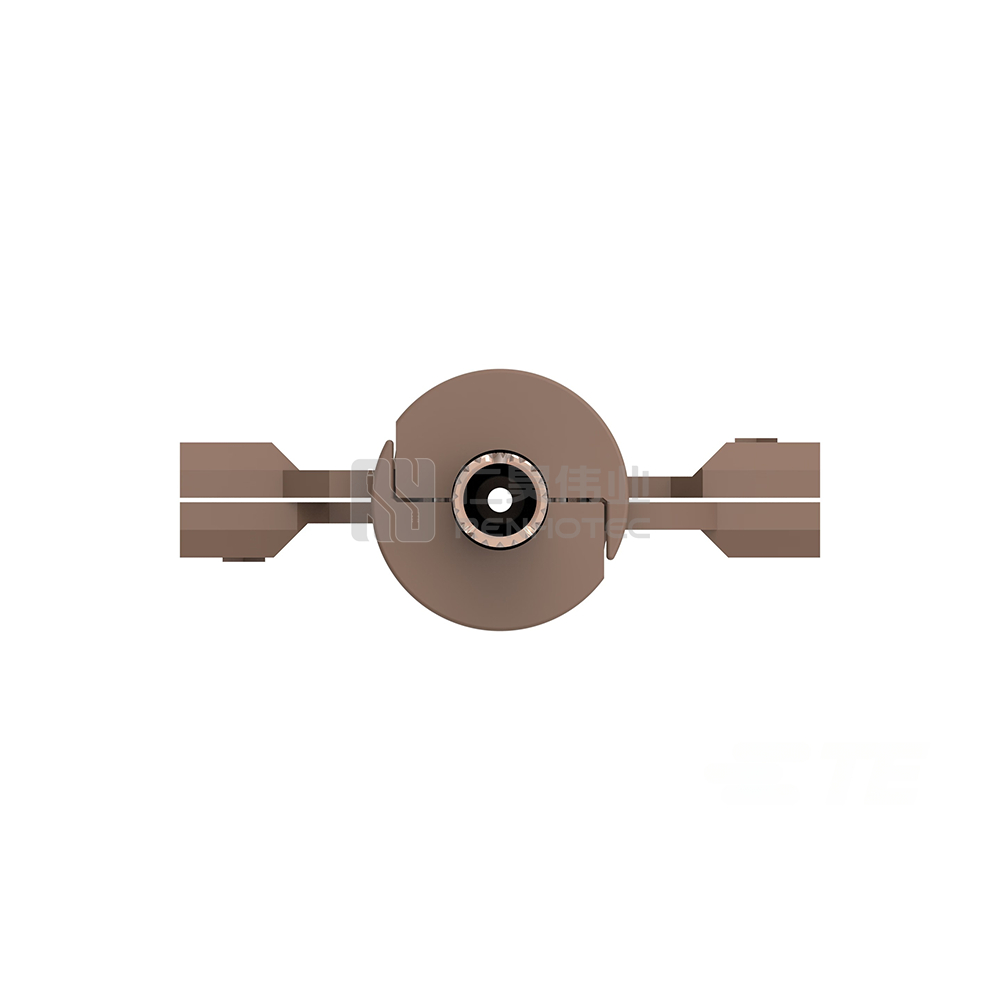

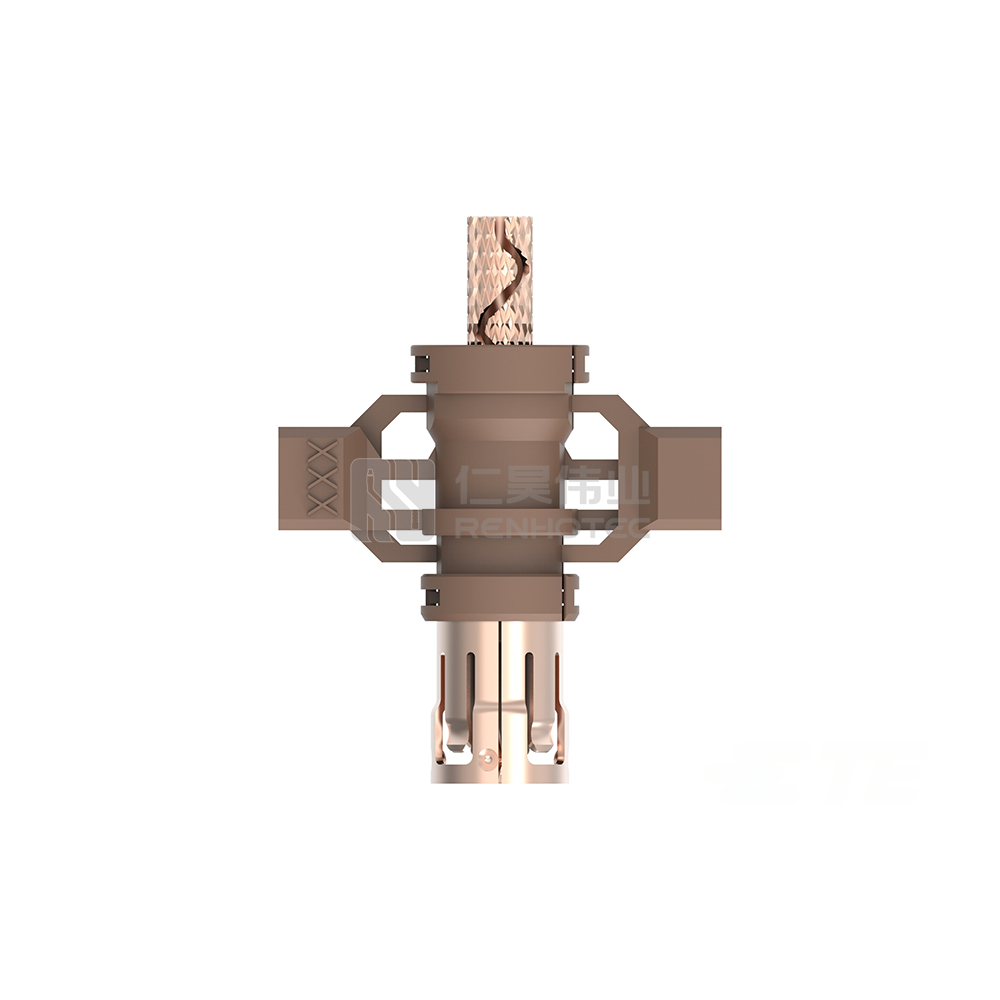

Receptacle Contact, 1 Position, Wire & Cable, Straight, Tin (Sn), Signal, FAKRA

Ensure reliable signal transmission in automotive and telecom applications with this FAKRA receptacle contact. It solves connection instability with a straight, tin-plated design for secure, low-resistance mating, ideal for demanding signal environments.

With advancements in telematics and automotive communications technology, RF communication systems have become integral components in today’s automotive, trucking, watercraft, motorcycle, and off-road construction markets. To ensure high levels of electrical and mechanical performance for telematics applications, the worldwide automotive industries have standardized a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards.

Embedded within a plastic housing which features multiple color codes for easy identification and unique keying to prevent mis-mating, FAKRA connectors are designed to perform up to 6 GHz and meet the particular mechanical and environmental requirements of the automotive industry.

PCB End (Male)

Cable End (Male)

Cable End (Female)

  • Secure primary locking system with tactile and audible locking
  • Shock and vibration resistant coded housing
  • Protection against unintentional opening by protective bar and protective strips
  • High axial holding power of the coaxial insert due to secondary locking
  • Mechanical and color coding system with 14 different codes
  • Fastening groove for cable connectors for chassis mounting
  • Coaxial insert and cable freely rotatable in the housing
  • Pre-assembly lock guarantees correct position of the coaxial inserts in the housing
  • Efficient, automated further processing option
  • Customized packaging possible
Code A B C D E F G
Color Deep Black Cream White Signal Blue Bordeaux Violet Leaf Green Brown Blue Gray
Application Radio with phantom supply Radio without phantom supply GPS telematics or navigation GSM Cellular Phone TV (UHF) TV (VHF) SDARS terrestrial
Code H I K L M N Z
Color Violet Beige Curry Yellow Carmine Red Pastel Orange Pastel Green Water Blue
Application GPS telematics and navigation Bluetooth Controlled
Parking Heating		 SDARS satellite Not defined Keyless entry
Tire pressure monitoring		 Not defined Neutral


Our Advantages

Physical factory

Having a professional production team, selfproduced and self sold

Quality assurance

Through strict qualitycontrol, ensure quality

Customized

We can customize diff-erent specifications ac-cording to your needs

After sales system

Actively follow up andpromptly address anyissues
good reviews

Production Process

1. Put forward demand

2. Sketch design

3. Production equipment

4. Production measurement

5. Product assembly

6. Quality test

7. Product packaging

8. Product packag box

9. Deliver goods

Termination Point

Wire & Cable
Connector System

Cable-to-Cable
Sealable

No
Row Count

1
Position Count

1
Center Contact

With
Pin Diameter

.5 mm [ .02 in ]
Mount Type

Cable Mount (Free-Hanging)
Product Length

6.15 mm [ .24 in ]
Product Width

19.2 mm [ .75 in ]
Shielded

No
Circuit Application

Signal
Package Qty

2500
Max Temperature

125 °C [ 257 °F ]
Package Method

Reel
Housing Type

Housing for Female Terminals
Snap Lock

Without
Cable Exit Type

Fixed
Ferrule

Without
Cable Exit Angle

180°
Cable Termination

Crimp
Dielectric Material

PBT
Position Assurance

No
Nominal Voltage V

800
Standards Certified

SAE/USCAR-17
Termination Point

Wire & Cable

 Connector System

Cable-to-Cable
Sealable

No

 Row Count

1
Position Count

1

 Center Contact

With
Pin Diameter

.5 mm [ .02 in ]

 Mount Type

Cable Mount (Free-Hanging)
Product Length

6.15 mm [ .24 in ]

 Product Width

19.2 mm [ .75 in ]
Shielded

No

 Circuit Application

Signal
Package Qty

2500

 Max Temperature

125 °C [ 257 °F ]
Package Method

Reel

 Housing Type

Housing for Female Terminals
Snap Lock

Without

 Cable Exit Type

Fixed
Ferrule

Without

 Cable Exit Angle

180°
Cable Termination

Crimp

 Dielectric Material

PBT
Position Assurance

No

 Nominal Voltage V

800
Standards Certified

SAE/USCAR-17

Product Specification

Contact Type

Socket
Temperature Range

-40 – 125 °C [ -40 – 257 °F ]
Cable Type

RTK 031
Contact Type

Socket

 Temperature Range

-40 – 125 °C [ -40 – 257 °F ]
Cable Type

RTK 031
Termination Point

Wire & Cable
Connector System

Cable-to-Cable
Sealable

No
Row Count

1
Position Count

1
Contact Type

Socket
Center Contact

With
Pin Diameter

.5 mm [ .02 in ]
Mount Type

Cable Mount (Free-Hanging)
Product Length

6.15 mm [ .24 in ]
Product Width

19.2 mm [ .75 in ]
Shielded

No
Circuit Application

Signal
Package Qty

2500
Max Temperature

125 °C [ 257 °F ]
Temperature Range

-40 – 125 °C [ -40 – 257 °F ]
Package Method

Reel
Housing Type

Housing for Female Terminals
Snap Lock

Without
Cable Exit Type

Fixed
Ferrule

Without
Cable Exit Angle

180°
Cable Termination

Crimp
Cable Type

RTK 031
Dielectric Material

PBT
Position Assurance

No
Nominal Voltage V

800
Standards Certified

SAE/USCAR-17
