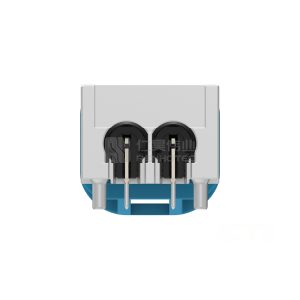

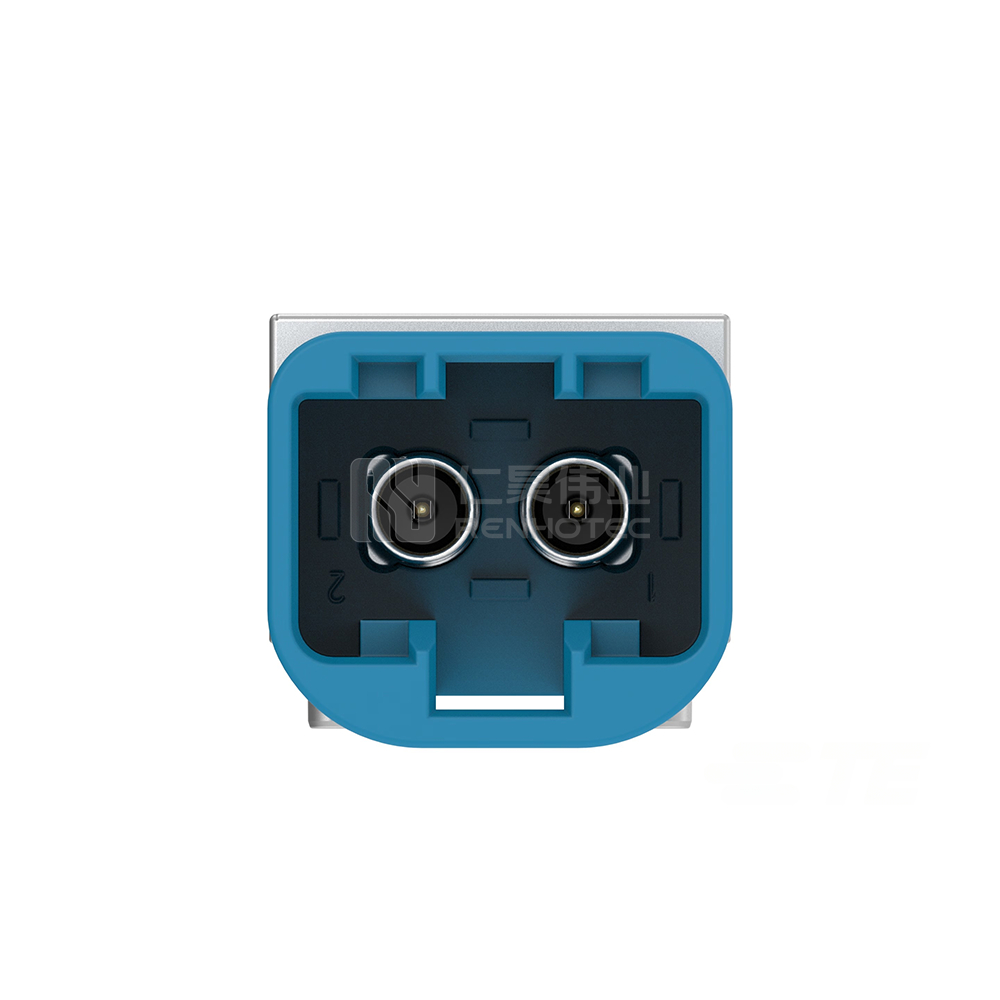

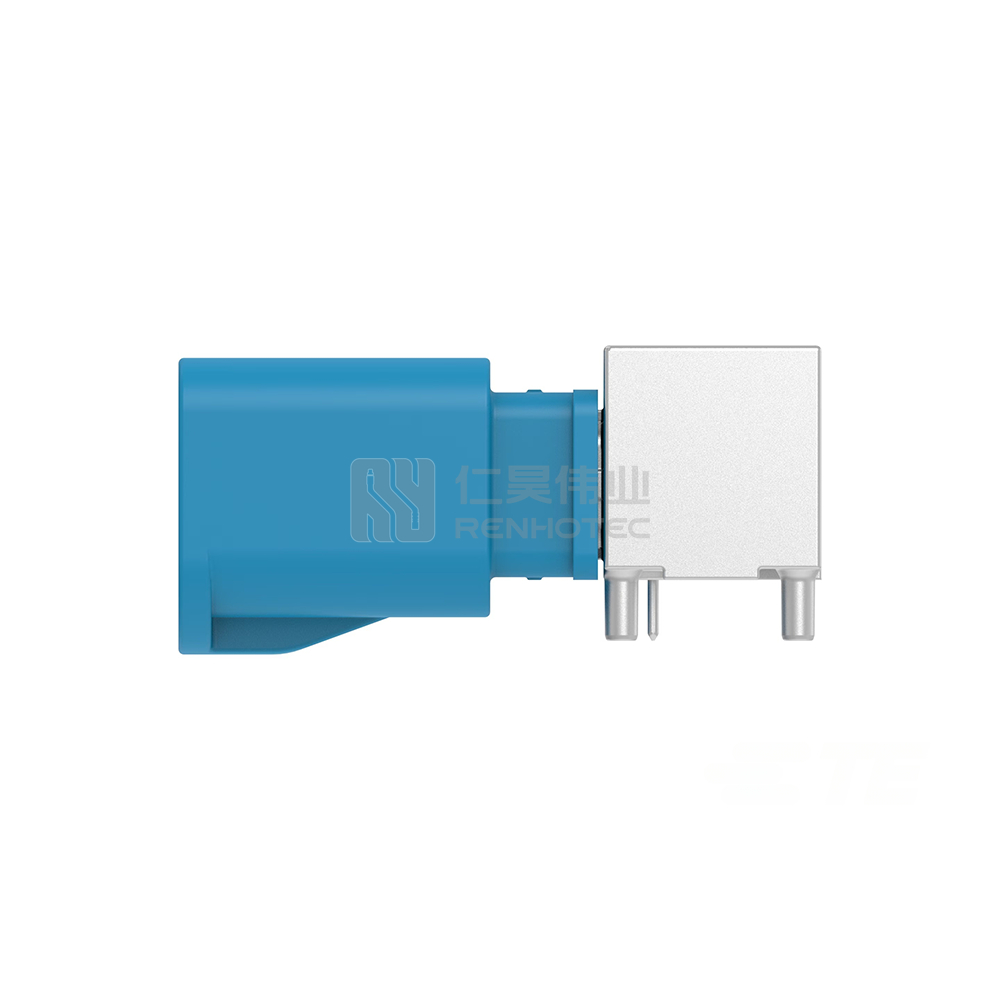

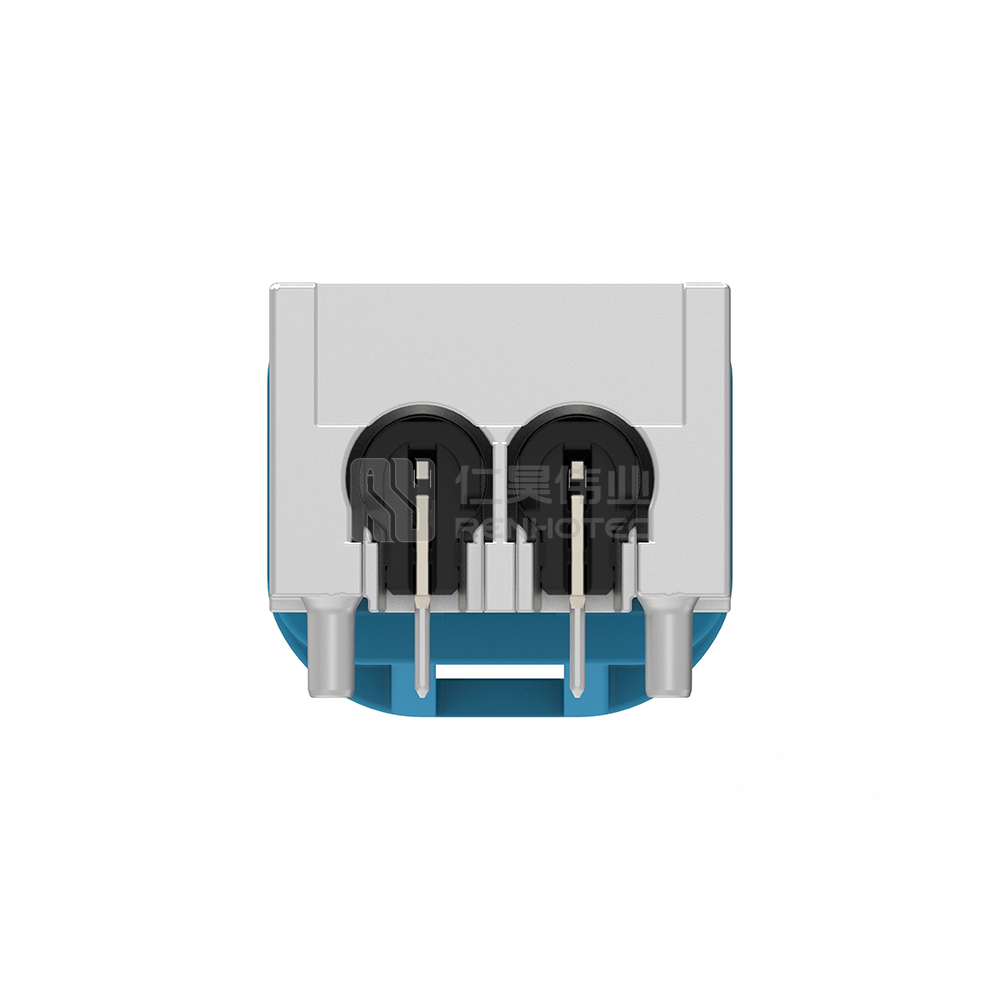

Cable-to-Board, Shielded, Horizontal, 2 Position, Board Mount, F Code, 4 mm Centerline, Signal, Data Connectivity Headers

Termination Point

Printed Circuit Board
Connector System

Cable-to-Board
Sealable

No
Row Count

1
PCB Orientation

Horizontal
Position Count

2
Key Code

C
Center Contact

With
Contact Plating

Silver (Ag)
Center Contact Plating

Silver (Ag)
Pin Diameter

.4 mm [ .016 in ]
Max Current A

3
PCB Termination

Through Hole – Solder
Mating Retention

Without
Mount Type

Board Mount
Housing Color

Light Blue
Pitch

4 mm [ .15 in ]
Solder Process

Reflow Solder Capable
Shielded

Yes
Body Material

Die Cast Zinc
Outer Contact Plating

Tin (Sn)
Max Temperature

105 °C [ 221 °F ]
Frequency Range GHz

.01 – 9
Assembly Feature

Carrier Tape
Height mm

10.75
Length mm

23.3
Width mm

12
Termination Point

Printed Circuit Board

 Connector System

Cable-to-Board
Sealable

No

 Row Count

1
PCB Orientation

Horizontal

 Position Count

2
Key Code

C

 Center Contact

With
Contact Plating

Silver (Ag)

 Center Contact Plating

Silver (Ag)
Pin Diameter

.4 mm [ .016 in ]

 Max Current A

3
PCB Termination

Through Hole – Solder

 Mating Retention

Without
Mount Type

Board Mount

 Housing Color

Light Blue
Pitch

4 mm [ .15 in ]

 Solder Process

Reflow Solder Capable
Shielded

Yes

 Body Material

Die Cast Zinc
Outer Contact Plating

Tin (Sn)

 Max Temperature

105 °C [ 221 °F ]
Frequency Range GHz

.01 – 9

 Assembly Feature

Carrier Tape
Height mm

10.75

 Length mm

23.3
Width mm

12

Product Specification

Contact Type

Pin
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Contact Type

Pin

 Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Termination Point

Printed Circuit Board
Connector System

Cable-to-Board
Sealable

No
Row Count

1
PCB Orientation

Horizontal
Position Count

2
Key Code

C
Contact Type

Pin
Center Contact

With
Contact Plating

Silver (Ag)
Center Contact Plating

Silver (Ag)
Pin Diameter

.4 mm [ .016 in ]
Max Current A

3
PCB Termination

Through Hole – Solder
Mating Retention

Without
Mount Type

Board Mount
Housing Color

Light Blue
Pitch

4 mm [ .15 in ]
Solder Process

Reflow Solder Capable
Shielded

Yes
Body Material

Die Cast Zinc
Outer Contact Plating

Tin (Sn)
Max Temperature

105 °C [ 221 °F ]
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Impedance Ω

100
Frequency Range GHz

.01 – 9
Assembly Feature

Carrier Tape
Height mm

10.75
Length mm

23.3
Width mm

12
