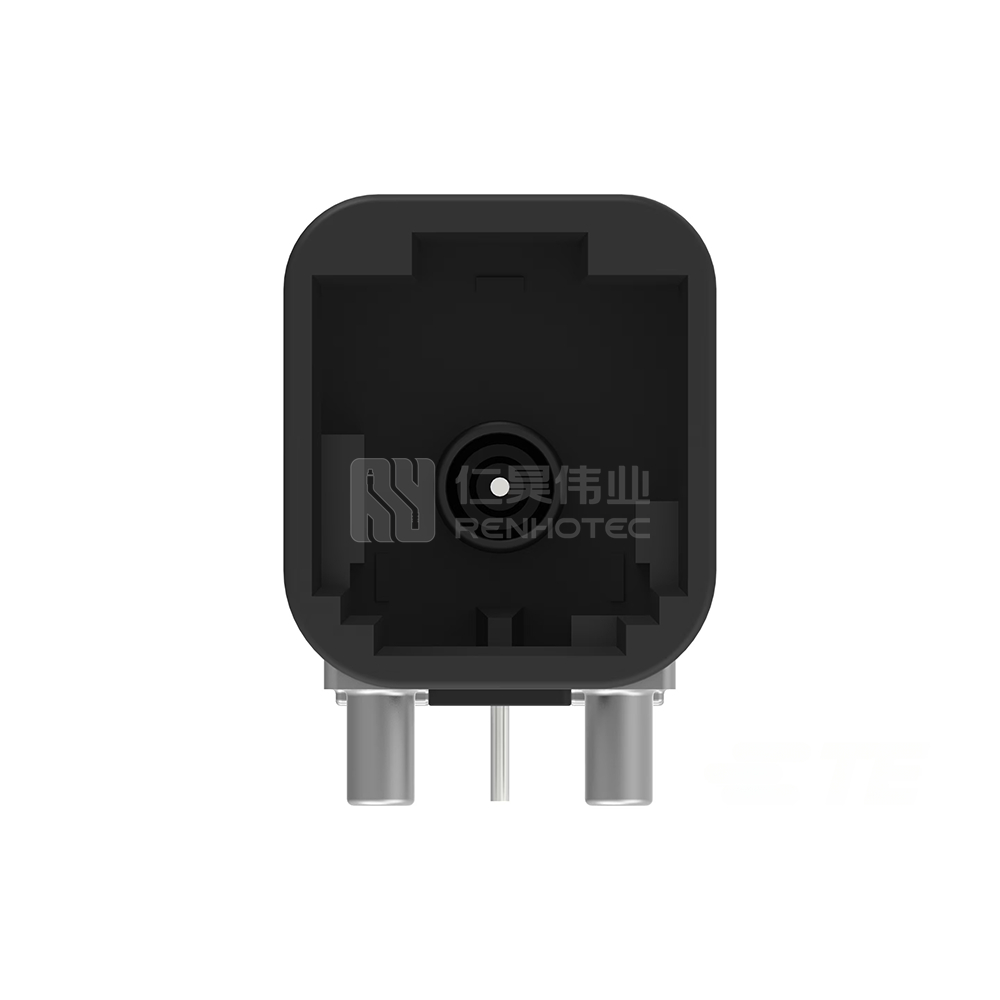

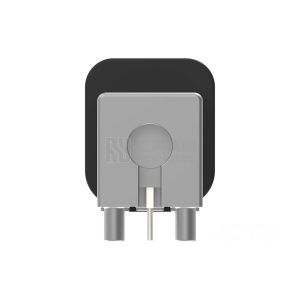

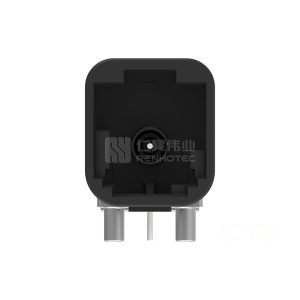

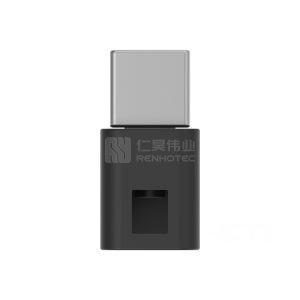

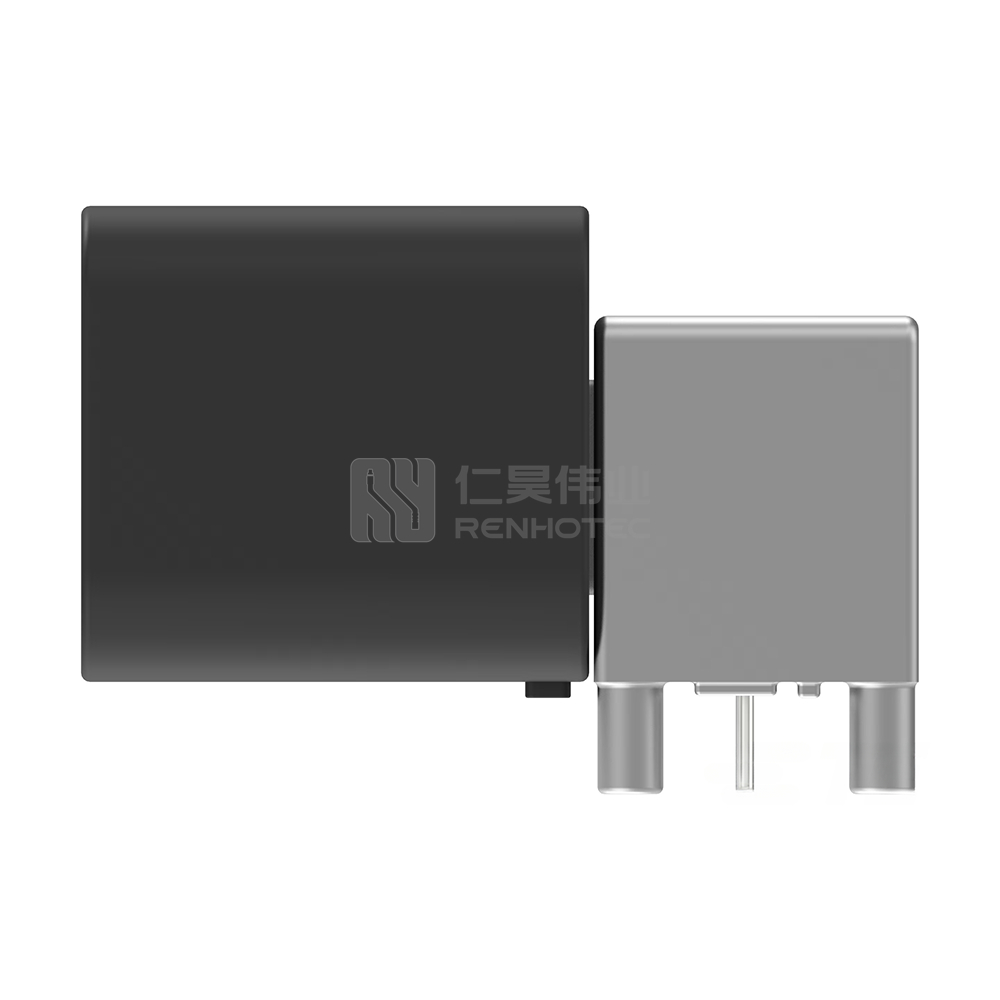

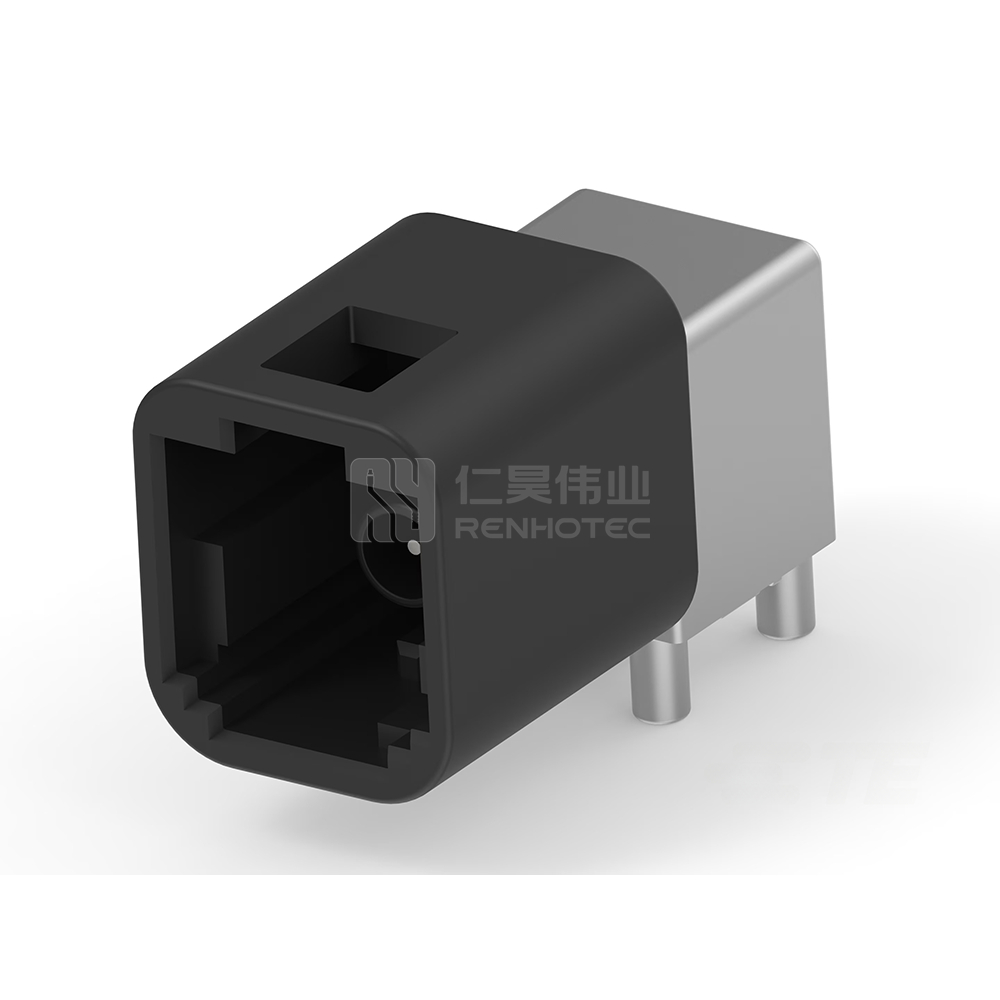

Cable-to-Board, Shielded, Horizontal, 1 Position, Board Mount, A Code, Data Connectivity Headers

Termination Point

Printed Circuit Board
Connector System

Cable-to-Board
Sealable

No
Row Count

1
PCB Orientation

Horizontal
Position Count

1
Key Code

A
Center Contact

With
Contact Plating

Silver (Ag)
Center Contact Plating

Tin (Sn)
PCB Termination

Through Hole – Solder
Mount Type

Board Mount
Housing Color

Black
Connector Height

10.1 mm [ .4 in ]
Solder Process

Reflow Solder Capable
Shielded

Yes
UL Flammability Rating

UL 94HB
Package Qty

420
Body Material

PA GF
Outer Contact Plating

Tin (Sn)
Max Temperature

105 °C [ 221 °F ]
Package Method

Reel
Dielectric Material

Liquid Crystal Polymer (LCP)
Length mm

18.3
Termination Point

Printed Circuit Board

 Connector System

Cable-to-Board
Sealable

No

 Row Count

1
PCB Orientation

Horizontal

 Position Count

1
Key Code

A

 Center Contact

With
Contact Plating

Silver (Ag)

 Center Contact Plating

Tin (Sn)
PCB Termination

Through Hole – Solder

 Mount Type

Board Mount
Housing Color

Black

 Connector Height

10.1 mm [ .4 in ]
Solder Process

Reflow Solder Capable

 Shielded

Yes
UL Flammability Rating

UL 94HB

 Package Qty

420
Body Material

PA GF

 Outer Contact Plating

Tin (Sn)
Max Temperature

105 °C [ 221 °F ]

 Package Method

Reel
Dielectric Material

Liquid Crystal Polymer (LCP)

 Length mm

18.3

Product Specification

Contact Type

Pin
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Contact Type

Pin

 Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Termination Point

Printed Circuit Board
Connector System

Cable-to-Board
Sealable

No
Row Count

1
PCB Orientation

Horizontal
Position Count

1
Key Code

A
Contact Type

Pin
Center Contact

With
Contact Plating

Silver (Ag)
Center Contact Plating

Tin (Sn)
PCB Termination

Through Hole – Solder
Mount Type

Board Mount
Housing Color

Black
Connector Height

10.1 mm [ .4 in ]
Solder Process

Reflow Solder Capable
Shielded

Yes
UL Flammability Rating

UL 94HB
Package Qty

420
Body Material

PA GF
Outer Contact Plating

Tin (Sn)
Max Temperature

105 °C [ 221 °F ]
Temperature Range

-40 – 105 °C [ -40 – 221 °F ]
Package Method

Reel
Dielectric Material

Liquid Crystal Polymer (LCP)
Length mm

18.3
