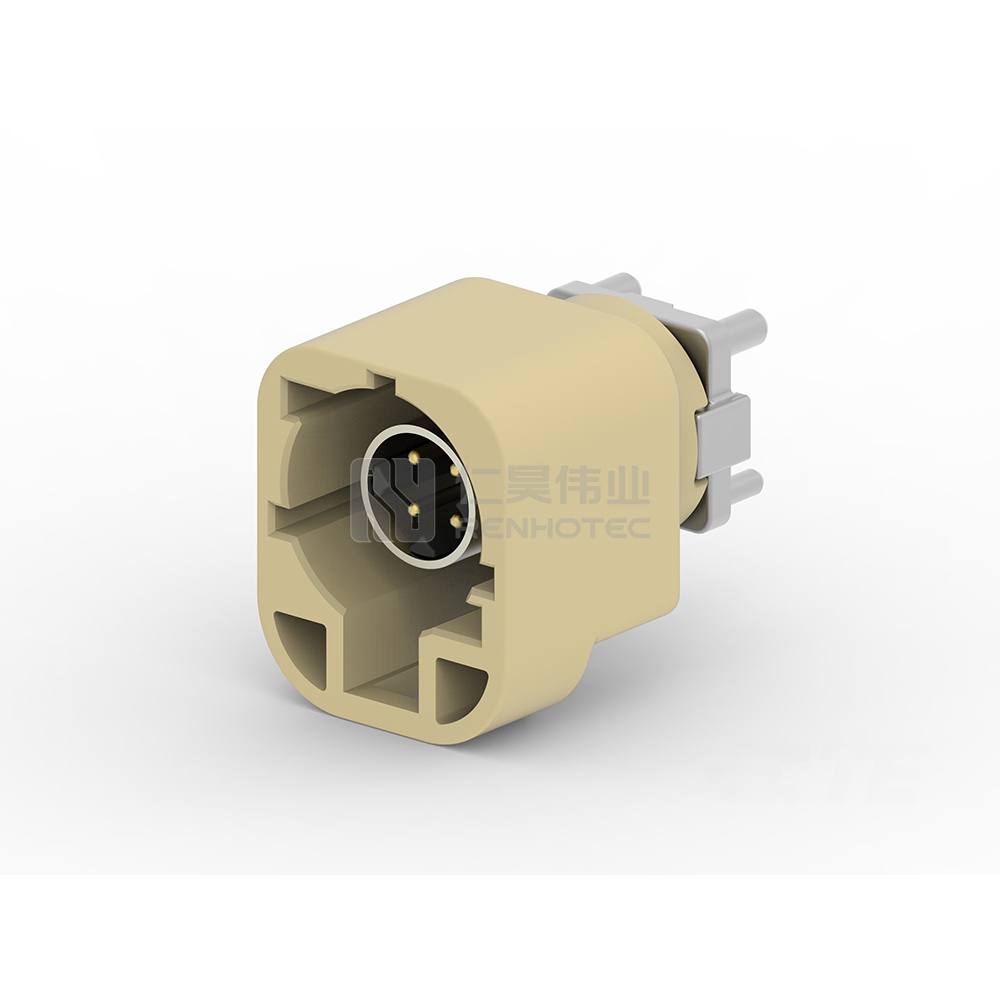

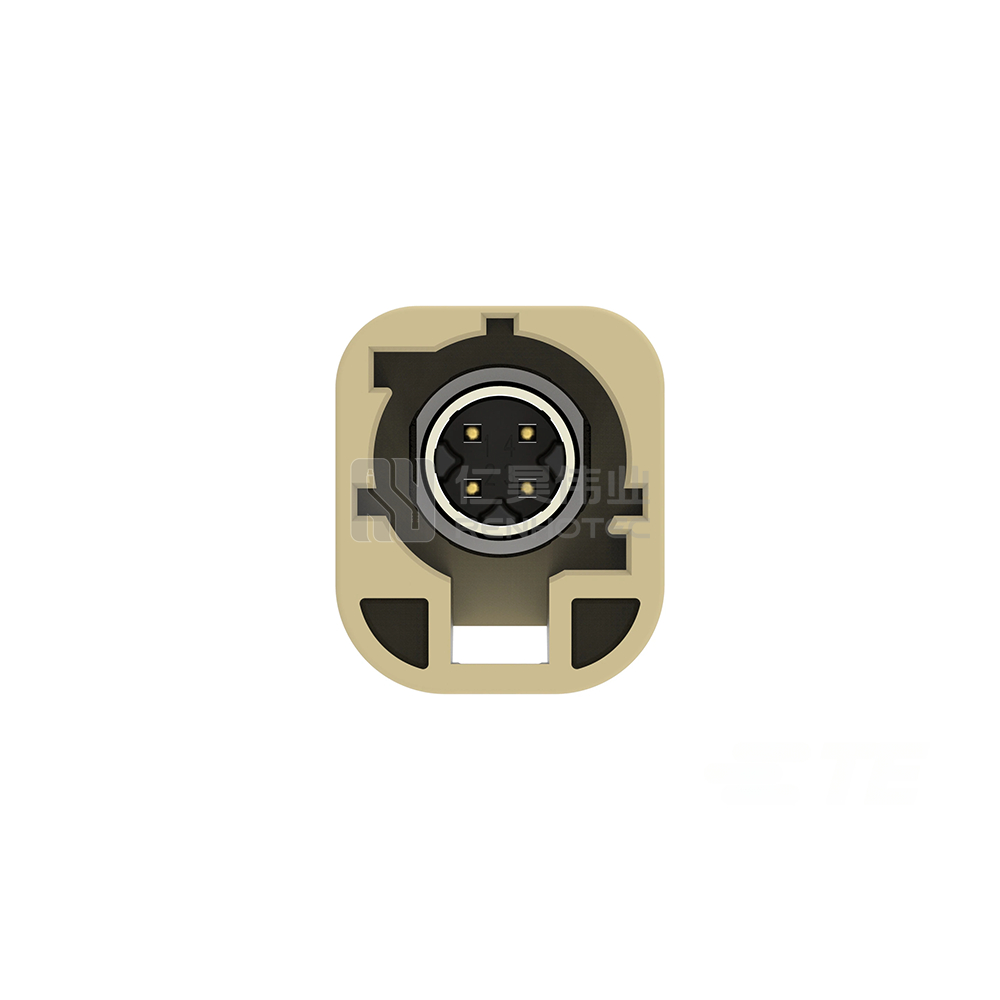

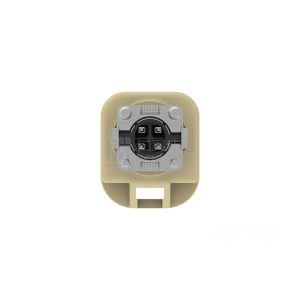

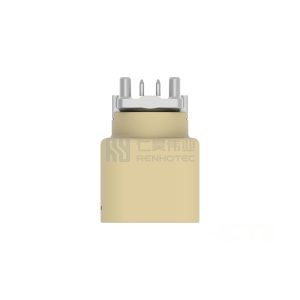

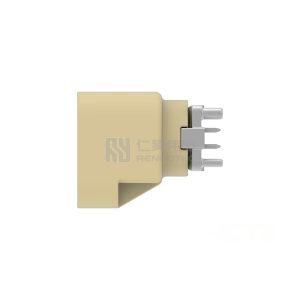

Board-to-Board / Wire-to-Board, Shielded, Vertical, 4 Position, Board Mount, J Code, Automotive HSD, Data Connectivity Headers

Termination Point

Printed Circuit Board
Connector System

Board-to-Board | Wire-to-Board
Sealable

No
Row Count

2
PCB Orientation

Vertical
Position Count

4
Key Code

J
Center Contact

With
Contact Plating

Gold (Au)
Center Contact Plating

Gold (Au)
Pin Diameter

.6 mm [ .02 in ]
Max Current A

2.5
PCB Termination

Through Hole – Solder
Mating Retention

With
PCB Retention

With
Mount Type

Board Mount
Housing Color

Beige
Pitch

2 mm [ .07 in ]
Connector Height

15.47 mm [ .609 in ]
Product Length

12 mm [ .472 in ]
Product Width

14.15 mm [ .557 in ]
Operating Voltage VDC

60
Body Material

PPA GF25 | Zinc Alloy
Outer Contact Plating

Tin (Sn)
PCB Retention Type

Solder Tail
Max Temperature

105 °C [ 221 °F ]
PCB Retention Plating

Tin
Termination Point

Printed Circuit Board

 Connector System

Board-to-Board | Wire-to-Board
Sealable

No

 Row Count

2
PCB Orientation

Vertical

 Position Count

4
Key Code

J

 Center Contact

With
Contact Plating

Gold (Au)

 Center Contact Plating

Gold (Au)
Pin Diameter

.6 mm [ .02 in ]

 Max Current A

2.5
PCB Termination

Through Hole – Solder

 Mating Retention

With
PCB Retention

With

 Mount Type

Board Mount
Housing Color

Beige

 Pitch

2 mm [ .07 in ]
Connector Height

15.47 mm [ .609 in ]

 Product Length

12 mm [ .472 in ]
Product Width

14.15 mm [ .557 in ]

 Operating Voltage VDC

60
Body Material

PPA GF25 | Zinc Alloy

 Outer Contact Plating

Tin (Sn)
PCB Retention Type

Solder Tail

 Max Temperature

105 °C [ 221 °F ]
PCB Retention Plating

Tin

Product Specification

Contact Type

Pin
Contact Type

Pin
Termination Point

Printed Circuit Board
Connector System

Board-to-Board | Wire-to-Board
Sealable

No
Row Count

2
PCB Orientation

Vertical
Position Count

4
Key Code

J
Contact Type

Pin
Center Contact

With
Contact Plating

Gold (Au)
Center Contact Plating

Gold (Au)
Pin Diameter

.6 mm [ .02 in ]
Max Current A

2.5
PCB Termination

Through Hole – Solder
Mating Retention

With
PCB Retention

With
Mount Type

Board Mount
Housing Color

Beige
Pitch

2 mm [ .07 in ]
Connector Height

15.47 mm [ .609 in ]
Product Length

12 mm [ .472 in ]
Product Width

14.15 mm [ .557 in ]
Operating Voltage VDC

60
Body Material

PPA GF25 | Zinc Alloy
Outer Contact Plating

Tin (Sn)
PCB Retention Type

Solder Tail
Max Temperature

105 °C [ 221 °F ]
PCB Retention Plating

Tin
Impedance Ω

100
