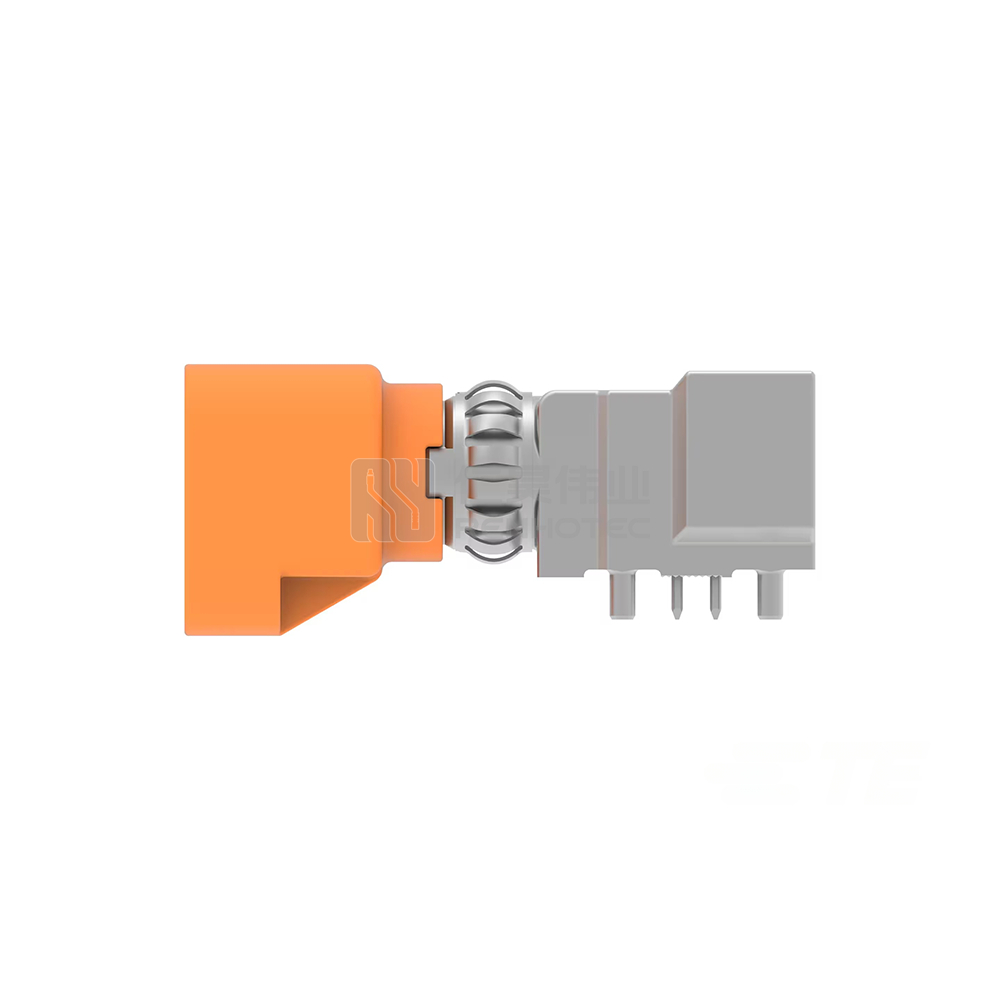

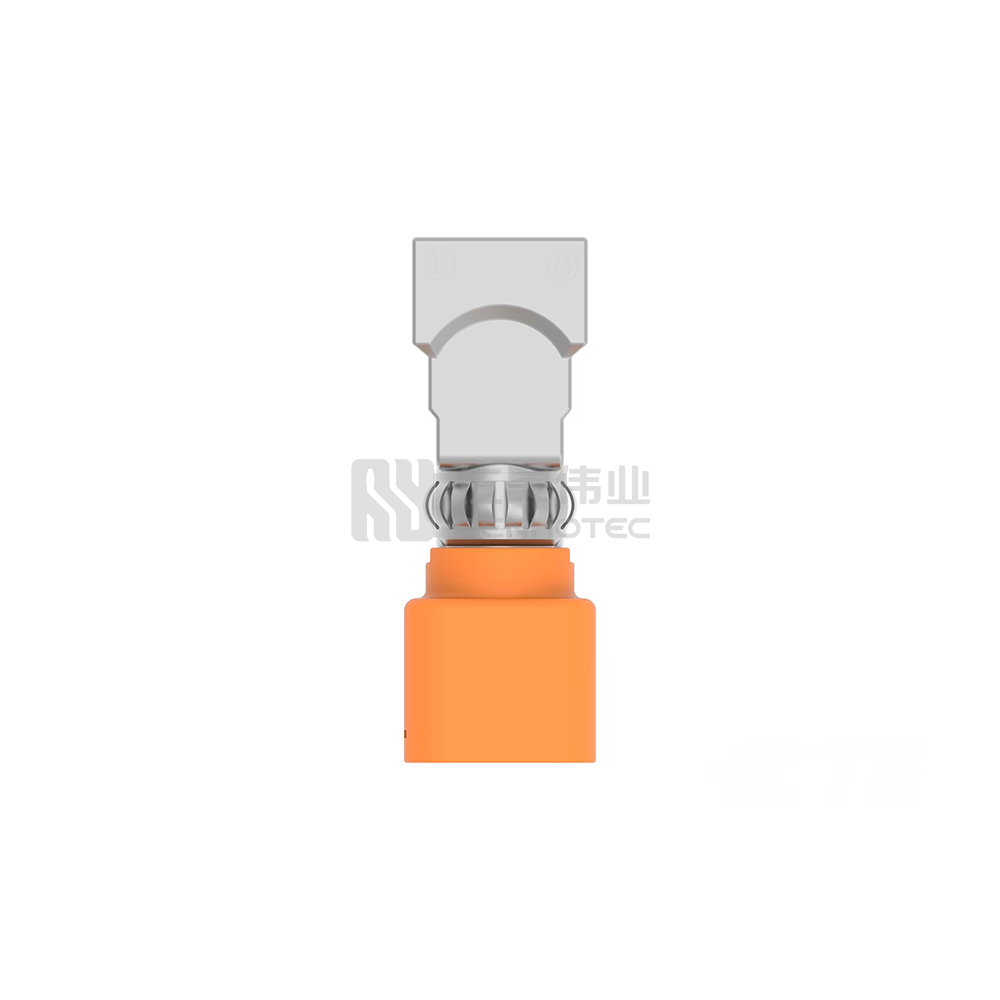

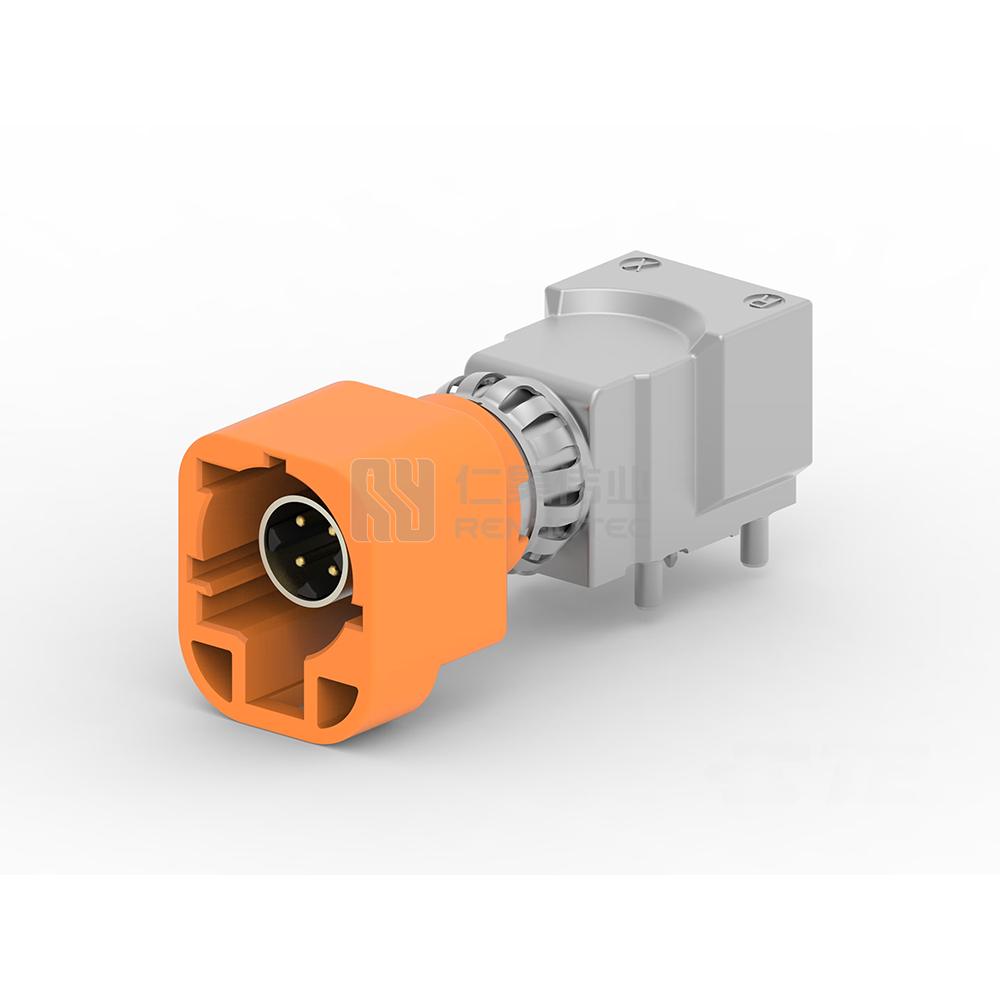

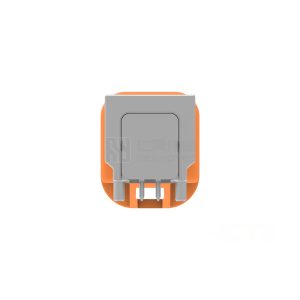

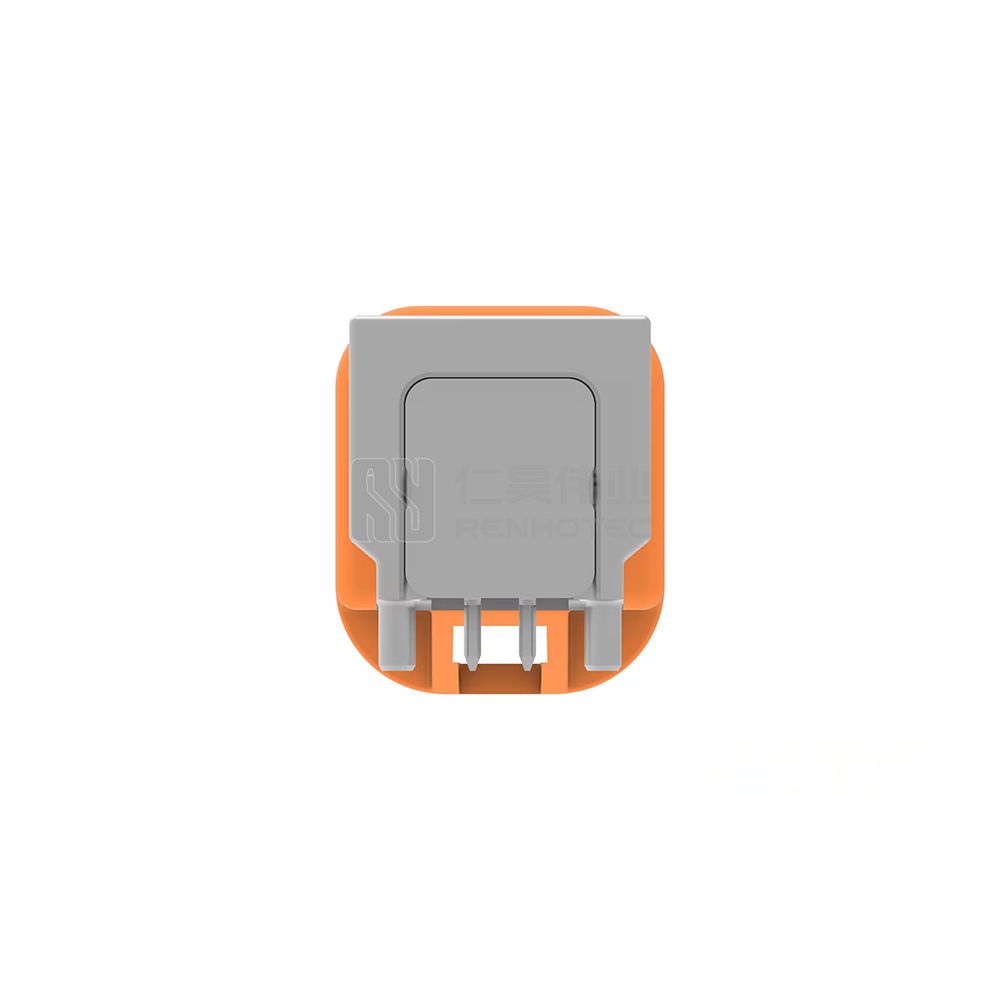

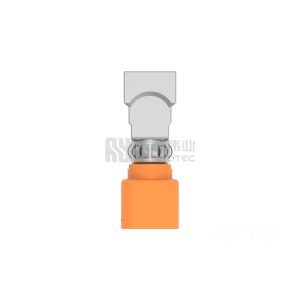

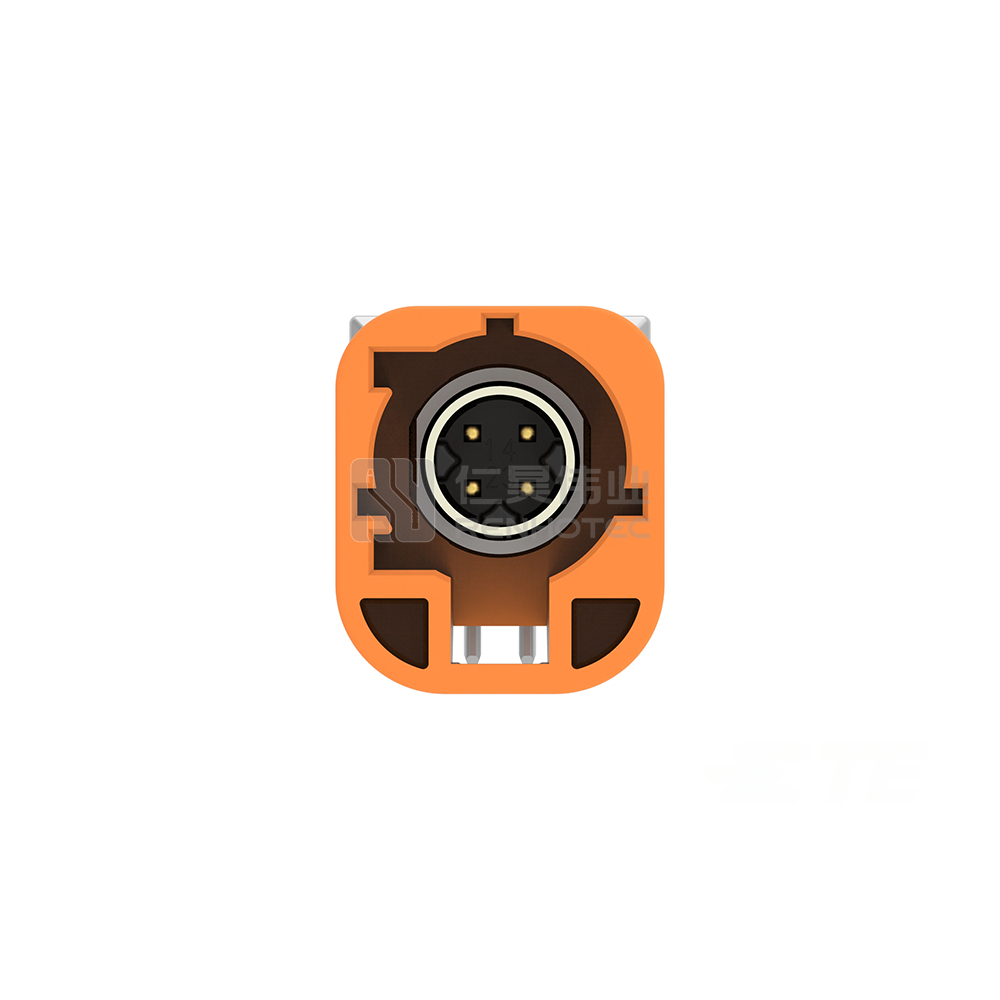

Board-to-Board / Wire-to-Board, Shielded, Horizontal, 4 Position, Board Mount, M Code, Automotive HSD, Data Connectivity Headers
HSD connectors provide connectivity solutions for automotive infotainment modules, GMSL/GMSL2 cameras, consumer equipment ports, and display devices.
The HSD product portfolio is designed for high-speed data transmission to meet automotive requirements up to 6 Gbps. It is engineered to support leading SerDes protocols with superior signal integrity.
These connectors can be combined with GMSL2, LVDS, IEEE 1394, and USB 2.0. Our high-speed solutions are compatible with the German AK HSD interface and support protocols compliant with USCAR 30.
HSD plug and jack in schematic view with pin assignment
| Code | A | B | C | D | E | F | G |
| Color | Jet black | Cream | Signal blue | Claret violet | Leaf green | Nut brown | Blue grey |
| Male |  |
 |
 |
 |
 |
 |
 |
| Female |  |
 |
 |
 |
 |
 |
 |
| Code | H | J | K | L | M | O | Z |
| Color | Heather violet | Beige | Curry | Yellow green | Pastel orange | Pastel green | Water blue |
| Male |  |
 |
 |
 |
 |
 |
 |
| Female |  |
 |
 |
 |
 |
 |
 |
HSD stands for High Speed Data and is a high-density interface available in 1-pin, 4-pin, 6-pin (4+2), and 4+4 pin (Dual HSD) configurations to meet various data and power needs. The core 4-pin data interface is designed based on the “star-four principle”, where the opposite wires form a balanced wire pair to minimize crosstalk and EMI. As the name implies, HSD is dedicated to high-speed data transfer, offering high signal quality and interference safety for the demanding automotive industry. Key Applications:
Our Advantages
Physical factory
Having a professional production team, selfproduced and self sold
Quality assurance
Through strict qualitycontrol, ensure quality
Customized
We can customize diff-erent specifications ac-cording to your needs
After sales system
Actively follow up andpromptly address anyissues
Production Process
1. Put forward demand
2. Sketch design
3. Production equipment
4. Production measurement
5. Product assembly
6. Quality test
7. Product packaging
8. Product packag box
9. Deliver goods
| Termination Point | Printed Circuit Board |
||
|---|---|---|---|
| Connector System | Board-to-Board | Wire-to-Board |
||
| Sealable | No |
||
| Row Count | 2 |
||
| PCB Orientation | Horizontal |
||
| Position Count | 4 |
||
| Key Code | M |
||
| Center Contact | With |
||
| Contact Plating | Gold (Au) |
||
| Center Contact Plating | Gold (Au) |
||
| Pin Diameter | .6 mm [ .02 in ] |
||
| Max Current A | 2.5 |
||
| PCB Termination | Through Hole – Solder |
||
| Mating Retention | With |
||
| PCB Retention | With |
||
| Mount Type | Board Mount |
||
| Housing Color | Pastel Orange |
||
| Pitch | 2 mm [ .07 in ] |
||
| Connector Height | 11.1 mm [ .437 in ] |
||
| Product Length | 12 mm [ .472 in ] |
||
| Product Width | 32.85 mm [ 1.293 in ] |
||
| Operating Voltage VDC | 60 |
||
| Body Material | PPA GF25 | Zinc Alloy |
||
| Outer Contact Plating | Tin (Sn) |
||
| PCB Retention Type | Solder Tail |
||
| Max Temperature | 105 °C [ 221 °F ] |
||
| PCB Retention Plating | Tin |
||
| Termination Point | Printed Circuit Board |
Connector System | Board-to-Board | Wire-to-Board |
| Sealable | No |
Row Count | 2 |
| PCB Orientation | Horizontal |
Position Count | 4 |
| Key Code | M |
Center Contact | With |
| Contact Plating | Gold (Au) |
Center Contact Plating | Gold (Au) |
| Pin Diameter | .6 mm [ .02 in ] |
Max Current A | 2.5 |
| PCB Termination | Through Hole – Solder |
Mating Retention | With |
| PCB Retention | With |
Mount Type | Board Mount |
| Housing Color | Pastel Orange |
Pitch | 2 mm [ .07 in ] |
| Connector Height | 11.1 mm [ .437 in ] |
Product Length | 12 mm [ .472 in ] |
| Product Width | 32.85 mm [ 1.293 in ] |
Operating Voltage VDC | 60 |
| Body Material | PPA GF25 | Zinc Alloy |
Outer Contact Plating | Tin (Sn) |
| PCB Retention Type | Solder Tail |
Max Temperature | 105 °C [ 221 °F ] |
| PCB Retention Plating | Tin |
Product Specification
| Contact Type | Pin |
|---|---|
| Contact Type | Pin |
| Termination Point | Printed Circuit Board |
|---|---|
| Connector System | Board-to-Board | Wire-to-Board |
| Sealable | No |
| Row Count | 2 |
| PCB Orientation | Horizontal |
| Position Count | 4 |
| Key Code | M |
| Contact Type | Pin |
| Center Contact | With |
| Contact Plating | Gold (Au) |
| Center Contact Plating | Gold (Au) |
| Pin Diameter | .6 mm [ .02 in ] |
| Max Current A | 2.5 |
| PCB Termination | Through Hole – Solder |
| Mating Retention | With |
| PCB Retention | With |
| Mount Type | Board Mount |
| Housing Color | Pastel Orange |
| Pitch | 2 mm [ .07 in ] |
| Connector Height | 11.1 mm [ .437 in ] |
| Product Length | 12 mm [ .472 in ] |
| Product Width | 32.85 mm [ 1.293 in ] |
| Operating Voltage VDC | 60 |
| Body Material | PPA GF25 | Zinc Alloy |
| Outer Contact Plating | Tin (Sn) |
| PCB Retention Type | Solder Tail |
| Max Temperature | 105 °C [ 221 °F ] |
| PCB Retention Plating | Tin |
| Impedance Ω | 100 |
