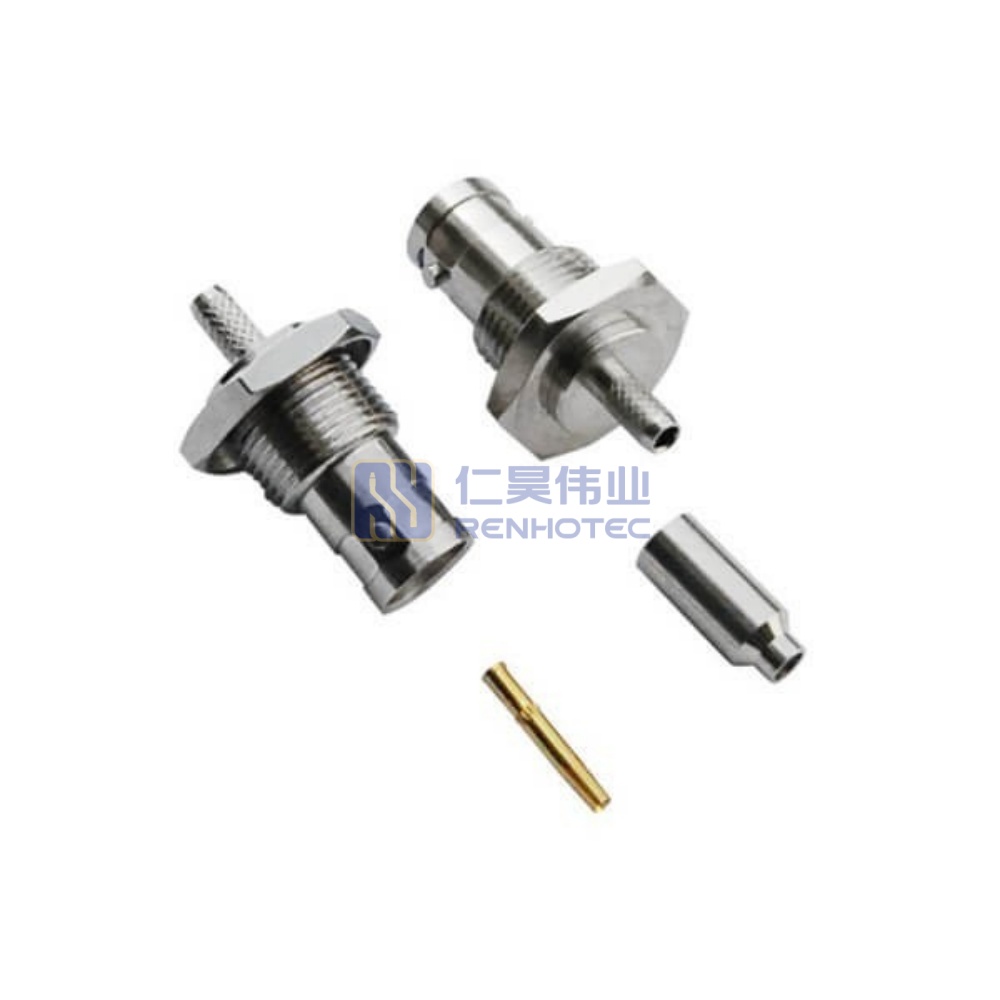

BNC Connector Straight Jack Panel Mount – RHT-610-0067
- Loose connections cause signal loss; this BNC jack mounts firmly on panels.
- Simplifies wiring with solderless, straight connector design.
- Durable construction for long-term RF/AV signal clarity.
- Space-saving mount ideal for tight equipment setups.
- Direct replacement for RHT-610-0067 systems.
Product Specification
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Finish | Gold Plating |
||
| Contact Material | Copper |
||
| Contact Type | Male Pin |
||
| Fastening Type | Bayonet |
||
| Ingress Protection | IP65 |
||
| Insulation Resistance | 5000 Ohms min |
||
| Insulator Material | Teflon White |
||
| Mounting Feature | Bulkhead |
||
| Mounting Type | Cable/Panel Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| RF Series | BNC Type |
||
| Shell Finish | Nickel Plating |
||
| Shell Material | Cooper |
||
| Suitable Cable | RG174 |
||
| Temperature Range | -55°C to +155°C |
||
| VSWR | 1.3MAX |
||
| Working Voltage | 500V rms |
||
| Connector Type | Jack |
Contact Finish | Gold Plating |
| Contact Material | Copper |
Contact Type | Male Pin |
| Fastening Type | Bayonet |
Ingress Protection | IP65 |
| Insulation Resistance | 5000 Ohms min |
Insulator Material | Teflon White |
| Mounting Feature | Bulkhead |
Mounting Type | Cable/Panel Mount |
| Number of Ports | 1 |
Orientation | Straight |
| RF Series | BNC Type |
Shell Finish | Nickel Plating |
| Shell Material | Cooper |
Suitable Cable | RG174 |
| Temperature Range | -55°C to +155°C |
VSWR | 1.3MAX |
| Working Voltage | 500V rms |
| Termination | Crimp |
|---|---|
| Termination | Crimp |
| Connector Type | Jack |
|---|---|
| Contact Finish | Gold Plating |
| Contact Material | Copper |
| Contact Type | Male Pin |
| Fastening Type | Bayonet |
| Frequency(Max） | 4G |
| Ingress Protection | IP65 |
| Insulation Resistance | 5000 Ohms min |
| Insulator Material | Teflon White |
| Mounting Feature | Bulkhead |
| Mounting Type | Cable/Panel Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| RF Series | BNC Type |
| Shell Finish | Nickel Plating |
| Shell Material | Cooper |
| Suitable Cable | RG174 |
| Temperature Range | -55°C to +155°C |
| Termination | Crimp |
| VSWR | 1.3MAX |
| Working Voltage | 500V rms |
Drawing for BNC Connector Straight Jack Panel MountDownload
