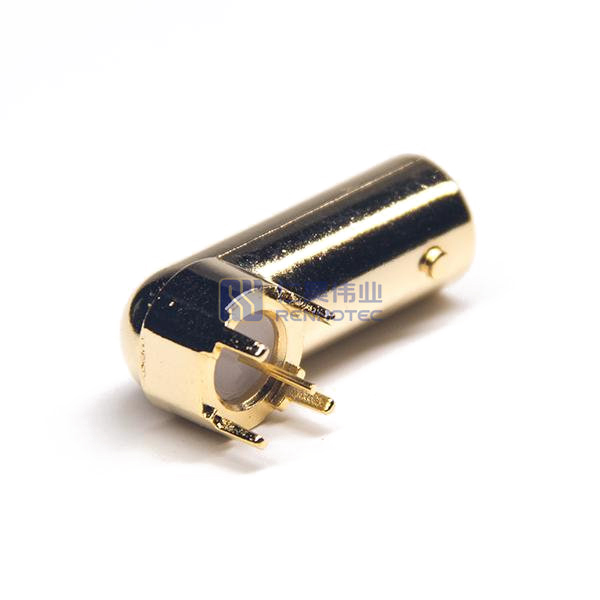

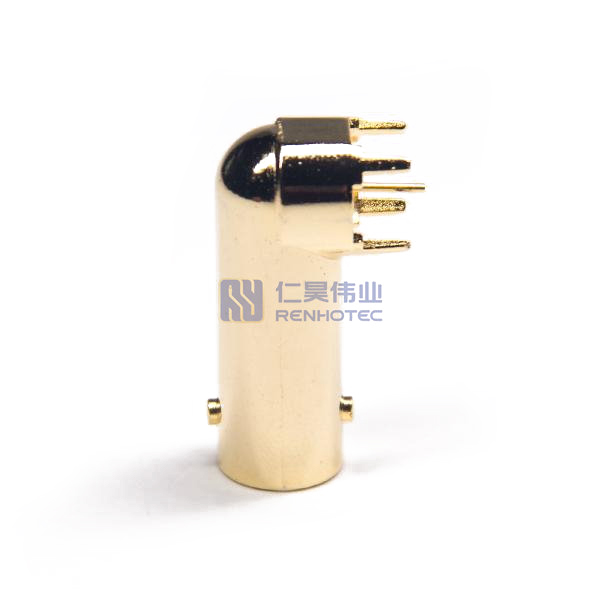

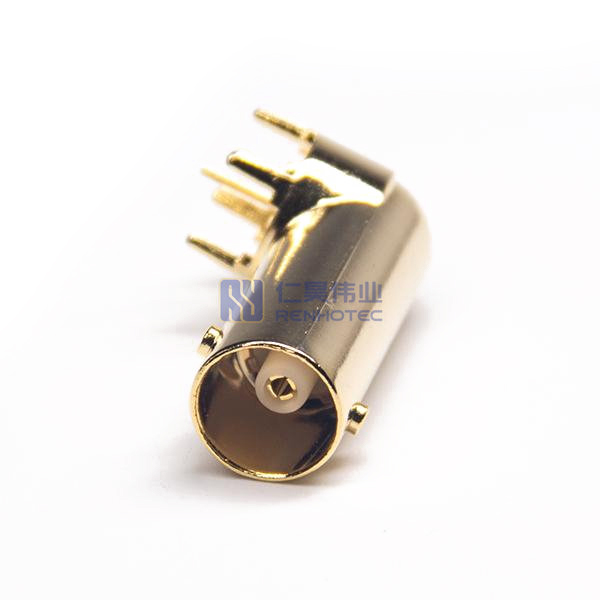

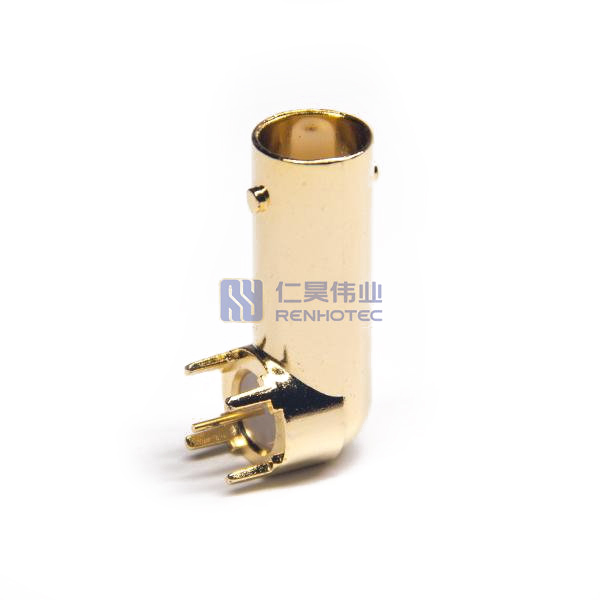

BNC Connector R/A PCB Mount BNC Jack Gold Plated 75 ohm

SKU: DOSIN-801-0051-G Category:

Introduction

  • Bayonet coupling mechanism provides positive, quick mating and un-mating
  • 50 and 75 ohm impedance designs allow customers to match impedance to system requirements
  • Connectors are available for military, industrial, and commercial applications
  • Designs available for many common BNC coaxial cable types
  • BNC female and male configurations

The BNC connector (an initialism of Bayonet Neill CConcelman) is a miniature quick connect/disconnect radio frequency connector. BNC connectors are most commonly made in 50 and 75 ohm versions. Matched for use with cables of the same characteristic impedance.

BNC RF connectors isolate the video input signal, reducing mutual interference between signals and increasing signal bandwidth to get the best signal response. Because the coaxial cable is a shielded cable with the advantages of long transmission distance and signal stability. BNC RF Connectors are now also used in a large number of communication systems.

Application Scenarios

Product Specification

RF Series

BNC Type

Connector Type

Jack

Contact Type

Female Pin

Orientation

Right Angle

Fastening Type

Bayonet

Number of Ports

1

Mounting Type

Panel Mount

Mounting Feature

Through Hole

Insulator Material

Teflon White

Shell Material

Zinc Alloy

Shell Finish

Gold Plated

Contact Material

Copper Alloy

Contact Finish

Gold Plated

Impedance

75 ohm

Frequency Range

0~4 GHz for 50 ohm

VSWR

R/A type ≦ 1.30/3GHz, Straight type ≦ 1.22/3GHz

Dielectric Withstanding Voltage

1500 V rms

Working Voltage

500 V rms

Center Contact Resistance

≦ 1.5 MΩ (Milliohms Max.)

Outer Contact Resistance

≦ 2.0 MΩ (Milliohms Max.)

Insultation Resistance

≧ 5 × 10³ MΩ (Milliohms min.)

Mating Durability

≥ 500 Cycles

Environmental Characteristics

POM -40℃~+60℃, Teflon -55℃~+155℃
