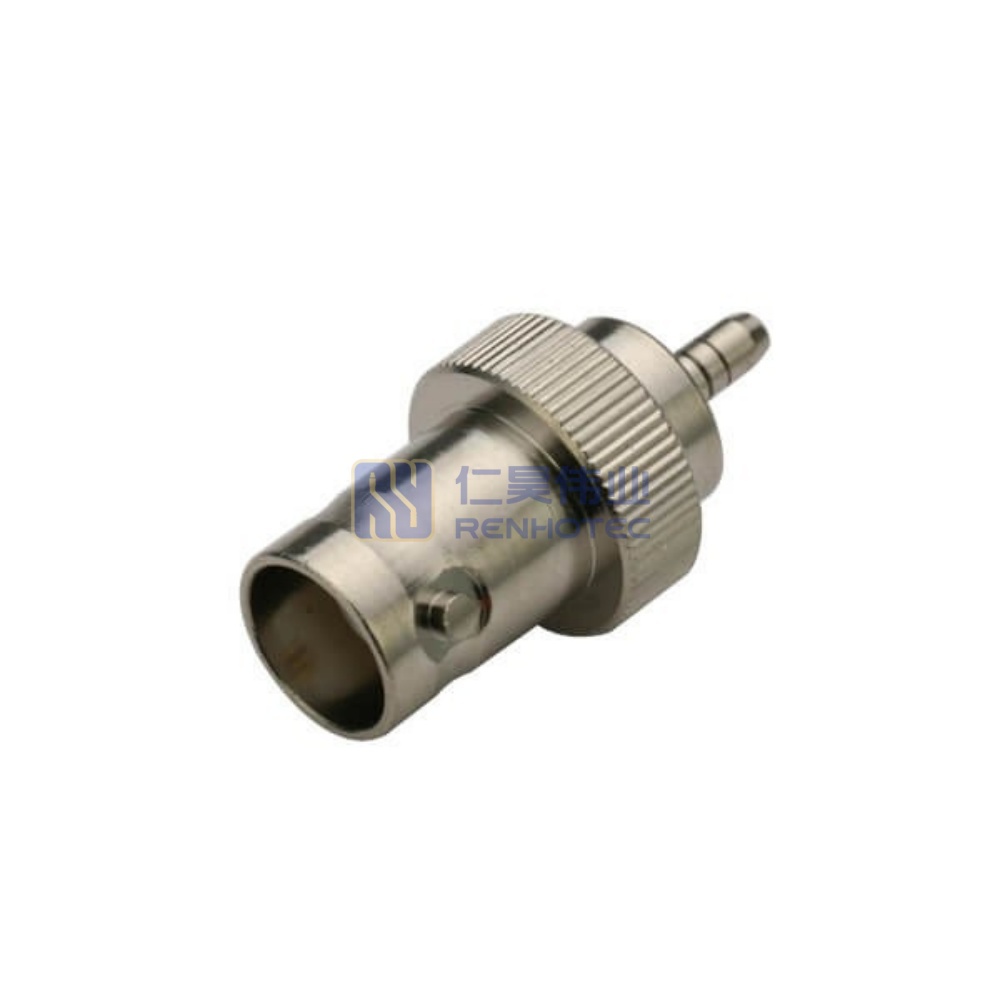

BNC Connector Straight Jack Cable Mount Crimp – RHT-610-0210
- BNC jack connector for secure cable connections
- Straight design simplifies mounting on cables
- Crimp-style attachment for fast, sturdy assembly
- Ideal for TV, radio, and data transmission needs
- Compatible with RG-type coaxial cables
| Body Material | Cooper |
||
|---|---|---|---|
| Connector Style | BNC Connector |
||
| Termination | Crimp |
||
| Body Material | Cooper |
Connector Style | BNC Connector |
| Termination | Crimp |
Product Specification
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Finish | Gold Plating |
||
| Contact Material | Copper |
||
| Contact Type | Female Pin |
||
| Fastening Type | Bayonet |
||
| Ingress Protection | IP65 |
||
| Insulation Resistance | 5000 MΩ |
||
| Insulator Material | Teflon White |
||
| Mounting Type | Cable Mount |
||
| Number of Ports | 1 |
||
| Orientation | Straight |
||
| Shell Finish | Nickel Plating |
||
| Suitable Cable | RG178 |
||
| Temperature Range | -55°C to +155°C |
||
| VSWR | 1.35 to 4000 MHZ |
||
| Working Voltage | 500V rms |
||
| Connector Type | Jack |
Contact Finish | Gold Plating |
| Contact Material | Copper |
Contact Type | Female Pin |
| Fastening Type | Bayonet |
Ingress Protection | IP65 |
| Insulation Resistance | 5000 MΩ |
Insulator Material | Teflon White |
| Mounting Type | Cable Mount |
Number of Ports | 1 |
| Orientation | Straight |
Shell Finish | Nickel Plating |
| Suitable Cable | RG178 |
Temperature Range | -55°C to +155°C |
| VSWR | 1.35 to 4000 MHZ |
Working Voltage | 500V rms |
| Body Material | Cooper |
|---|---|
| Connector Style | BNC Connector |
| Connector Type | Jack |
| Contact Finish | Gold Plating |
| Contact Material | Copper |
| Contact Type | Female Pin |
| Fastening Type | Bayonet |
| Frequency(Max） | 4G |
| Ingress Protection | IP65 |
| Insulation Resistance | 5000 MΩ |
| Insulator Material | Teflon White |
| Mounting Type | Cable Mount |
| Number of Ports | 1 |
| Orientation | Straight |
| Shell Finish | Nickel Plating |
| Suitable Cable | RG178 |
| Temperature Range | -55°C to +155°C |
| Termination | Crimp |
| VSWR | 1.35 to 4000 MHZ |
| Working Voltage | 500V rms |
Drawing for BNC Connector Straight Jack Cable Mount CrimpDownload
