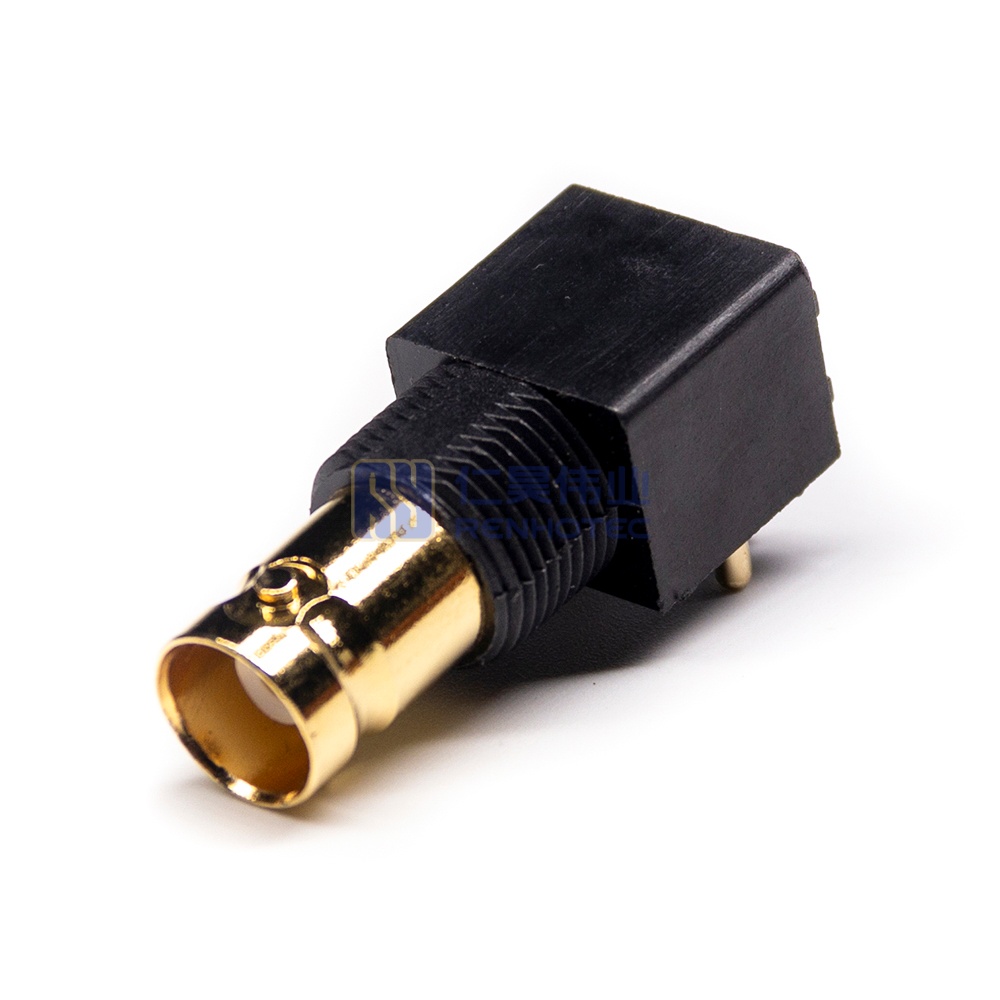

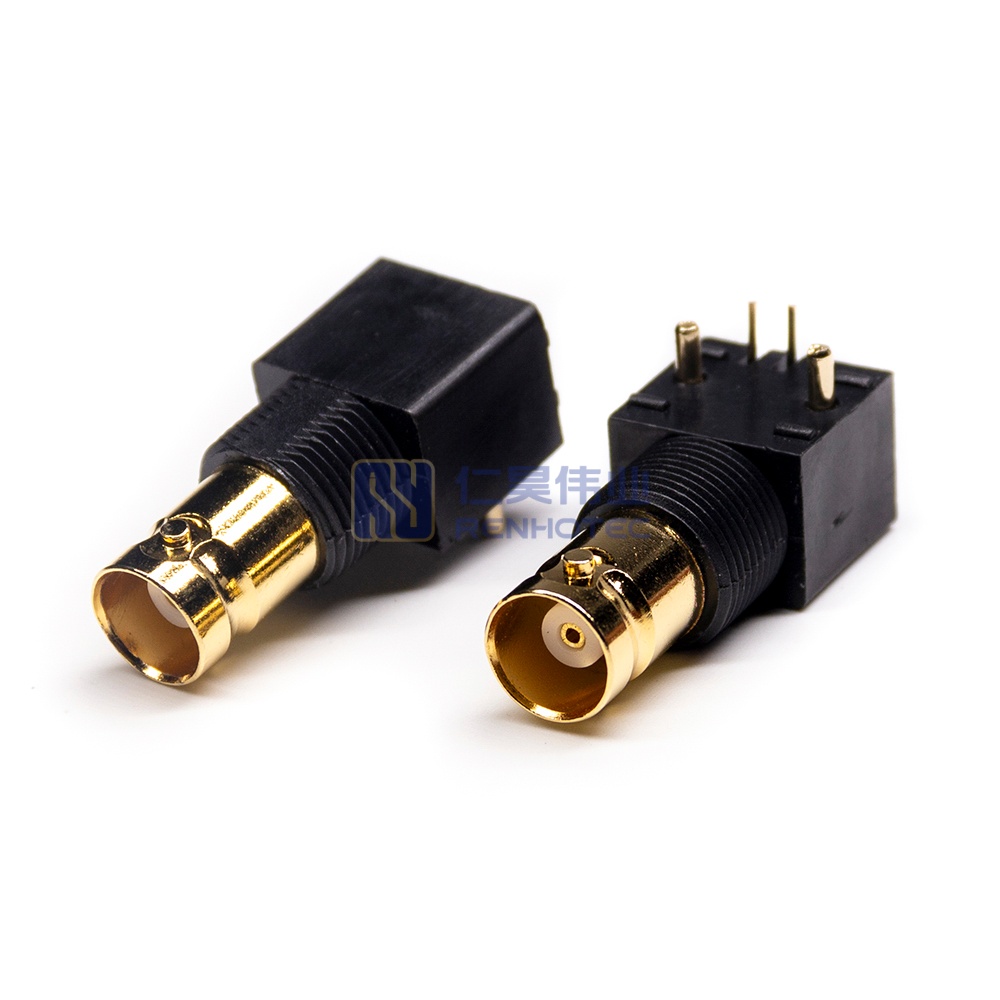

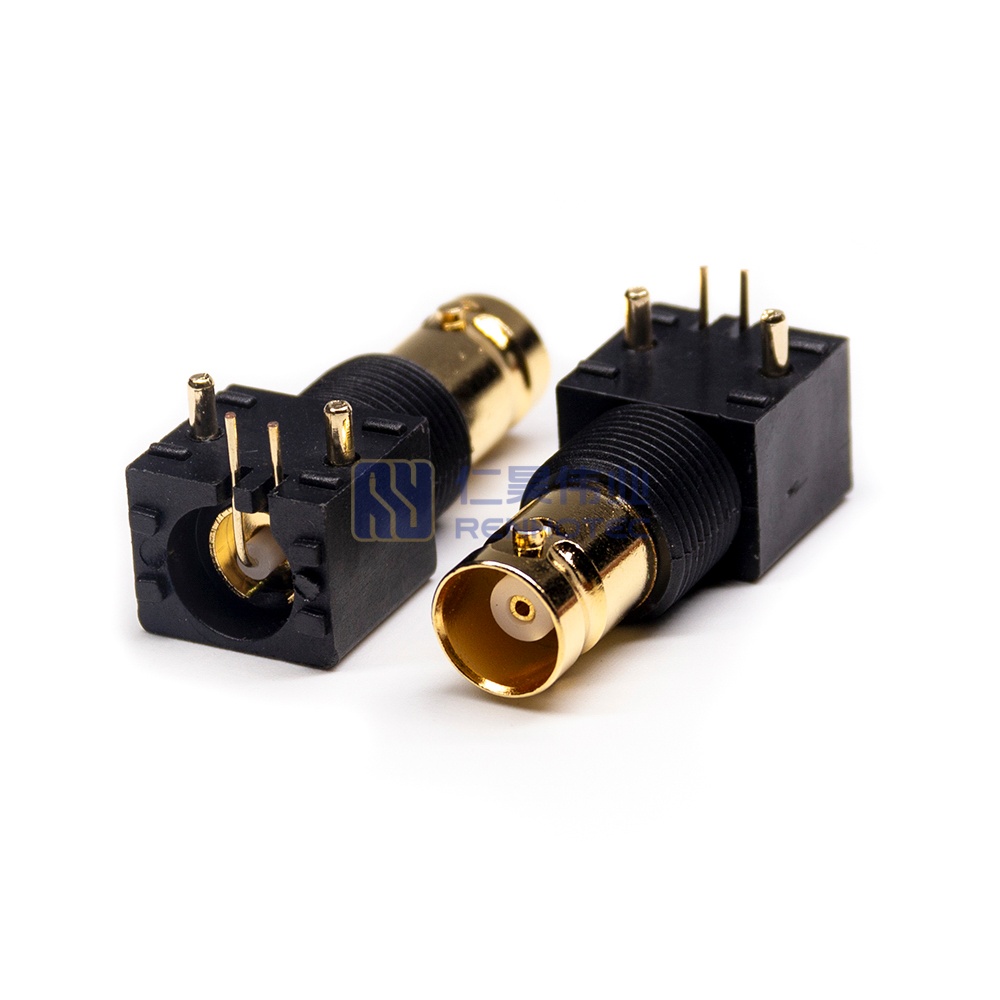

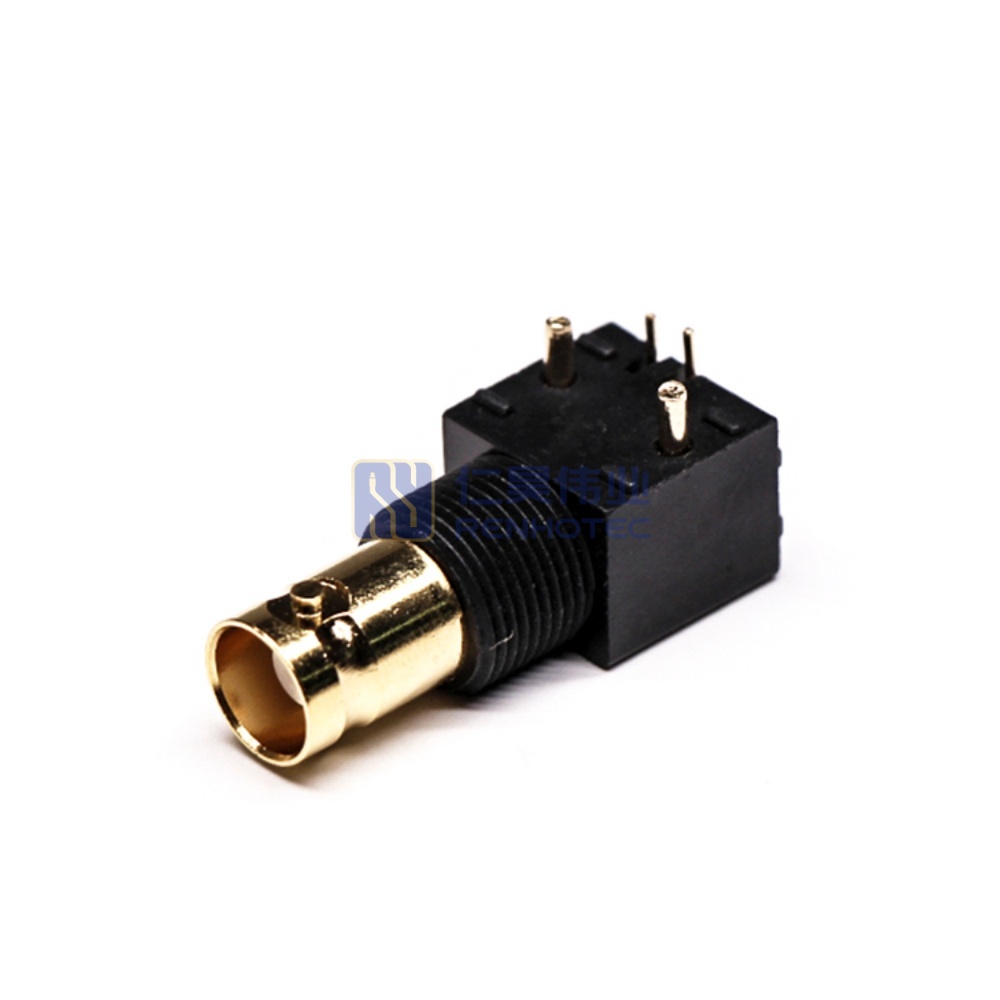

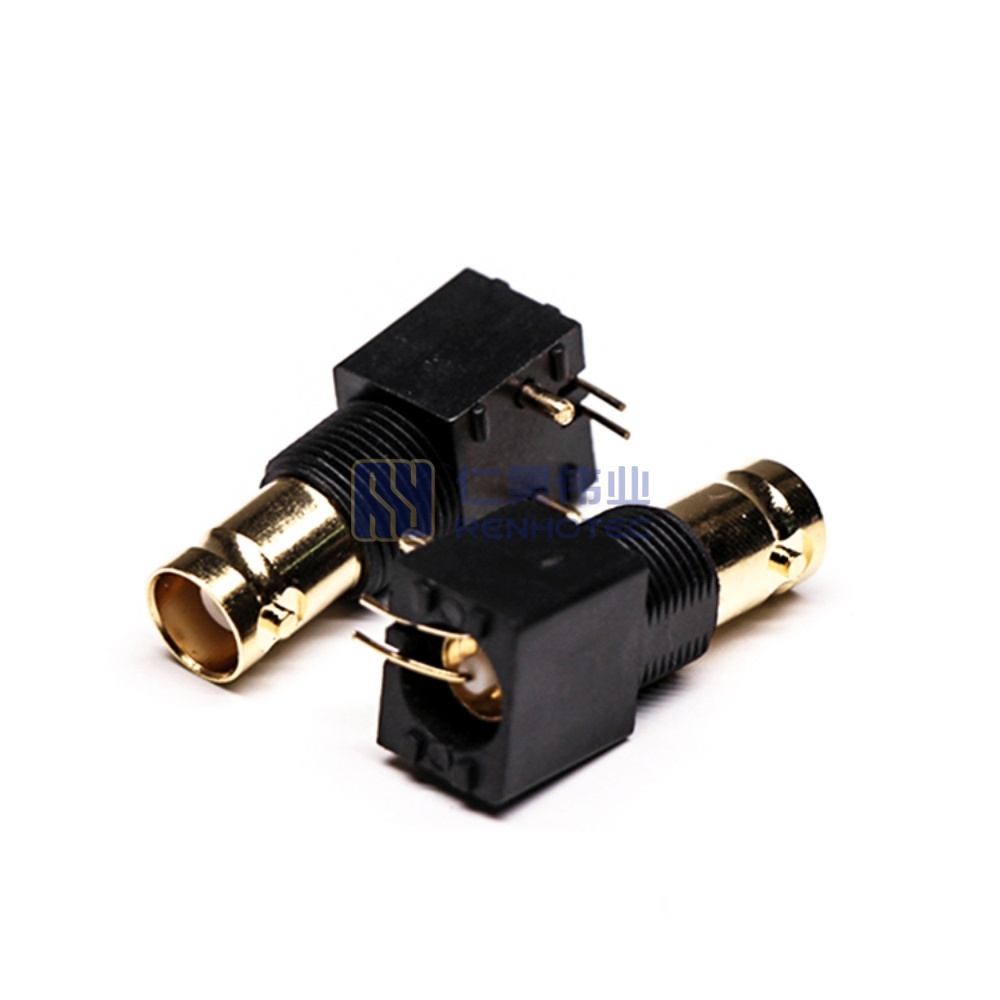

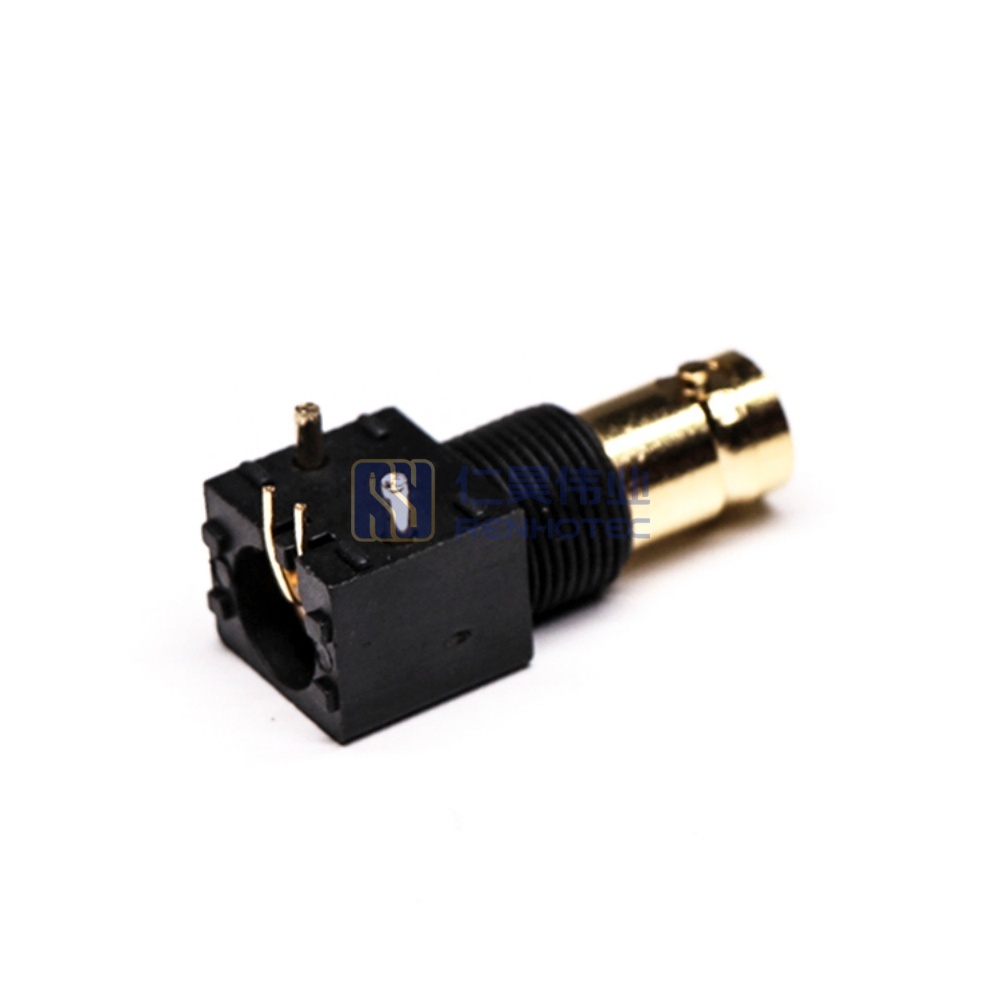

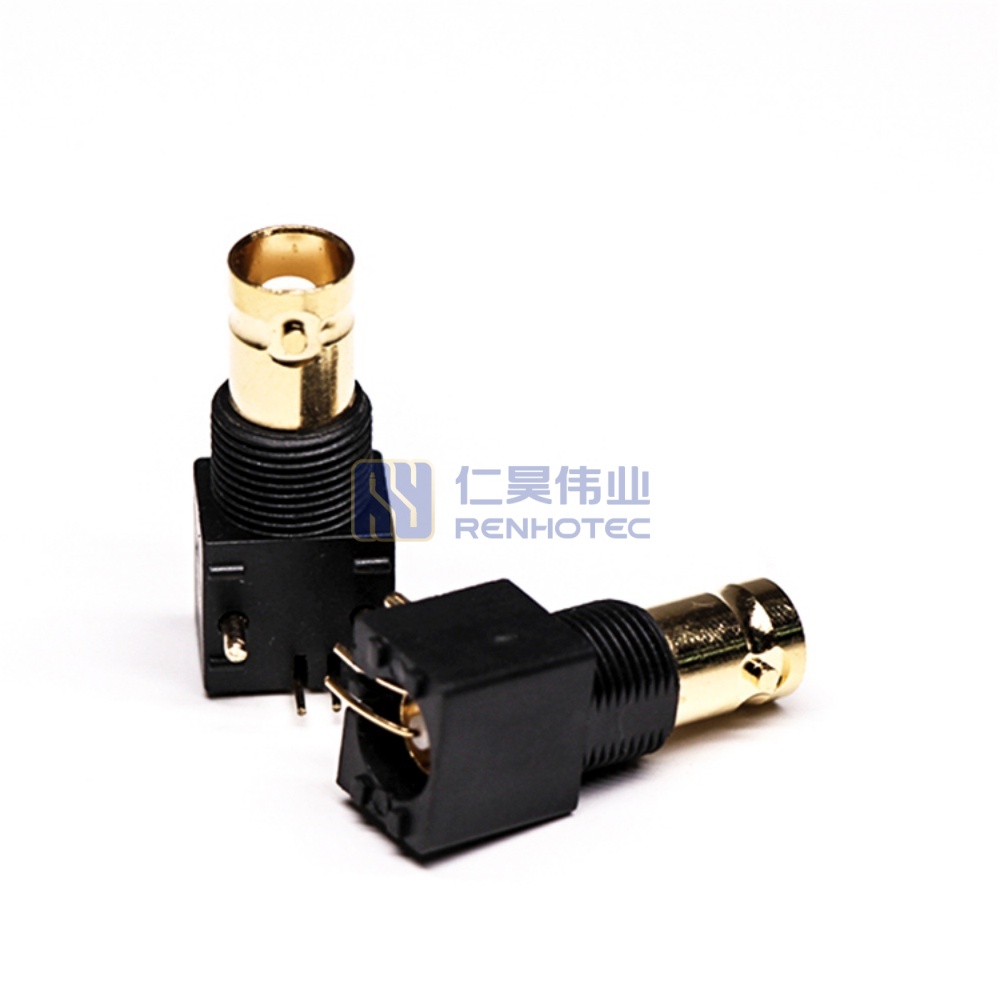

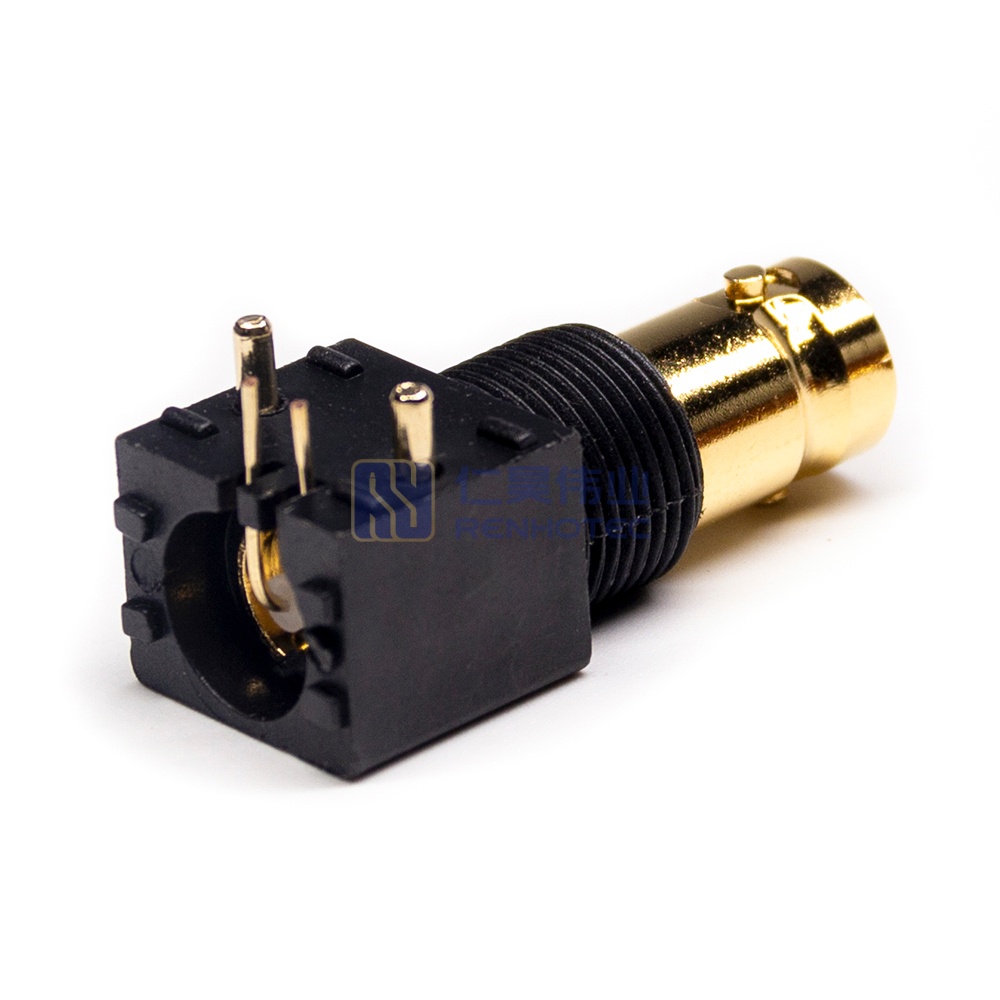

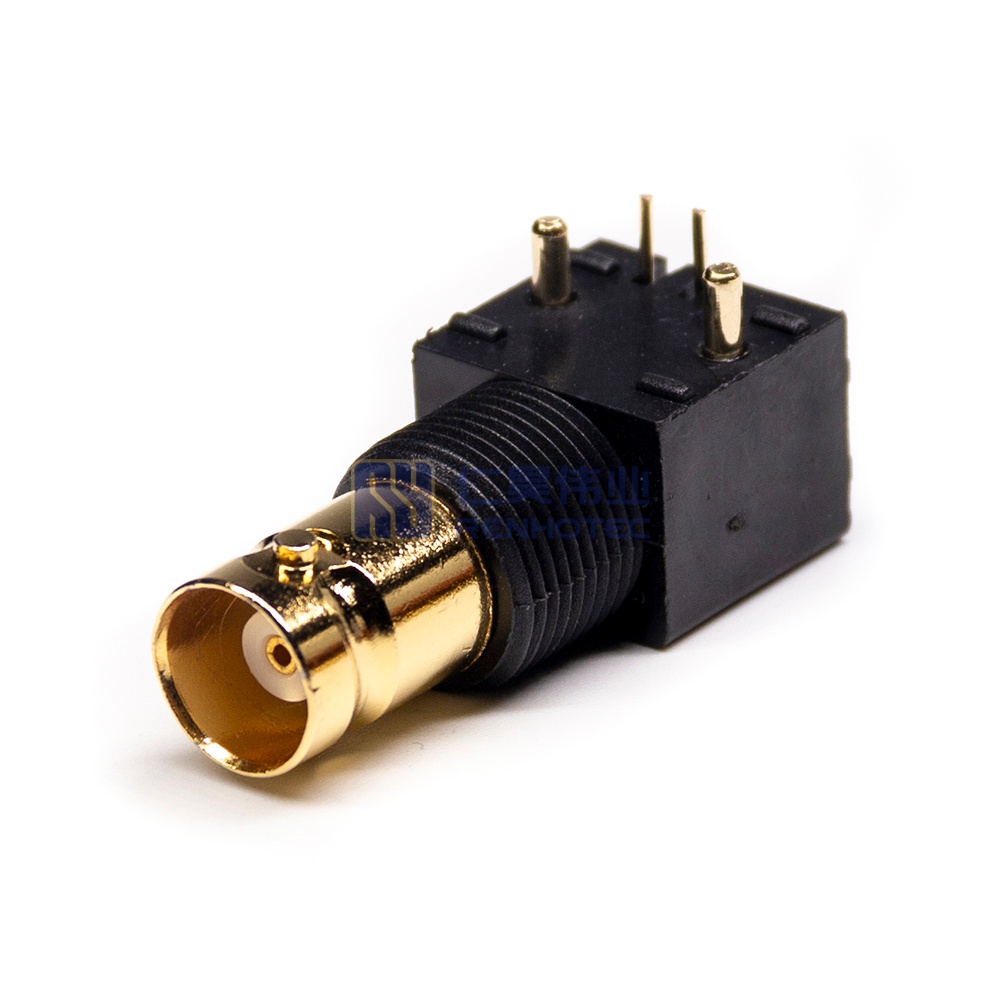

BNC Connector Right Angle Jack Panel Mount Through Hole – RHT-610-1041
- Right angle BNC jack for tight-space panel mounting
- Through-hole design offers secure, stable installation
- Solves cable strain issues in crowded setups
- Maintains signal integrity in RF applications
- Ideal for compact enclosures and test equipment
| Body Material | Zinc Alloy+Plastic Shell |
||
|---|---|---|---|
| Connector Style | BNC Connector |
||
| Mount Feature | Bulkhead/Through Hole |
||
| Termination | Through Hole |
||
| Body Material | Zinc Alloy+Plastic Shell |
Connector Style | BNC Connector |
| Mount Feature | Bulkhead/Through Hole |
Termination | Through Hole |
Product Specification
| Connector Type | Jack |
||
|---|---|---|---|
| Contact Finish | Gold Plating |
||
| Contact Material | Copper |
||
| Contact Type | Female Pin |
||
| Fastening Type | Bayonet |
||
| Impedance | 50ohm |
||
| Ingress Protection | IP65 |
||
| Insulator Material | Teflon White |
||
| Mounting Type | Panel Mount |
||
| Number of Ports | 1 |
||
| Orientation | Right Angle |
||
| Shell Finish | Gold Plating |
||
| Temperature Range | -40°C to +140°C |
||
| Connector Type | Jack |
Contact Finish | Gold Plating |
| Contact Material | Copper |
Contact Type | Female Pin |
| Fastening Type | Bayonet |
Impedance | 50ohm |
| Ingress Protection | IP65 |
Insulator Material | Teflon White |
| Mounting Type | Panel Mount |
Number of Ports | 1 |
| Orientation | Right Angle |
Shell Finish | Gold Plating |
| Temperature Range | -40°C to +140°C |
| Body Material | Zinc Alloy+Plastic Shell |
|---|---|
| Connector Style | BNC Connector |
| Connector Type | Jack |
| Contact Finish | Gold Plating |
| Contact Material | Copper |
| Contact Type | Female Pin |
| Fastening Type | Bayonet |
| Frequency(Max） | 4G |
| Impedance | 50ohm |
| Ingress Protection | IP65 |
| Insulator Material | Teflon White |
| Mount Feature | Bulkhead/Through Hole |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Shell Finish | Gold Plating |
| Temperature Range | -40°C to +140°C |
| Termination | Through Hole |
Drawing for BNC Connector Right Angle Jack Panel Mount Through HoleDownload
