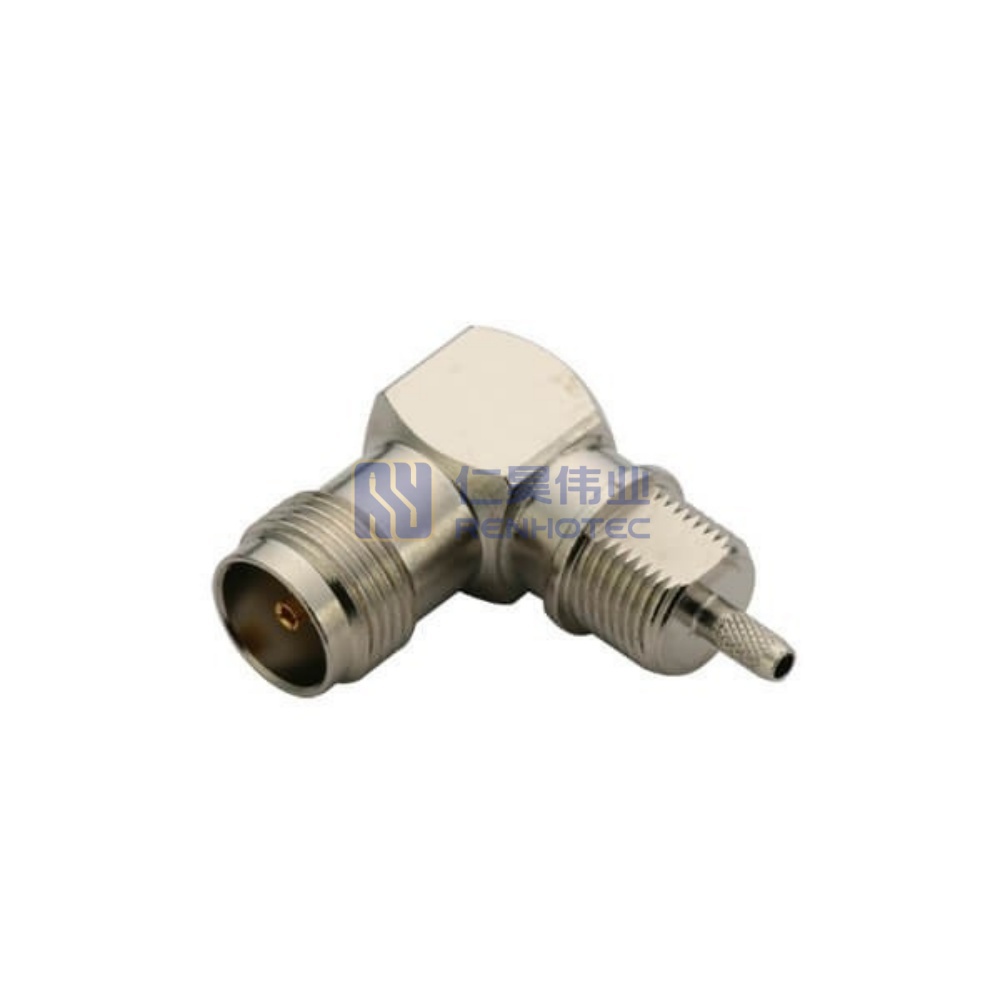

90 Degree TNC connector Jack Crimp Type for Cable RG316 – RHT-615-0216
Product Specification
| RF Series | TNC Type |
||
|---|---|---|---|
| Cable Type | RG316 |
||
| Contact Type | Female Pin |
||
| Connector Type | Jack |
||
| Fastening Type | Threaded |
||
| Insulation Resistance | 5000MΩ Min |
||
| Frequency Range | DC-6G |
||
| Impedance | 50 ohm |
||
| Mounting Feature | Bulkhead |
||
| Mounting Type | Cable Mount |
||
| Number of Ports | 1 |
||
| Orientation | Right Angle |
||
| Shell Material | Brass |
||
| Shell Finish | Nickel Plated |
||
| Shield Termination | Crimp |
||
| Contact Material | Brass |
||
| Contact Finish | Nickel Plated |
||
| Insulator Material | PTFE |
||
| Temperature Range | -55°C to +165°C |
||
| VSWR | 1.5MAX |
||
| Working Voltage | 170V rms |
||
| RF Series | TNC Type |
Cable Type | RG316 |
| Contact Type | Female Pin |
Connector Type | Jack |
| Fastening Type | Threaded |
Insulation Resistance | 5000MΩ Min |
| Frequency Range | DC-6G |
Impedance | 50 ohm |
| Mounting Feature | Bulkhead |
Mounting Type | Cable Mount |
| Number of Ports | 1 |
Orientation | Right Angle |
| Shell Material | Brass |
Shell Finish | Nickel Plated |
| Shield Termination | Crimp |
Contact Material | Brass |
| Contact Finish | Nickel Plated |
Insulator Material | PTFE |
| Temperature Range | -55°C to +165°C |
VSWR | 1.5MAX |
| Working Voltage | 170V rms |
| Polarity | Standard |
|---|---|
| Polarity | Standard |
| RF Series | TNC Type |
|---|---|
| Cable Type | RG316 |
| Polarity | Standard |
| Contact Type | Female Pin |
| Connector Type | Jack |
| Fastening Type | Threaded |
| Insulation Resistance | 5000MΩ Min |
| Frequency Range | DC-6G |
| Impedance | 50 ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Cable Mount |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Shell Material | Brass |
| Shell Finish | Nickel Plated |
| Shield Termination | Crimp |
| Contact Material | Brass |
| Contact Finish | Nickel Plated |
| Insulator Material | PTFE |
| Temperature Range | -55°C to +165°C |
| VSWR | 1.5MAX |
| Working Voltage | 170V rms |
Drawing for 90 Degree TNC connector Jack Crimp Type for Cable RG316Download
