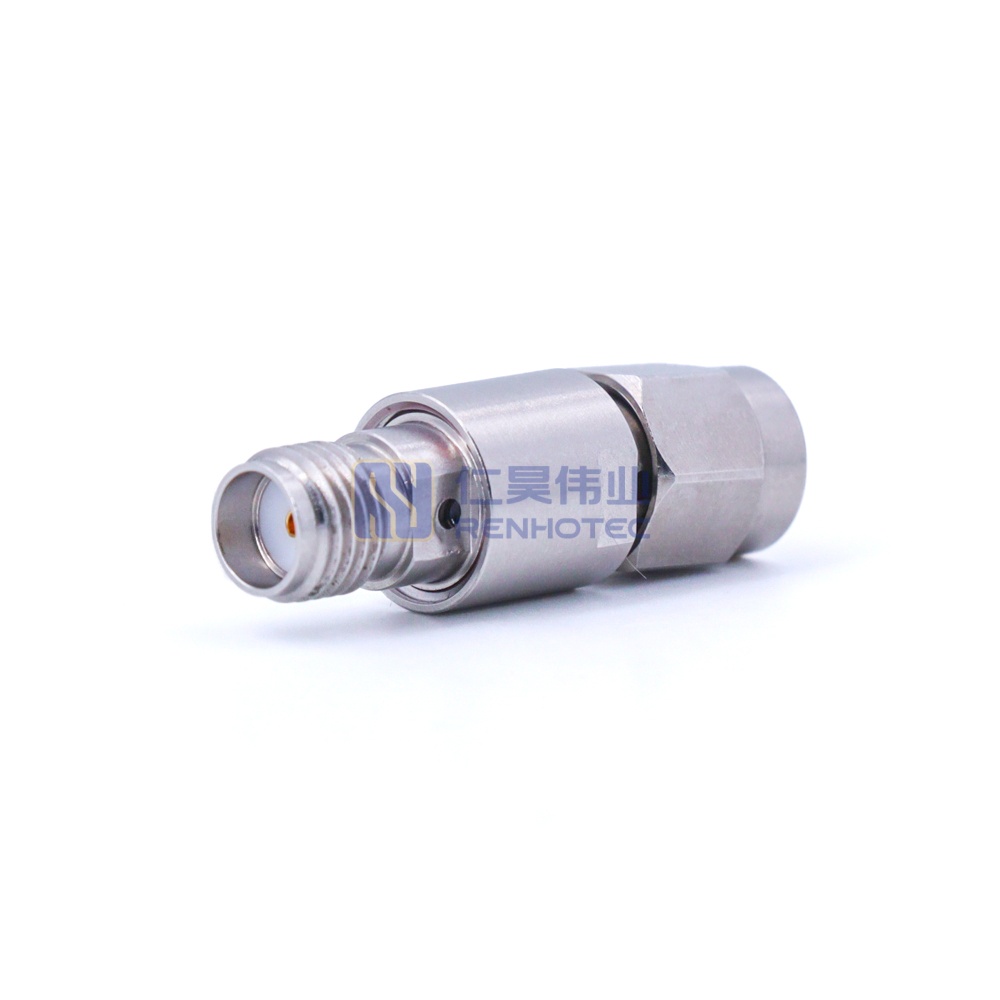

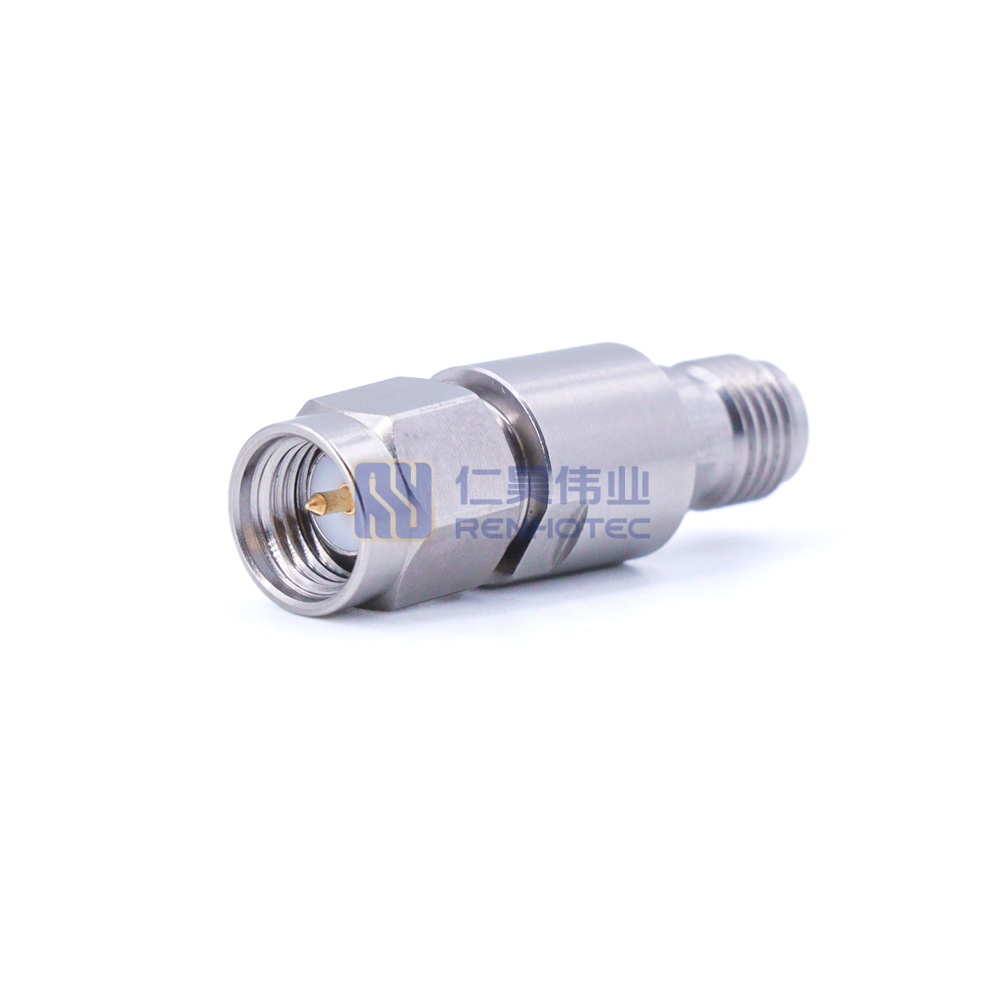

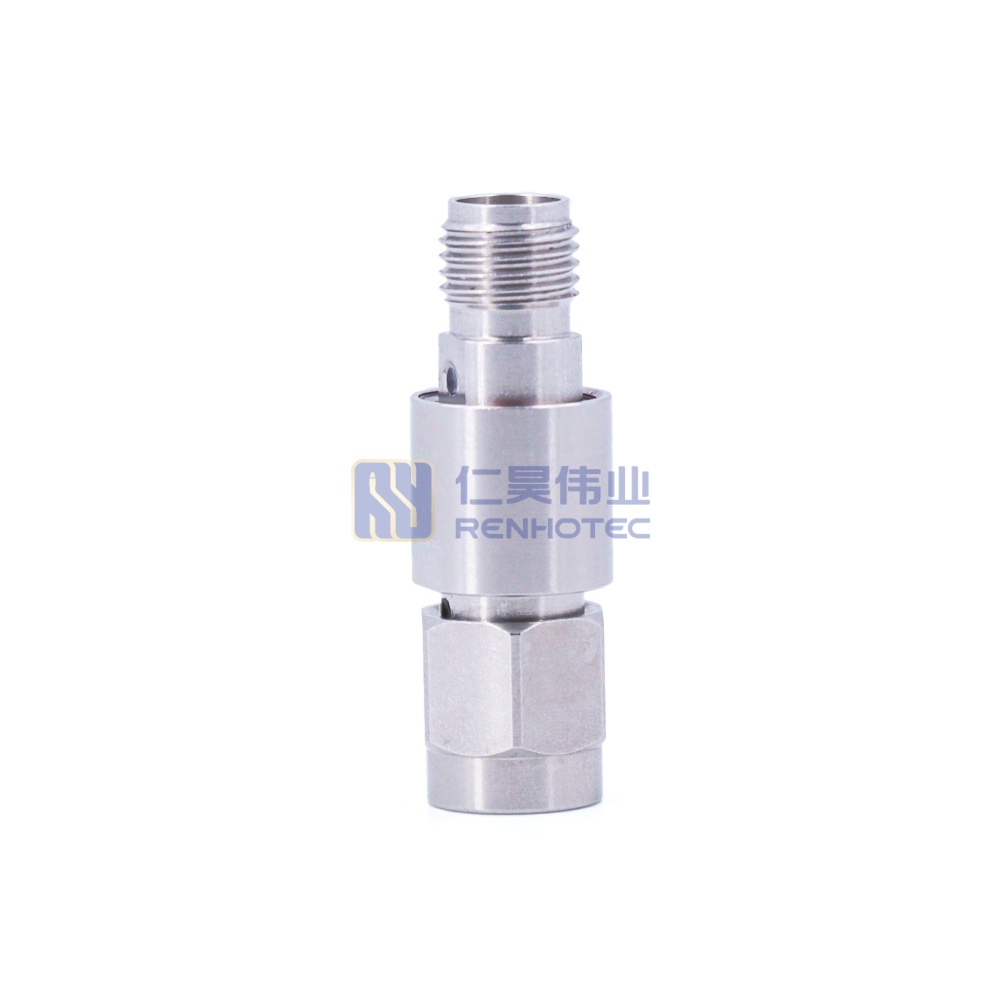

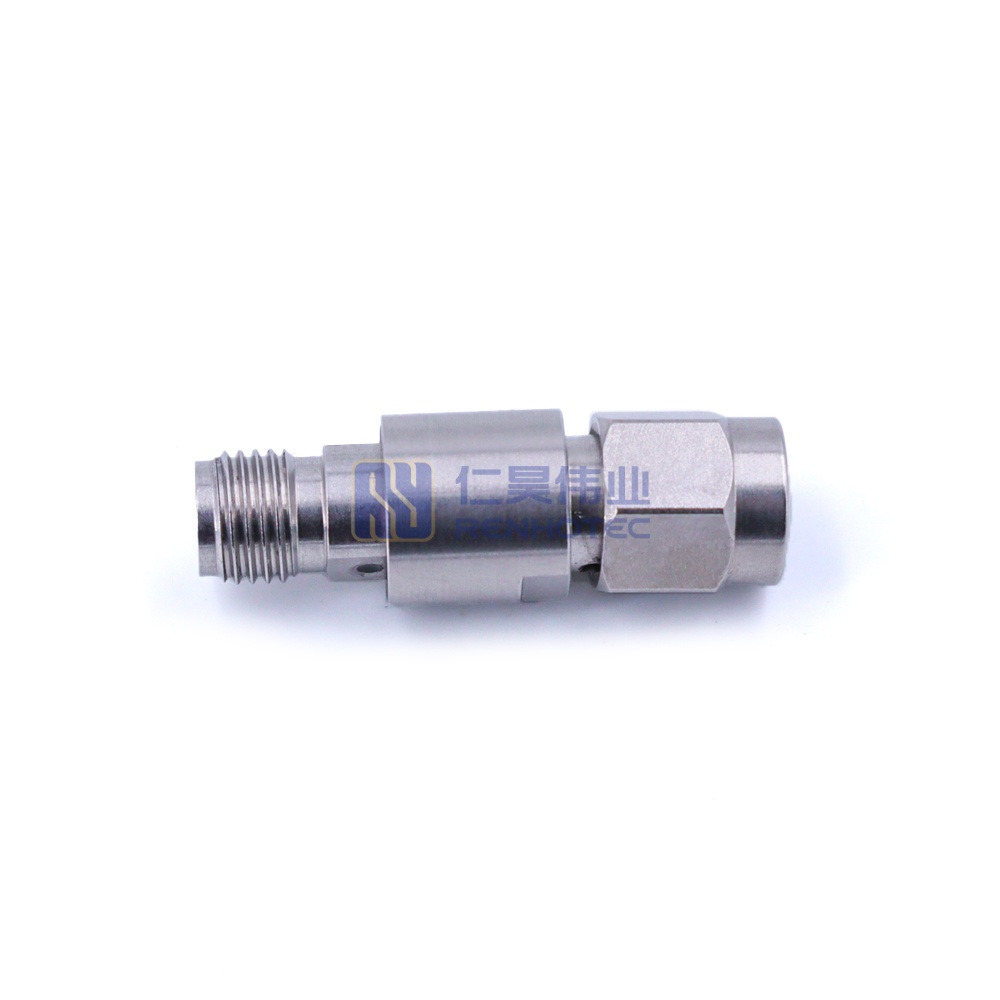

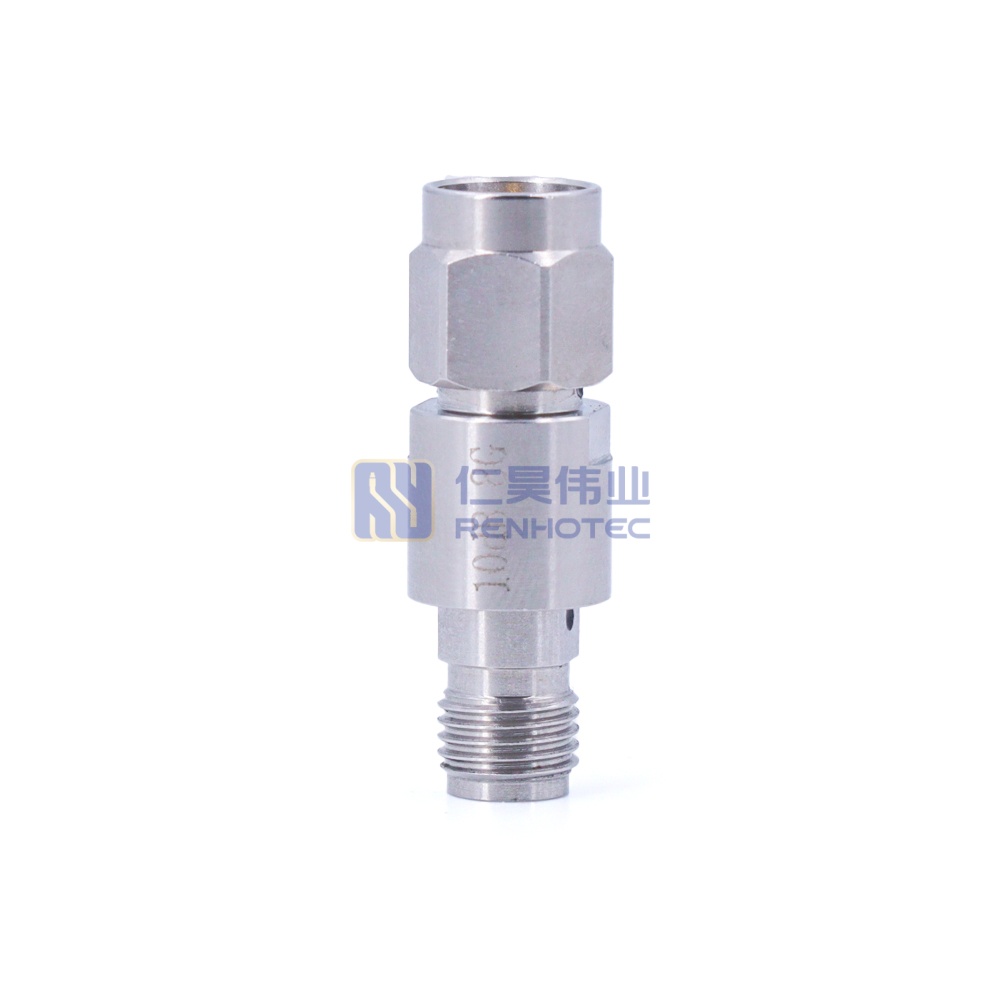

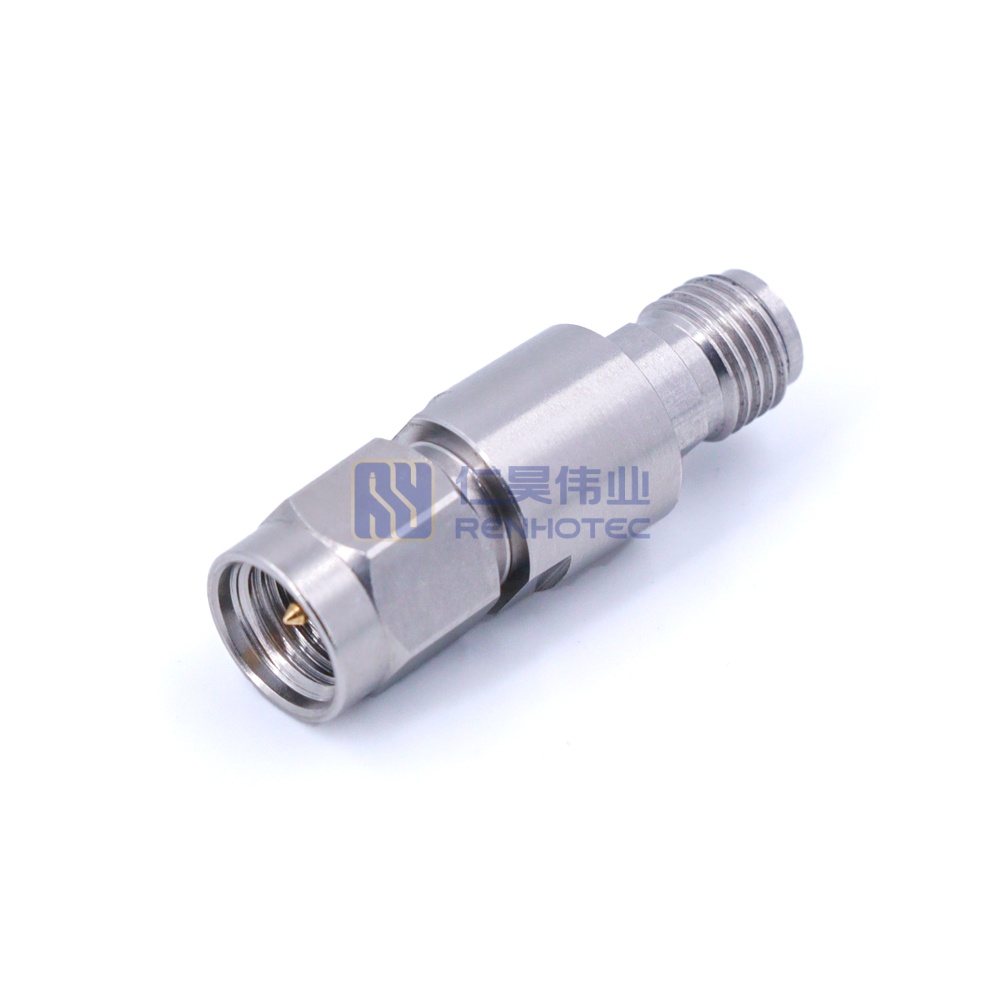

2W SMA RF Coaxial Attenuator 10dB DC-8 GHz
Product Specification
| 1st Connector | SMA Male |
||
|---|---|---|---|
| 2nd Connector | SMA Female |
||
| Frequency Range | DC-8 GHz |
||
| VSWR | 1.3 (max) |
||
| Impedance | 50 Ω |
||
| 1st Connector | SMA Male |
2nd Connector | SMA Female |
| Frequency Range | DC-8 GHz |
VSWR | 1.3 (max) |
| Impedance | 50 Ω |
| External Conductor Material | Passivation, Stainless steel |
||
|---|---|---|---|
| Inner Conductor Material | Beryllium bronze, Gold Plating |
||
| Insulator | PTFE |
||
| Attenuation Values | 10dB |
||
| Average Power | 2W |
||
| Operation Temperature | -55℃ ~ +125℃ |
||
| Withstanding Voltage | 1000V |
||
| Service Life | ≥500 |
||
| External Conductor Material | Passivation, Stainless steel |
Inner Conductor Material | Beryllium bronze, Gold Plating |
| Insulator | PTFE |
Attenuation Values | 10dB |
| Average Power | 2W |
Operation Temperature | -55℃ ~ +125℃ |
| Withstanding Voltage | 1000V |
Service Life | ≥500 |
| 1st Connector | SMA Male |
|---|---|
| 2nd Connector | SMA Female |
| External Conductor Material | Passivation, Stainless steel |
| Inner Conductor Material | Beryllium bronze, Gold Plating |
| Insulator | PTFE |
| Frequency Range | DC-8 GHz |
| Attenuation Values | 10dB |
| Average Power | 2W |
| VSWR | 1.3 (max) |
| Impedance | 50 Ω |
| Operation Temperature | -55℃ ~ +125℃ |
| Withstanding Voltage | 1000V |
| Service Life | ≥500 |
