SKU: RHT-5W-N-JK-3G-5DB-CPTA Category:

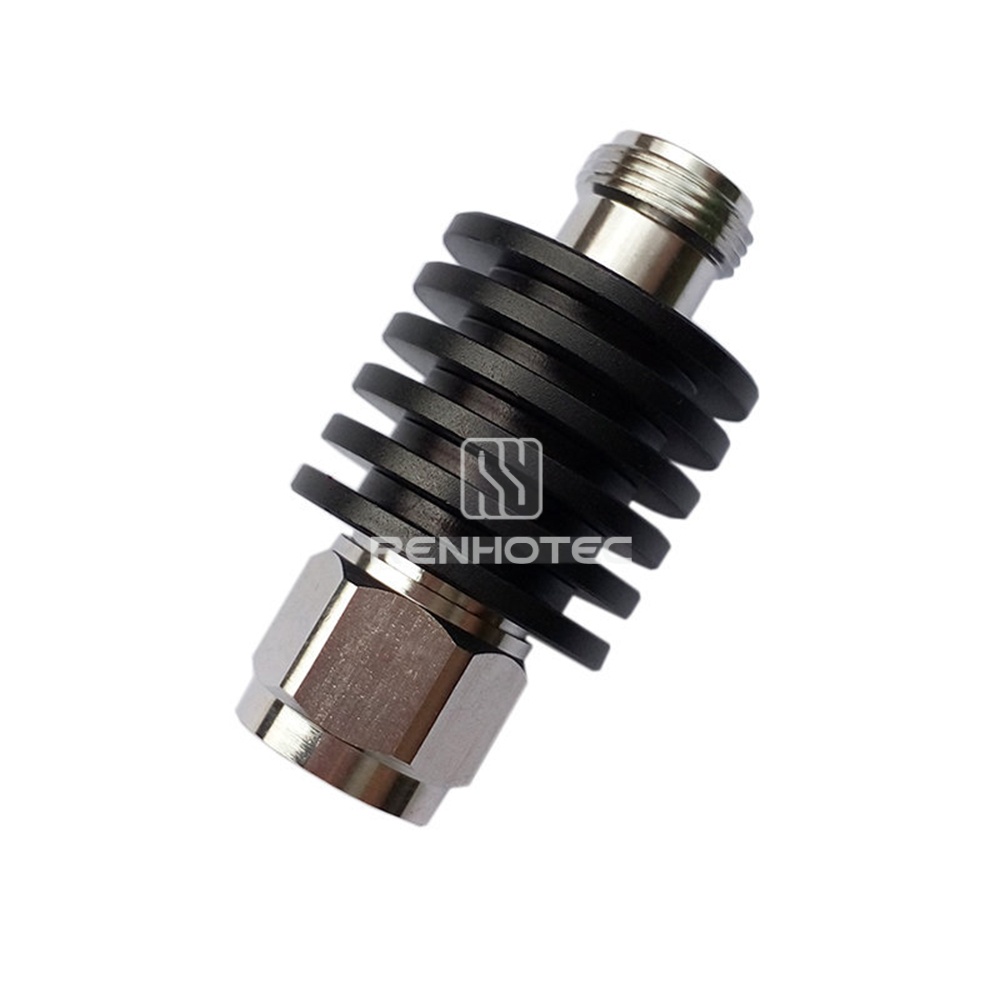

5W N-JK Male to Female Fixed RF Coaxial Attenuation Frequency DC-3GHz 5DB

Weight

81g

Attenuation Value

5DB

Protection Degree

IP20

Max Input Power

5W

Weight

81g

Attenuation Value

5DB

Protection Degree

IP20

Max Input Power

5W

Product Specification

Contact Material

Stainless Steel

Connector Type

Radio Frequency Coaxial (RF)

Adapter Style

N to N

1st Connector

N Plug

2nd Connector

N Jack

VSWR

≤1.2

Mounting Type

Threaded

Impedance

50Ω

Operating Temperature

-55℃~+125℃

Contact Material

Stainless Steel

Connector Type

Radio Frequency Coaxial (RF)

Adapter Style

N to N

1st Connector

N Plug

2nd Connector

N Jack

VSWR

≤1.2

Mounting Type

Threaded

Impedance

50Ω

Operating Temperature

-55℃~+125℃

Weight

81g

Contact Material

Stainless Steel

Connector Type

Radio Frequency Coaxial (RF)

Adapter Style

N to N

1st Connector

N Plug

2nd Connector

N Jack

Attenuation Value

5DB

VSWR

≤1.2

Mounting Type

Threaded

Protection Degree

IP20

Working Frequency 文本

DC-3GHz

Impedance

50Ω

Max Input Power

5W

Operating Temperature

-55℃~+125℃
